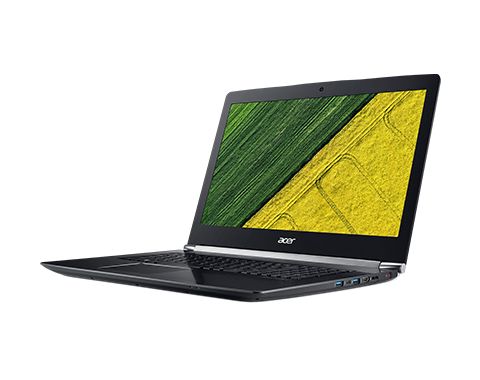

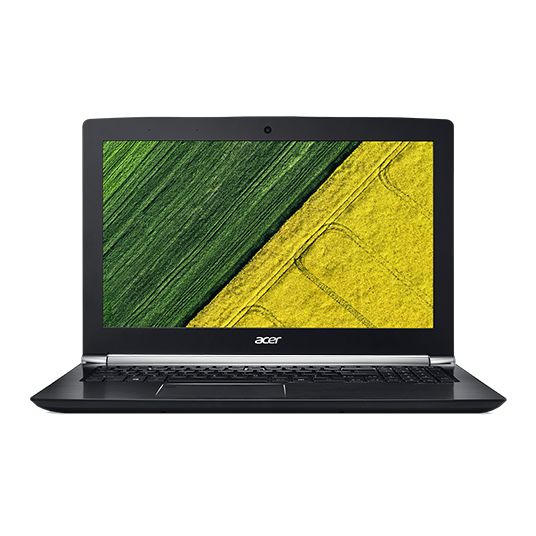

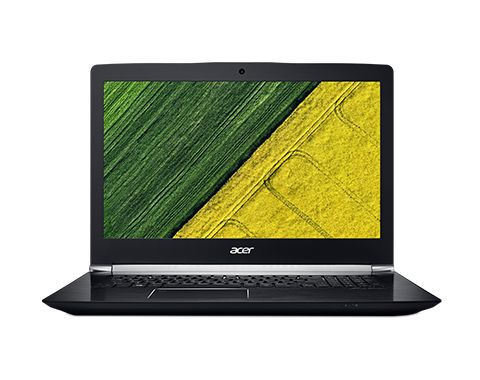

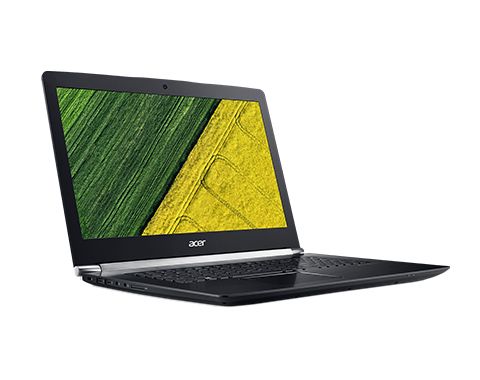

ACER Aspire VN7-793G-77A5 RAM upgrade specifications
The ACER Aspire V Nitro VN7-793G-77A5 features DDR4-SDRAM memory with 2x SO-DIMM slots, supporting a maximum RAM capacity of 32 GB. Upgrade specifications indicate compatible memory modules operate at 2400 MHz frequency. The laptop's memory architecture accommodates SO-DIMM form factor upgrades, allowing users to enhance system performance by increasing installed RAM capacity within the maximum specifications.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2400 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2400 (PC4-19200) |
| Bandwidth | 19.2 GB/s |
| Laptop Release date | 10 October 2017 |
Additional Notes
- Dual-channel memory architecture requires matching modules in both slots to maximize memory controller bandwidth.
- Internal motherboard layout necessitates the removal of the chassis base plate and potentially the cooling solution for component access.
- Bios firmware limits memory frequency to 2400 MHz even if higher clocked 2666 MHz or 3200 MHz modules are installed.
- The 32 GB threshold represents the maximum addressable density supported by the HM175 chipset architecture.
- Installation of non-ECC unbuffered modules is mandatory as the system lacks support for registered or error-correcting memory types.
- Higher density 16 GB modules must be double-sided to ensure compatibility with the existing memory controller rank requirements.
- Voltage requirements are fixed at 1.2V meaning low voltage DDR4L variants are necessary for operational stability.
- Mixing different CAS latencies across the 2 slots forces the system to default to the timing parameters of the slowest module.
- Physical space within the slim V Nitro chassis prevents the use of modules equipped with tall heat spreaders.
