ASUS ROG G614JV-ES94 RAM upgrade specifications

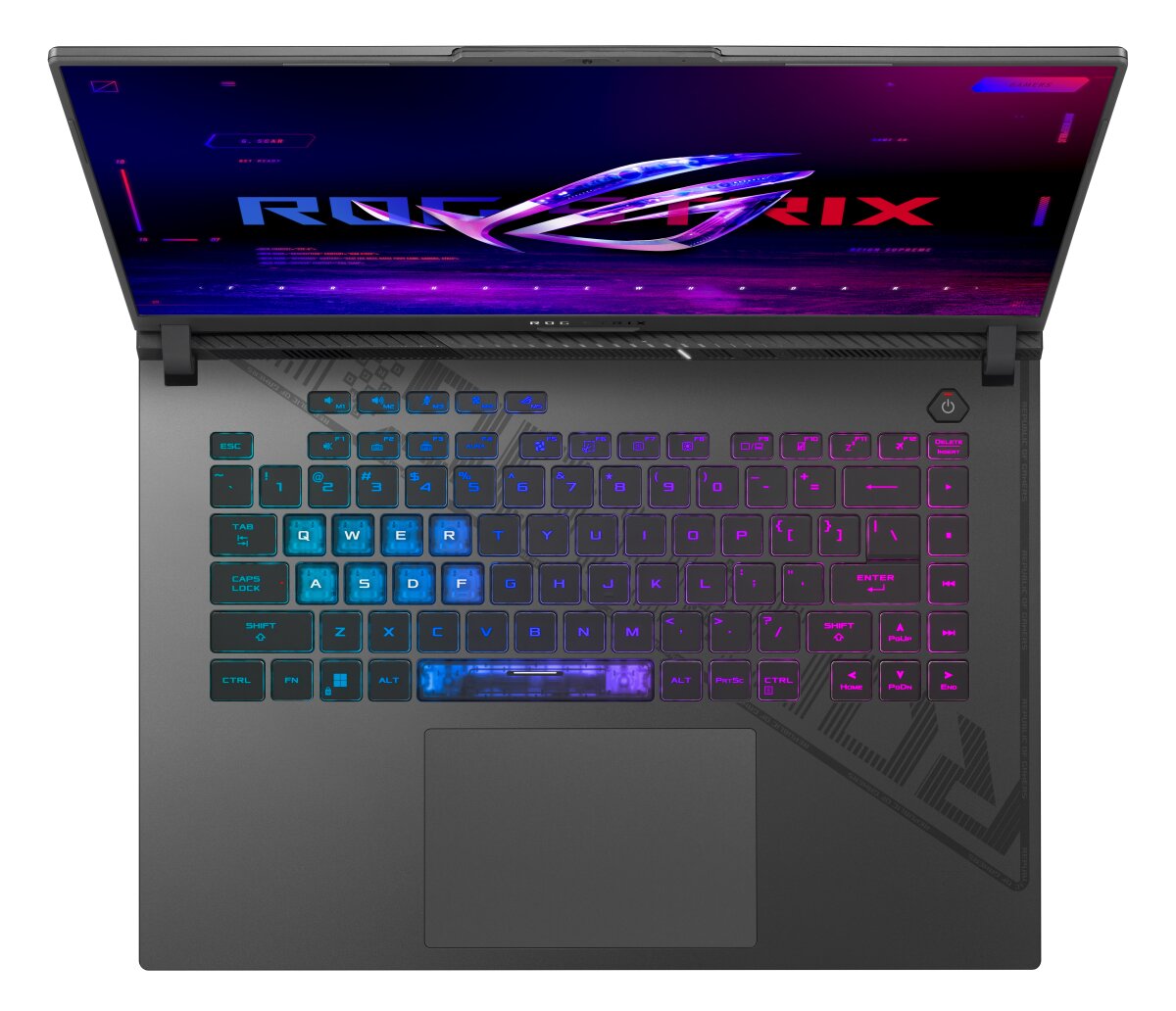

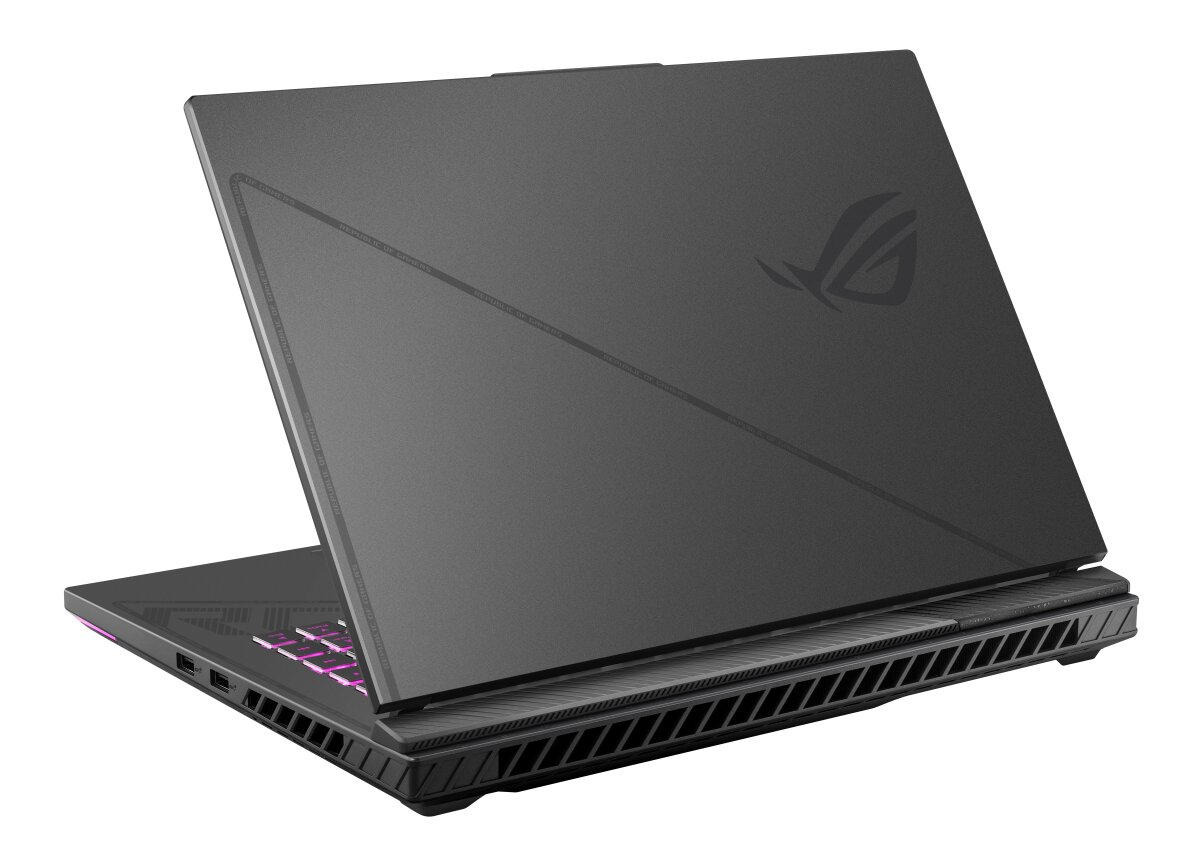

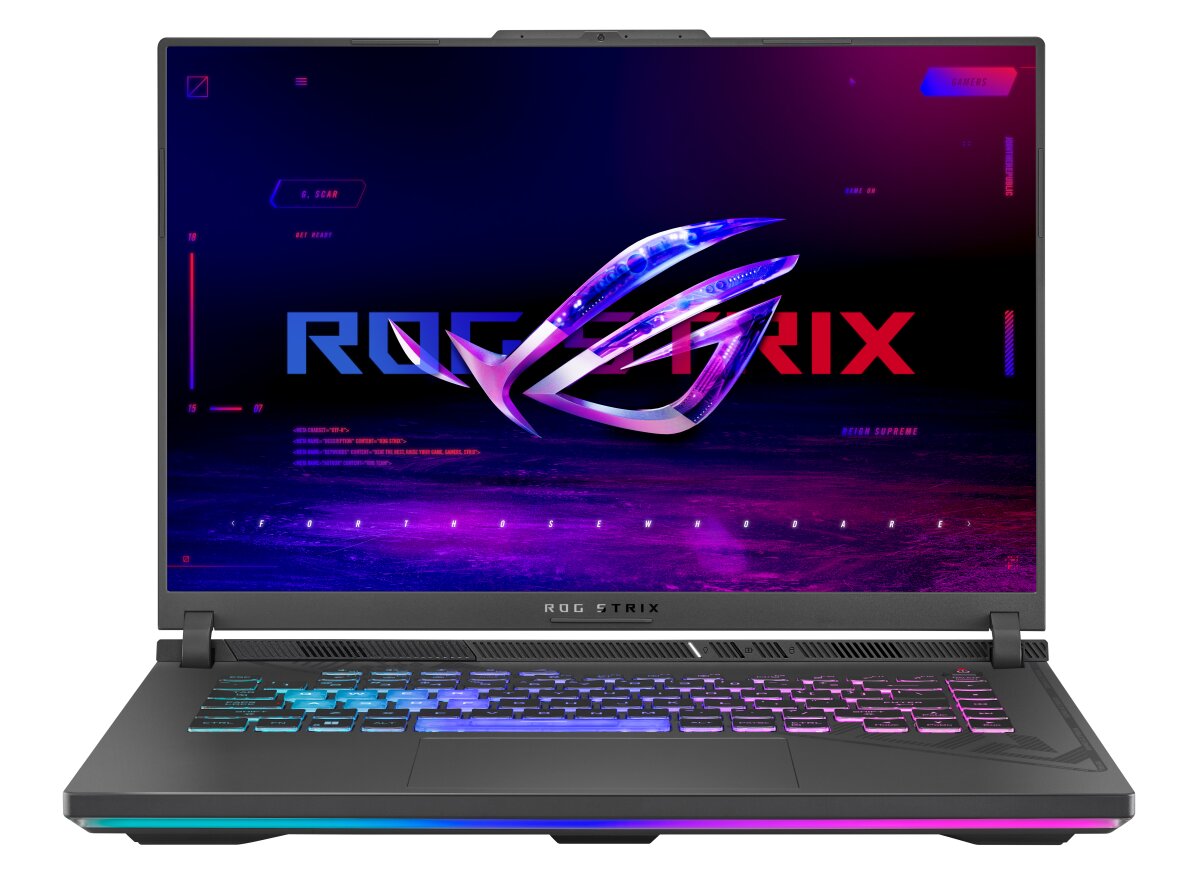

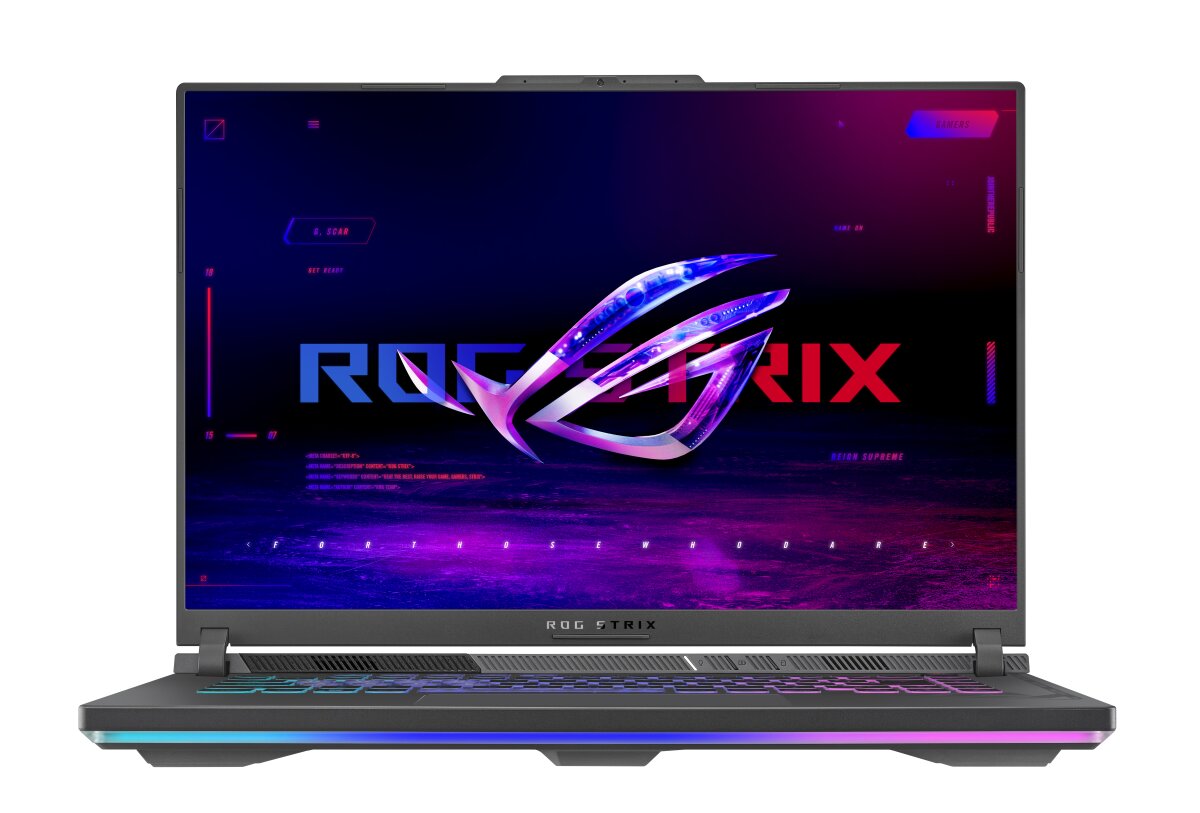

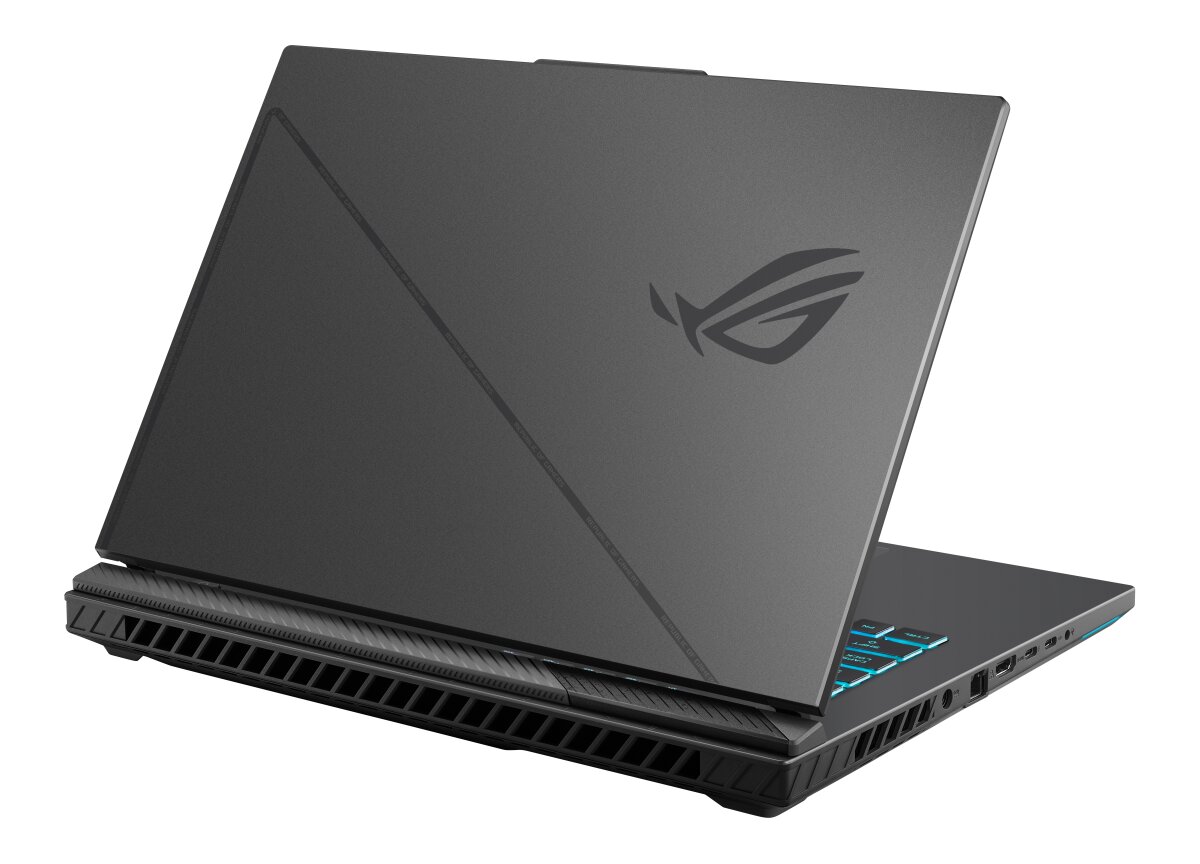

The ASUS ROG Strix G16 G614JV-ES94 laptop features DDR5-SDRAM memory upgradeable through two SO-DIMM slots. Maximum RAM capacity reaches 32 GB with DDR5-4800 MHz specifications. Compatible memory modules must conform to SO-DIMM form factor standards for proper installation in the available upgrade slots. Current specifications support high-speed DDR5 memory technology for enhanced multitasking and performance capabilities.

Additional Notes

• The ASUS ROG G614JV-ES94 uses SO-DIMM slots, which are laptop-standard form factors measuring 67.6 mm in length. Standard desktop DDR5 DIMMs are physically incompatible and cannot be installed in this system.
• DDR5-4800 modules operate at a significantly higher frequency than DDR4 alternatives, requiring compatible voltage regulation from the motherboard. Mixing DDR5 and DDR4 memory is impossible due to different electrical specifications and slot key designs.
• With 2 slots and a 32 GB maximum capacity, each SO-DIMM can contain up to 16 GB. Upgrading to the maximum requires replacing both original modules rather than adding a single additional stick.
• The 4800 MHz frequency ceiling means that modules rated for higher speeds (such as DDR5-5600 or DDR5-6400) will operate at reduced 4800 MHz speeds when installed. Purchasing faster-rated modules offers no performance benefit and increases cost unnecessarily.
• SO-DIMM slots in laptop systems typically have less robust retention mechanisms than desktop slots. Incorrect installation angle or force during memory seating can damage the slot connector or module contacts, and such damage often voids warranty coverage for hardware-induced failures.
• The 2-slot configuration leaves no expansion room beyond 32 GB. Storage demands exceeding this threshold require external storage solutions rather than internal memory upgrades.
