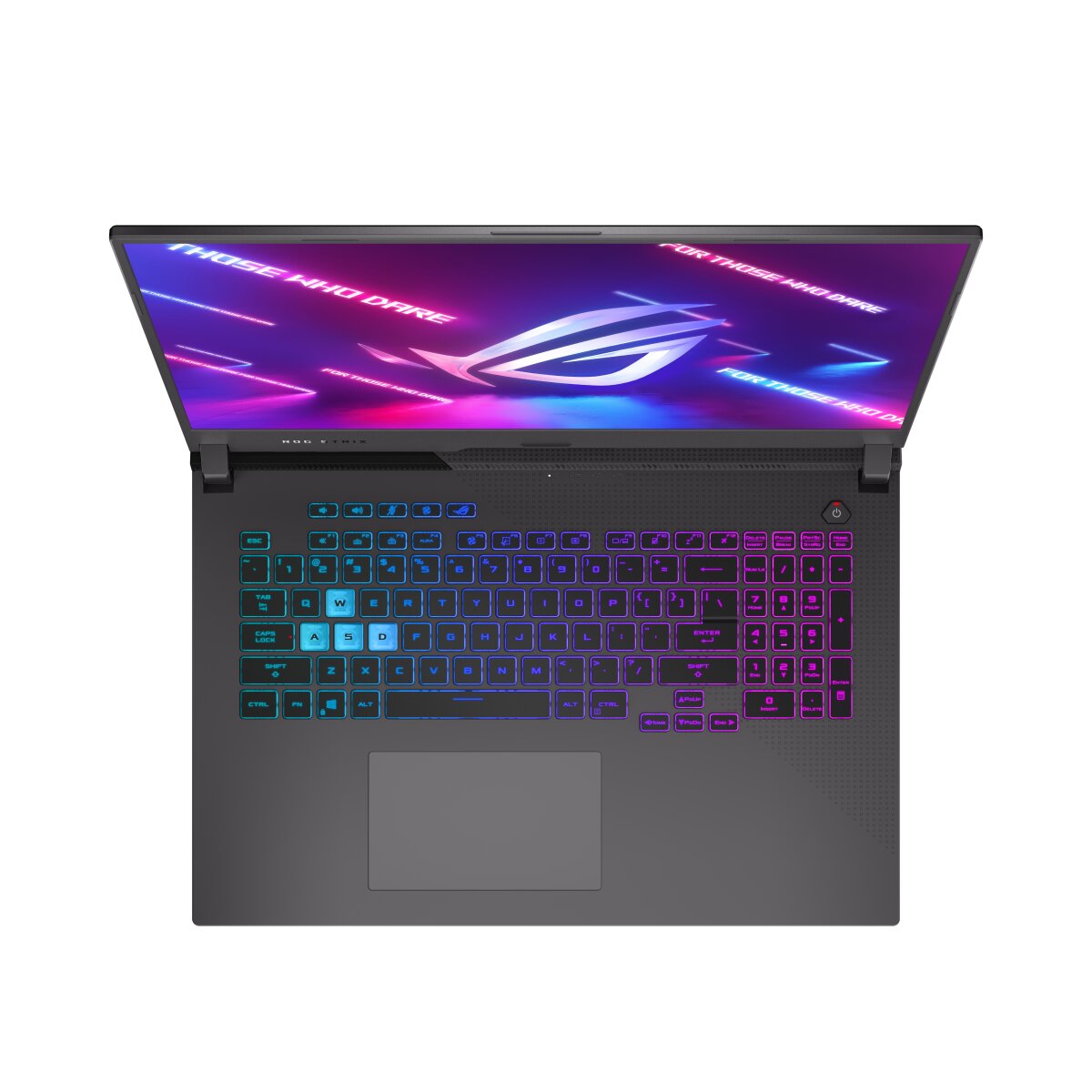

ASUS ROG G713QE-HX009T-BE RAM upgrade specifications

The ASUS ROG Strix G17 model G713QE-HX009T-BE supports DDR4-SDRAM memory upgrades through two SO-DIMM slots. The laptop accommodates a maximum RAM capacity of 32 GB with specifications at 3200 MHz frequency. This configuration enables memory expansion for enhanced multitasking and performance capabilities in gaming and professional applications. Compatible upgrades must utilize DDR4 SO-DIMM modules matching the 3200 MHz specifications and maximum 32 GB capacity supported by the laptop's memory architecture.

Additional Notes

• The ASUS ROG G713QE-HX009T-BE configuration restricts maximum memory density to 16 GB per module when targeting the 32 GB ceiling.
• DDR4-3200 represents the validated frequency threshold, though module SPD profiles supporting higher speeds may downclock to this baseline specification.
• SO-DIMM form factor compatibility eliminates standard DIMM modules from consideration despite identical electrical specifications.
• Dual-channel population across both slots delivers 128-bit memory bus width, whereas single-slot configurations halve theoretical bandwidth to 64-bit operation.
• Modules rated below 3200 MHz introduce performance degradation in memory-intensive workloads despite functional compatibility.
• CAS latency variations between 16-22 cycles at 3200 MHz affect access times by 5 to 6.875 nanoseconds, measurable in latency-sensitive applications.
• Non-matching module capacities between slots maintain dual-channel operation only up to the capacity of the smaller module, with excess operating in single-channel mode.
• Voltage specification adherence to 1.2V standard prevents compatibility issues with modules designed for 1.35V or 1.5V legacy standards.
• ECC SO-DIMM modules typically lack support in consumer-grade chipsets despite physical compatibility, resulting in POST failures or ECC feature disablement.
• Rank configuration differences between single-rank and dual-rank modules at identical capacities affect chipset load characteristics and stability margins.
• User-accessible memory compartment design determines whether upgrades require full disassembly or utilize dedicated service panel access points.
• JEDEC standard compliance ensures baseline compatibility, while XMP profiles require BIOS support that may be absent or restricted in shipping firmware versions.
