ASUS ROG G713RS-XS91-CA RAM upgrade specifications

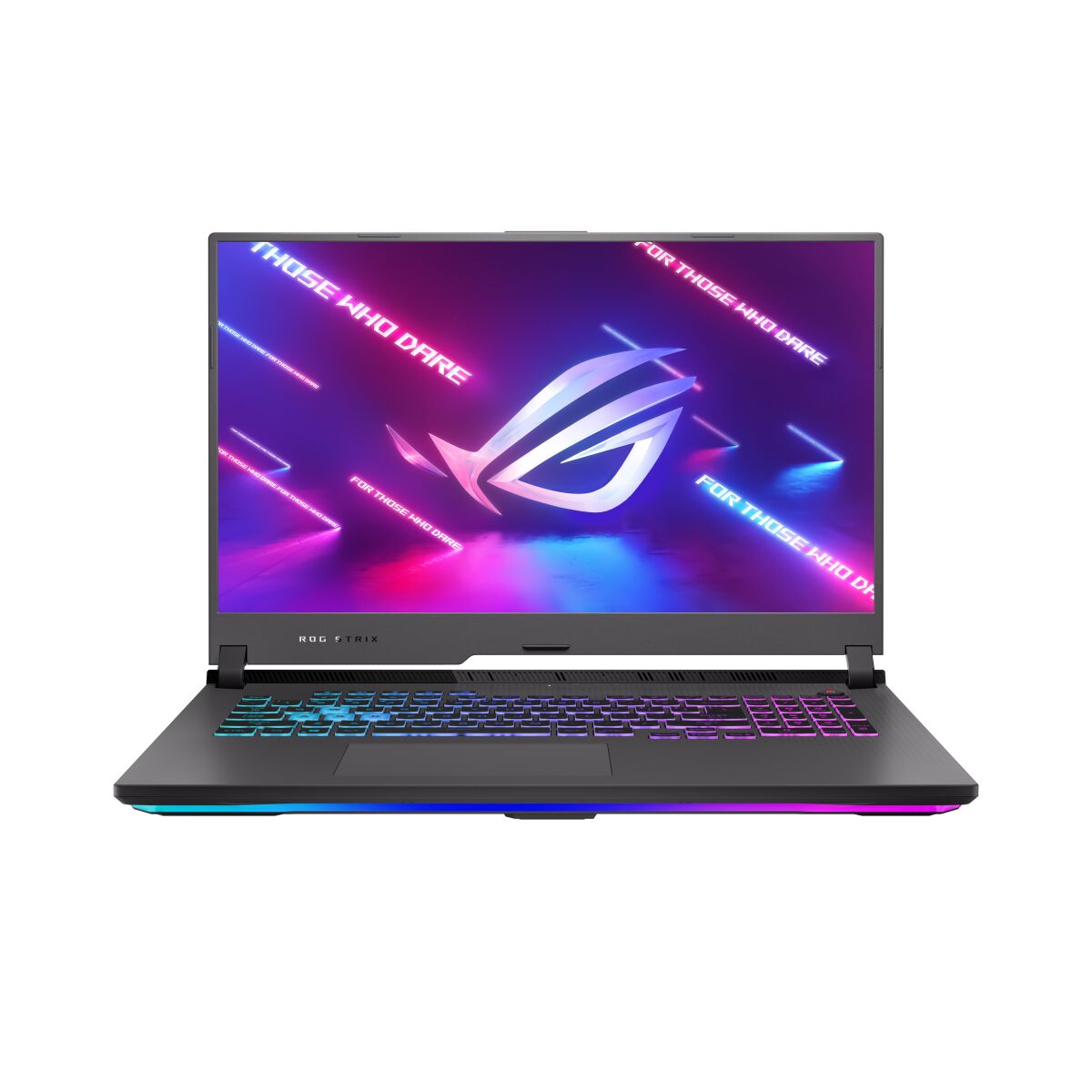

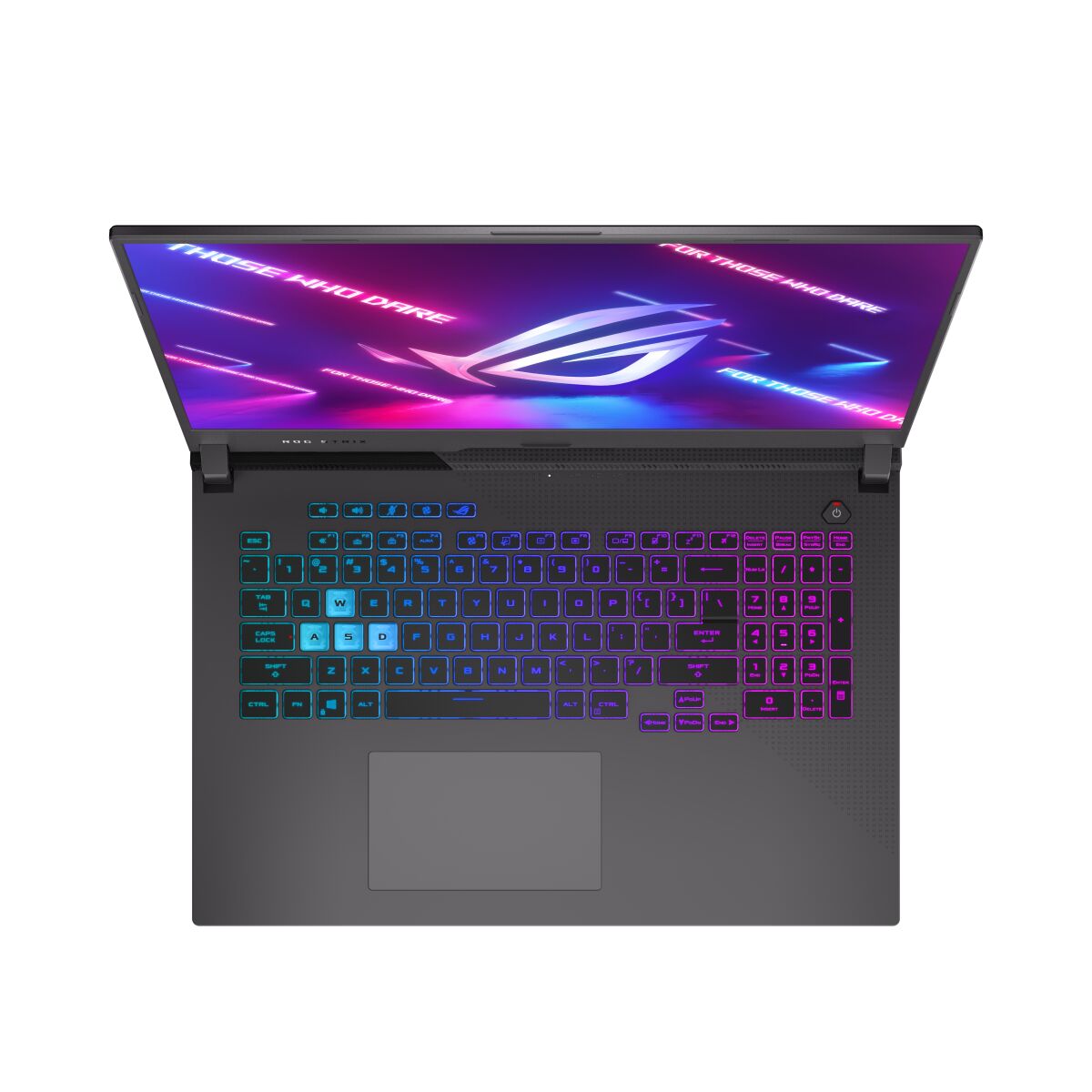

ASUS ROG Strix G17 model G713RS-XS91-CA laptop contains two SO-DIMM memory slots supporting DDR5-SDRAM modules. The upgrade capacity reaches a maximum RAM of 32 GB total system memory. Compatible memory specifications operate at 4800 MHz frequency. The SO-DIMM form factor specifications define the physical dimensions required for compatible upgrade modules. Existing memory configurations can be expanded by installing additional DDR5-SDRAM modules into available slots to achieve maximum supported capacity specifications.

Additional Notes

• The DDR5-SDRAM specification means this ASUS ROG G713RS-XS91-CA cannot accept DDR4 modules, as the notch positions and voltage requirements differ between these memory generations.
• The 32 GB ceiling applies per system configuration rather than per slot, which limits dual-channel setups to a maximum of 2 modules at 16 GB each.
• SO-DIMM form factor compatibility excludes standard desktop DIMM modules due to the smaller physical connector size required for mobile platforms.
• The 4800 MHz native frequency represents JEDEC standard speed for DDR5, though faster modules would downclock to this baseline if installed.
• Dual SO-DIMM slot availability enables symmetric memory population for maintaining dual-channel bandwidth, which provides approximately twice the data transfer rate compared to single-channel configurations.
• DDR5 architecture incorporates on-die ECC at the hardware level, independent of whether modules are marketed as ECC or non-ECC variants.
• The specified frequency operates without requiring XMP or manual overclocking profiles, as 4800 MHz falls within standard JEDEC operating parameters for DDR5.
• Memory installation typically requires bottom panel removal, though specific disassembly procedures vary by chassis design and may involve voiding seals that affect warranty coverage.
• Mixing different capacity modules between slots remains functional but forces the controller to operate in flex mode rather than optimal symmetric dual-channel mode.
• The transition from DDR4 to DDR5 introduces higher baseline latency measured in nanoseconds despite the frequency increase, though bandwidth gains typically offset this in sustained workloads.
