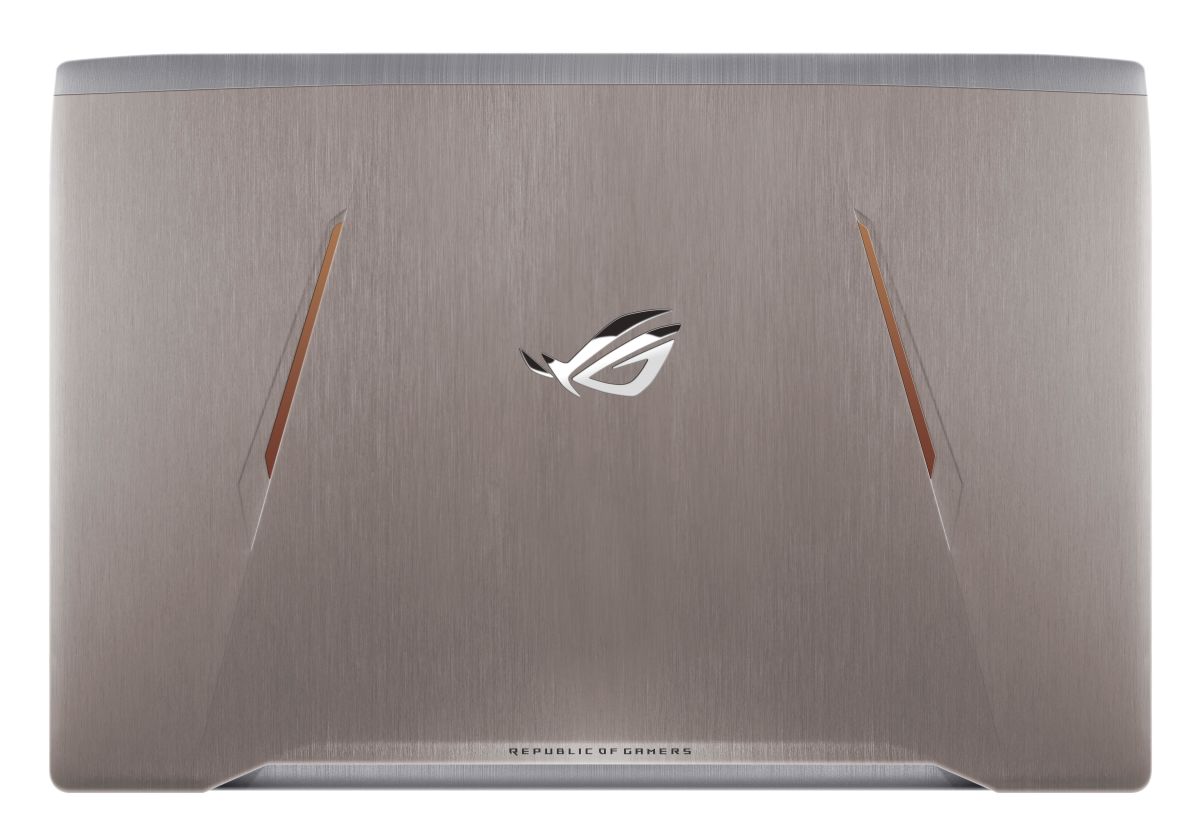

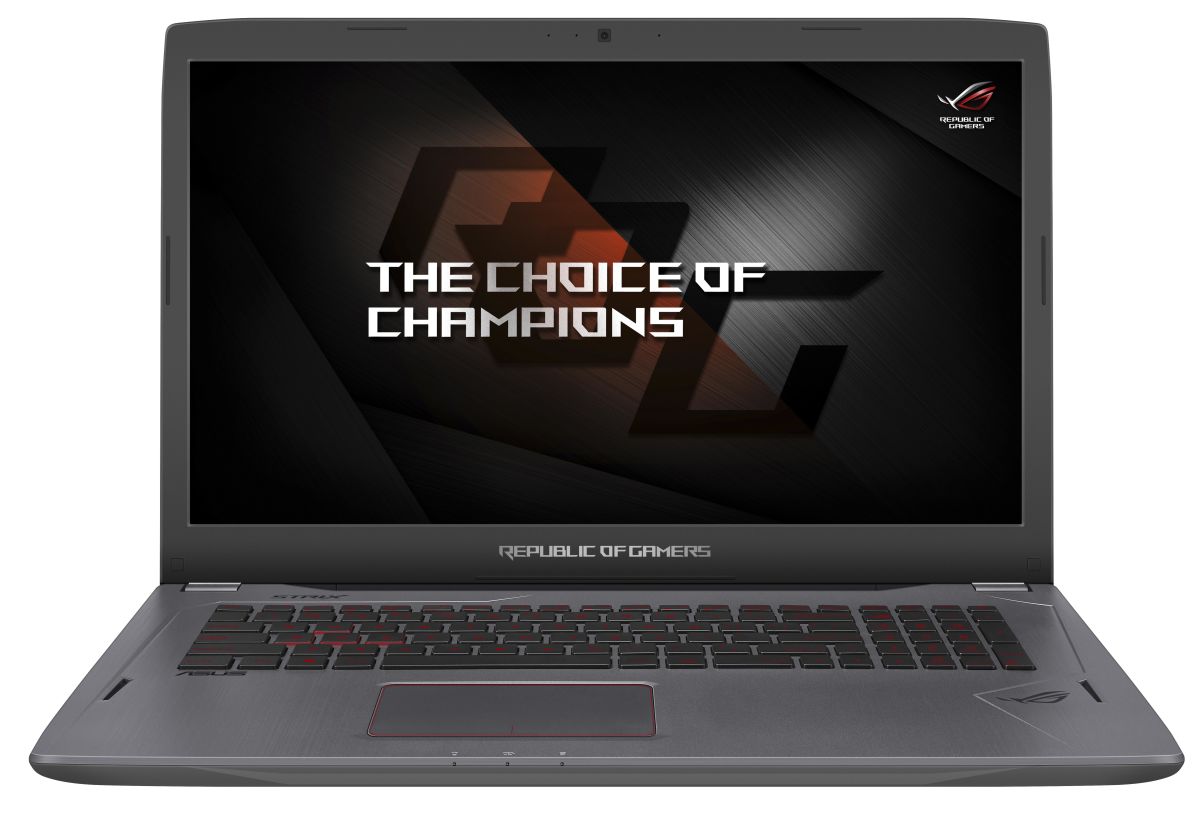

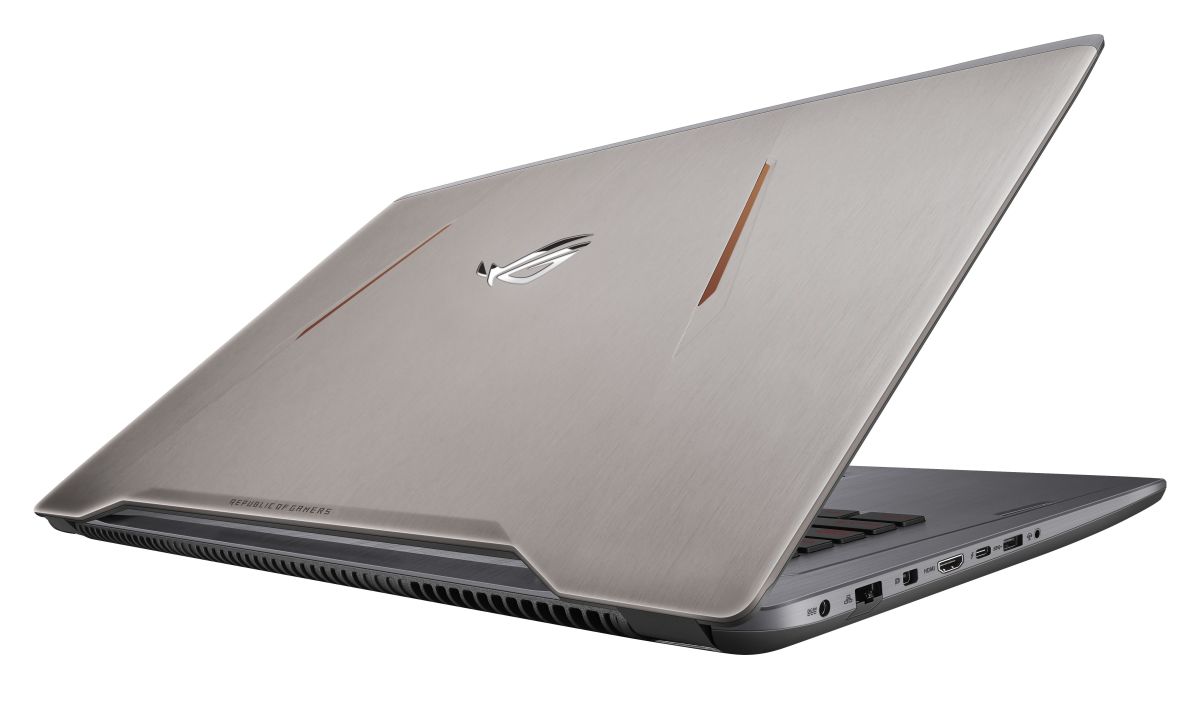

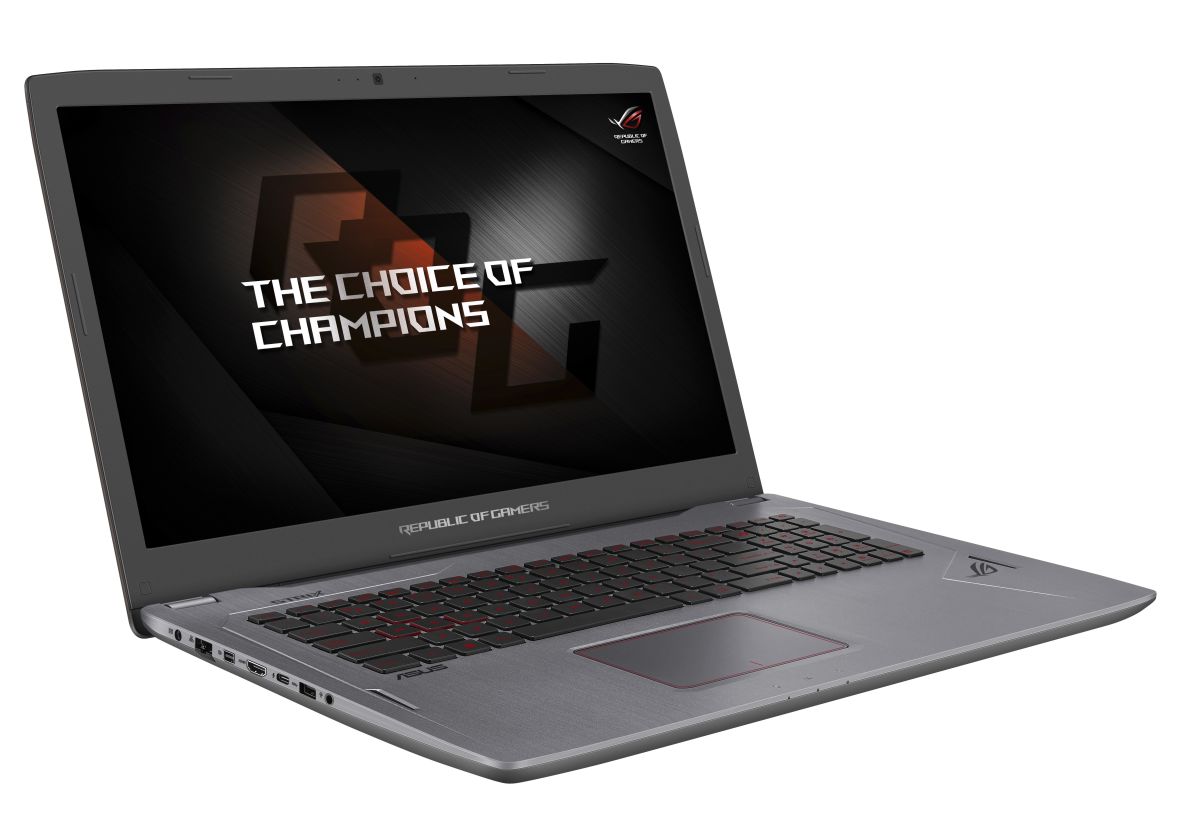

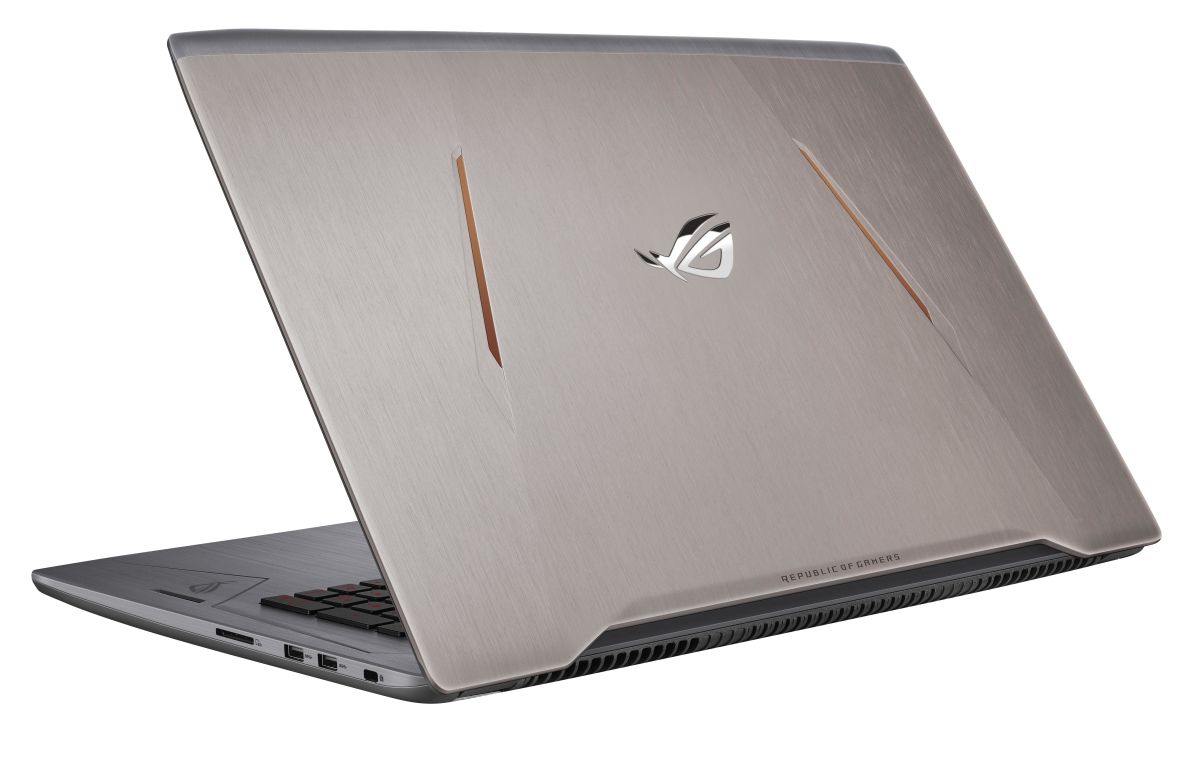

ASUS ROG GL702VM-DS74-HID7 RAM upgrade specifications
ASUS ROG Strix GL702VM-DS74-HID7 laptop memory upgrade specifications include DDR4-SDRAM compatibility with 2x SO-DIMM slots supporting maximum RAM capacity of 32 GB. Memory operates at 2400 MHz frequency. Upgrade components utilize SO-DIMM form factor specifications. Compatible memory modules enable expansion from existing factory configuration to maximum supported capacity. Specifications define upgrade path parameters for memory enhancement in GL702VM-DS74-HID7 model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2400 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2400 (PC4-19200) |
| Bandwidth | 19.2 GB/s |
| Laptop Release date | 04 November 2017 |
Additional Notes
- Dual channel memory architecture requires matching module capacities and timings in both slots to optimize bandwidth for the integrated memory controller.
- The 32 GB ceiling necessitates the removal of existing pre-installed modules since the system architecture lacks additional unoccupied banks.
- Installation of memory clocked higher than 2400 MHz results in automatic downclocking to match the firmware-defined bus speed.
- The SO-DIMM form factor restricts hardware expansion to 260-pin mobile modules only.
- High-density 32 GB single sticks are incompatible due to the 16 GB per slot limitation of the chipset.
- Legacy DDR3 or DDR3L hardware is physically incompatible with the notches and voltage requirements of the DDR4 interface.
- Accessing the memory banks requires removing the entire rear chassis panel which exposes internal components to electrostatic discharge risks.
- Total memory bandwidth acts as a potential performance bottleneck during intensive data scrubbing or high-resolution video rendering tasks.
