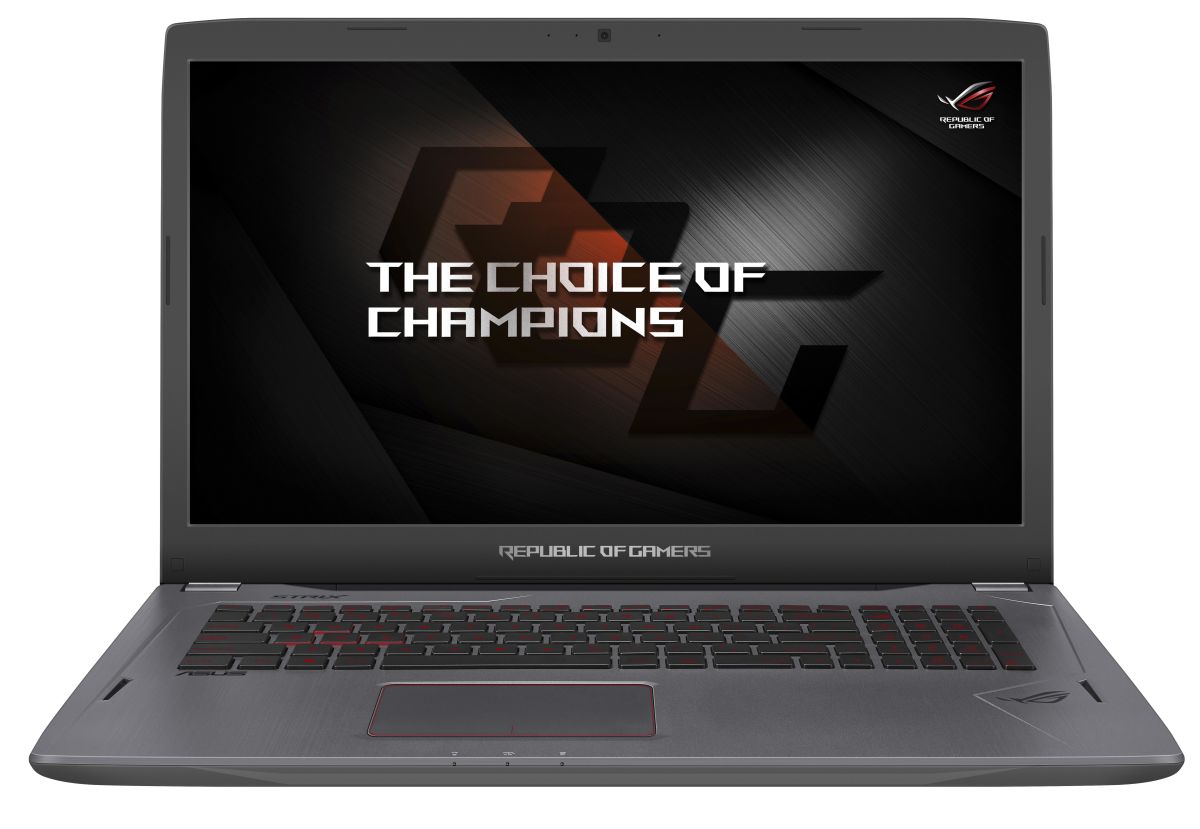

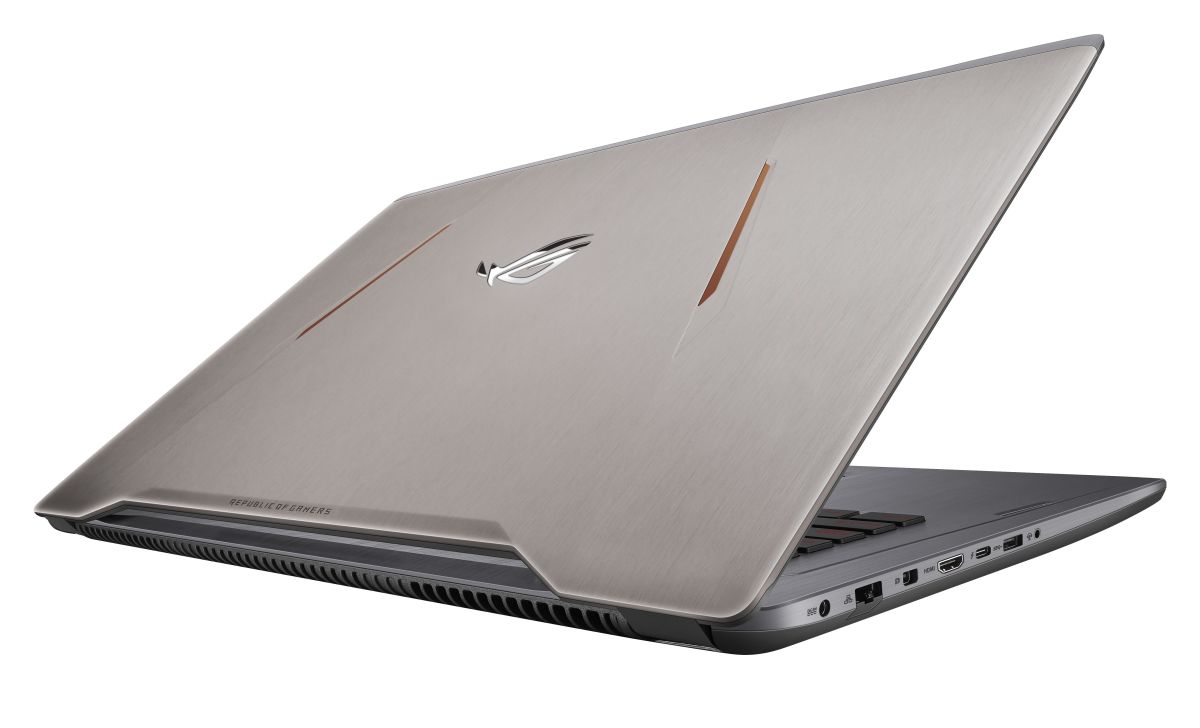

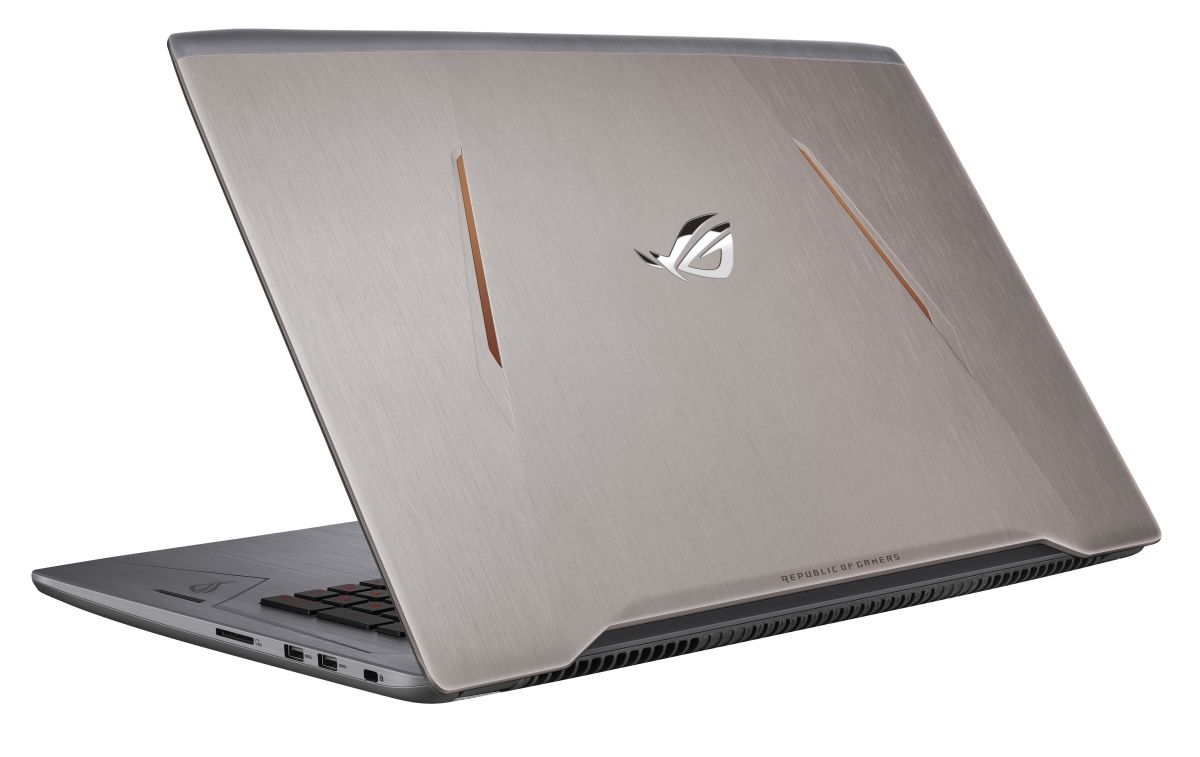

ASUS ROG GL702VS-BA253T RAM upgrade specifications
ASUS ROG Strix GL702VS-BA253T RAM upgrade specifications detail DDR4-SDRAM memory compatibility. The laptop contains 2x SO-DIMM slots supporting maximum memory capacity of 32 GB total. Memory modules operate at 2400 MHz frequency. Compatible RAM upgrades utilize SO-DIMM form factor specifications. Users requiring memory expansion should verify DDR4-SDRAM compatibility and slot availability before upgrade installation. Maximum supported capacity represents the upper limit for this laptop model's memory upgrade configuration.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2400 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2400 (PC4-19200) |
| Bandwidth | 19.2 GB/s |
| Laptop Release date | 10 February 2018 |
Additional Notes
- The 32 GB ceiling indicates a chipset limitation that cannot be exceeded regardless of module availability.
- SO-DIMM form factor restricts compatibility to laptop-specific modules, excluding standard desktop DIMM memory.
- 2400 MHz represents the maximum validated frequency; higher-speed modules will downclock to this specification.
- Dual-slot configuration enables channel interleaving when populated with matched capacity modules.
- Single-rank versus dual-rank module architecture affects whether 32 GB maximum utilizes 2x16 GB configuration.
- DDR4 voltage tolerance at 1.2V standard excludes compatibility with DDR3L or earlier generation modules despite physical slot similarities in other systems.
- Accessing memory slots on this ROG chassis typically requires bottom panel removal and potential warranty seal disruption.
- Mixing modules with different CAS latencies forces both modules to operate at the slower timing specification.
- Non-ECC unbuffered modules are required; server-grade registered or ECC memory will not initialize.
- Thermal constraints in gaming laptops make heat spreader presence on SO-DIMM modules relevant for sustained performance.
- Asymmetric population with unequal capacity modules disables dual-channel operation for the non-overlapping portion of memory address space.
- JEDEC standard DDR4-2400 modules ensure compatibility, while XMP profiles designed for desktop platforms may not activate.
