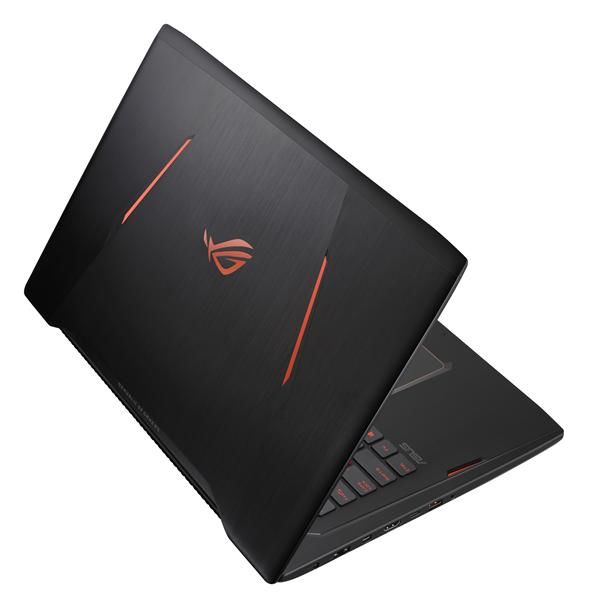

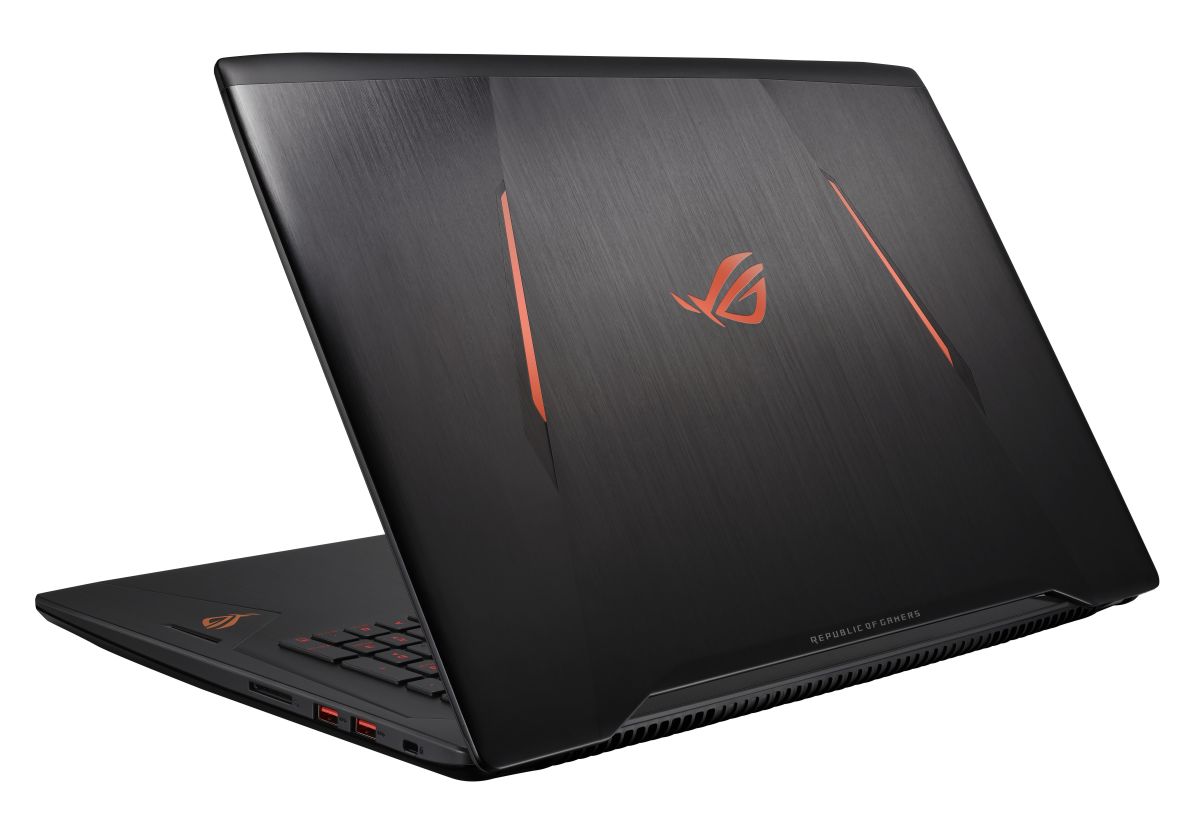

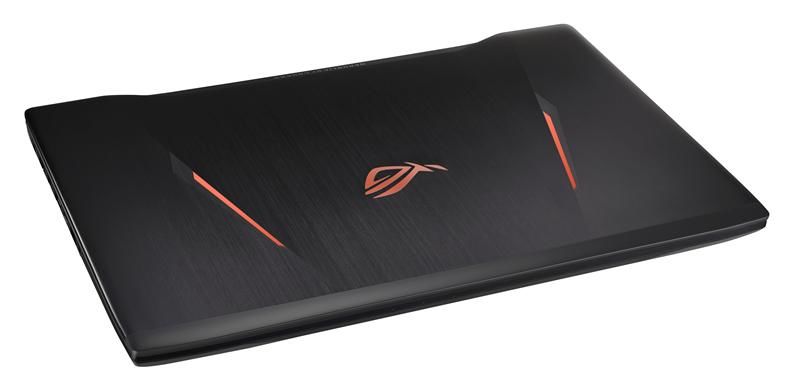

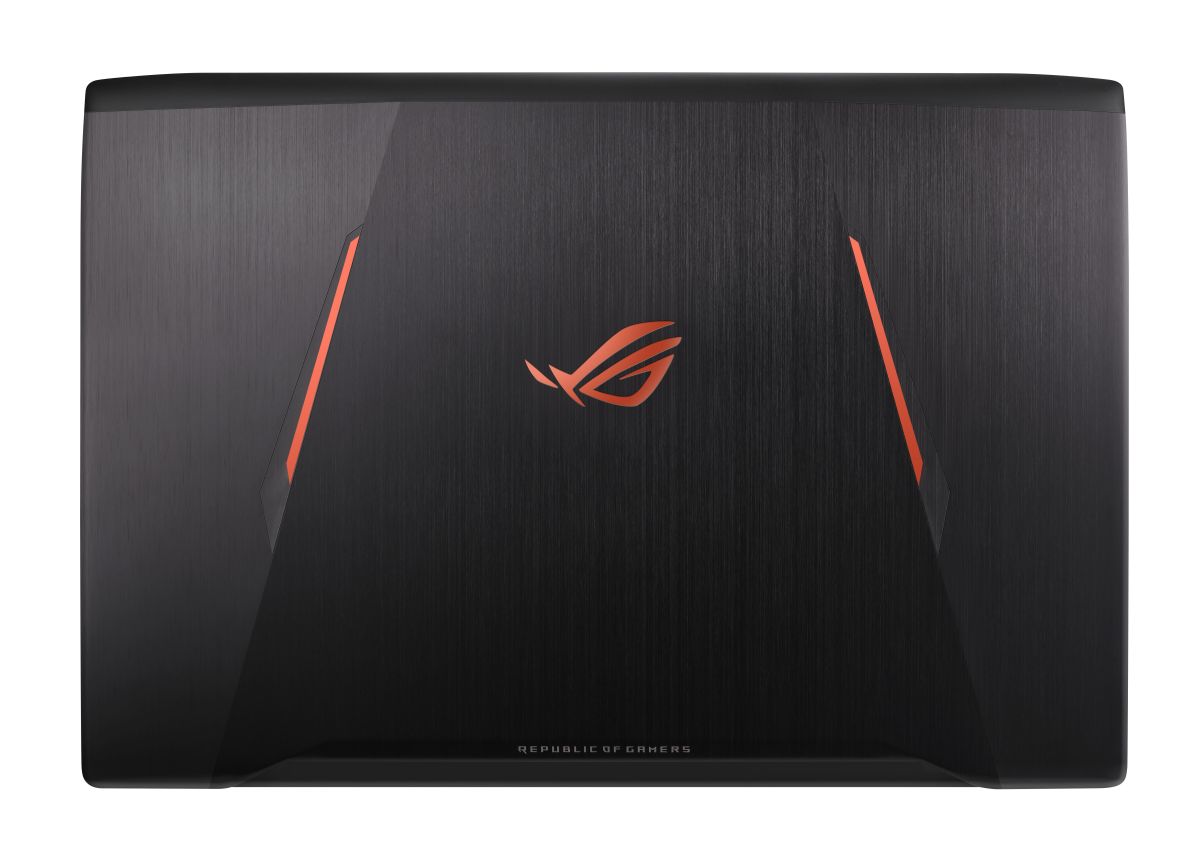

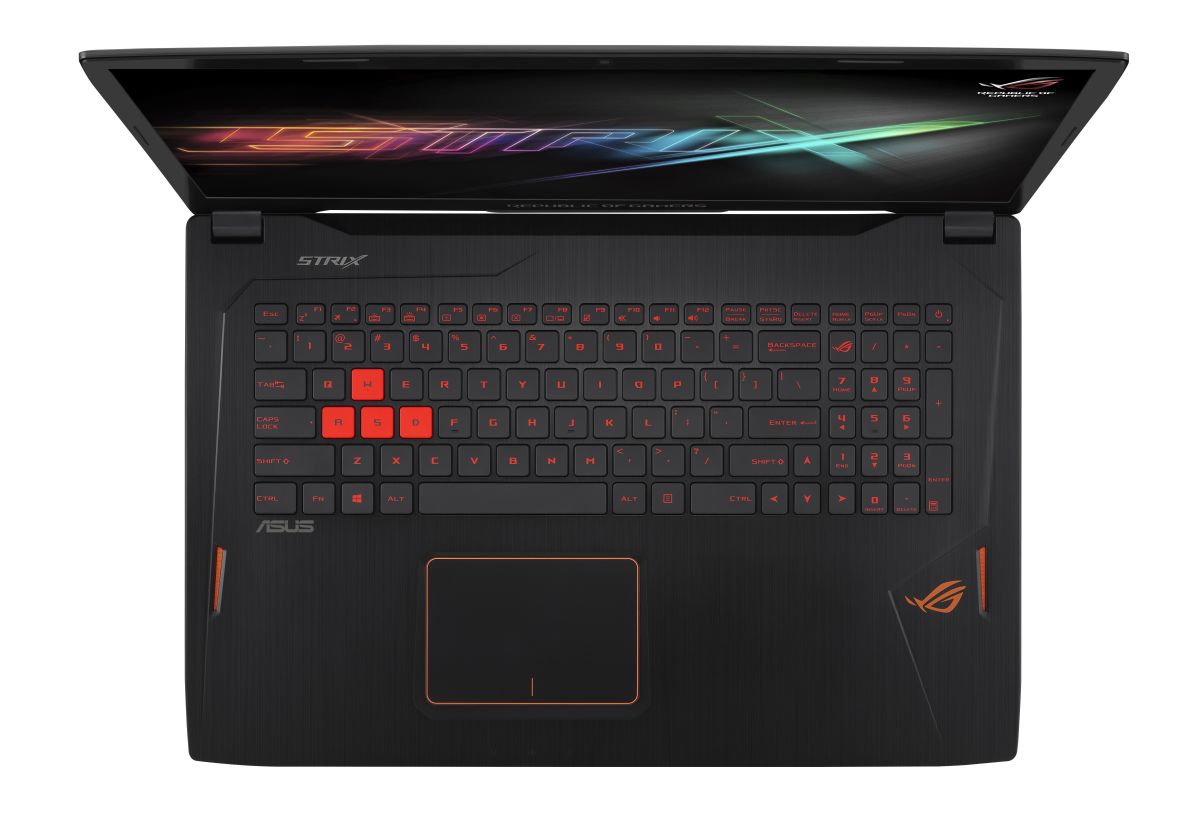

ASUS ROG GL702VS-DS74 RAM upgrade specifications
ASUS ROG Strix GL702VS-DS74 laptop RAM upgrade specifications include two SO-DIMM memory slots supporting DDR4-SDRAM memory modules at 2133 MHz frequency. Compatible upgrade capacity reaches maximum RAM of 32 GB total across both slots. The specifications outline memory upgrade options and compatible SO-DIMM form factor requirements for this gaming laptop model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2133 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2133 (PC4-17064) |
| Bandwidth | 17.1 GB/s |
| Laptop Release date | 10 January 2017 |
Additional Notes
- Dual channel memory architecture requires matched pairs of 16 GB modules to achieve the total 32 GB capacity and maximize memory bandwidth.
- The chipset lacks support for 32 GB single stick modules because the memory controller architecture is limited to a maximum of 16 GB per physical slot.
- Installing high speed modules rated above 2133 MHz results in automatic downclocking to match the motherboard bus speed without providing latency benefits.
- Occupying both SO-DIMM slots eliminates the possibility of 8 GB or 16 GB incremental upgrades as existing modules must be discarded to increase capacity.
- The 2133 MHz frequency ceiling functions as a systemic bottleneck for the CPU in data heavy workloads compared to modern DDR4 standards.
- Upgrading memory requires total removal of the lower chassis panel which may involve piercing factory seals or triggering specific manufacturer warranty clauses regarding user serviceable parts.
- Low voltage 1.2V DDR4 modules are required to maintain thermal stability within the compact chassis housing which lacks additional dedicated cooling for memory components.
