ASUS ROG GL704GM-EV009T RAM upgrade specifications

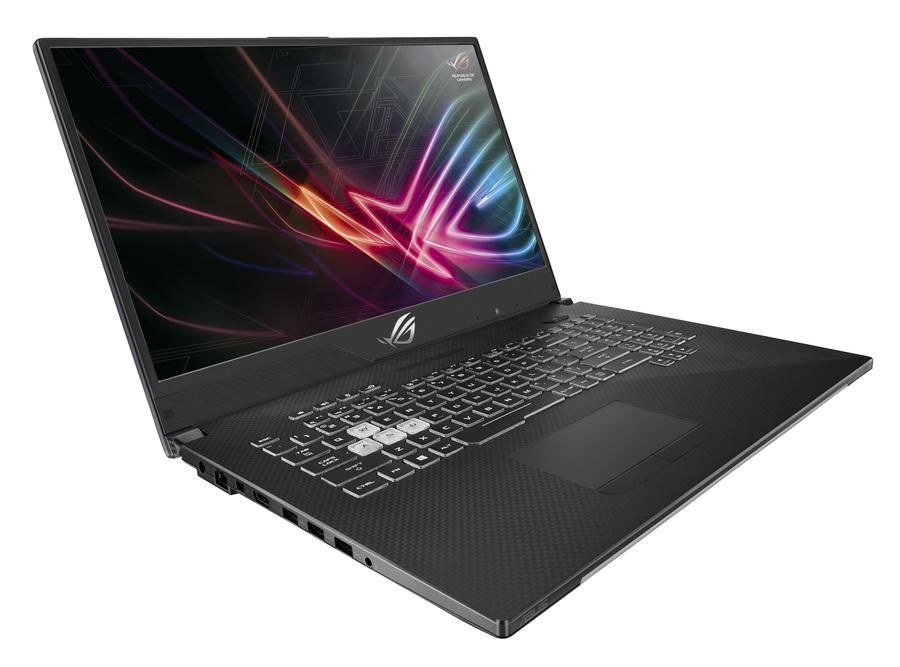

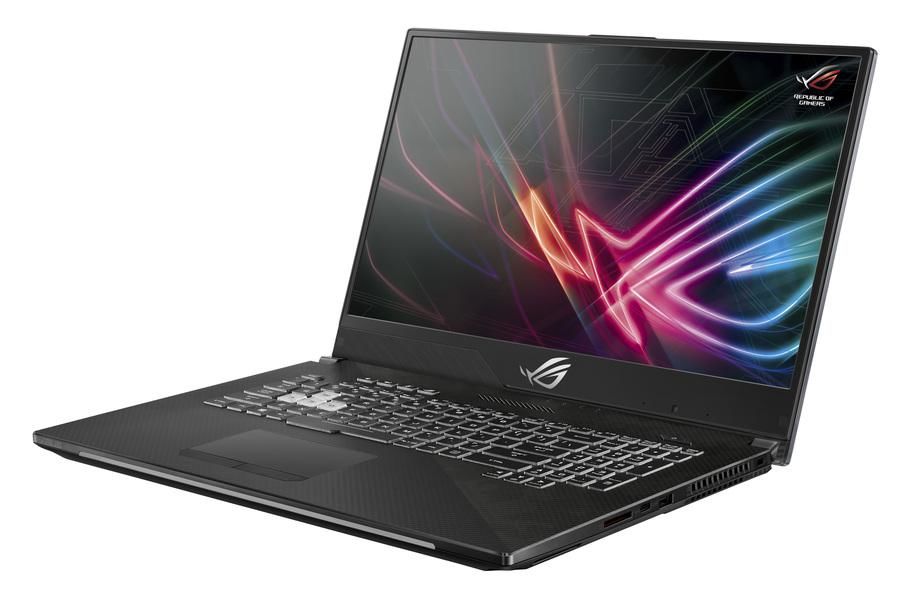

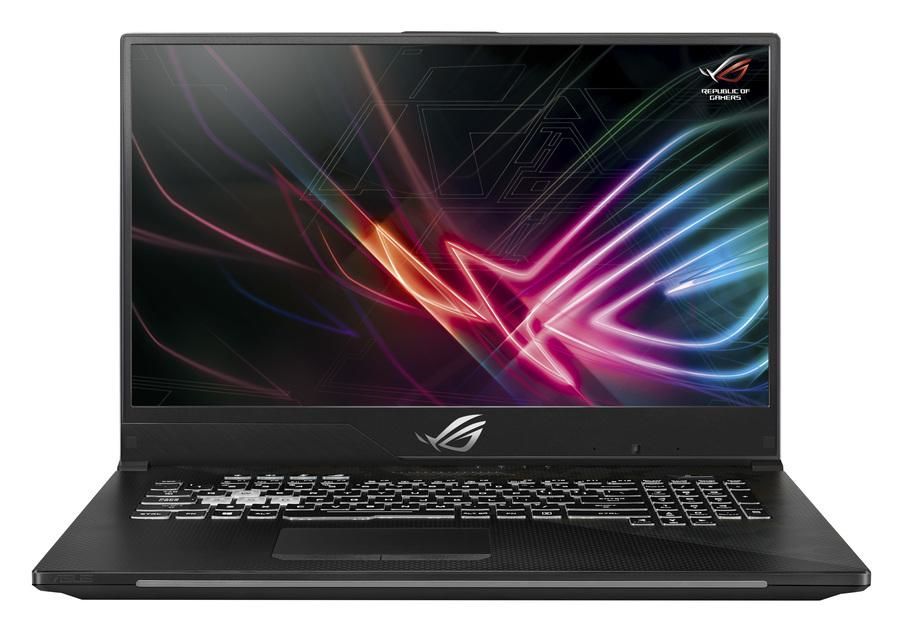

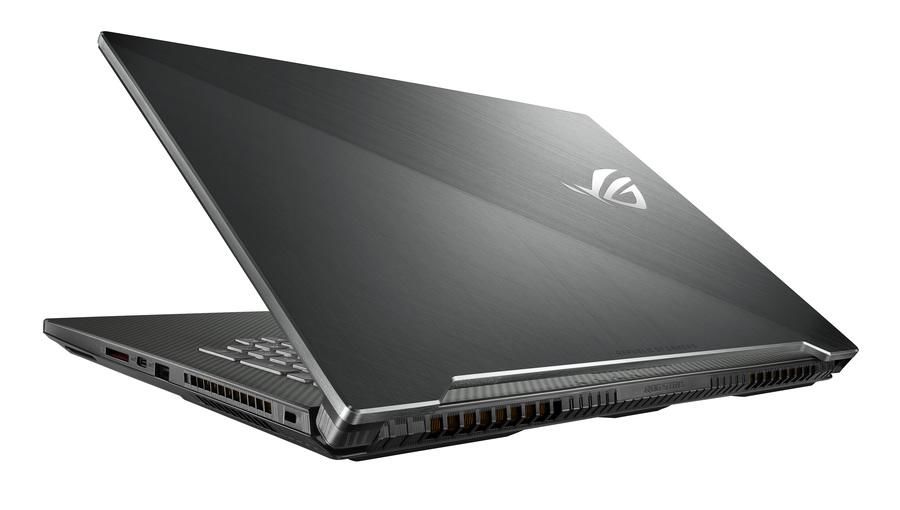

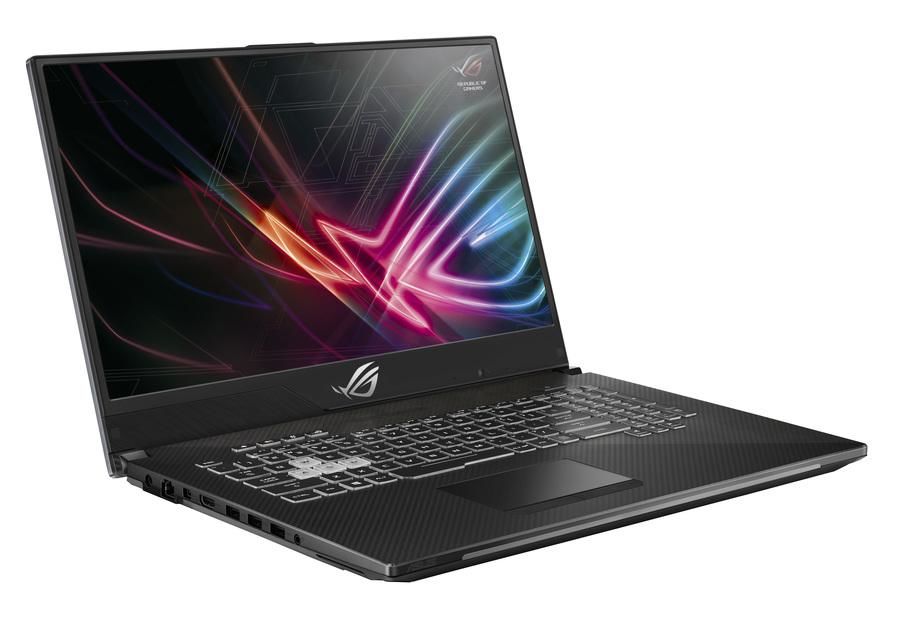

The ASUS ROG Strix GL704GM-EV009T gaming laptop features two SO-DIMM memory slots supporting DDR4-SDRAM upgrades. The system accommodates a maximum RAM capacity of 32 GB total, with compatible memory modules operating at 2666 MHz frequency. Current specifications allow for DDR4 memory upgrades to expand multitasking and gaming performance capabilities within the established slot and capacity parameters.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2666 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2666 (PC4-21328) |
| Bandwidth | 21.3 GB/s |
| Laptop Release date | 15 February 2019 |
Additional Notes
- The dual slot configuration allows for dual channel architecture which doubles the potential memory bandwidth compared to single channel setups.
- Upgrading the ASUS ROG GL704GM-EV009T requires identical module timings to ensure system stability and prevent automatic downclocking below the rated 2666 MHz frequency.
- Accessing the internal SO-DIMM slots involves removing the base secondary panel which may be protected by factory seals in certain regional markets.
- The 32 GB capacity threshold indicates a BIOS limitation on high density 32 GB single sticks meaning 16 GB modules are the maximum supported density per slot.
- The use of SO-DIMM form factor necessitates low voltage 1.2V modules to maintain thermal efficiency within the compact chassis environment.
- Latency parity between the two occupied slots is required to avoid system boot failures or memory related blue screen errors.
- Installation of memory modules with speeds higher than 2666 MHz will result in the hardware capping the frequency to the motherboard chipset limits.
