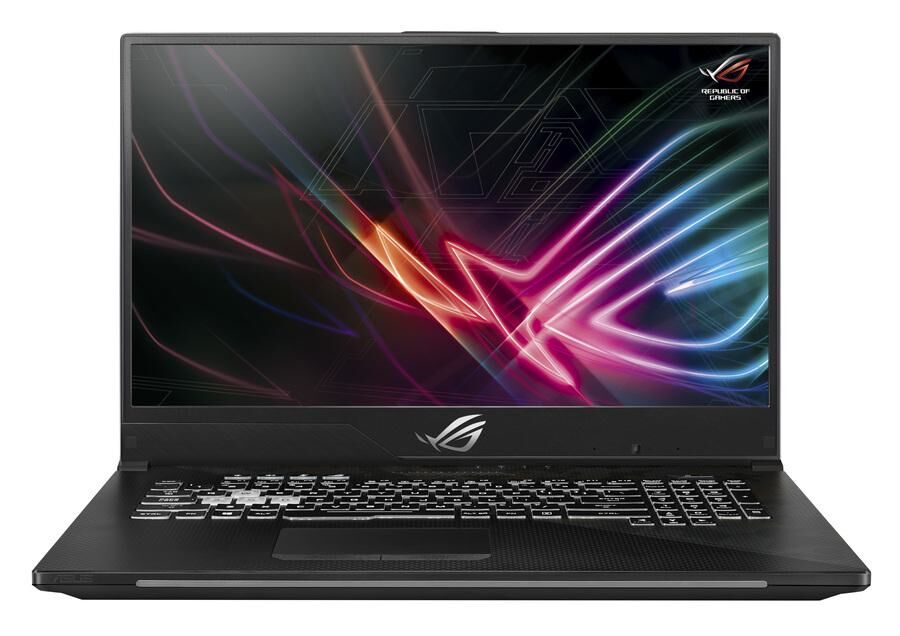

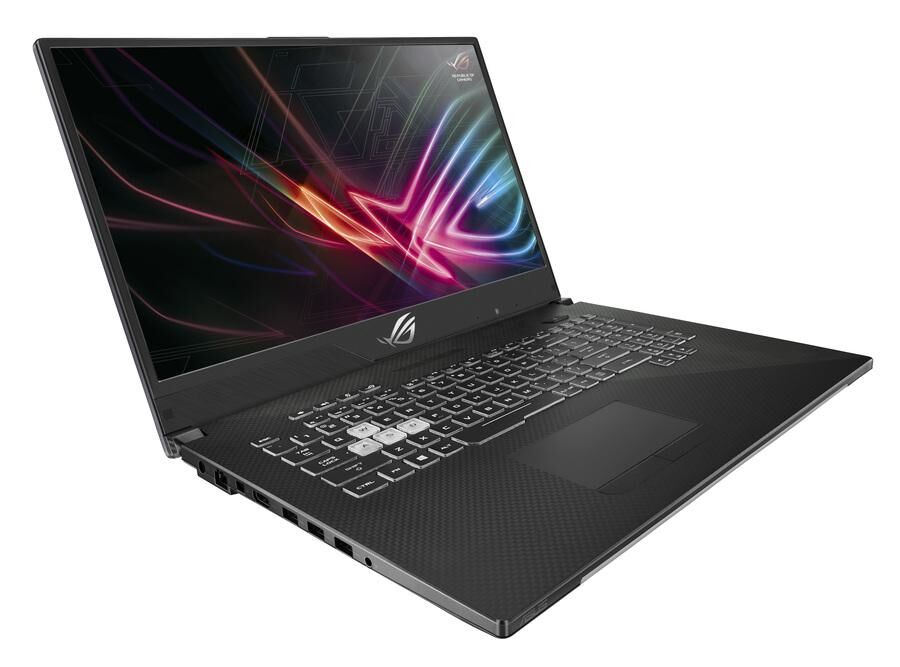

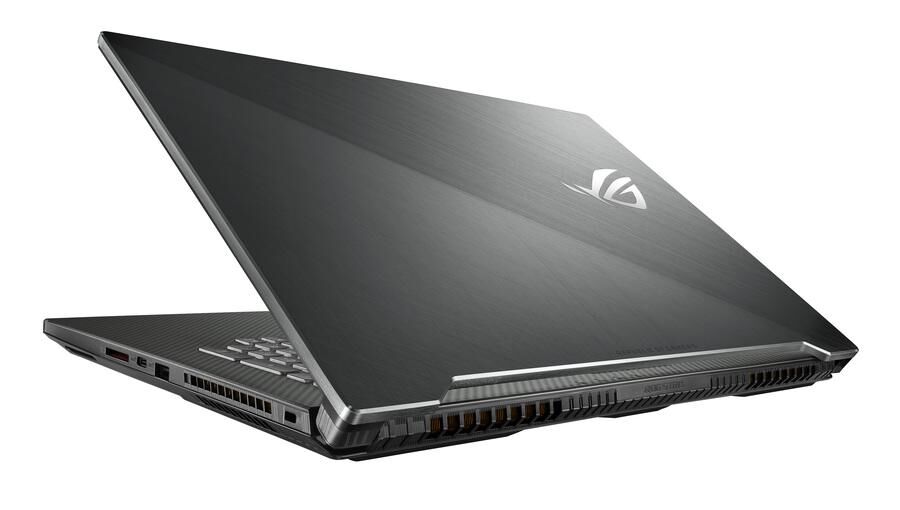

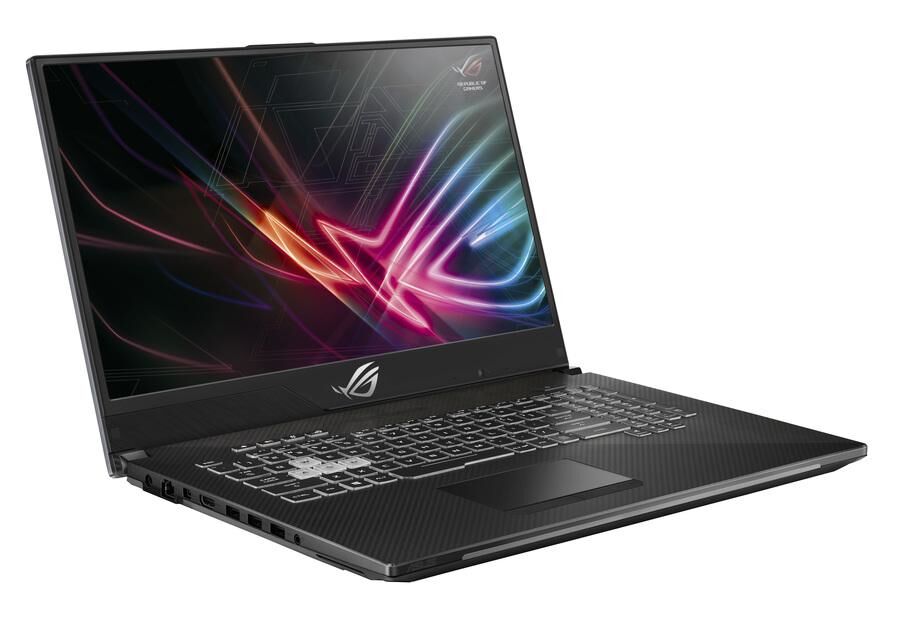

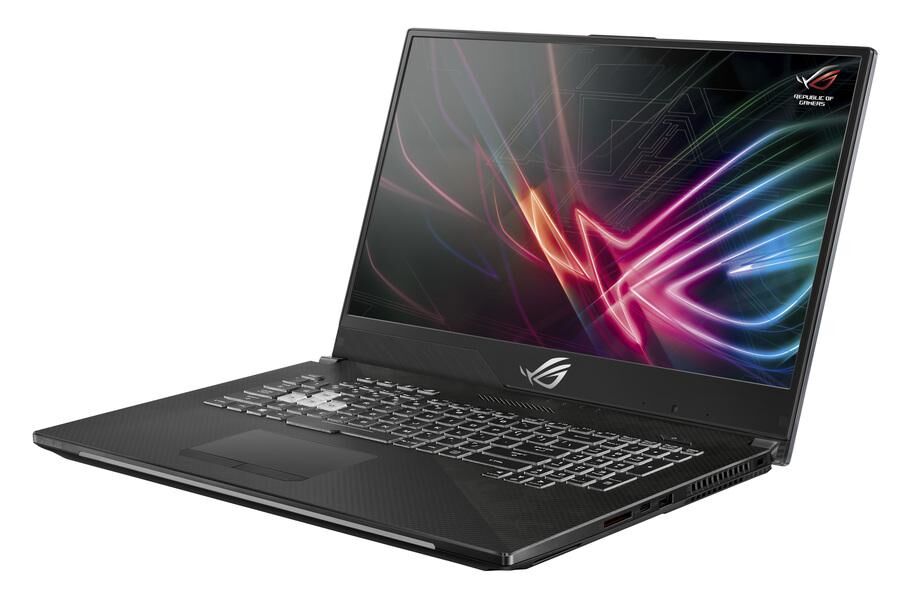

ASUS ROG GL704GM-EV068T RAM upgrade specifications
ASUS ROG Strix GL704GM-EV068T RAM upgrade specifications detail DDR4-SDRAM memory compatibility. The laptop features 2x SO-DIMM slots supporting maximum RAM capacity of 32 GB total. Memory operates at 2666 MHz frequency. Upgrade configurations compatible with this model accept DDR4 SO-DIMM modules. Specifications indicate available memory expansion capacity and slot configuration for system enhancement.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2666 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2666 (PC4-21328) |
| Bandwidth | 21.3 GB/s |
| Laptop Release date | 18 November 2019 |
Additional Notes
- Dual channel memory architecture requires installing matching pairs of modules to maximize the available data bus bandwidth.
- The physical chassis design of the ASUS ROG GL704GM-EV068T necessitates the use of unbuffered non ECC modules to ensure chipset compatibility.
- Installing modules with higher frequency ratings will result in automatic downclocking to the hardware limit of 2666 MHz.
- The presence of 2 physical slots restricts the upgrade path to a maximum of 16 GB per slot to stay within the total 32 GB threshold.
- Upgrading memory requires the removal of the bottom panel which involves standard Phillips screws but may require plastic prying tools to avoid damaging the chassis clips.
- Latency performance depends on the CAS timing of the secondary module because the system defaults to the slowest common denominator between the 2 sticks.
- The 1.2V power requirement for this memory type reduces thermal output compared to older DDR3 standards which is critical for the thermal management of this specific form factor.
