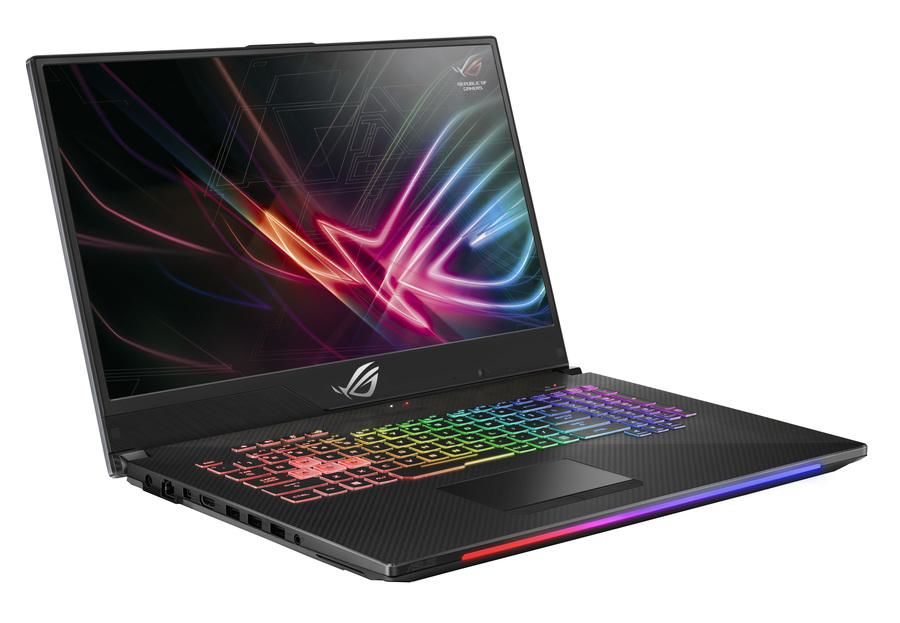

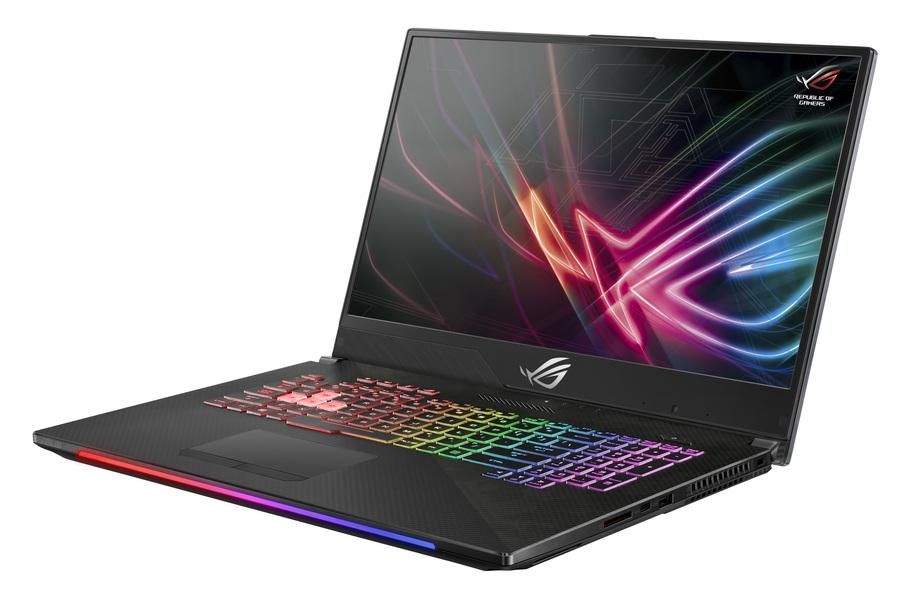

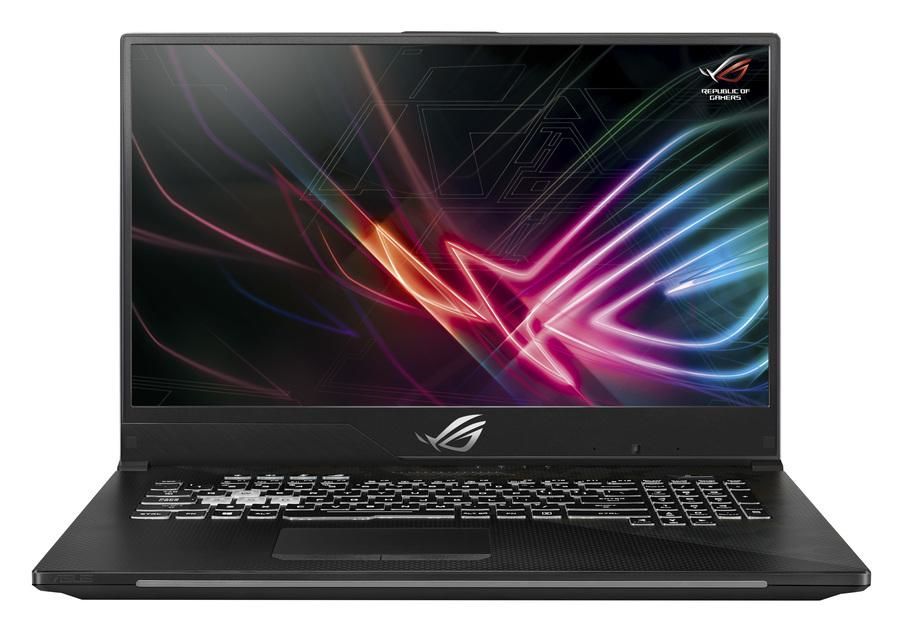

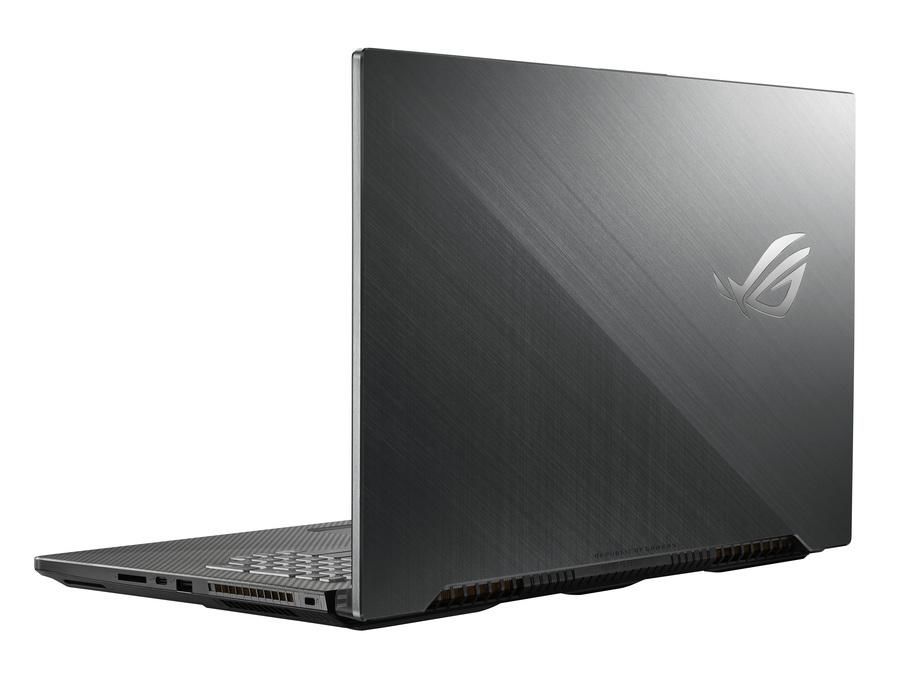

ASUS ROG GL704GW-EV005T Scar II RAM upgrade specifications
ASUS ROG Strix GL704GW-EV005T Scar II RAM upgrade specifications detail DDR4-SDRAM memory compatibility with 2x SO-DIMM slots supporting maximum capacity of 32 GB total. Memory operates at 2666 MHz frequency. Compatible upgrades utilize SO-DIMM form factor modules. Specifications enable users to expand system memory from baseline configurations up to maximum supported capacity through compatible DDR4 modules installed in available memory slots.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2666 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2666 (PC4-21328) |
| Bandwidth | 21.3 GB/s |
| Laptop Release date | 10 November 2018 |
Additional Notes
- Dual channel mode functionality permits the CPU to access memory across two paths simultaneously for increased data throughput in gaming and rendering tasks.
- The absence of soldered memory modules on the motherboard ensures that the total system memory remains fully replaceable if a single stick fails.
- The installation of higher frequency sticks results in the system downclocking the modules to match the specific 2666 MHz hardware limitation of the ASUS GL704GW-EV005T Scar II internal controller.
- Mixing modules with different CAS latencies forces the memory controller to operate at the timings of the slowest installed stick to maintain system stability.
- Occupying both SO-DIMM slots is required to achieve the highest possible memory bandwidth for applications sensitive to latency.
- Accessing the memory slots requires removal of the entire base panel which involves navigating delicate internal clips and varying screw lengths.
- The 32 GB ceiling indicates a hardware or BIOS restriction that prevents the utilization of 32 GB high density single sticks for a 64 GB total configuration.
