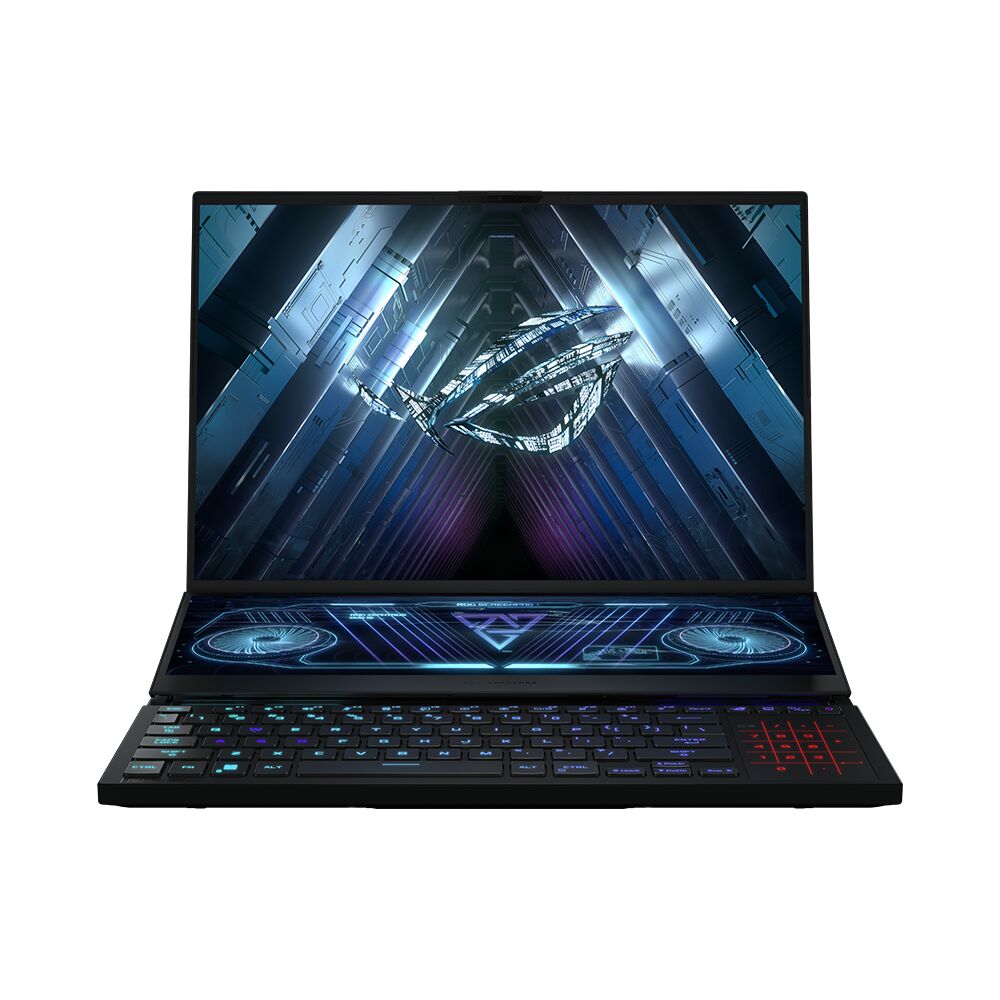

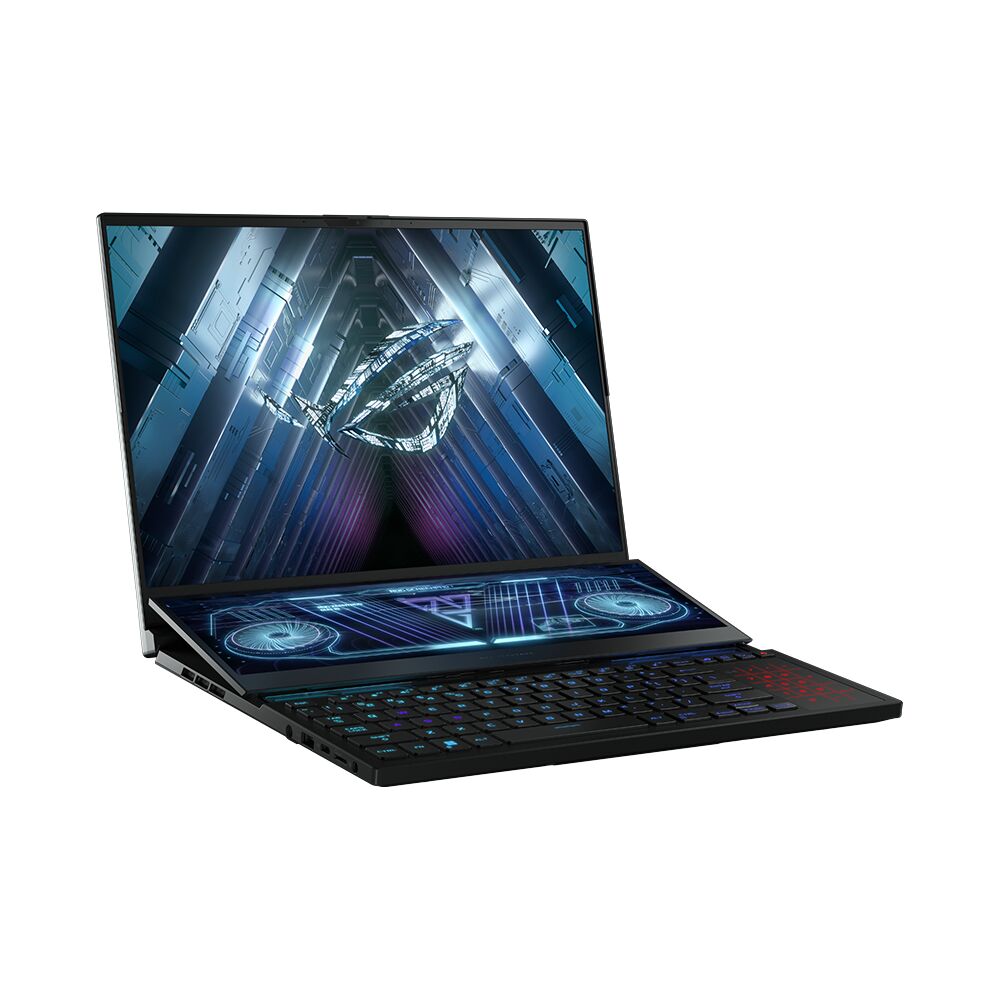

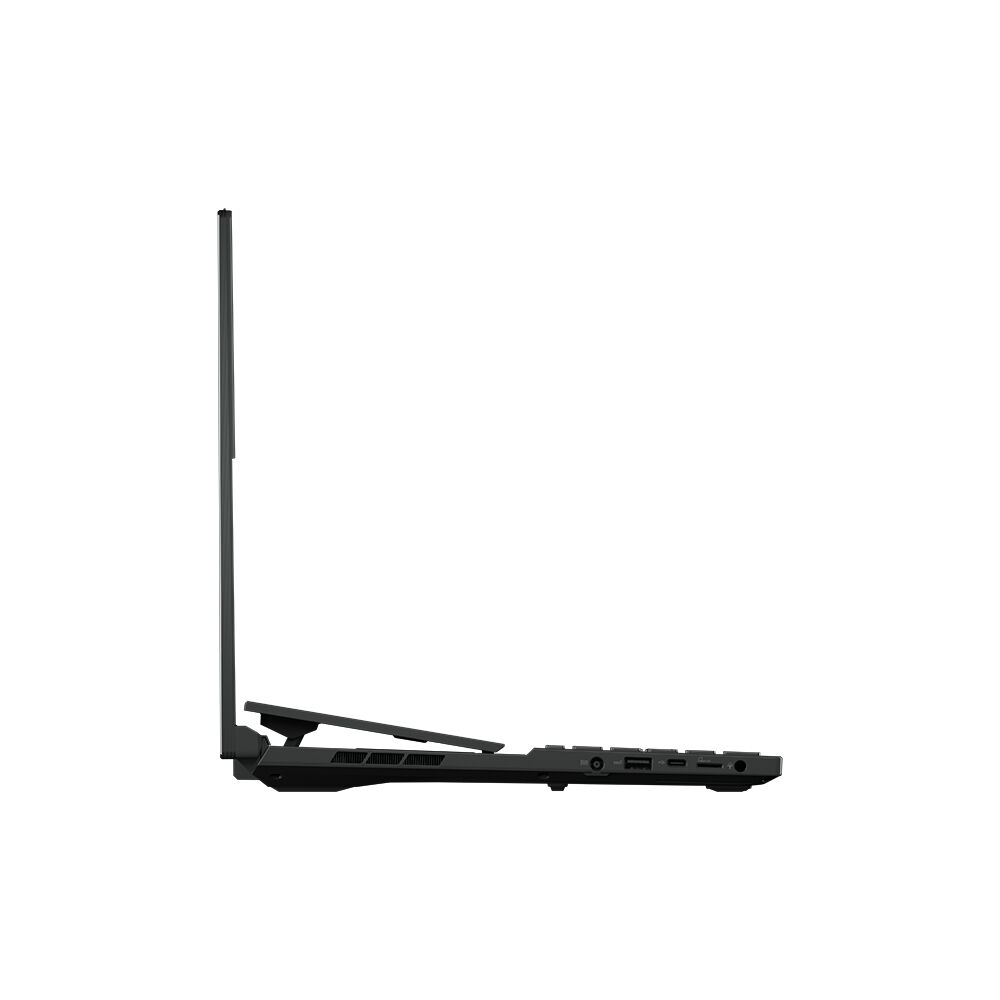

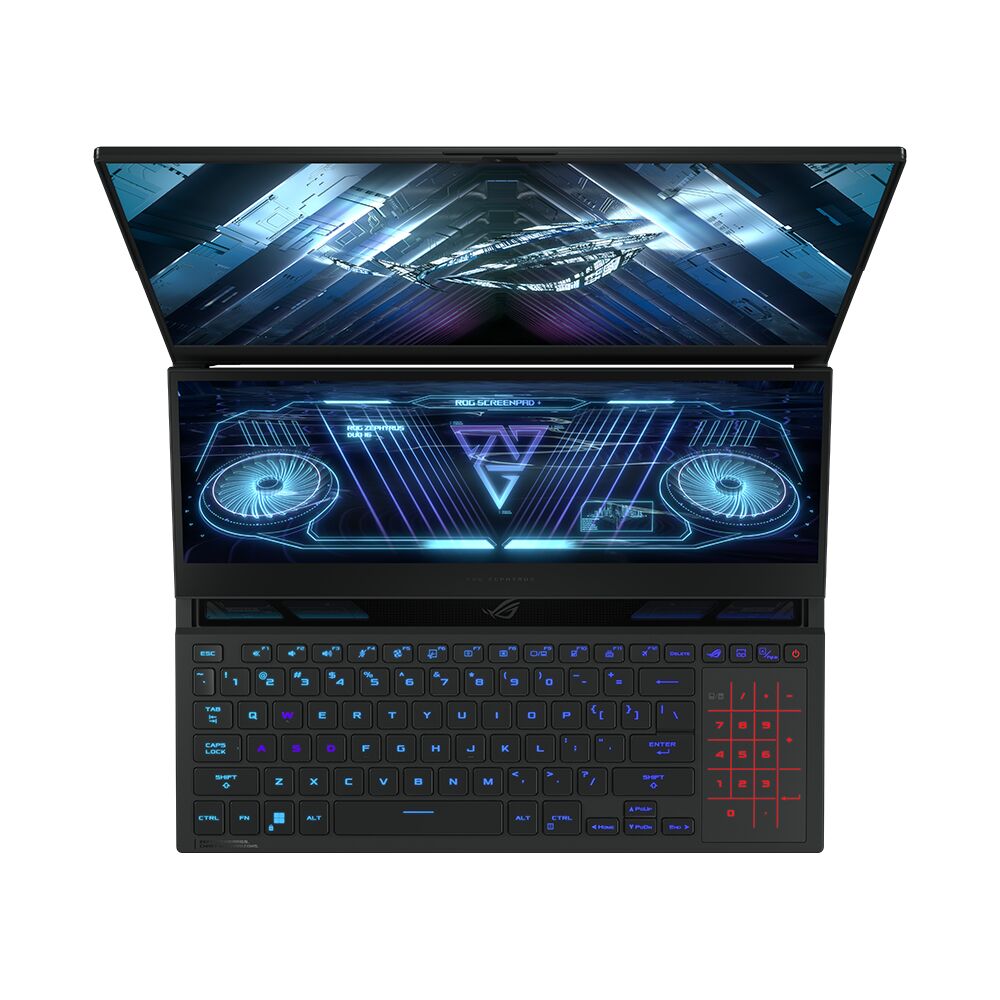

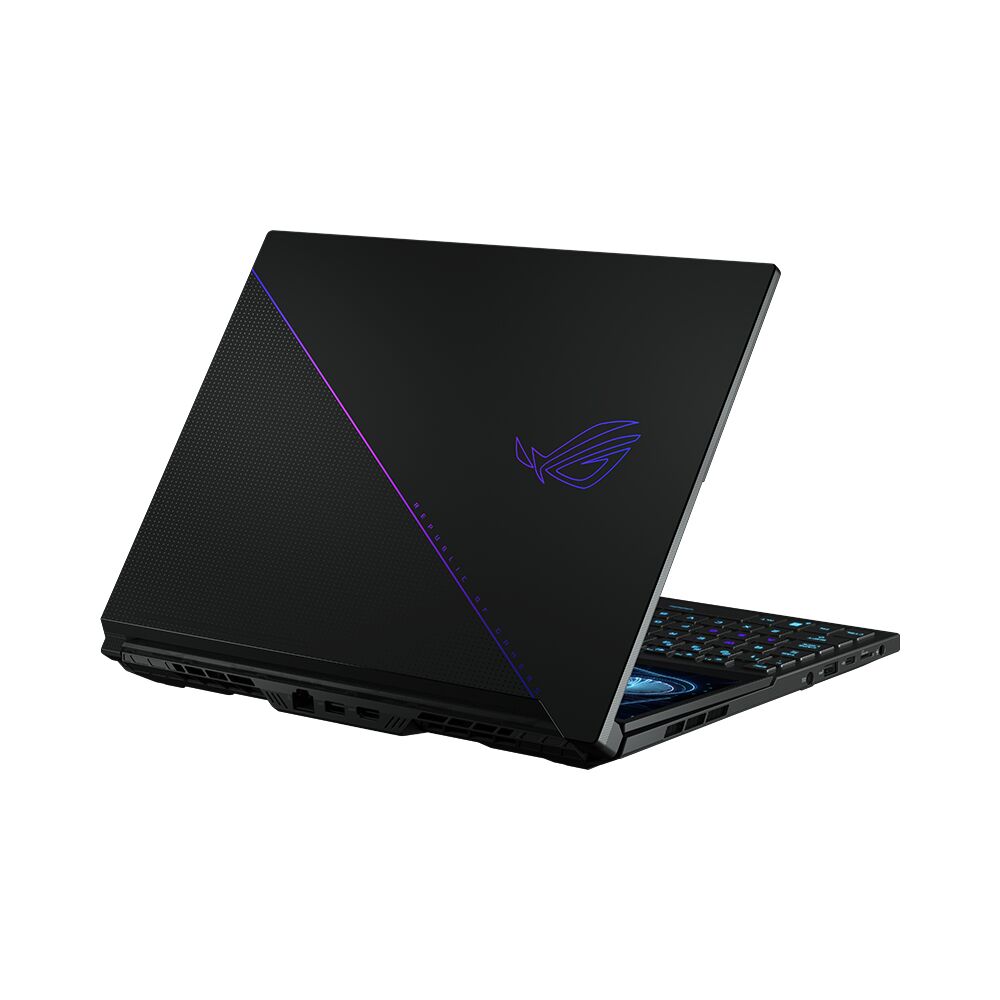

ASUS ROG GX650RX-XS97 RAM upgrade specifications
ASUS ROG Zephyrus Duo 16 GX650RX-XS97 laptop features DDR5-SDRAM memory upgrade specifications. The system includes 2x SO-DIMM slots supporting maximum RAM capacity of 64 GB. Compatible memory modules operate at 4800 MHz frequency using SO-DIMM form factor. Users seeking memory expansion can install DDR5 modules into available slots to achieve maximum supported capacity. Specifications indicate dual-slot configuration allowing for modular RAM upgrades on this gaming laptop model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR5-SDRAM |
| Frequency | 4800 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.1V |
| Number of pins | 262-pin |
| Interface | PC5 |
| PC Speed Rating | PC5-4800 (PC5-38400) |
| Bandwidth | 38.4 GB/s |
| Laptop Release date | 19 January 2022 |
Additional Notes
- The dual-channel architecture requires paired modules to achieve the peak memory bandwidth necessary to eliminate processor data starvation during high-load tasks.
- Utilizing 2 SO-DIMM slots ensures that the motherboard avoids the capacity limitations associated with soldered on-board memory configurations.
- Installation of modules exceeding the 4800 MHz frequency will result in automatic downclocking to the system bus limit governed by the chipset firmware.
- Upgrading the ASUS ROG GX650RX-XS97 to the maximum 64 GB capacity necessitates the removal of all existing factory modules due to the lack of vacant expansion slots.
- The transition to DDR5 technology introduces on-die Error Correction Code which improves system stability compared to older memory standards without requiring specialized server hardware.
- Internal heat dissipation Requirements increase when operating high-density 32 GB modules in each slot under sustained workloads.
- Compatibility with lower voltage DDR5 variants is mandated by the motherboard power delivery system to prevent boot cycles or hardware failure.
