ASUS ROG GU603ZX-056W RAM upgrade specifications

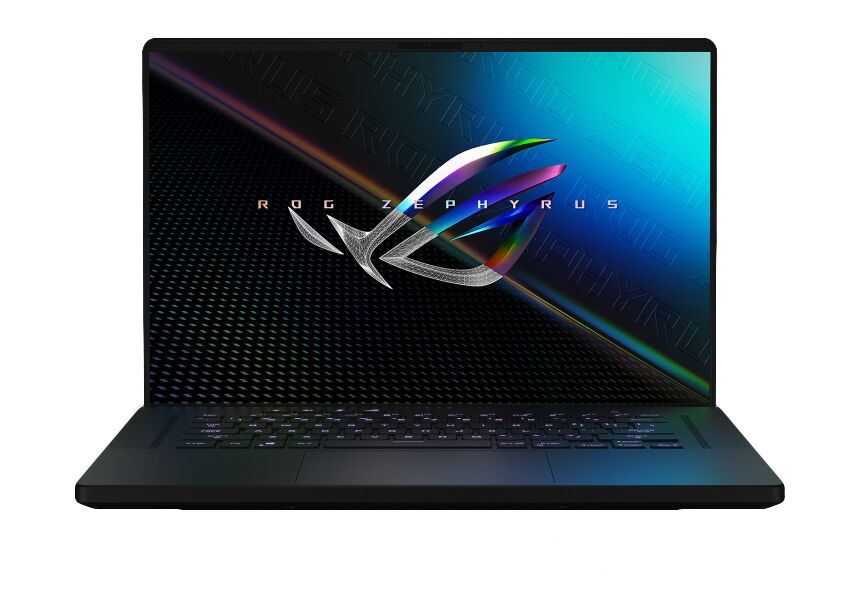

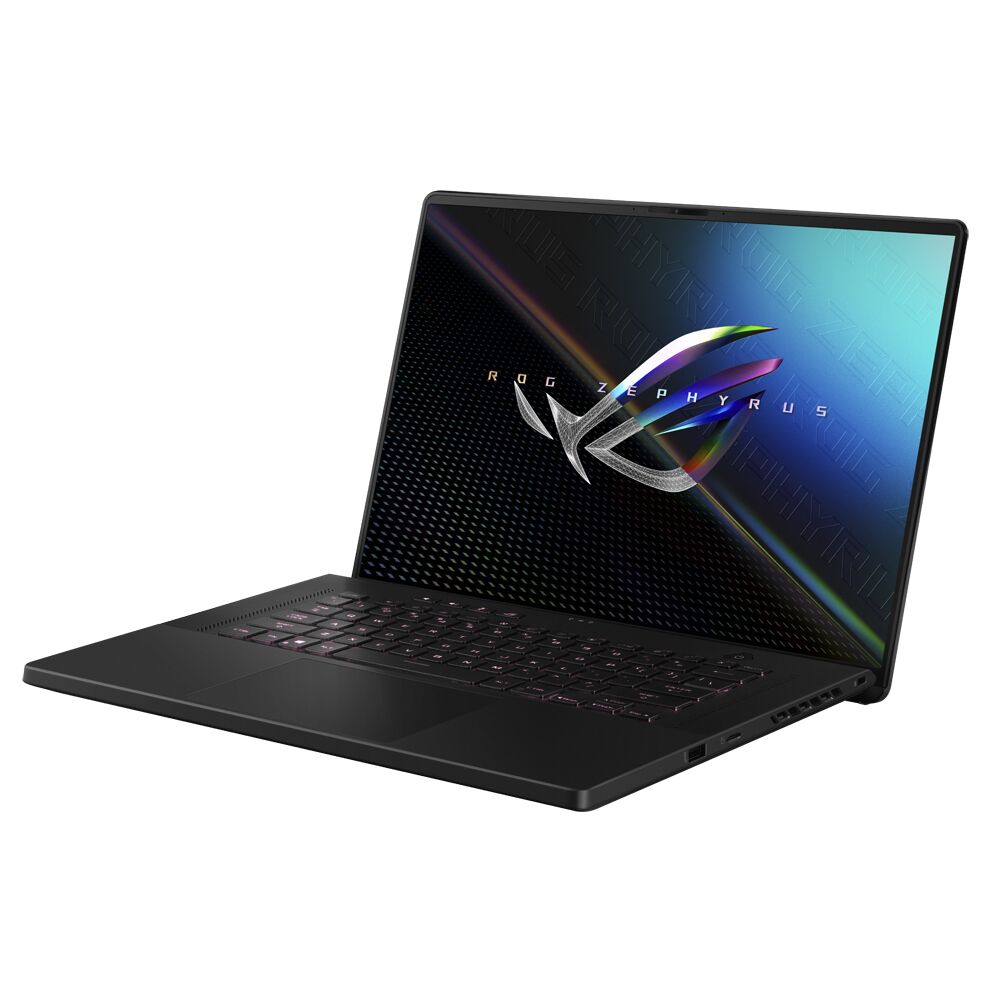

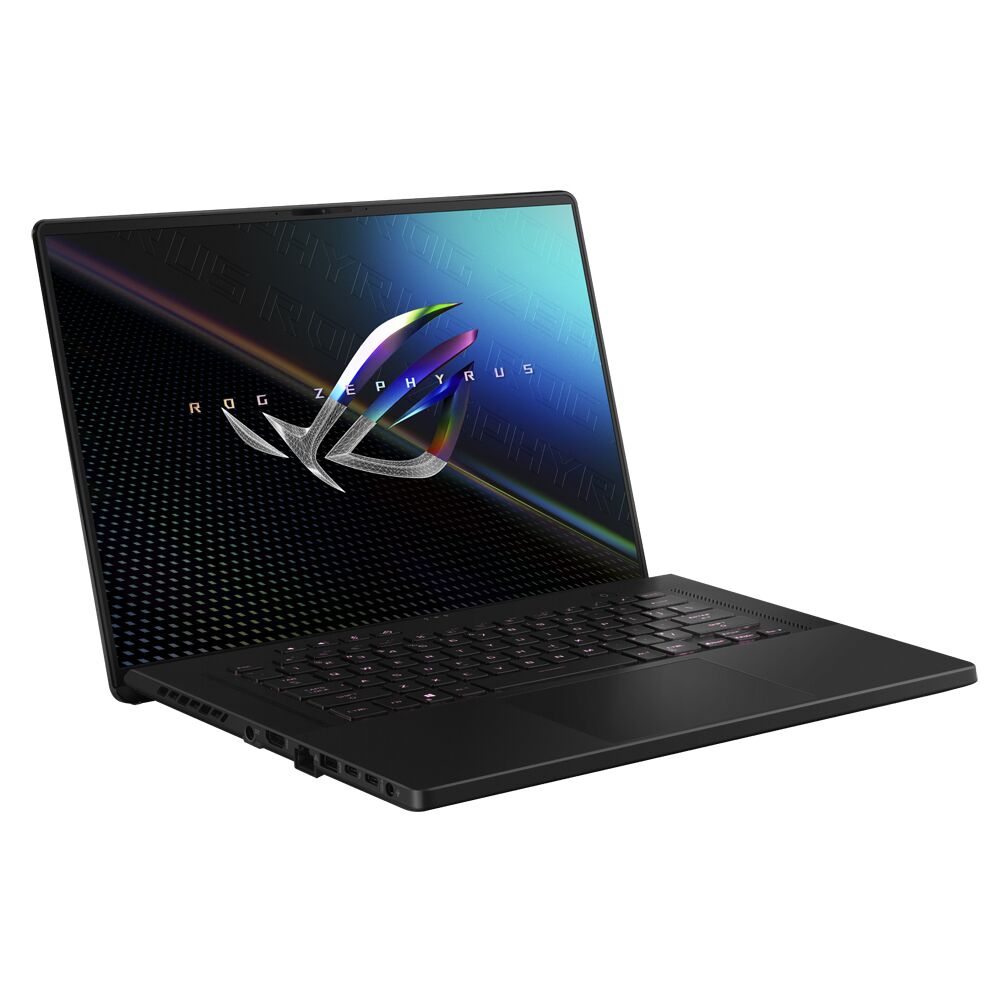

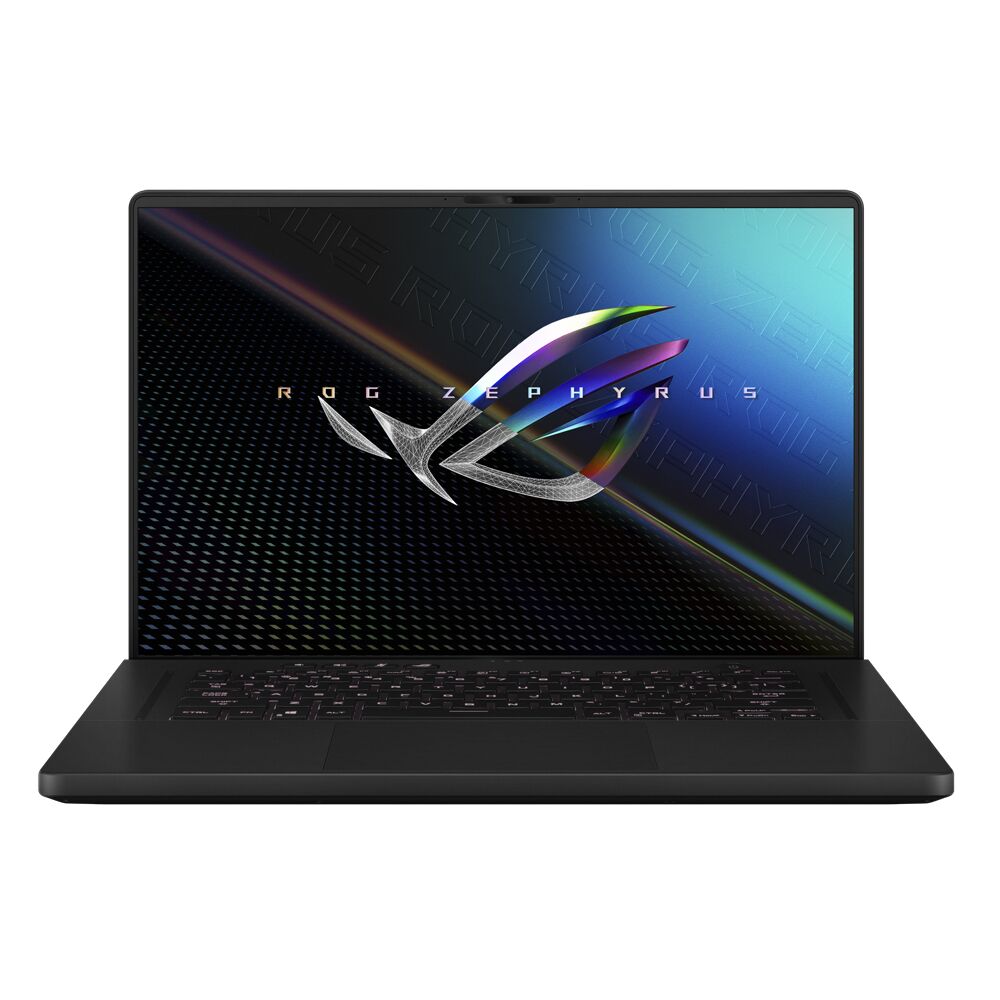

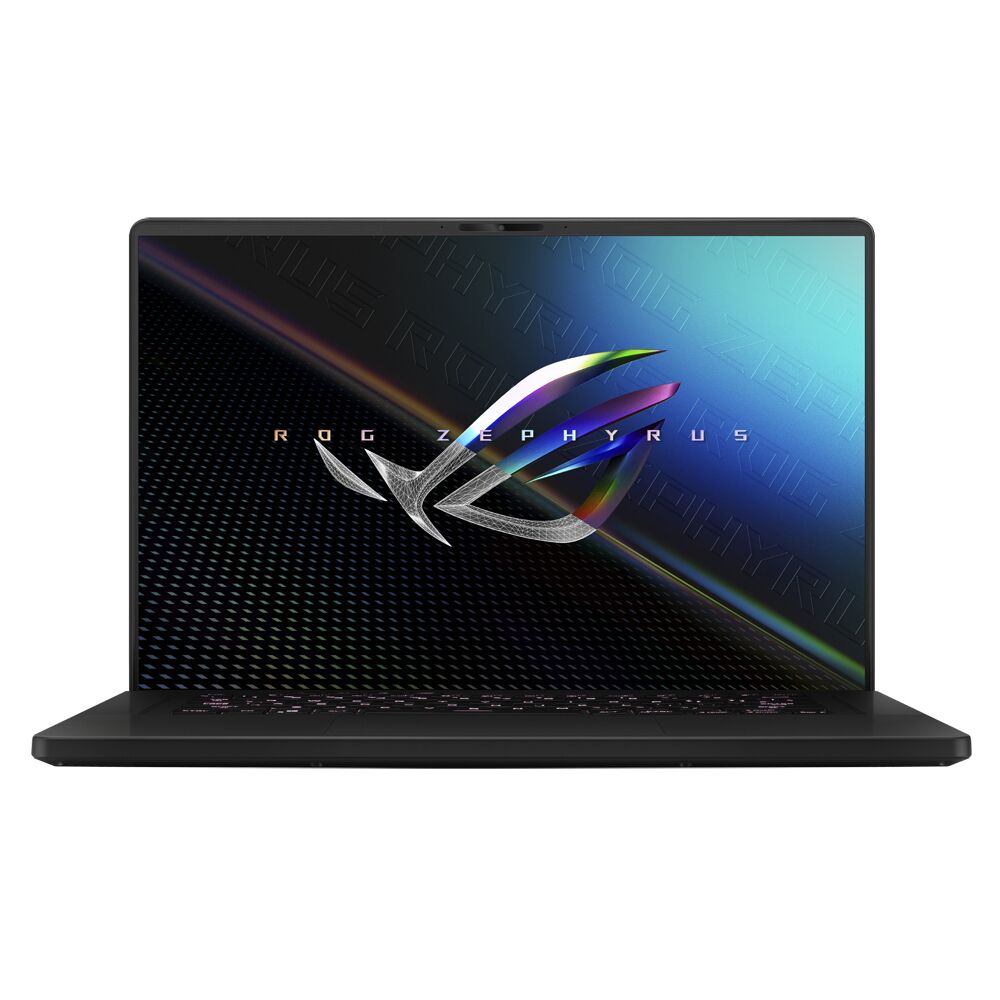

The ASUS ROG Zephyrus M16 GU603ZX-056W features DDR5-SDRAM memory with one SO-DIMM slot for upgrade capacity. The laptop includes on-board memory combined with one replaceable SO-DIMM module, supporting maximum RAM of 48 GB. Memory specifications include DDR5 operating at 4800 MHz frequency. Compatible upgrades utilize the SO-DIMM form factor slot to expand memory capacity beyond the integrated configuration. Maximum upgrade capacity reaches 48 GB total, allowing users to enhance multitasking performance and application responsiveness through memory expansion.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 1x SO-DIMM |
| Form factor | On-board + SO-DIMM |
| Memory type | DDR5-SDRAM |
| Frequency | 4800 MHz |
| Maximum RAM | 48 GB |
| Voltage | 1.1V |
| Number of pins | 262-pin |
| Interface | PC5 |
| PC Speed Rating | PC5-4800 (PC5-38400) |
| Bandwidth | 38.4 GB/s |
| Laptop Release date | 25 March 2022 |
Additional Notes
- The ASUS ROG GU603ZX-056W features soldered memory combined with a single expansion slot, meaning part of the system RAM cannot be removed or replaced under any circumstances.
- Reaching the 48 GB maximum capacity requires installing a 32 GB SO-DIMM module, which indicates 16 GB is permanently soldered to the motherboard.
- The single-slot configuration prevents dual-channel memory expansion beyond the factory configuration, potentially limiting bandwidth scaling compared to systems with two available SO-DIMM slots.
- DDR5-4800 represents the JEDEC baseline specification for DDR5 memory, ensuring broad module compatibility but offering no headroom for higher-frequency kits within this platform.
- Upgrading requires physically accessing the internal SO-DIMM slot, which typically involves bottom panel removal and may affect warranty coverage depending on regional service policies.
- The mixed memory architecture creates an asymmetric configuration when upgraded, where the soldered and socketed modules operate in flex mode rather than traditional matched dual-channel mode.
- Standard DDR5 SO-DIMM modules at 4800 MT/s are backward compatible with this specification, but modules rated for higher speeds will downclock to match the platform's supported frequency.
- The 48 GB ceiling is defined by chipset or motherboard design limitations rather than DDR5 technology itself, which supports significantly higher per-slot capacities.
- Installation requires SO-DIMM modules specifically, as standard DIMM desktop memory uses incompatible physical dimensions and pin configurations.
