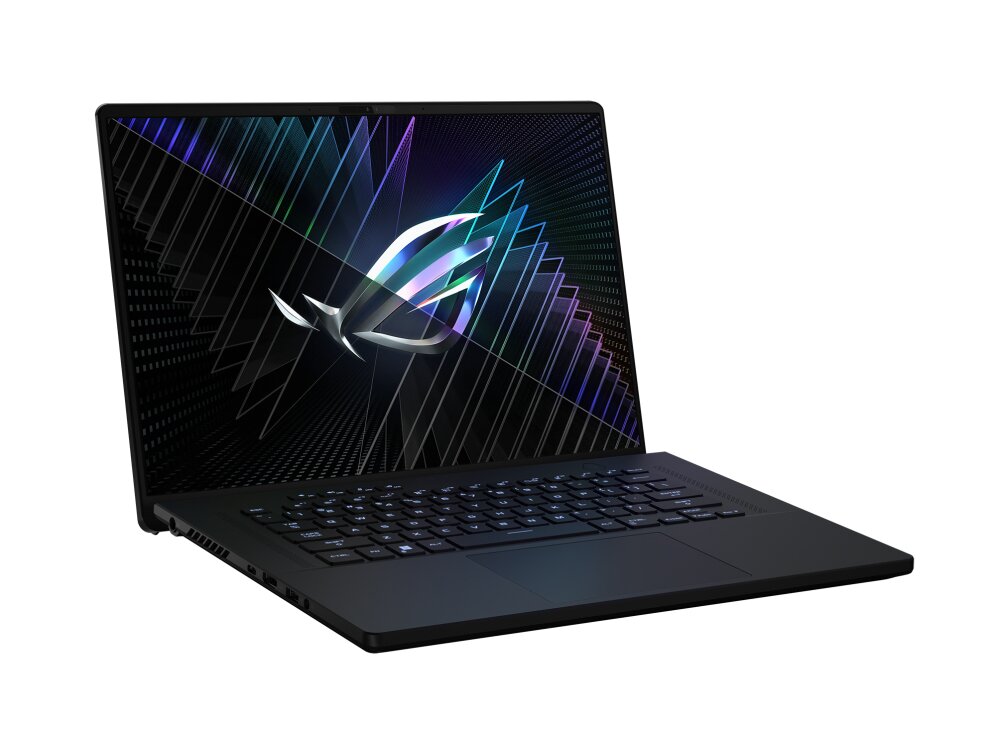

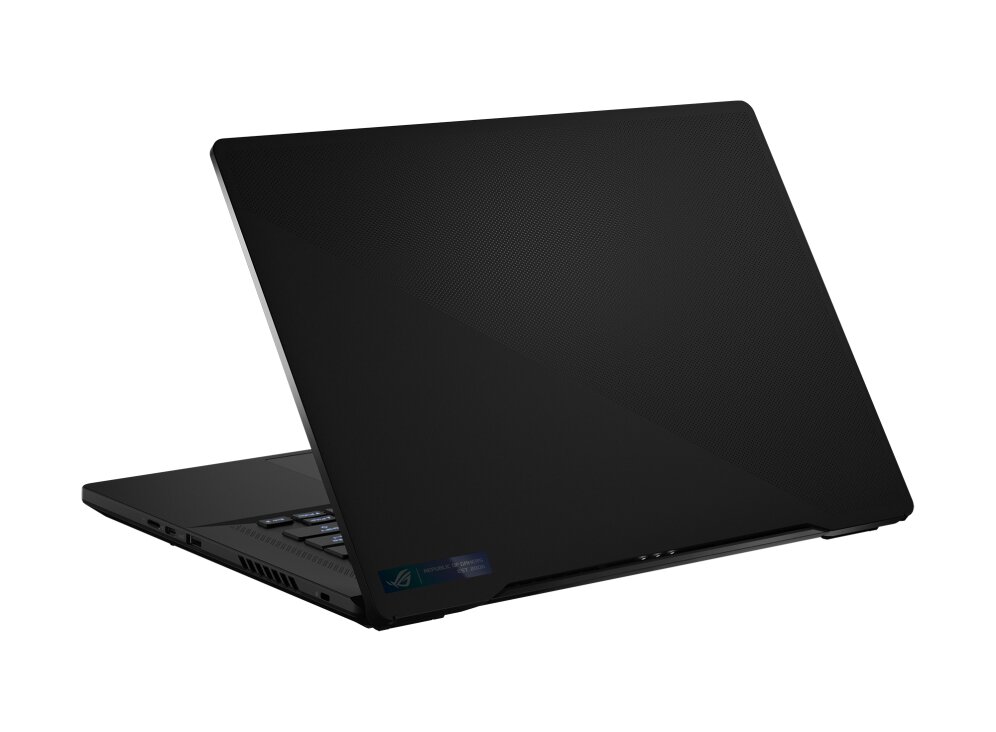

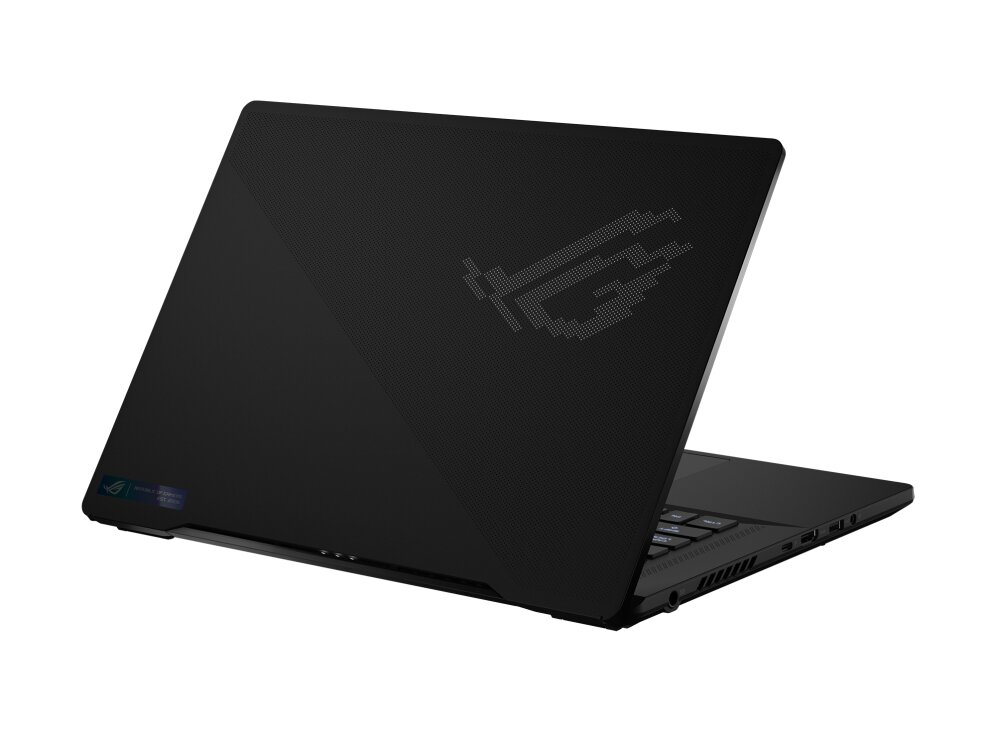

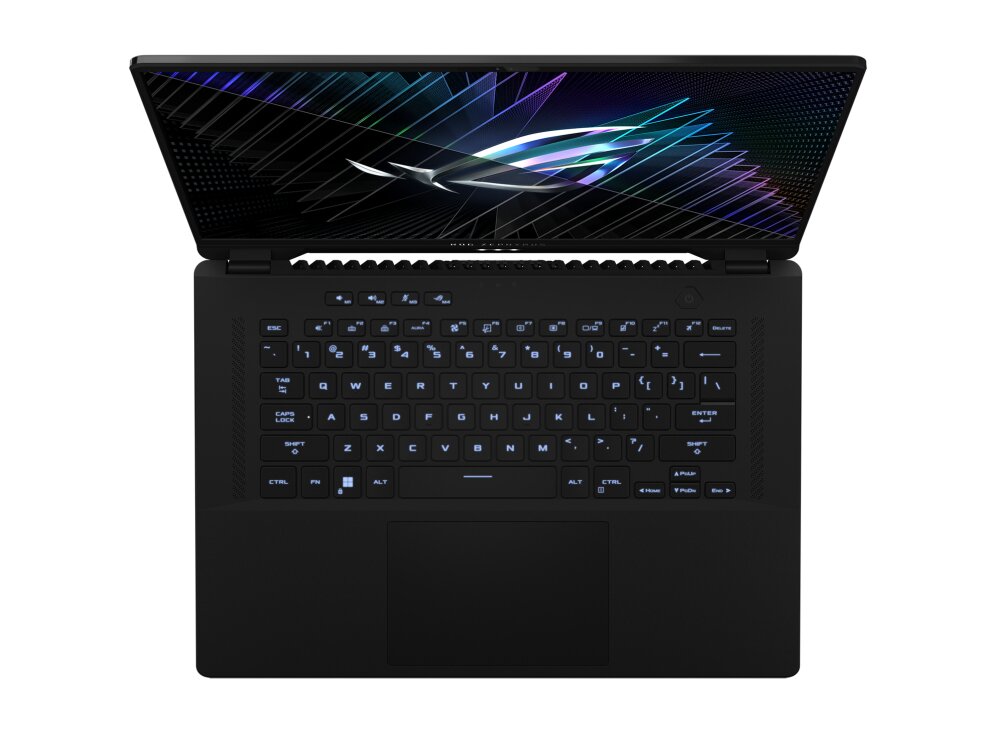

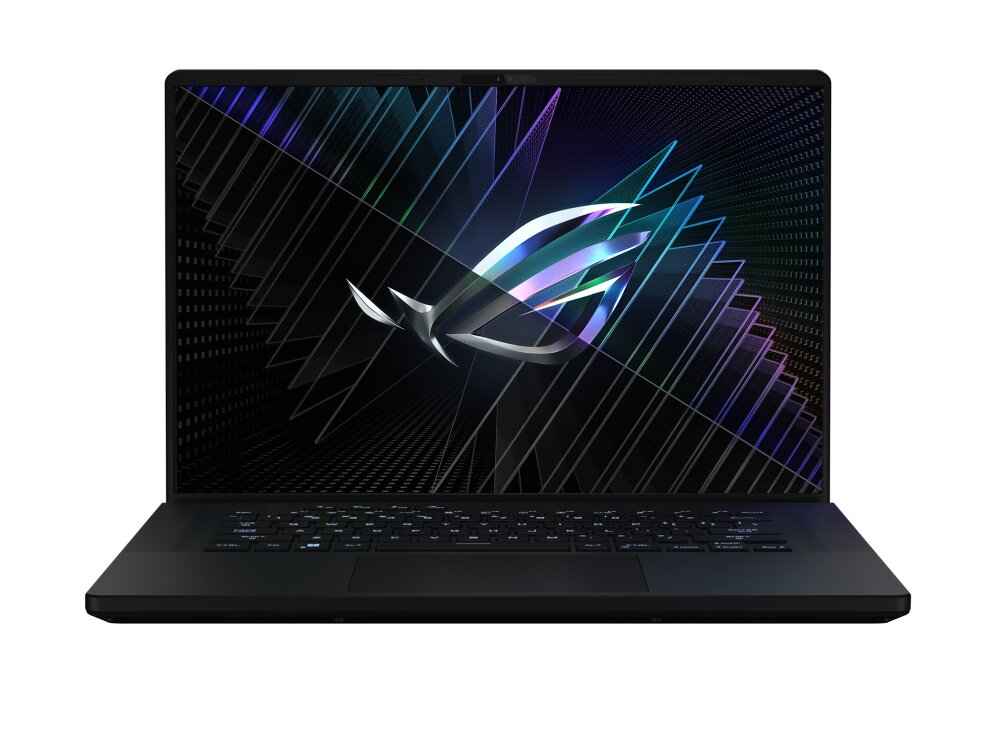

ASUS ROG GU604VI-DS92-CA RAM upgrade specifications
ASUS ROG Zephyrus M16 GU604VI-DS92-CA memory upgrade specifications include two SO-DIMM slots supporting DDR5-SDRAM at 4800 MHz frequency. Maximum RAM capacity reaches 64 GB total. Compatible memory upgrades utilize SO-DIMM form factor modules. Specifications confirm DDR5 memory technology integration with dual-slot configuration for RAM expansion. Upgrade capacity supports up to 64 GB configuration on this laptop model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR5-SDRAM |
| Frequency | 4800 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.1V |
| Number of pins | 262-pin |
| Interface | PC5 |
| PC Speed Rating | PC5-4800 (PC5-38400) |
| Bandwidth | 38.4 GB/s |
| Laptop Release date | 21 February 2023 |
Additional Notes
- Dual channel mode requires identical module densities across both slots to maintain peak memory bandwidth and prevent system downclocking.
- The absence of soldered memory on the ASUS GU604VI-DS92-CA motherboard allows for the total replacement of factory modules to reach the maximum supported capacity.
- Installing modules with frequencies higher than 4800 MHz will result in automatic downclocking to match the internal memory controller limitations.
- Compatibility is restricted to 262 pin physical interfaces, excluding older DDR4 hardware which uses a different notch position.
- Upgrading beyond the 64 GB threshold may cause a failure to POST as the BIOS firmware is not validated for higher density 48 GB or 64 GB individual sticks.
- Integrated graphics stability relies on the shared memory pool, meaning higher latency timings in aftermarket RAM could impact frame time consistency during rendering tasks.
- Accessing the SO-DIMM slots requires the removal of the bottom chassis panel, which may involve navigating hidden screws beneath adhesive rubber feet.
