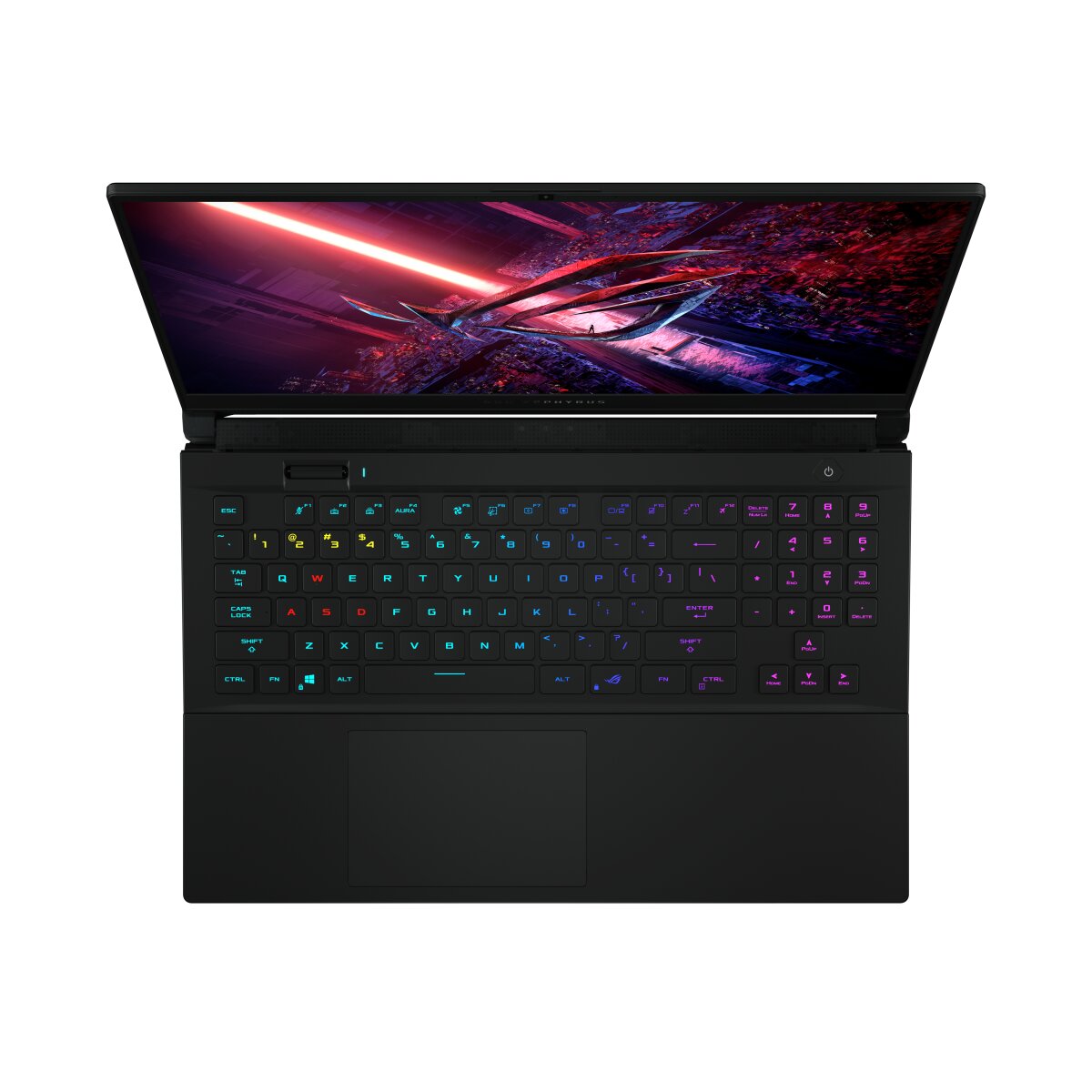

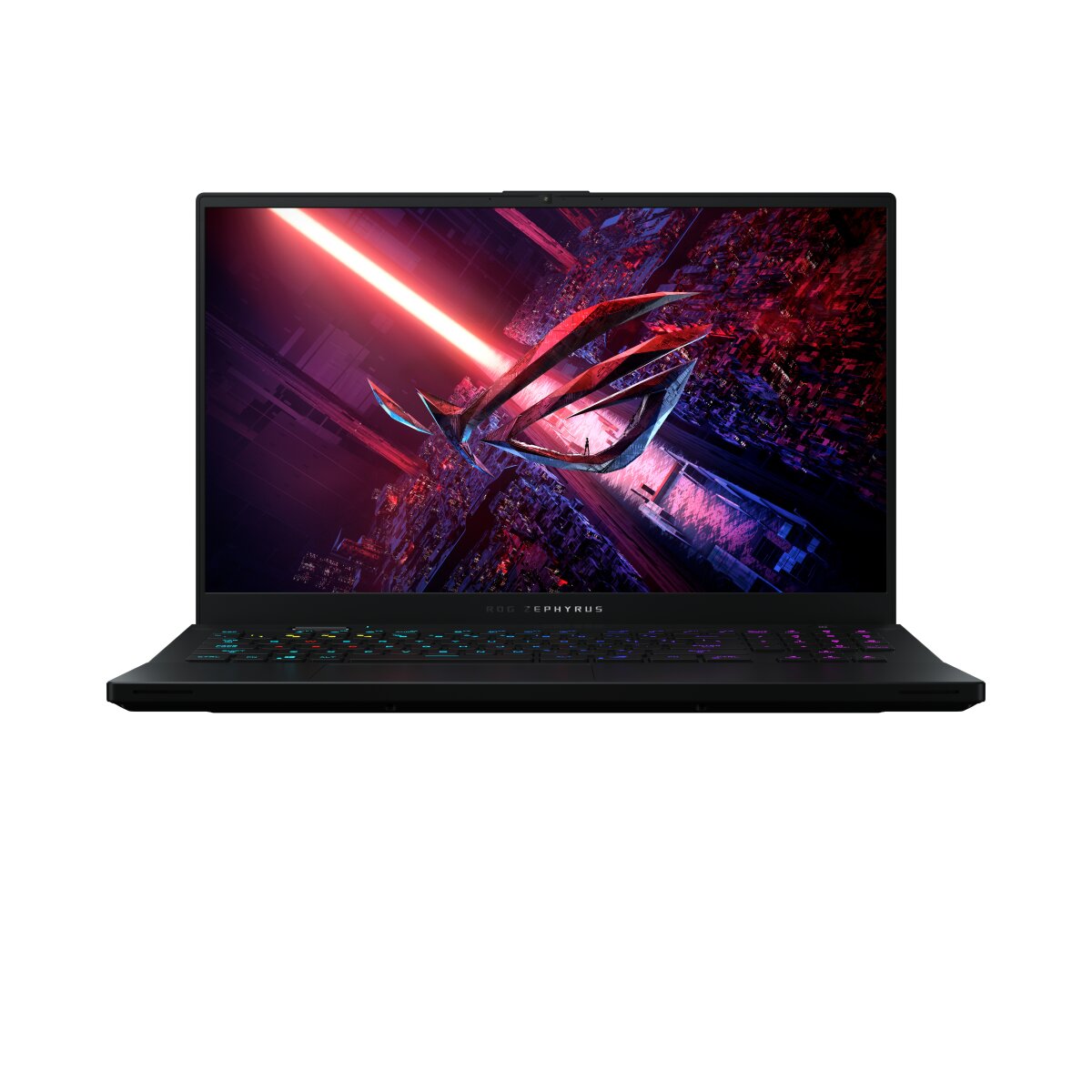

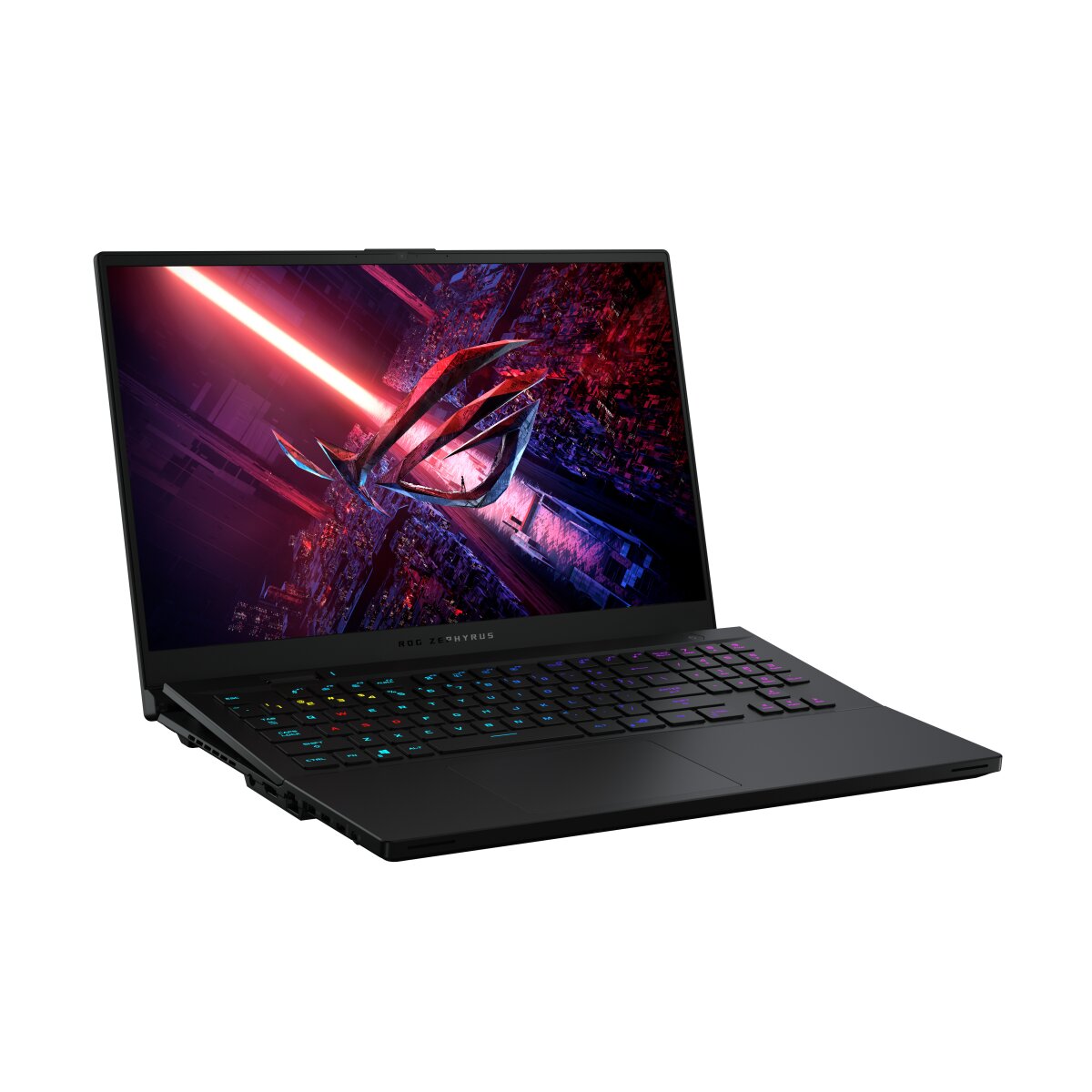

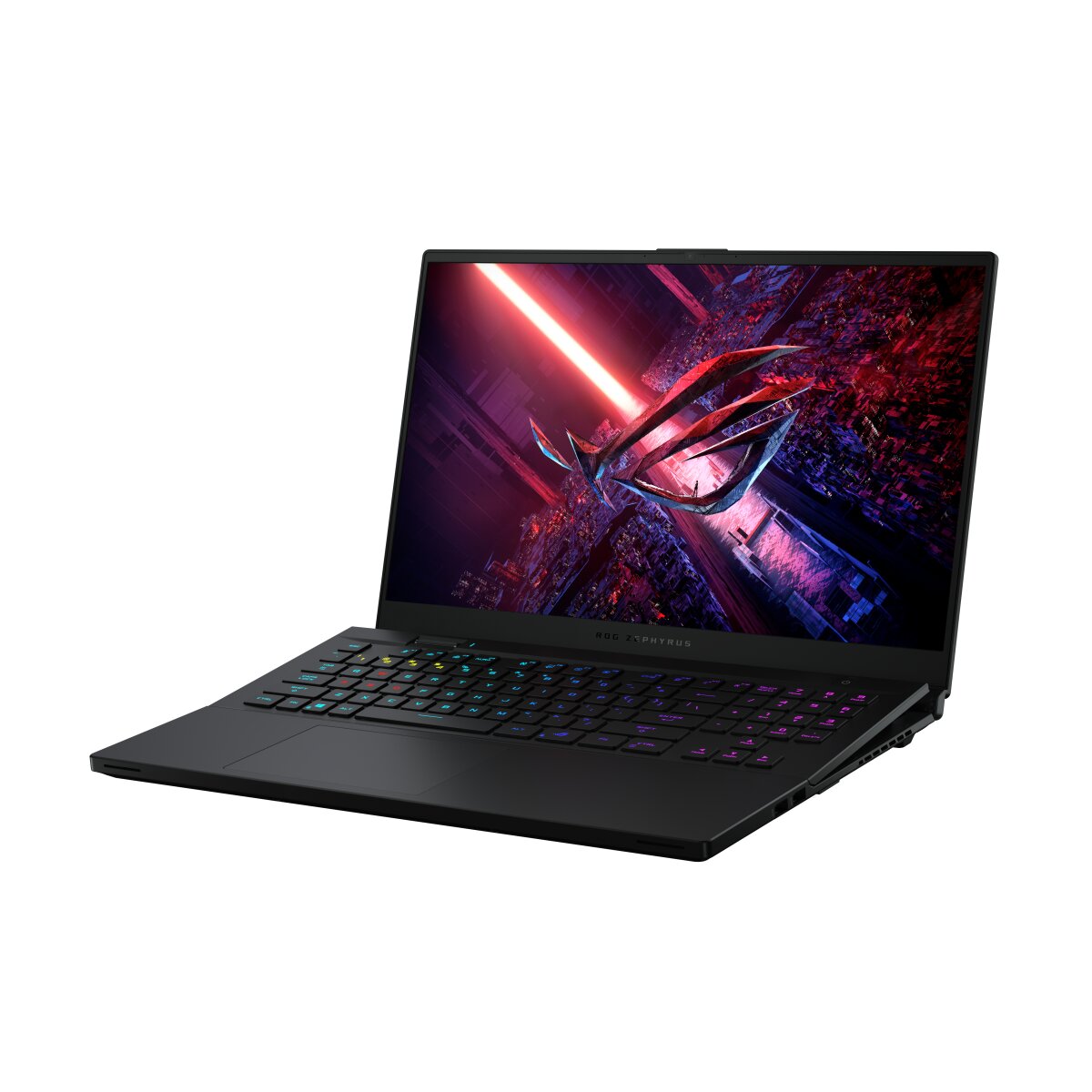

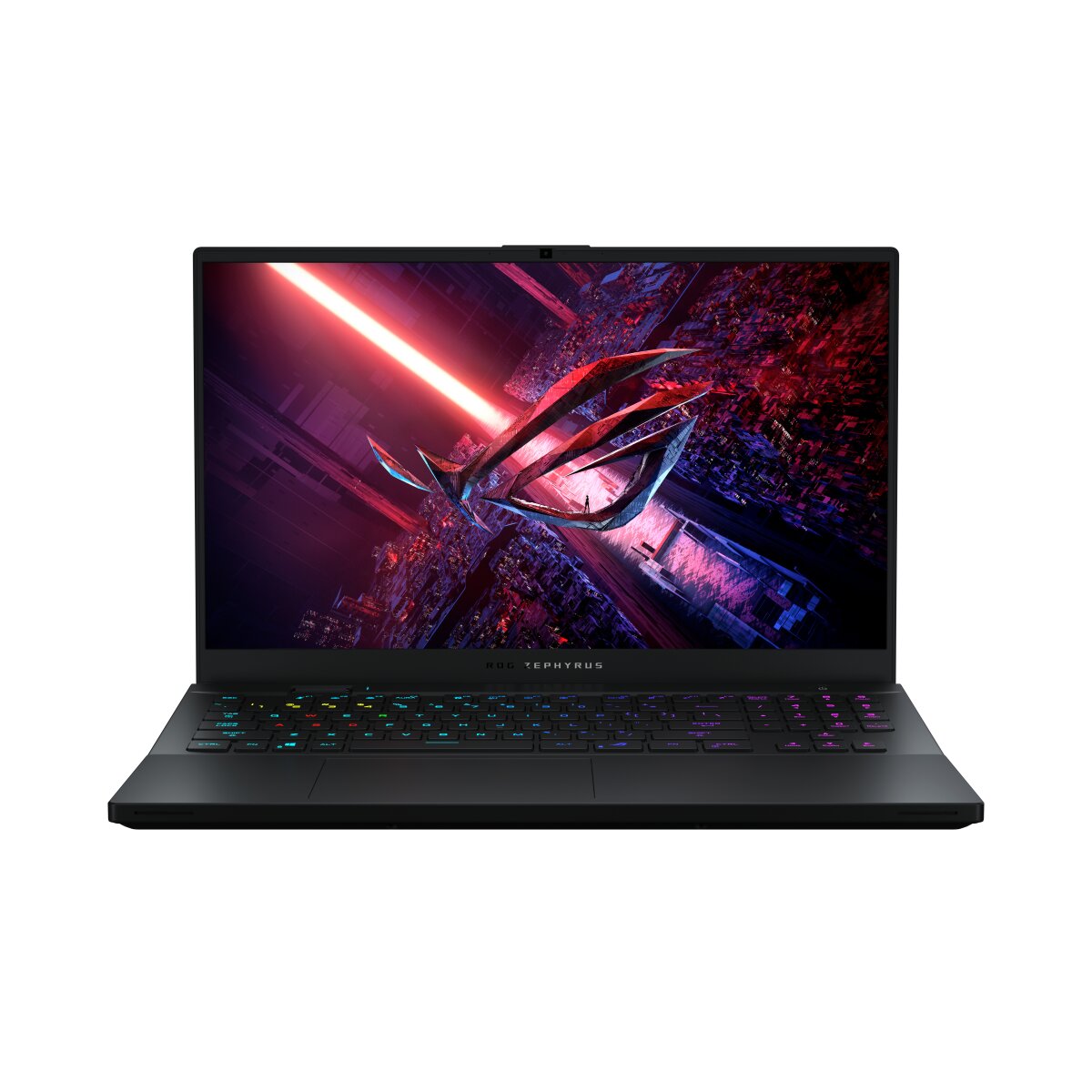

ASUS ROG GX703HS-KF051T RAM upgrade specifications
ASUS ROG Zephyrus S17 GX703HS-KF051T RAM upgrade specifications feature DDR4-SDRAM memory compatible with single SO-DIMM slot configuration. Maximum RAM capacity reaches 48 GB total, with memory operating at 3200 MHz frequency. Upgrade slot accommodates additional memory modules to expand existing on-board memory configuration. Compatible DDR4 modules enable increased multitasking performance and application support for specifications-demanding computing tasks.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 1x SO-DIMM |
| Form factor | On-board + SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 48 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 28 December 2021 |
Additional Notes
- The presence of a single SO-DIMM slot alongside permanent on-board memory creates an asymmetrical dual-channel configuration when using modules larger than the integrated capacity.
- Upgrading the ASUS GX703HS-KF051T requires matching the 3200 MHz frequency to avoid system-wide downclocking and increased latency across both memory banks.
- Hardware replacement remains limited to 1 physical module, meaning subsequent capacity increases necessitate discarding the existing removable stick rather than adding to it.
- Physical access to the SO-DIMM slot involves removing the base panel, which may require specific tools to avoid damaging the internal ribbon cables or integrated cooling components.
- The total memory ceiling is restricted by the non-replaceable factory chip, which dictates the specific density required for the expansion module to reach the 48 GB limit.
- Memory performance relies on the integrated controller maintaining stability between two distinct hardware interfaces, favoring modules with identical timings to the soldered components.
