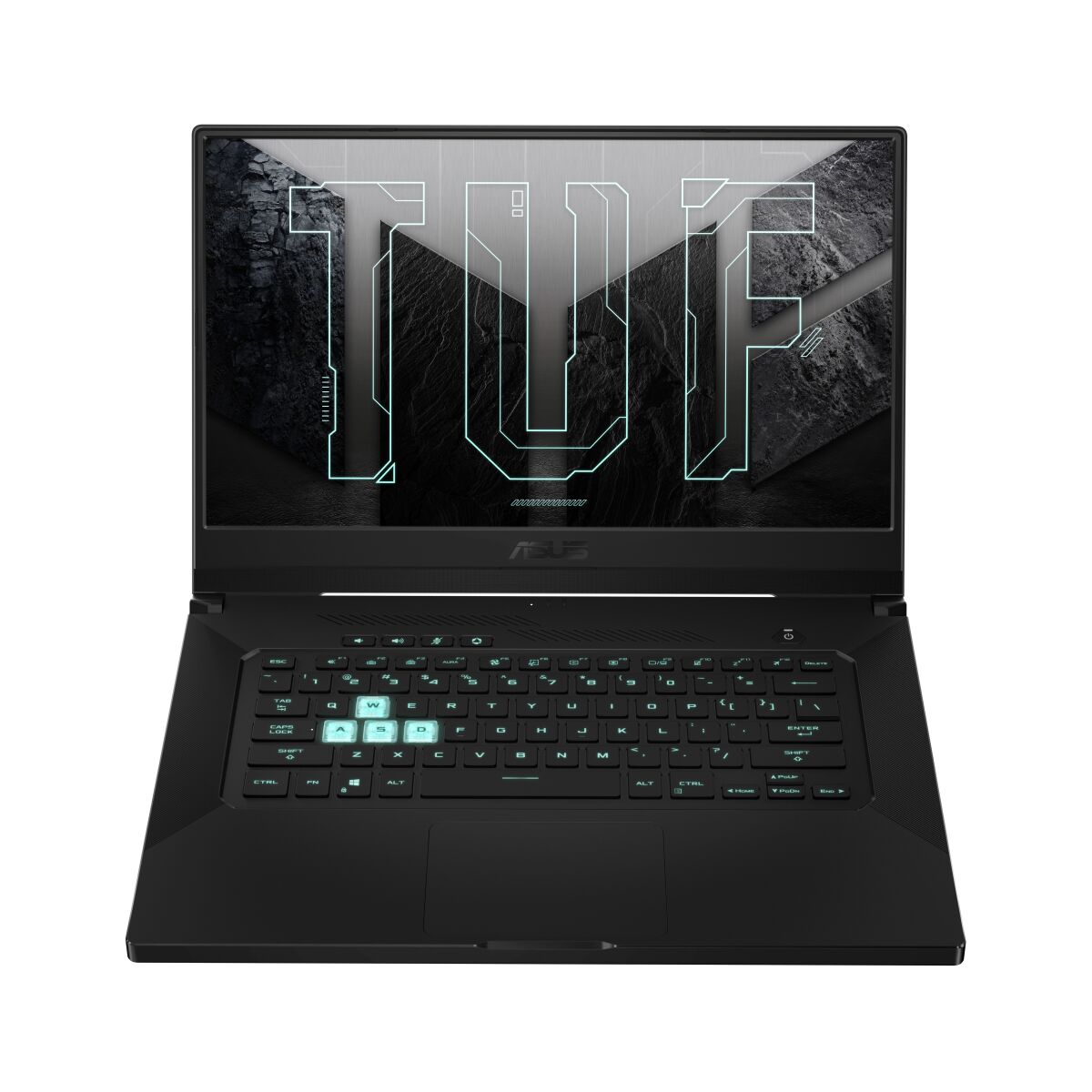

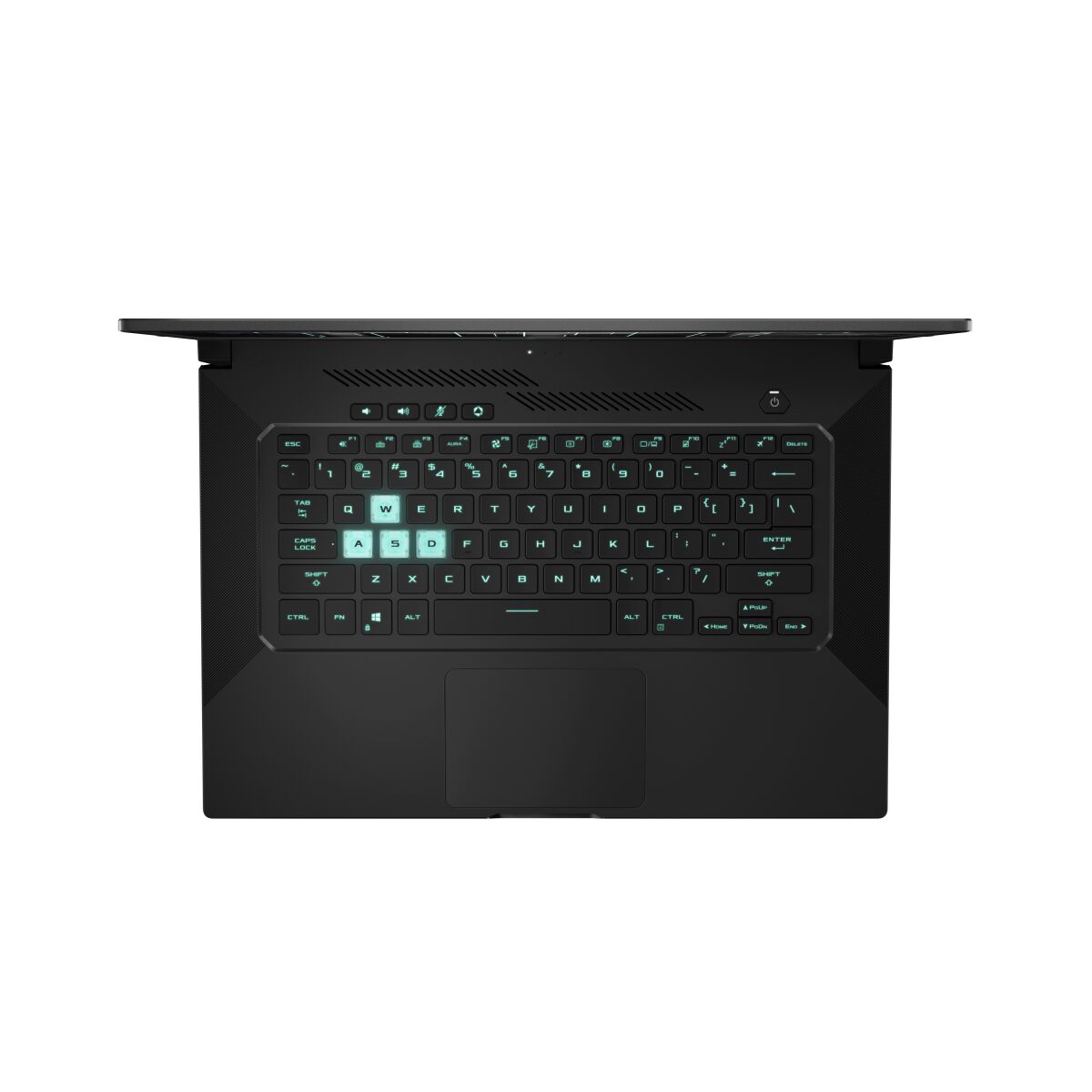

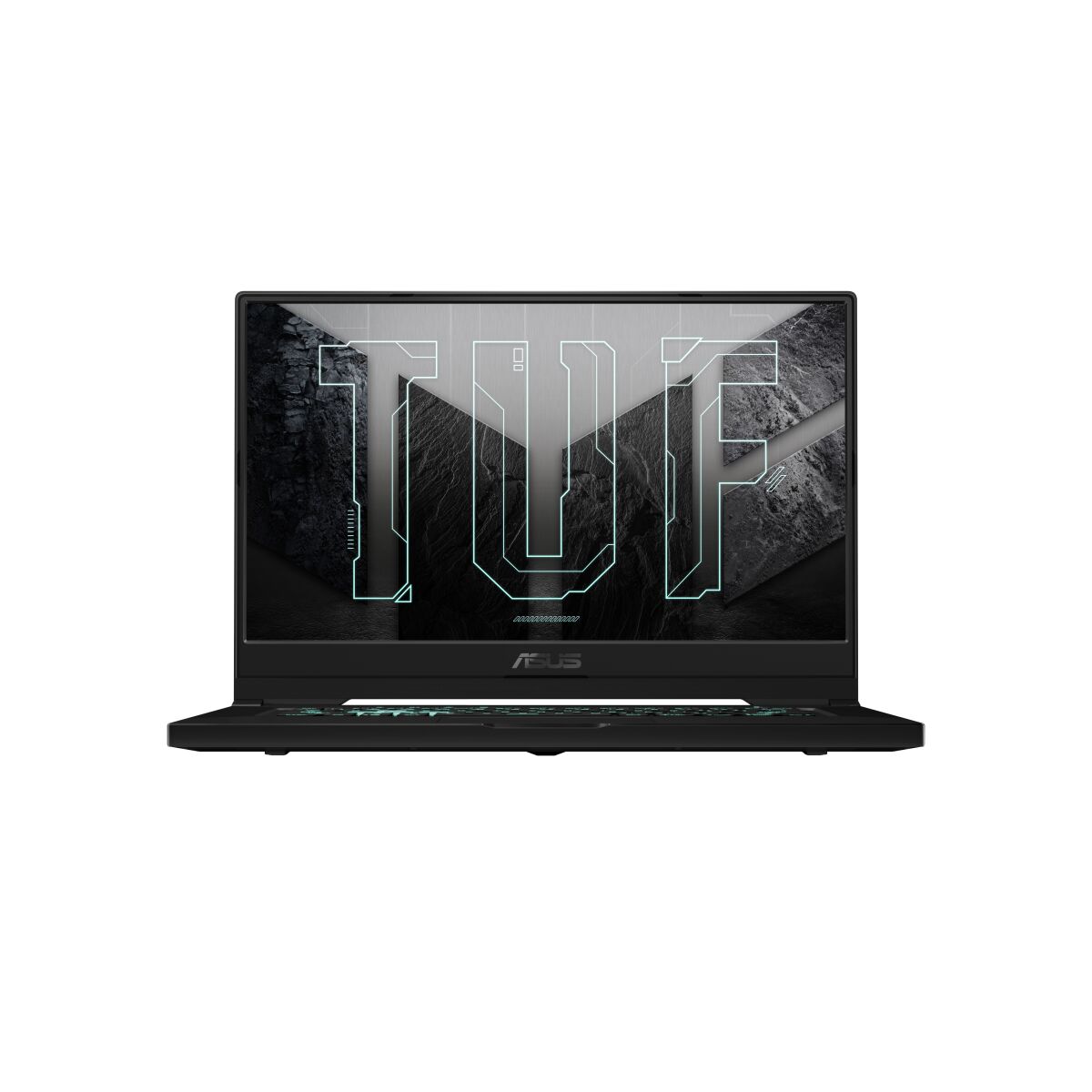

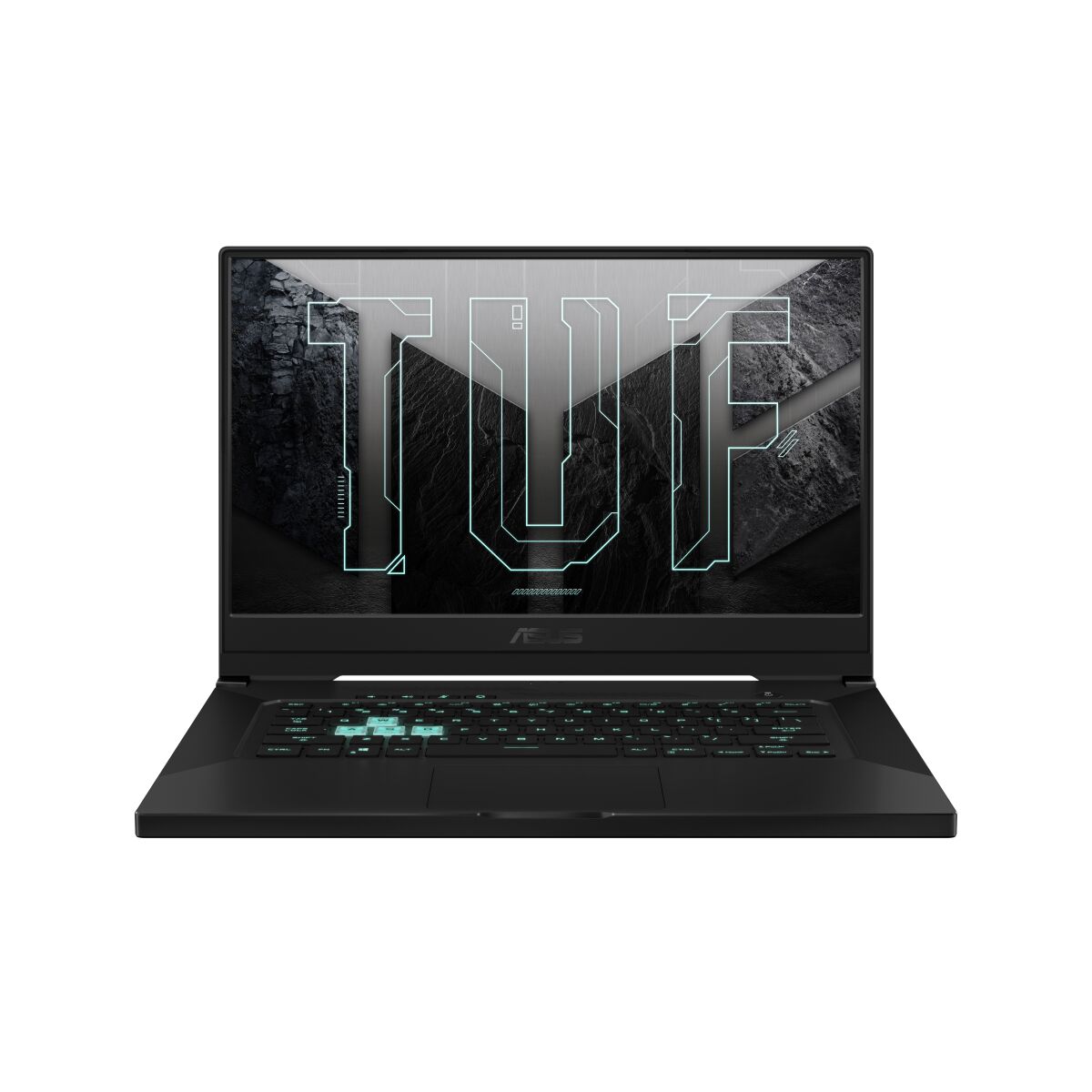

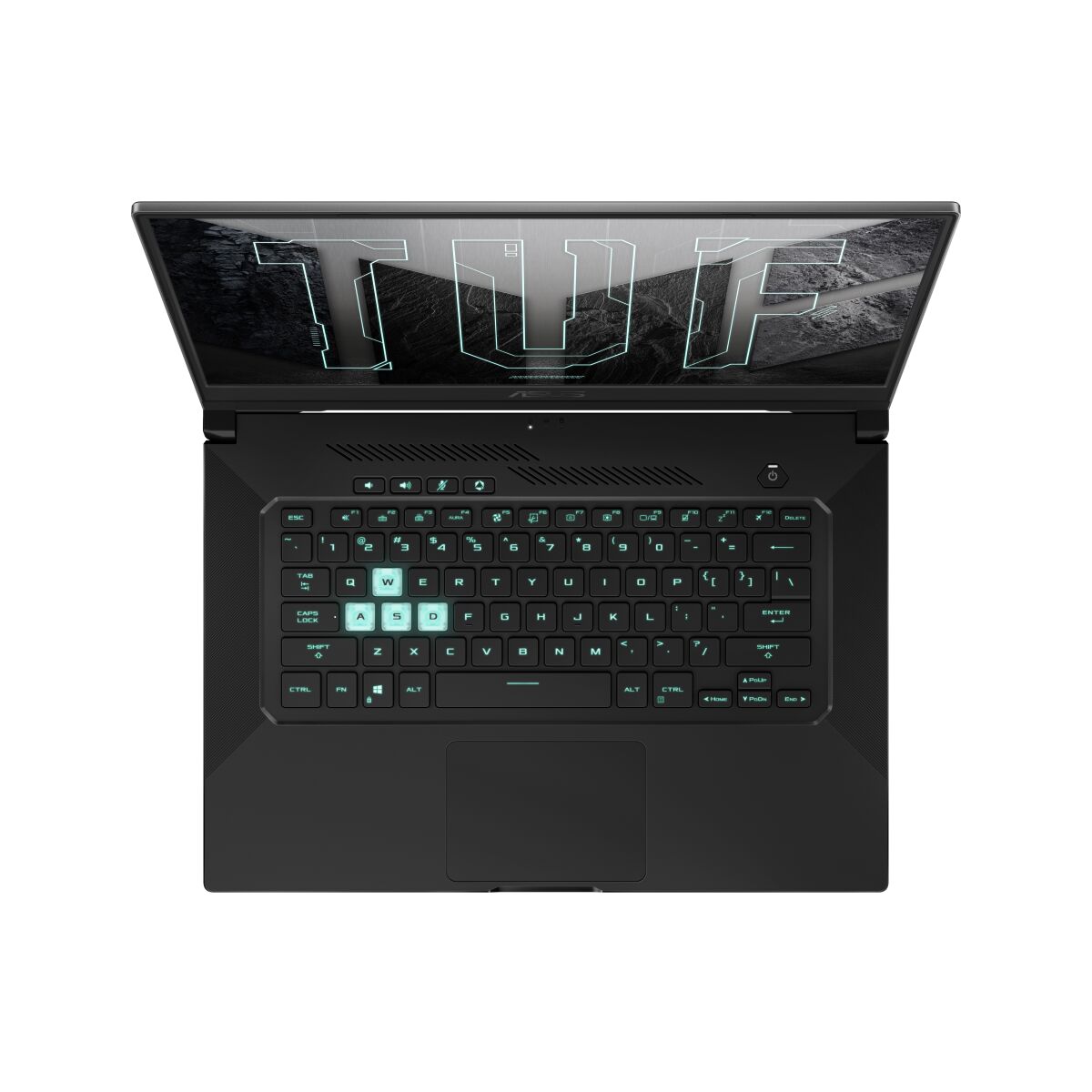

ASUS TUF Dash FX516PR-AZ019T RAM upgrade specifications
ASUS TUF Dash F15 FX516PR-AZ019T memory upgrade specifications detail compatible DDR4-SDRAM RAM modules. The laptop contains one SO-DIMM slot available for memory expansion. Maximum RAM capacity reaches 32 GB through compatible upgrade modules operating at 3200 MHz frequency. Memory configuration consists of on-board integrated memory plus single SO-DIMM expansion slot. Specifications indicate DDR4-SDRAM compatibility for RAM upgrade installations on this model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 1x SO-DIMM |
| Form factor | On-board + SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 13 January 2021 |
Additional Notes
- The ASUS TUF Dash FX516PR-AZ019T contains soldered memory on the motherboard, meaning only the single SO-DIMM slot remains user-accessible for expansion. The factory-installed capacity cannot be determined from slot configuration alone, creating ambiguity about actual upgrade headroom.
- DDR4-3200 MHz represents the baseline specification, but real-world performance depends on BIOS recognition of the installed module. Modules rated above 3200 MHz may operate at reduced frequency unless manual timing adjustments are enabled, introducing compatibility variance between different memory manufacturers.
- The 32 GB ceiling suggests approximately 16 GB of on-board memory, leaving 16 GB as the practical maximum for the SO-DIMM slot. A single 32 GB module cannot be installed without exceeding the system's memory controller specification.
- SO-DIMM form factor requires laptop-specific modules rather than desktop equivalents. Standard DDR4 UDIMM memory cannot physically fit into this laptop's single expansion slot, restricting the upgrade pool to mobile-grade components only.
- Warranty preservation typically permits memory upgrades on ASUS consumer laptops, provided the module meets OEM specifications and installation does not damage surrounding components. Thermal paste or adhesive near the memory slot should be inspected before removal to prevent unintended motherboard damage.
- Latency and timing parameters become critical when sourcing third-party modules. Modules with higher CAS latency (CL18 or above) may offset the frequency advantage, resulting in negligible throughput gains over factory specifications despite higher clock ratings.
