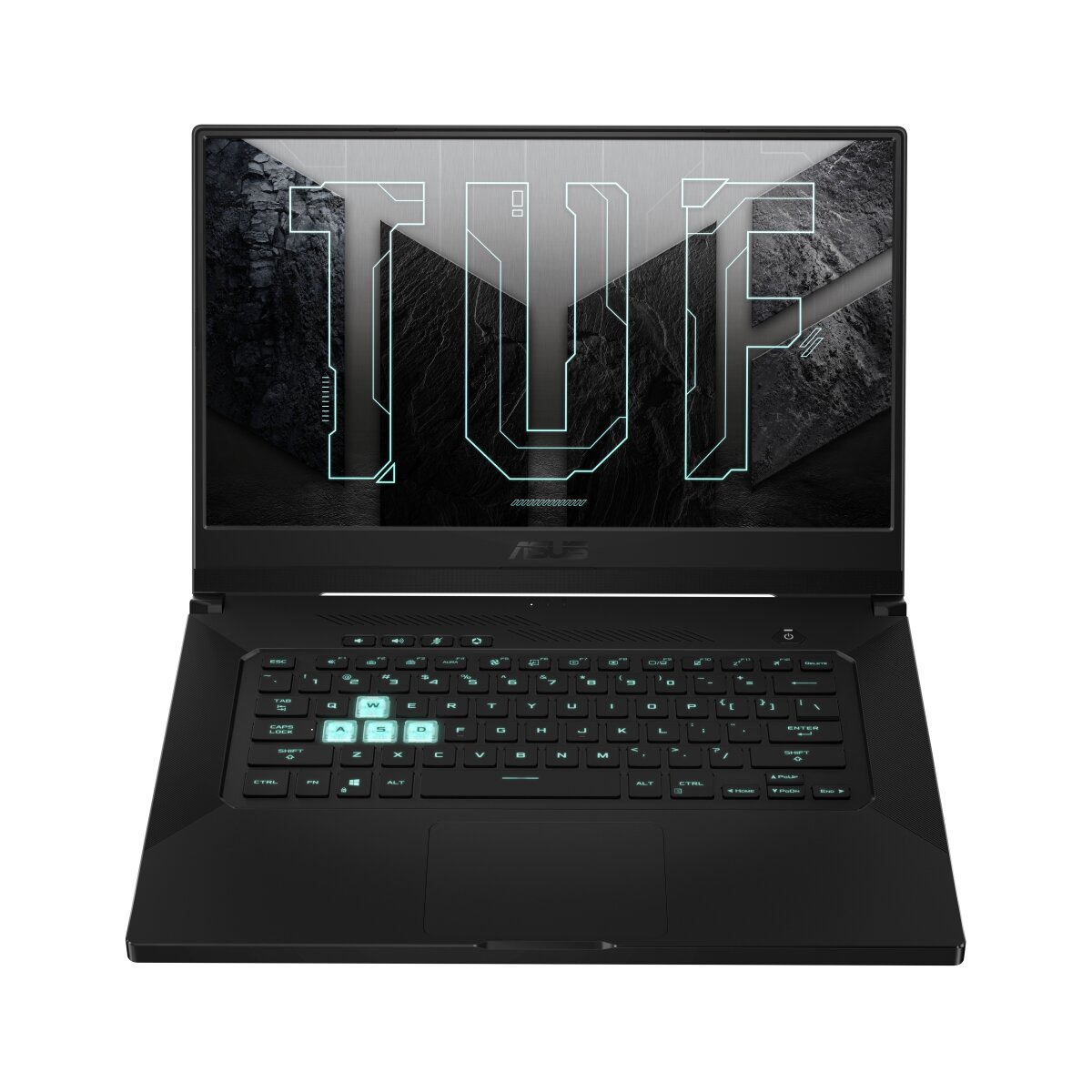

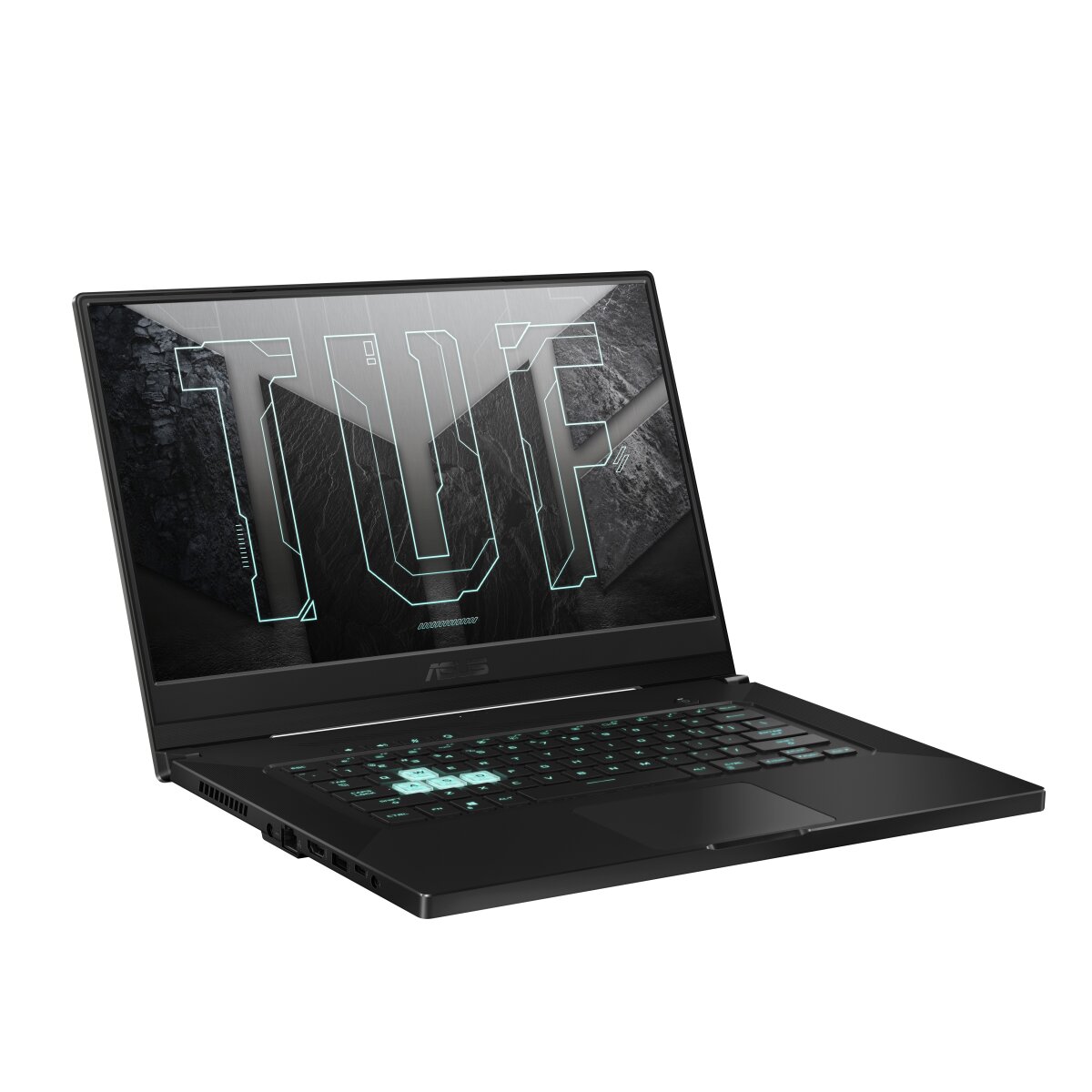

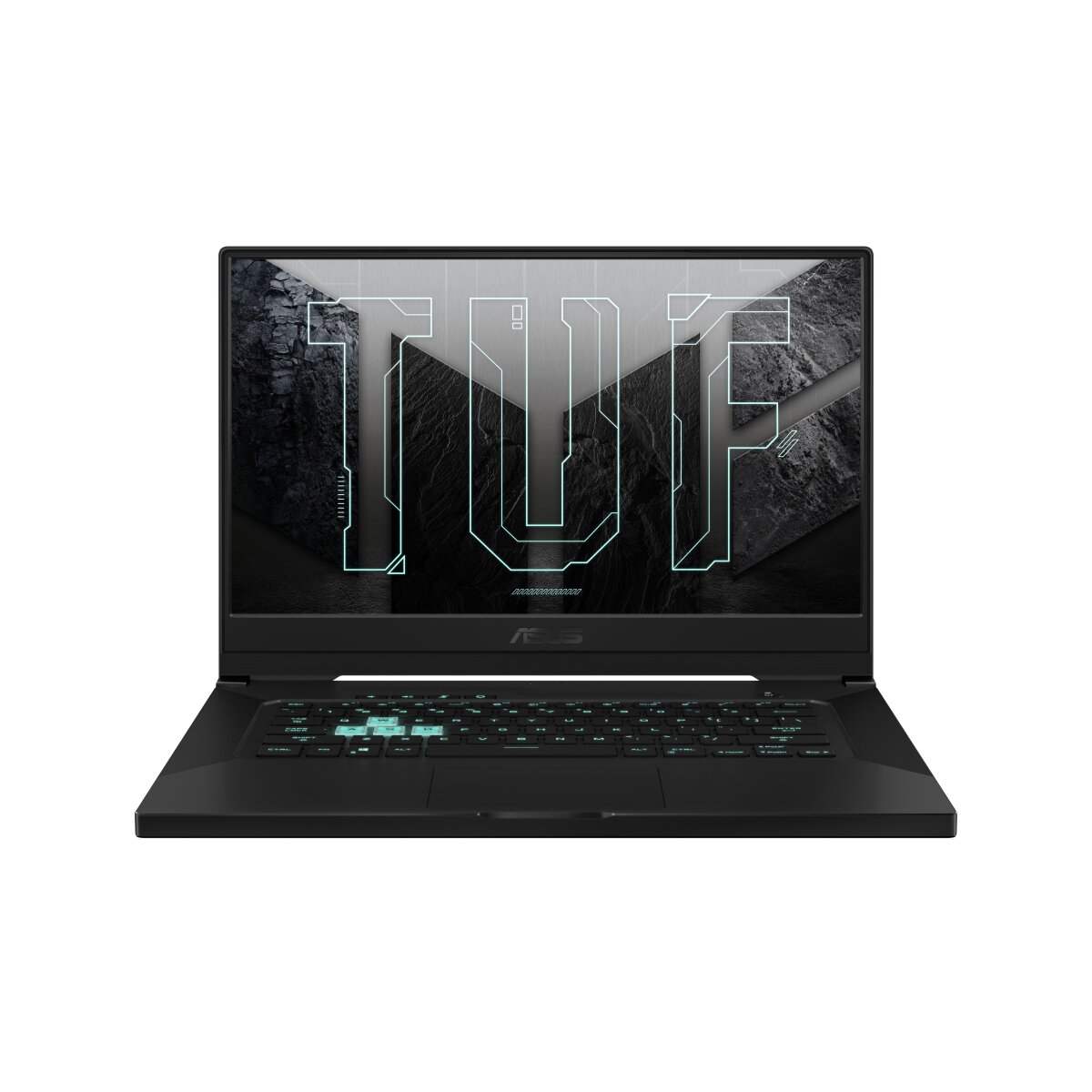

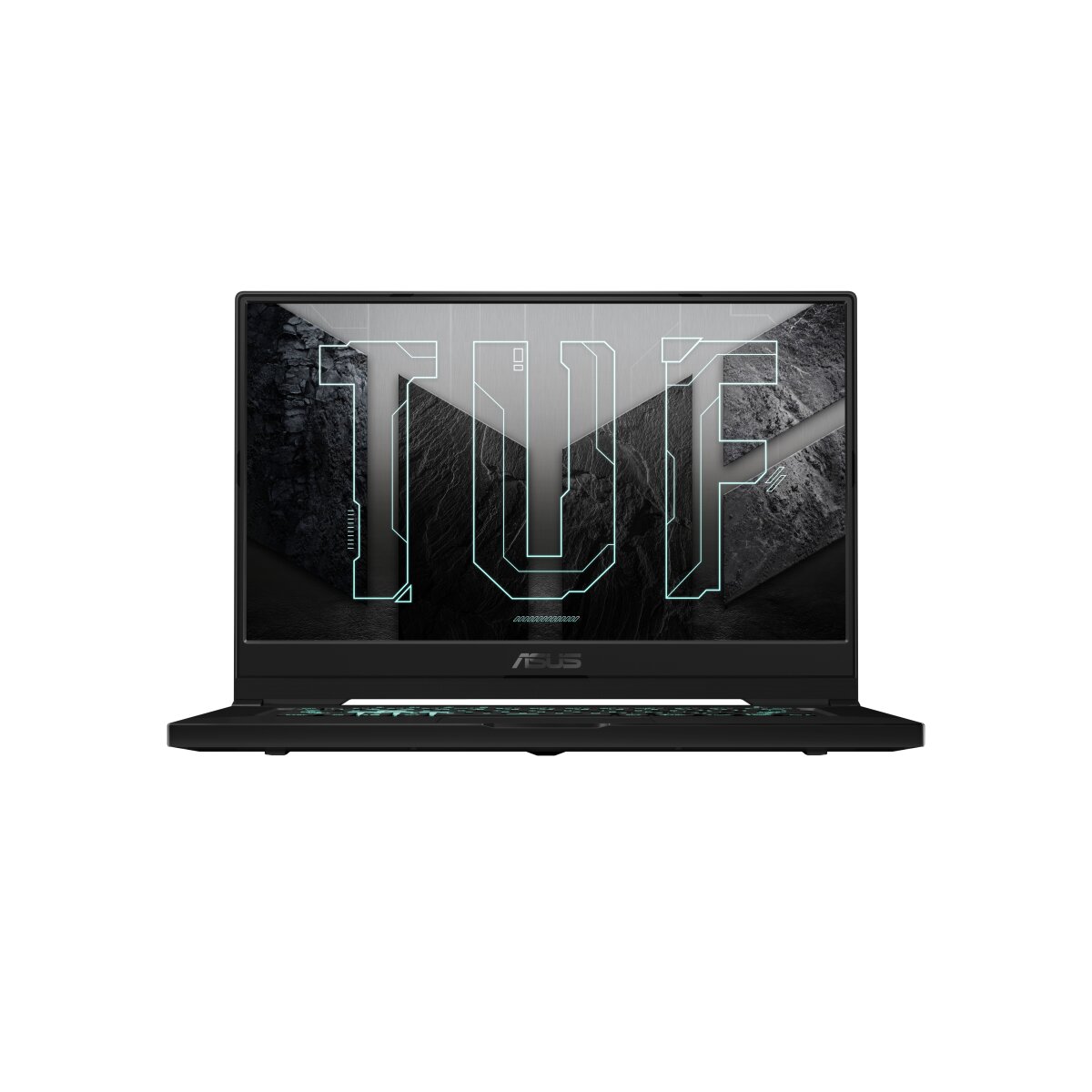

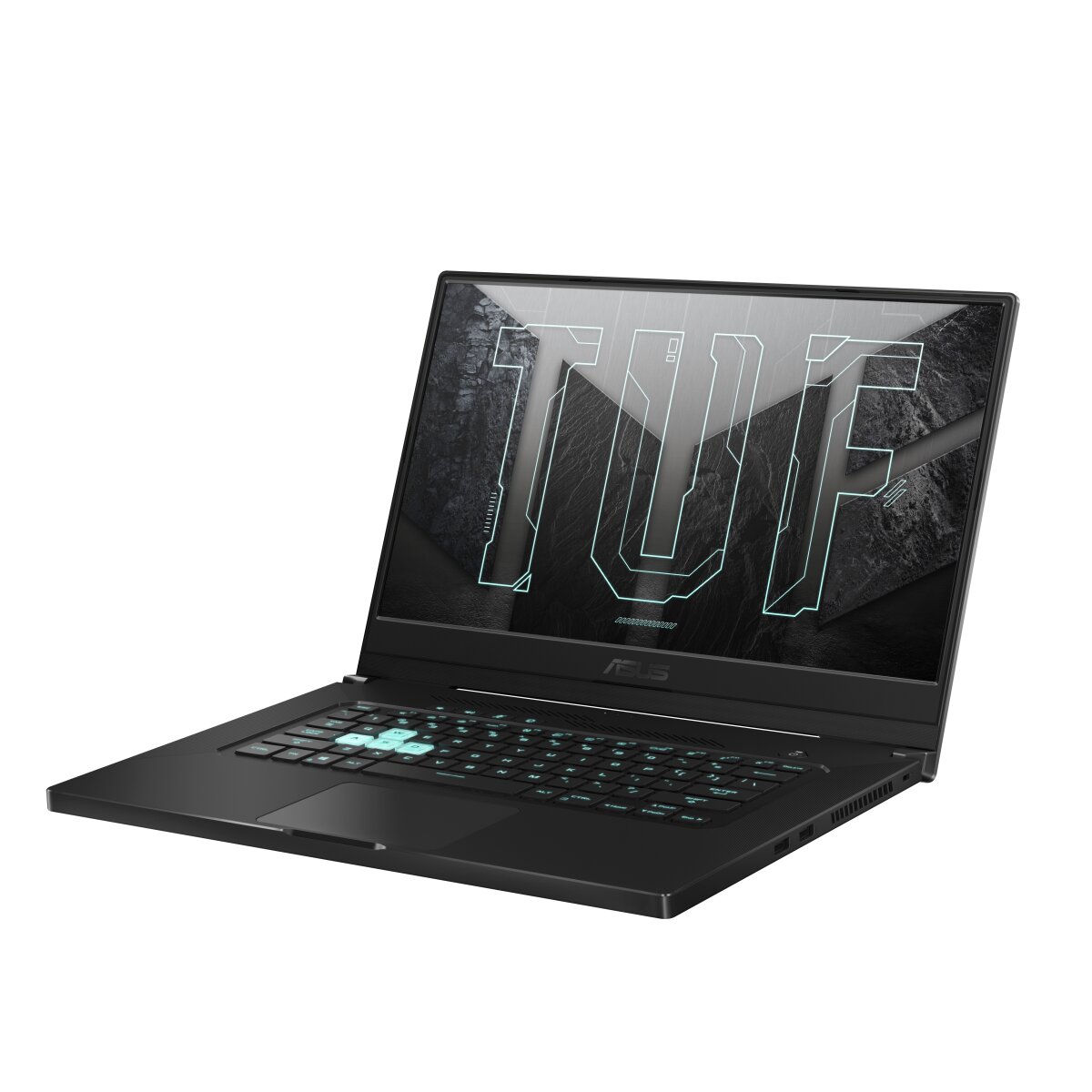

ASUS TUF Dash FX516PR-HN112T RAM upgrade specifications

ASUS TUF Dash F15 series FX516PR-HN112T laptop supports DDR4-SDRAM memory upgrade specifications. The system features one SO-DIMM slot for expansion, with maximum RAM capacity of 32 GB. Compatible memory modules operate at 3200 MHz frequency. The device incorporates on-board memory integrated with a single SO-DIMM socket, allowing users to upgrade the existing memory configuration to achieve the specified maximum capacity of 32 GB total RAM.

Additional Notes

• The presence of on board memory creates an asymmetric dual channel configuration if the capacity of the module in the single SO-DIMM slot does not match the soldered internal capacity.
• The total system memory limit is reached by installing a 24 GB module if the base soldered RAM is 8 GB or a 16 GB module if the base is 16 GB.
• Memory latency and bandwidth performance are tethered to the slowest chip on the motherboard because the ASUS TUF Dash FX516PR-HN112T lacks the ability to overclock beyond the native frequency of the integrated memory.
• If the installed SO-DIMM exceeds the capacity of the soldered memory, only the matching portion operates in dual channel mode while the remainder functions in single channel.
• Upgrading the RAM requires a complete hardware swap of the existing module since only one expansion slot is available for physical modification.
• Non parity modules are required to maintain stability as the architecture lacks support for Error Correction Code logic.
• Physical installation of a 3200 MHz module with a higher CL rating than the soldered chips will force the entire system to downclock to the highest common latency profile.
