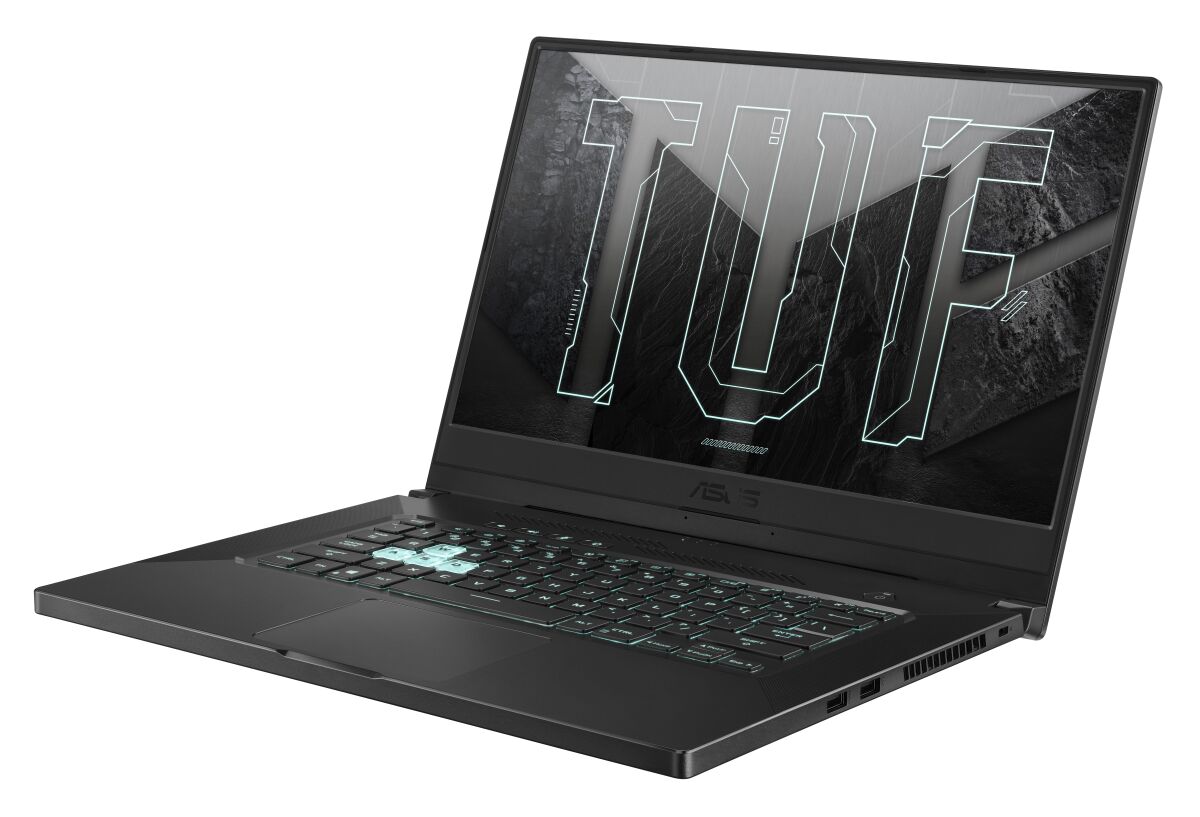

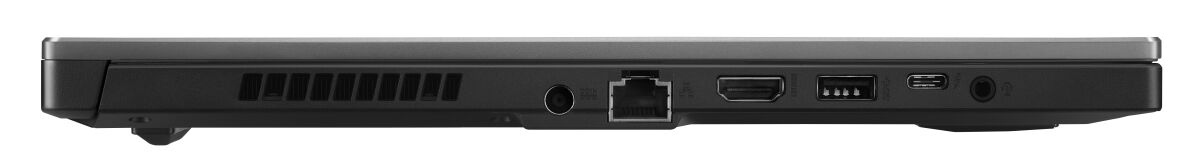

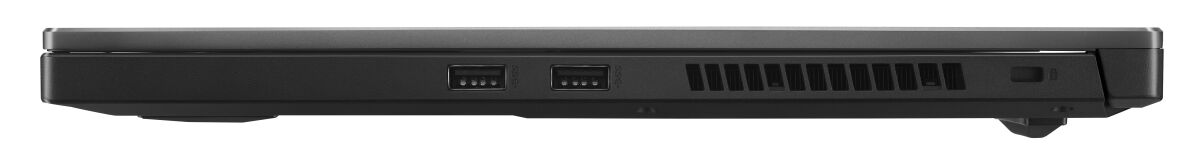

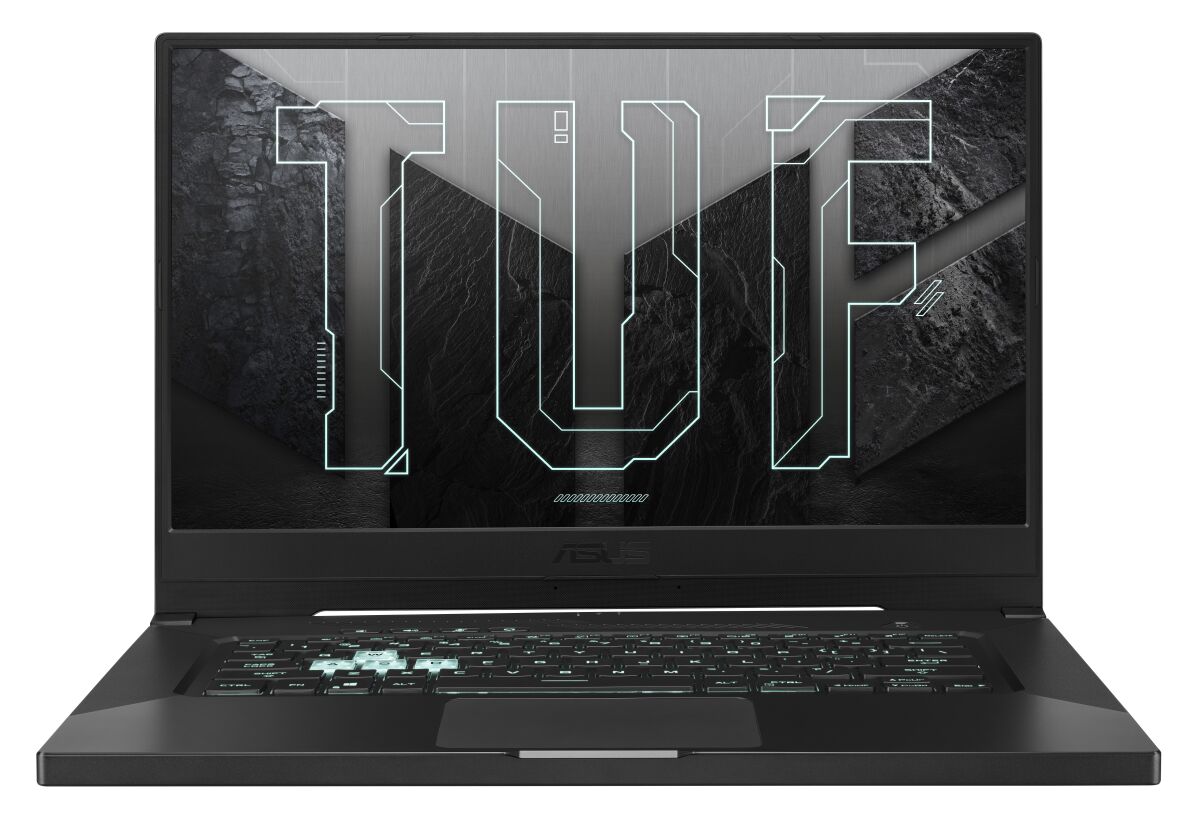

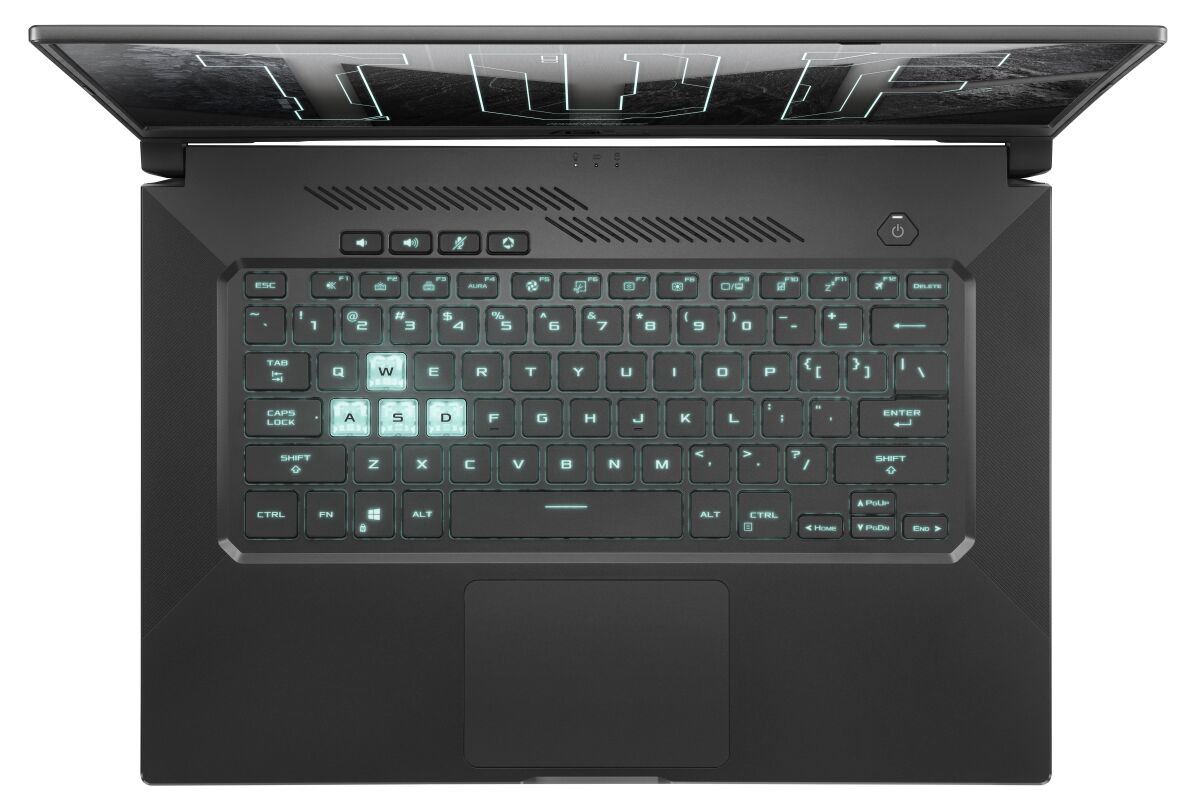

ASUS TUF Dash TUF516PM-HN202 RAM upgrade specifications
The ASUS TUF Dash F15 TUF516PM-HN202 features DDR4-SDRAM memory with one SO-DIMM slot available for upgrades. The laptop includes on-board memory paired with one expandable SO-DIMM slot, supporting maximum RAM capacity of 32 GB. Memory specifications include DDR4 operation at 3200 MHz frequency. Compatible upgrade modules must match DDR4-3200 standards to ensure proper system compatibility and performance specifications.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 1x SO-DIMM |
| Form factor | On-board + SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 25 February 2021 |
Additional Notes
- The ASUS TUF Dash TUF516PM-HN202 contains soldered on-board memory paired with a single upgradeable SO-DIMM slot, meaning the factory-installed capacity cannot be removed or replaced, only supplemented.
- A single memory slot creates an asymmetrical configuration when populated, preventing dual-channel operation across matched pairs and reducing memory bandwidth efficiency by approximately 25% compared to symmetrical 2-slot configurations at identical speeds.
- SO-DIMM DDR4 modules rated for 3200 MHz operation must meet DDR4 JEDEC specifications; third-party modules operating above this frequency will downclock to 3200 MHz or lower due to hardware limitations, negating any speed premium.
- The 32 GB ceiling accommodates a maximum 32 GB SO-DIMM in the available slot; this theoretical limit assumes the on-board capacity does not exceed 0 GB, and actual usable maximum depends on factory solder configuration.
- SO-DIMM modules occupy minimal physical space, but the single-slot design eliminates redundancy; failure of the upgradeable module leaves only the soldered component operational, potentially causing reduced performance or system instability if the on-board portion is insufficient for the intended workload.
- Warranty coverage for third-party memory installation depends on ASUS policy; opening the chassis to access the SO-DIMM slot may void coverage on non-memory components unless explicitly permitted by regional warranty terms.
