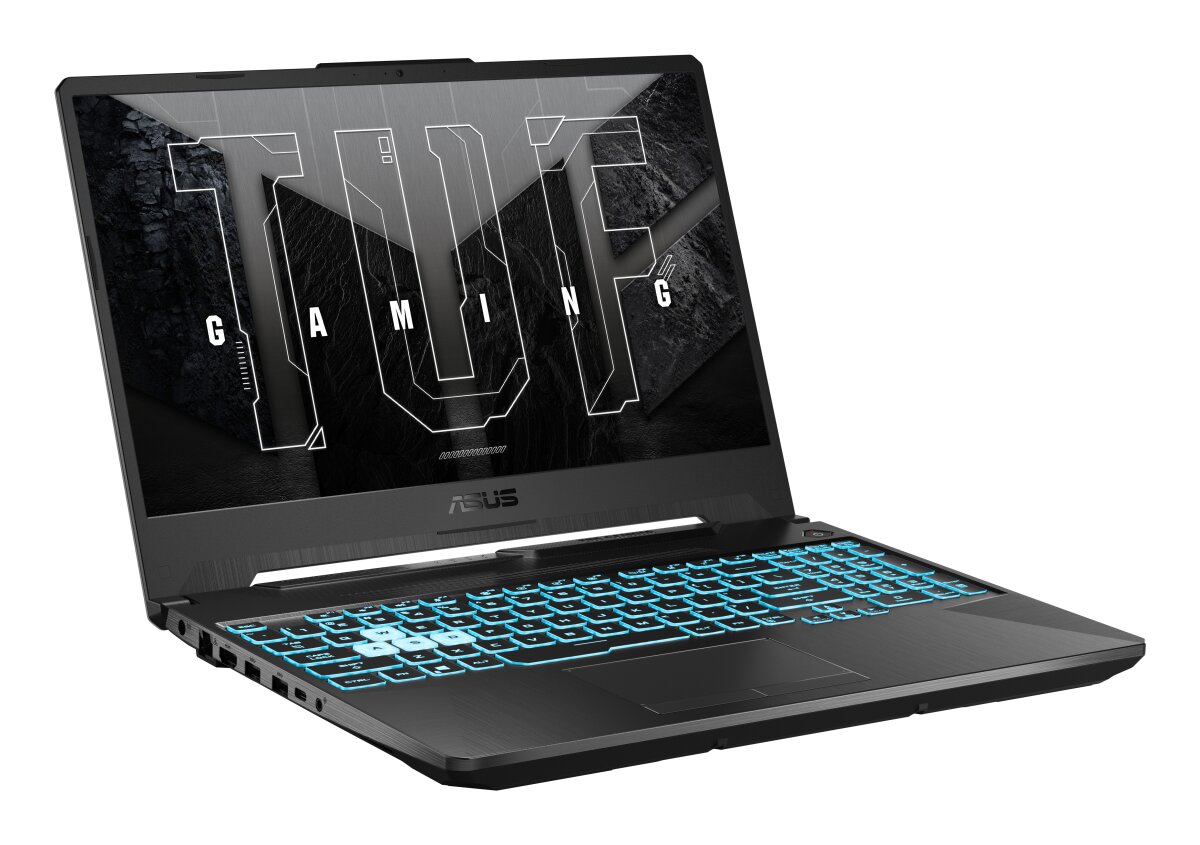

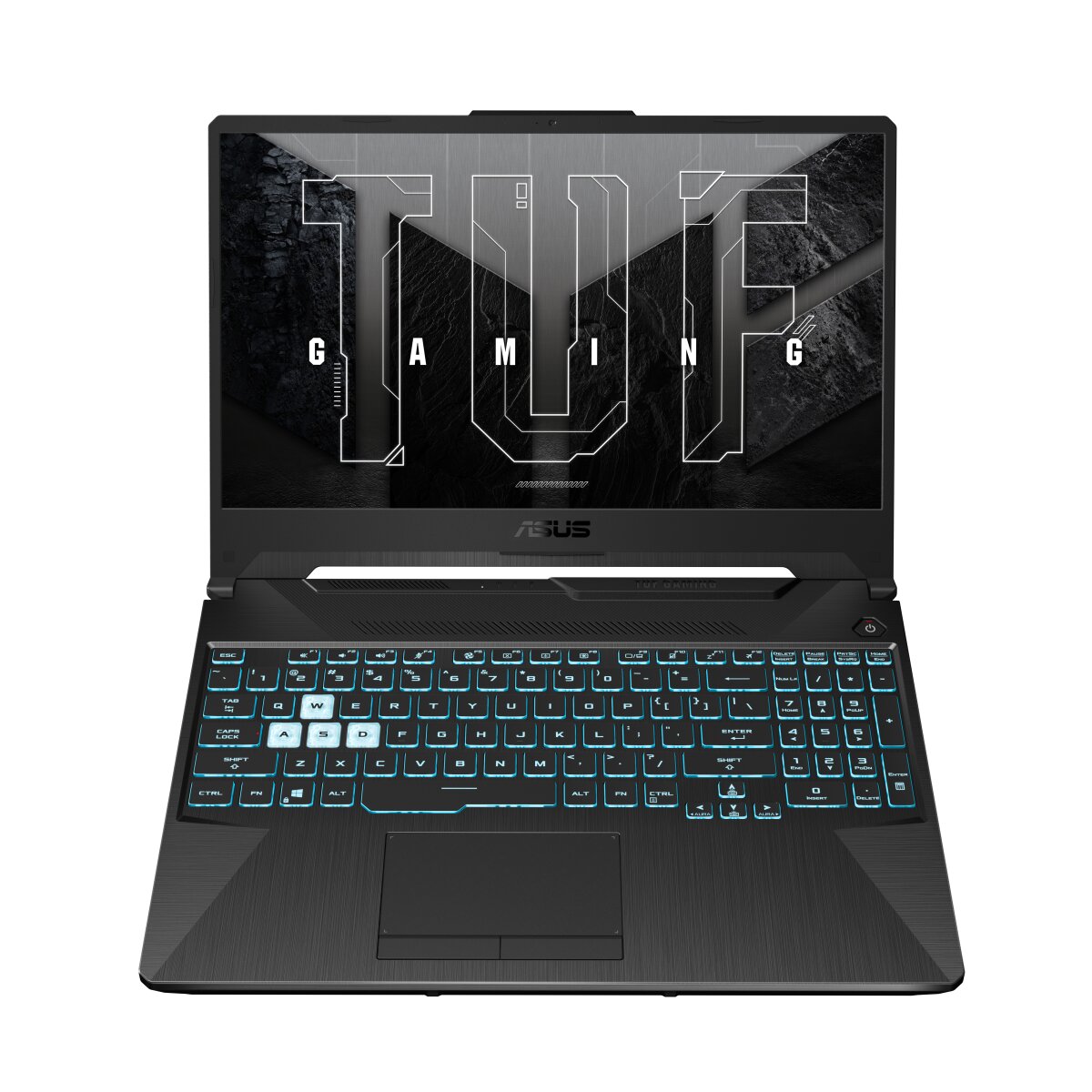

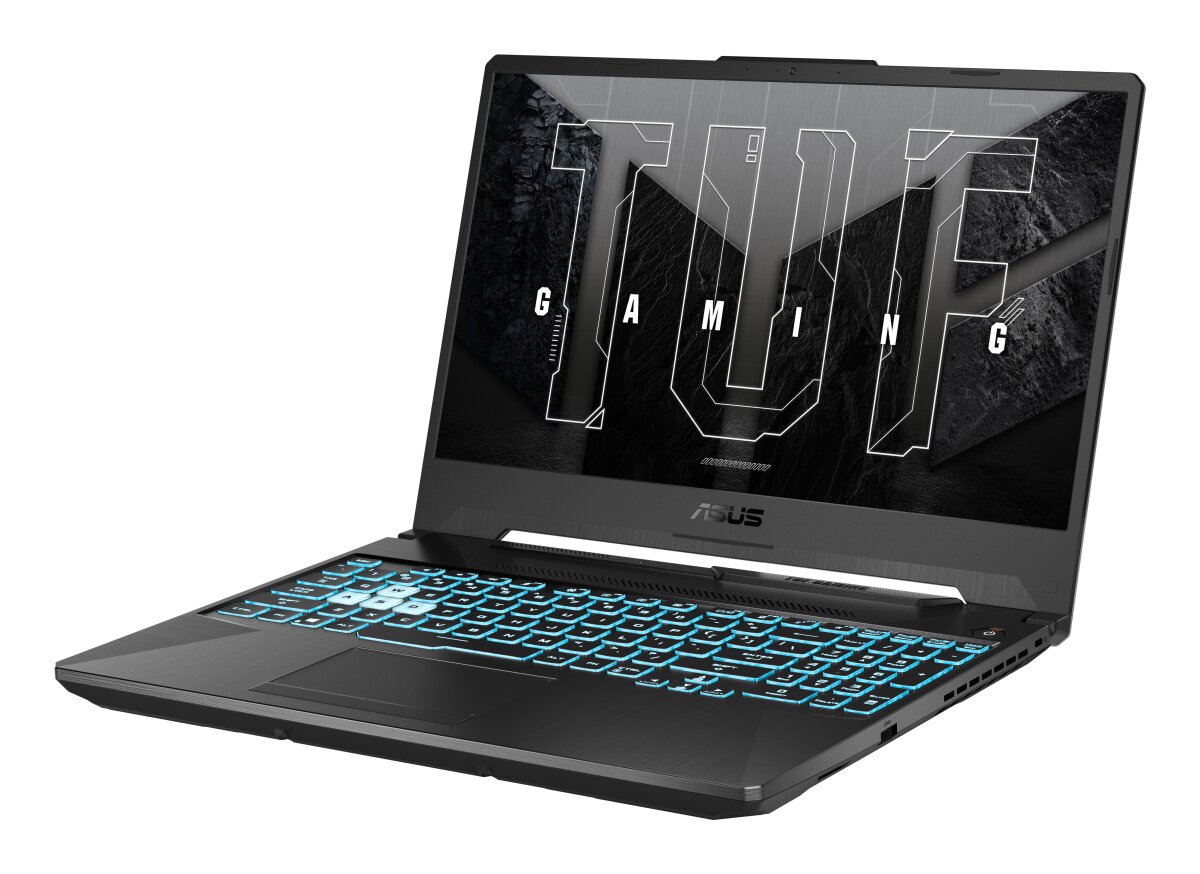

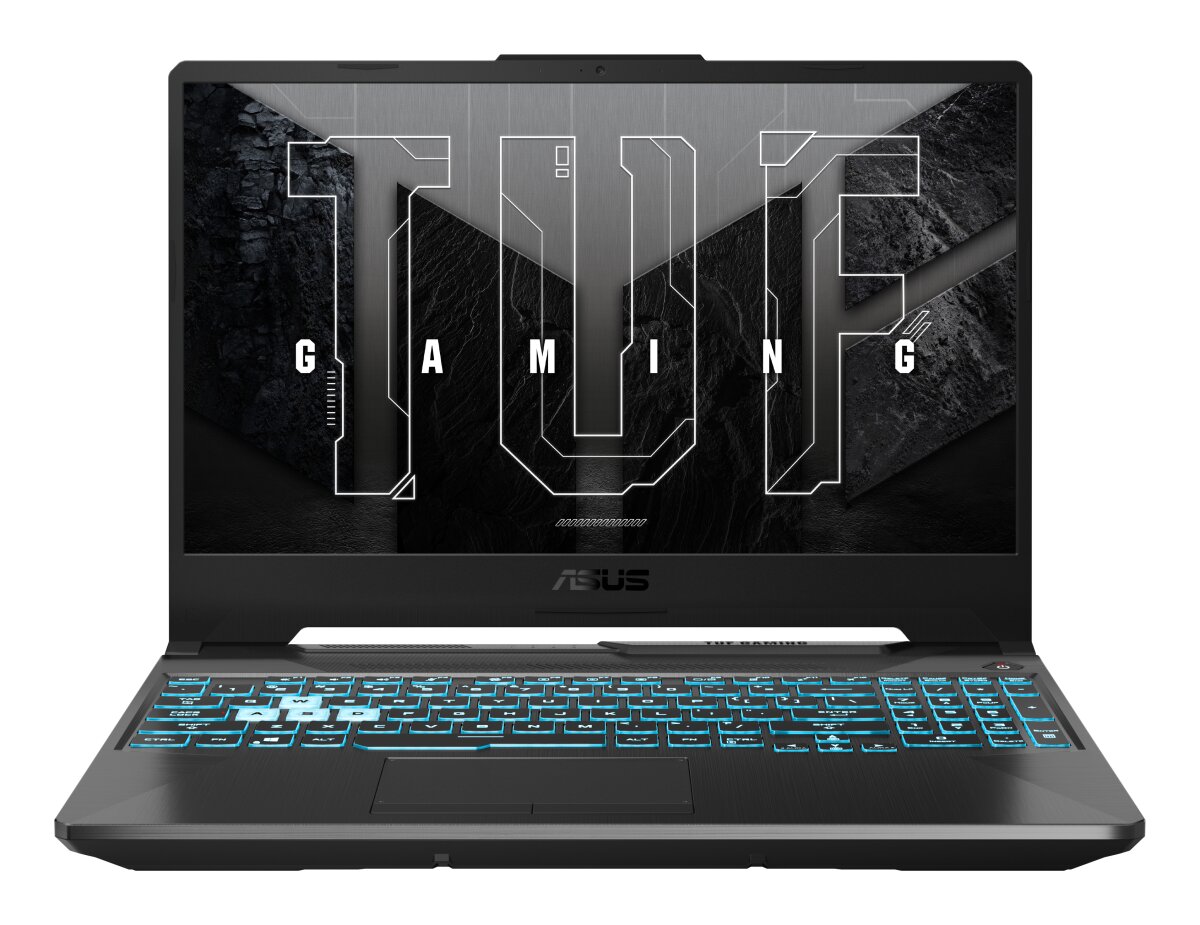

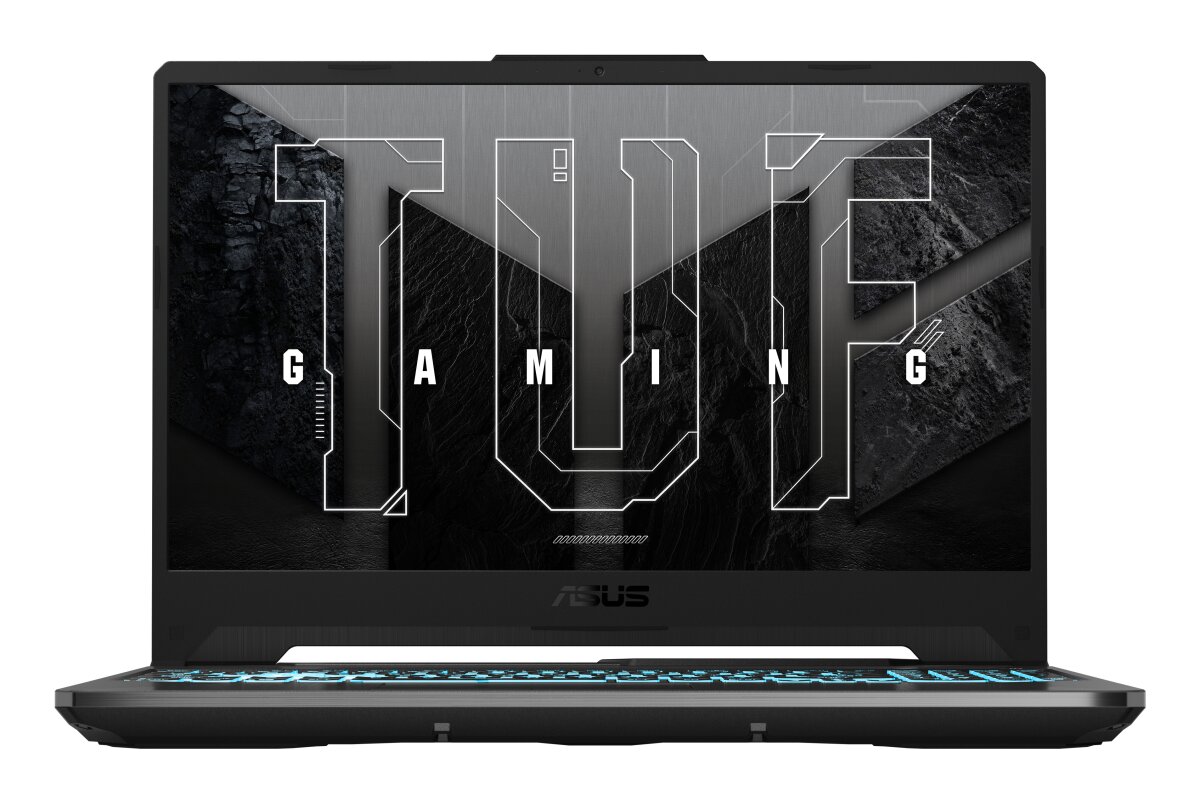

ASUS TUF Gaming FA506ICB-HN105 RAM upgrade specifications
ASUS TUF Gaming A15 FA506ICB-HN105 laptop features DDR4-SDRAM memory configuration with two SO-DIMM slots supporting maximum RAM capacity of 32 GB. Memory specifications include 3200 MHz frequency operation and SO-DIMM form factor. Compatible upgrade modules require DDR4-SDRAM type matching the existing specifications for optimal performance and compatibility.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 28 May 2022 |
Additional Notes
- The 32 GB ceiling reflects chipset or motherboard addressing limitations rather than slot physical capacity, as modern SO-DIMM slots mechanically accept higher-density modules.
- DDR4-3200 represents JEDEC standard timing rather than overclocked XMP profiles, ensuring compatibility without BIOS intervention unavailable on most mobile platforms.
- Dual SO-DIMM configuration enables symmetric channel population for maximum bandwidth, where mismatched module capacities force single-channel operation on the smaller capacity.
- The ASUS TUF Gaming FA506ICB-HN105 employs non-soldered memory architecture, allowing field replacement without board-level rework or specialized equipment.
- Speed synchronization forces both modules to operate at the lowest common frequency when mixed specifications are installed, negating any benefit from a faster module.
- Voltage requirements for standard DDR4 SO-DIMMs maintain 1.2V specification, where low-voltage variants risk compatibility issues despite mechanical fit.
- Thermal constraints in gaming chassis designs benefit from modules with integrated heat spreaders, though clearance between SO-DIMM slots and bottom panel limits spreader height to standard profiles.
- Mixing module ranks (single-rank with dual-rank) introduces access latency penalties beyond frequency matching, degrading performance in memory-intensive workloads.
- Warranty preservation requires non-destructive installation without breaking factory seals on dedicated service panels, distinguishing upgradeable components from those requiring full disassembly.
- CAS latency variations within DDR4-3200 specification (CL20 versus CL22) affect real-world bandwidth, though mobile BIOS implementations rarely expose manual timing adjustment.
