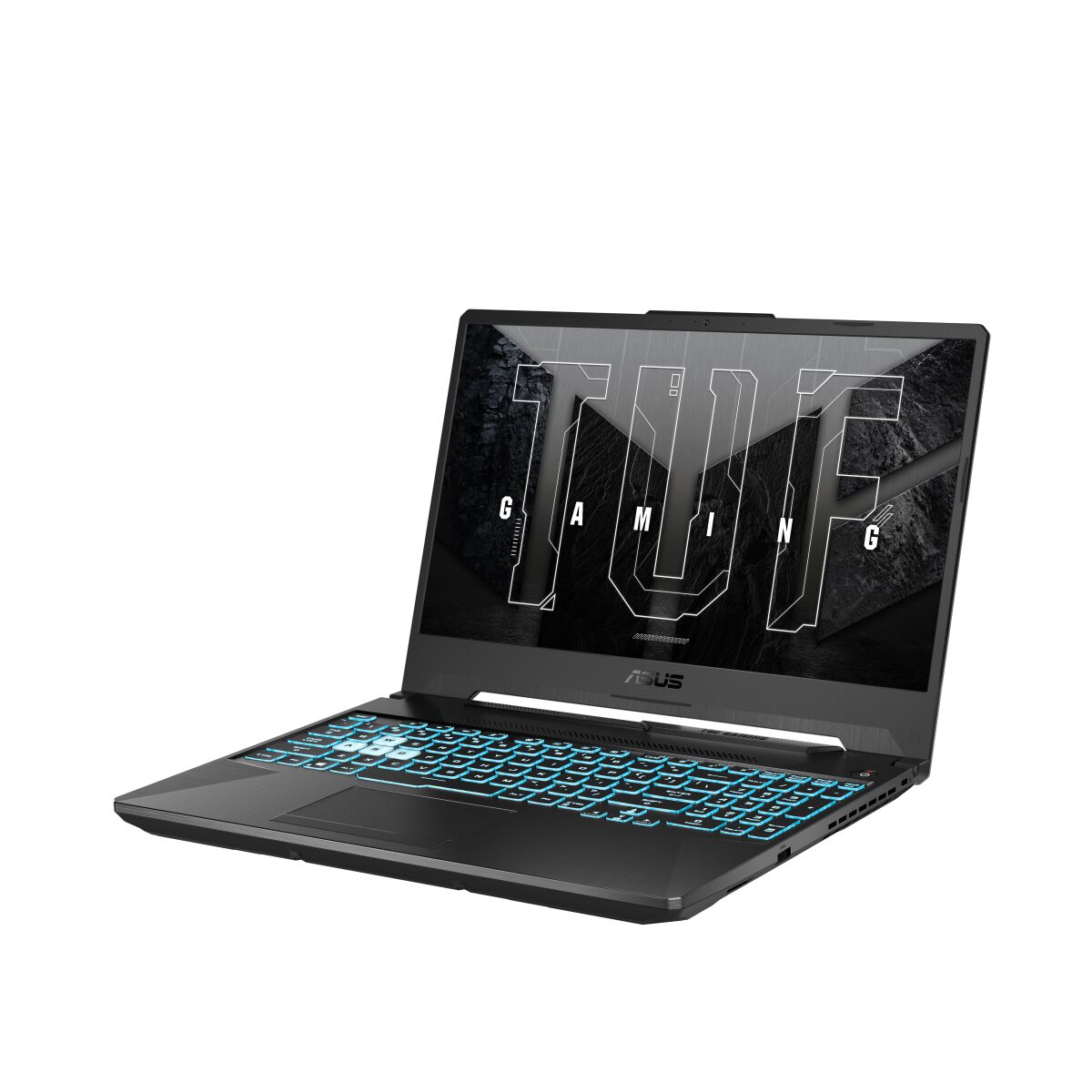

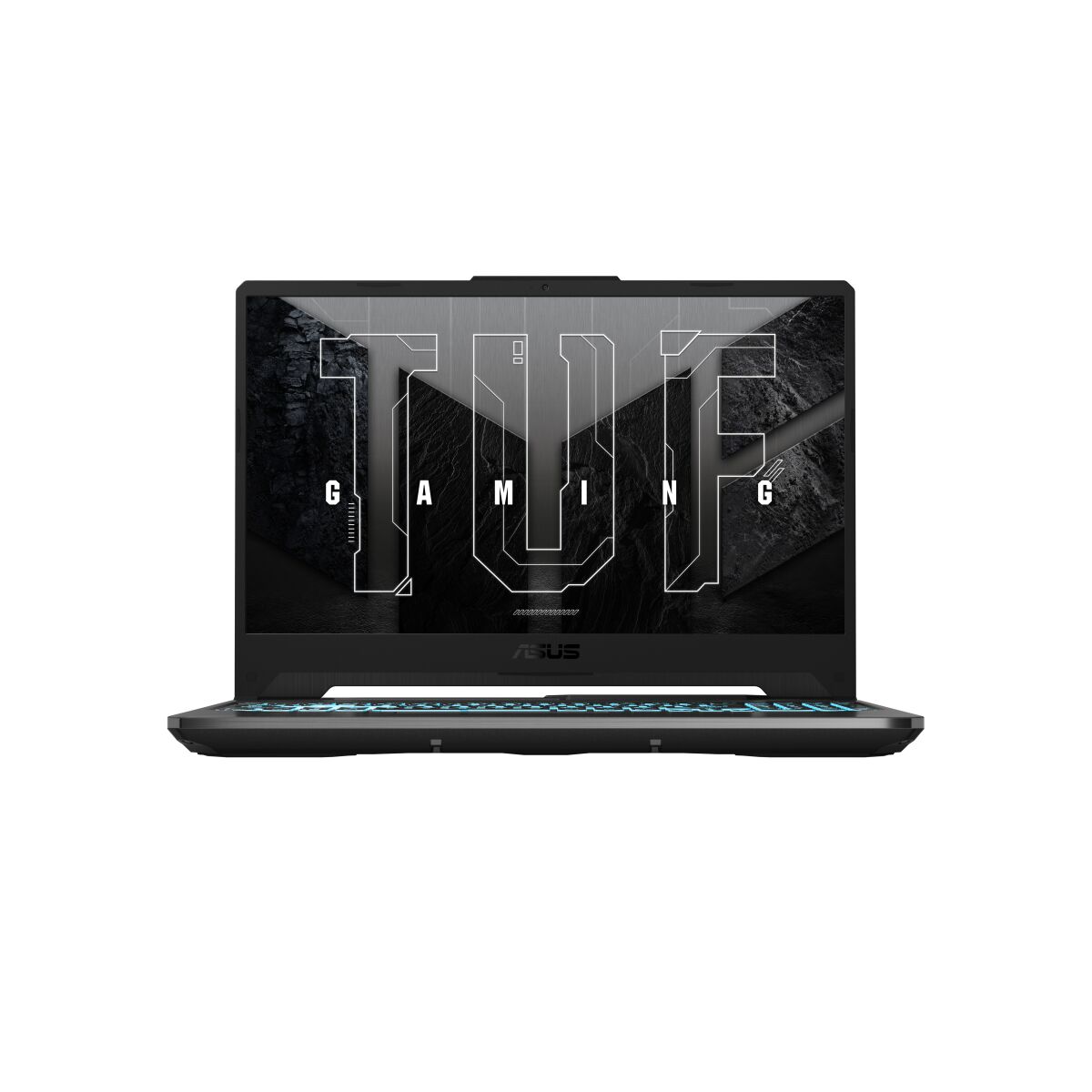

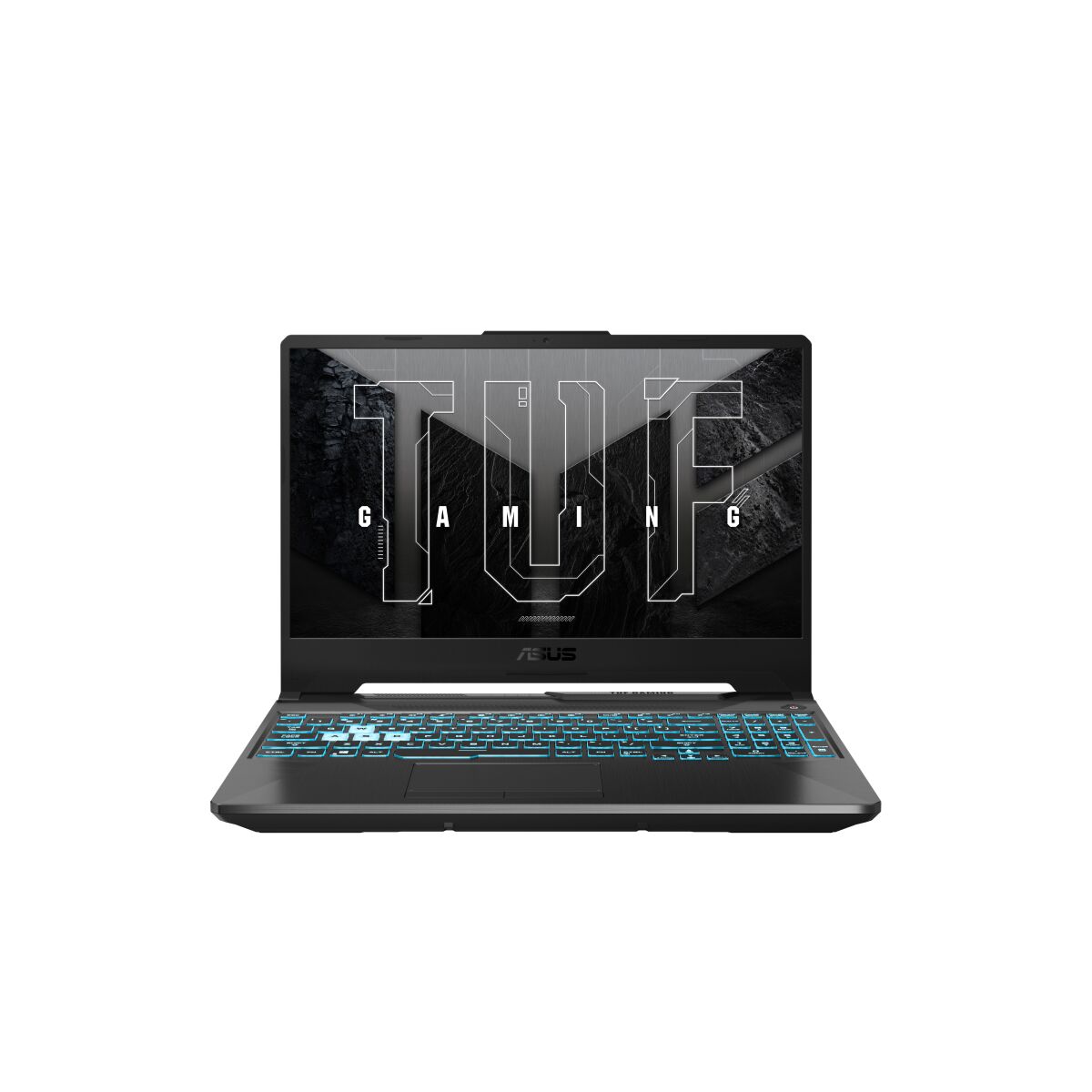

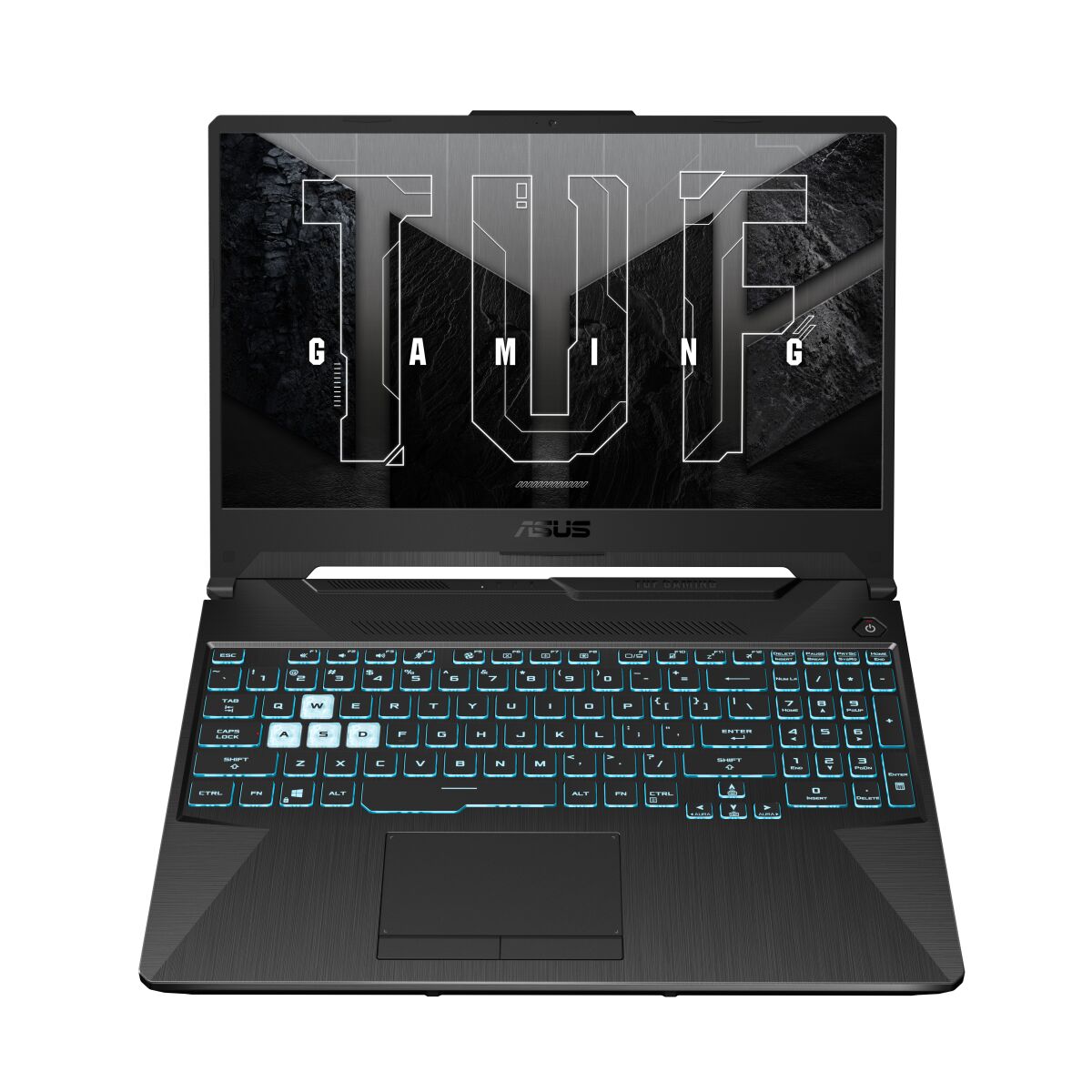

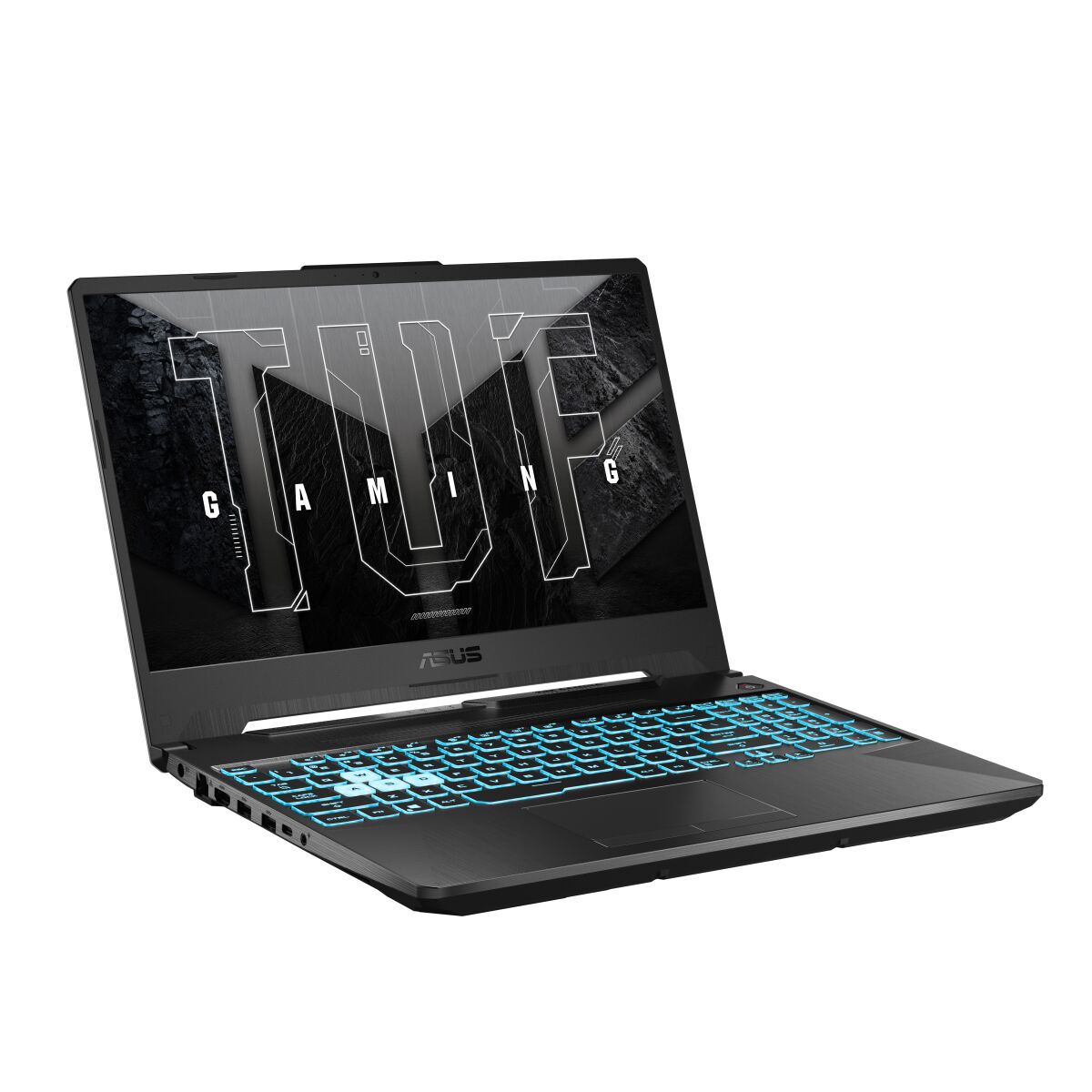

ASUS TUF Gaming FA506IHR-HN003W-BE RAM upgrade specifications
ASUS TUF Gaming A15 FA506IHR-HN003W-BE laptop memory upgrade specifications include DDR4-SDRAM technology with two SO-DIMM slots supporting maximum RAM capacity of 32 GB. Compatible memory modules operate at 3200 MHz frequency. Upgrade options accommodate standard SO-DIMM form factor modules, enabling users to expand system memory from factory configuration to maximum supported capacity specifications.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 10 January 2022 |
Additional Notes
- Dual channel memory architecture requires matching module capacities and frequencies in both slots to optimize bandwidth for the integrated graphics processor.
- The 32 GB threshold represents the maximum addressable memory supported by the firmware and physical motherboard layout of the ASUS TUF Gaming FA506IHR-HN003W-BE.
- Standard voltage DDR4 SO-DIMM modules are required as the platform does not support low voltage or ECC buffered memory types.
- Installing 3200 MHz modules ensures a 1 to 1 ratio with the internal memory controller clock to eliminate latency penalties caused by asynchronous timing.
- Accessing the SO-DIMM slots necessitates the removal of the bottom chassis panel which exposes internal components to electrostatic discharge risks.
- Performance bottlenecks in data intensive tasks occur if the two available slots are populated with unequal capacities because the system reverts to flex mode memory addressing.
- The use of high density 16 GB modules per slot is necessary to reach the peak memory ceiling due to the physical limitation of 2 expansion interfaces.
