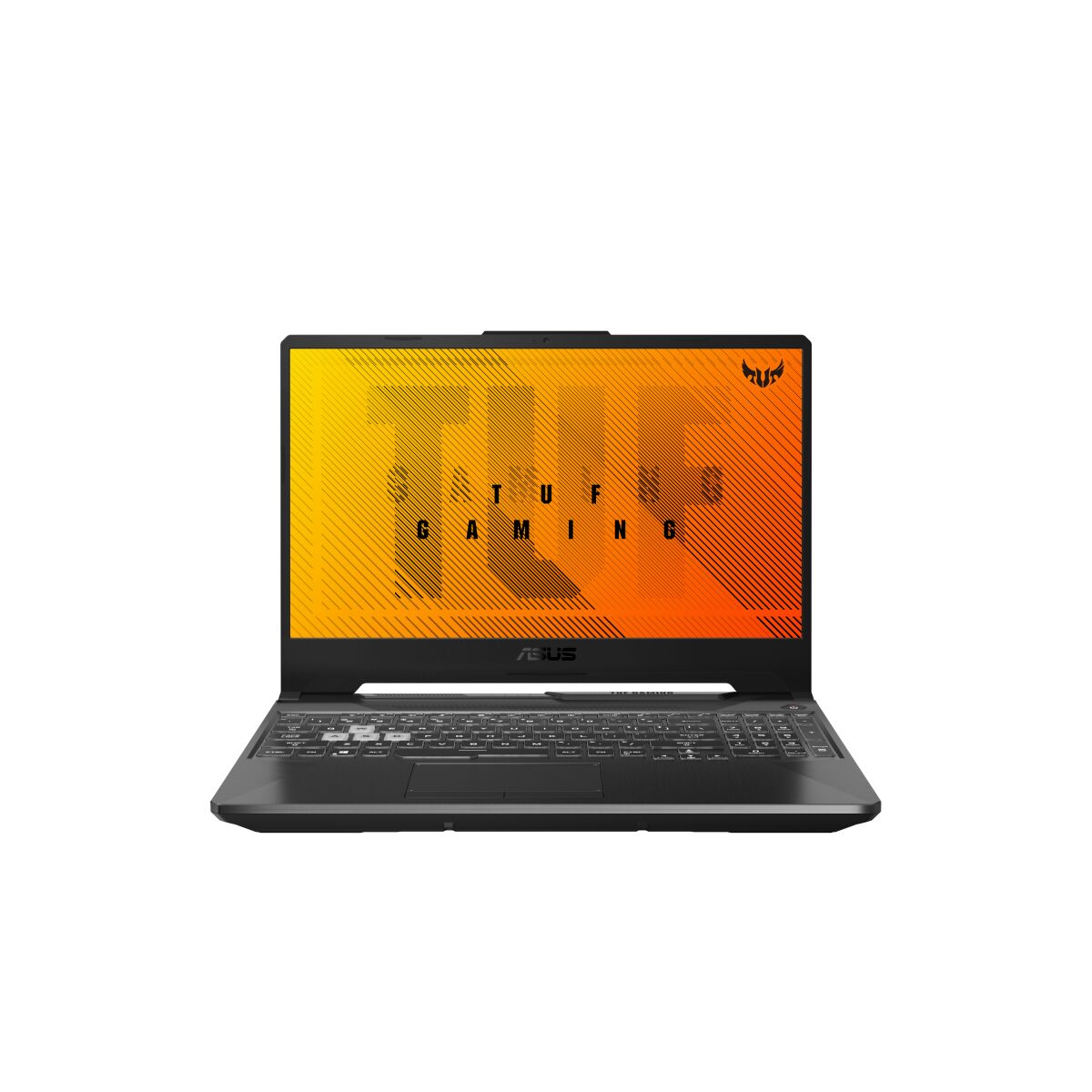

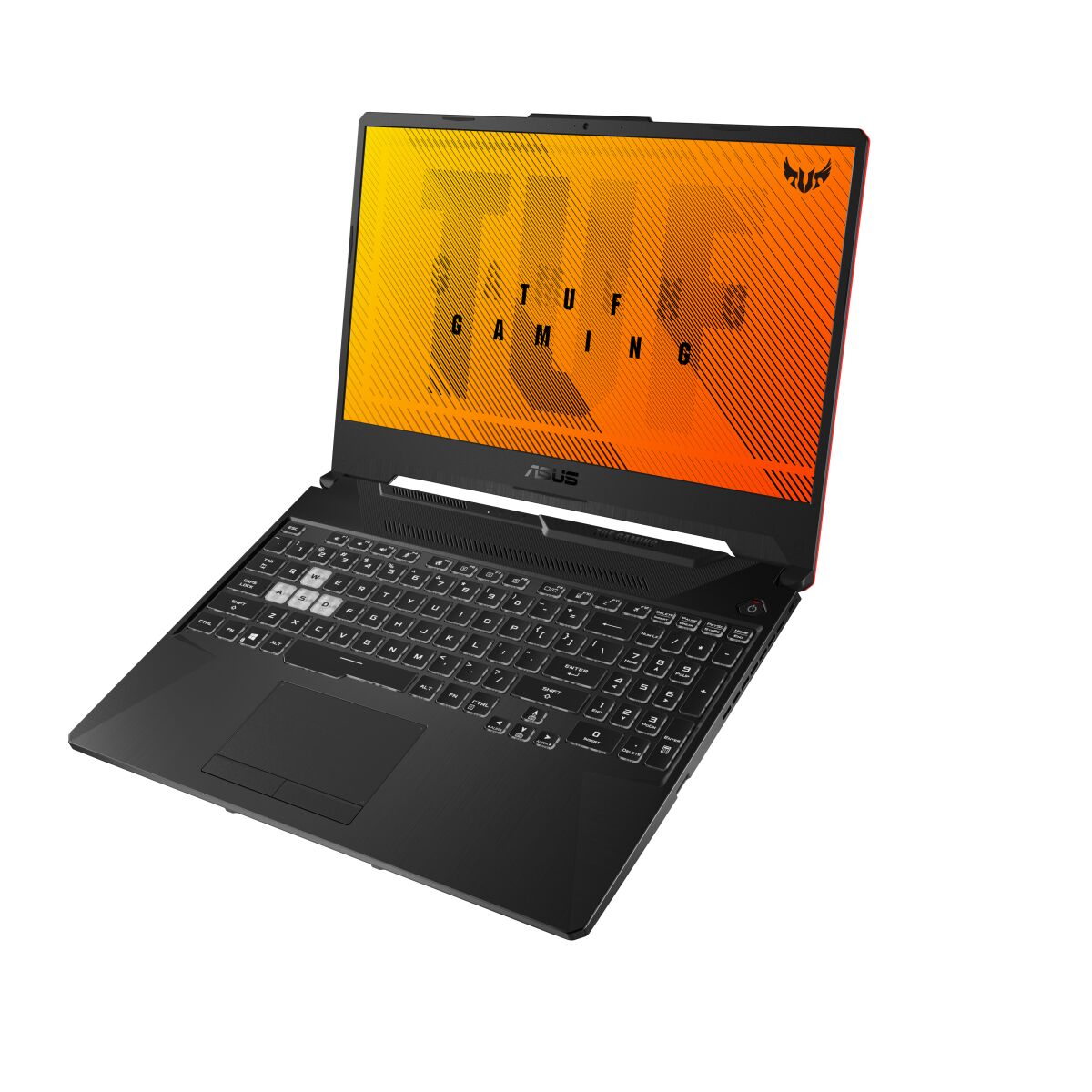

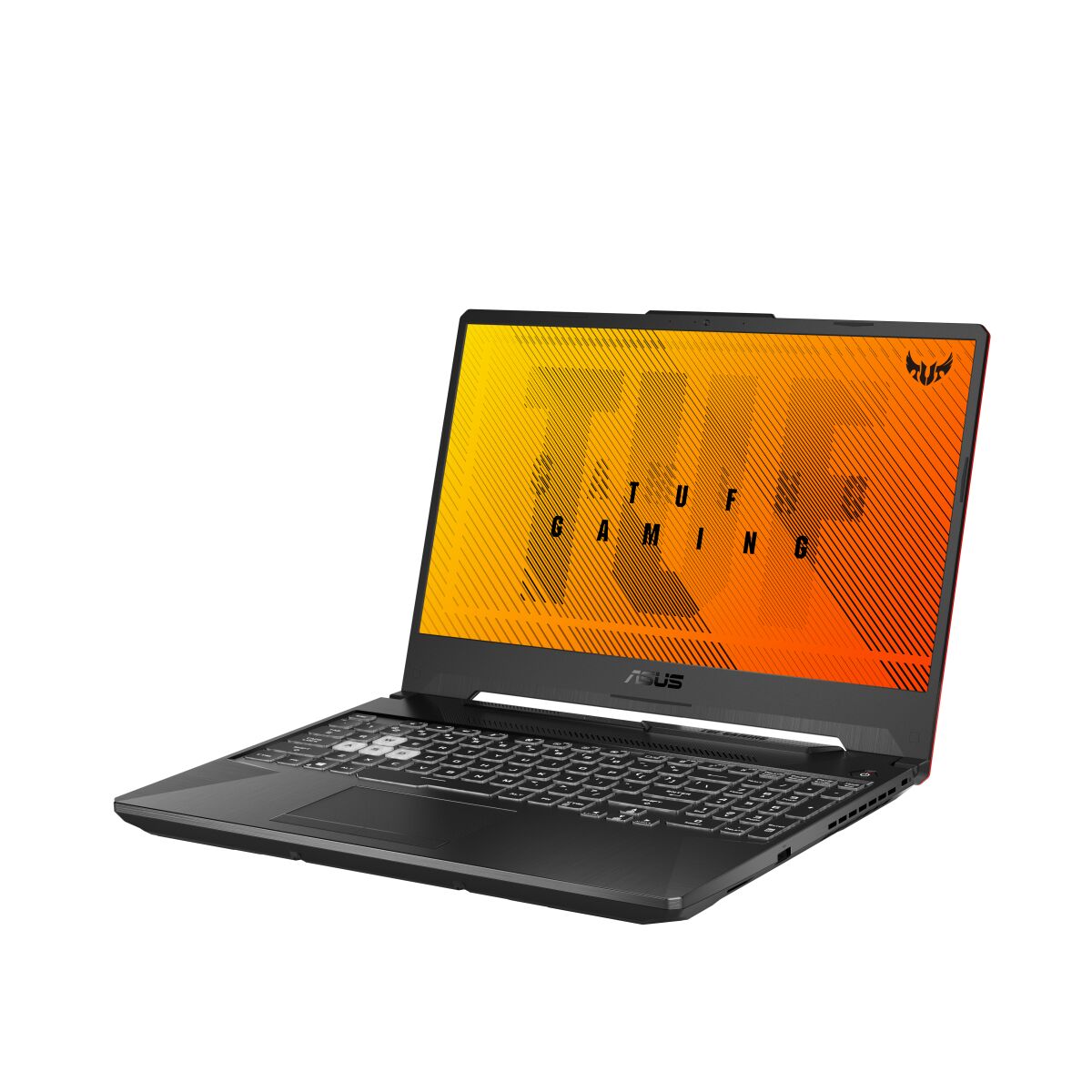

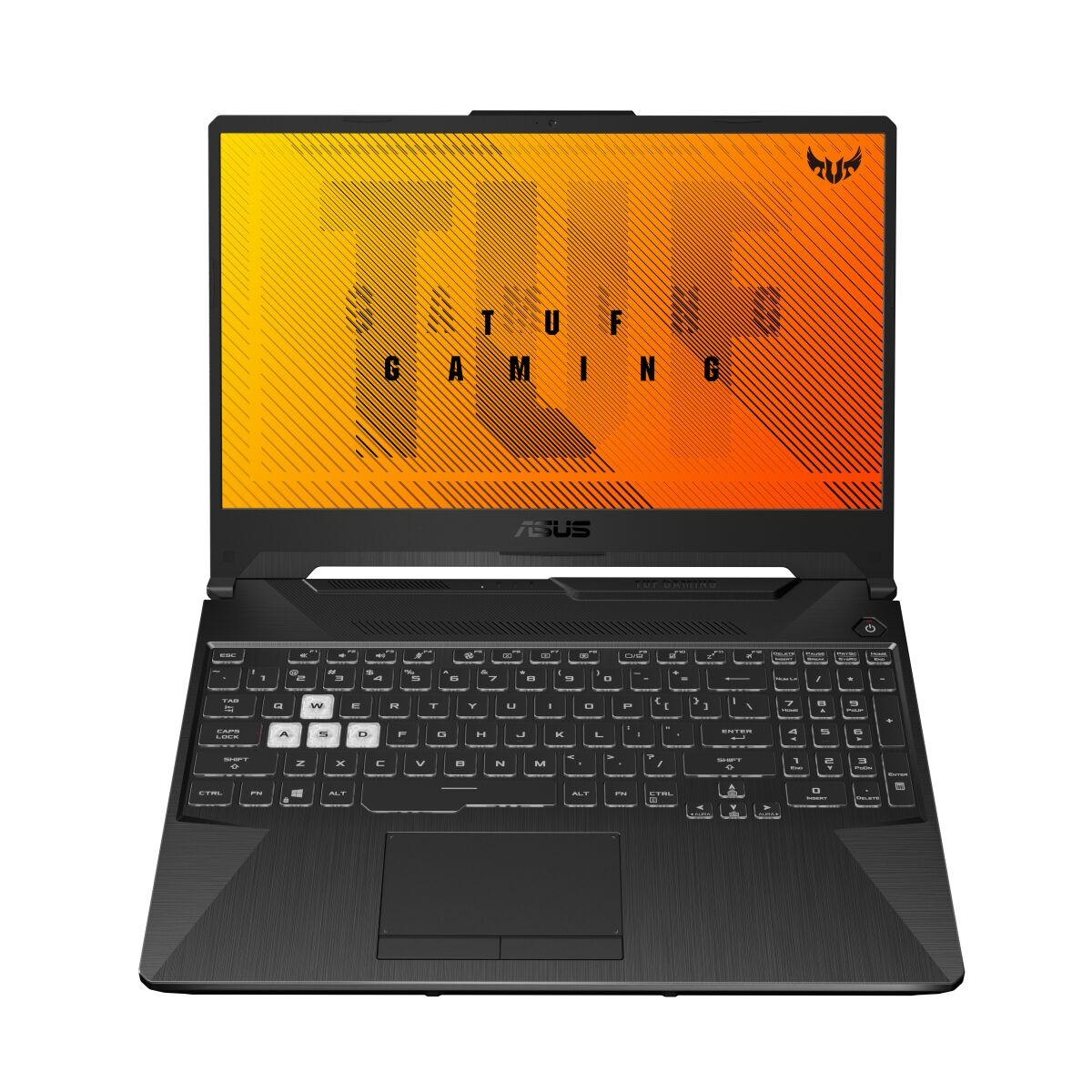

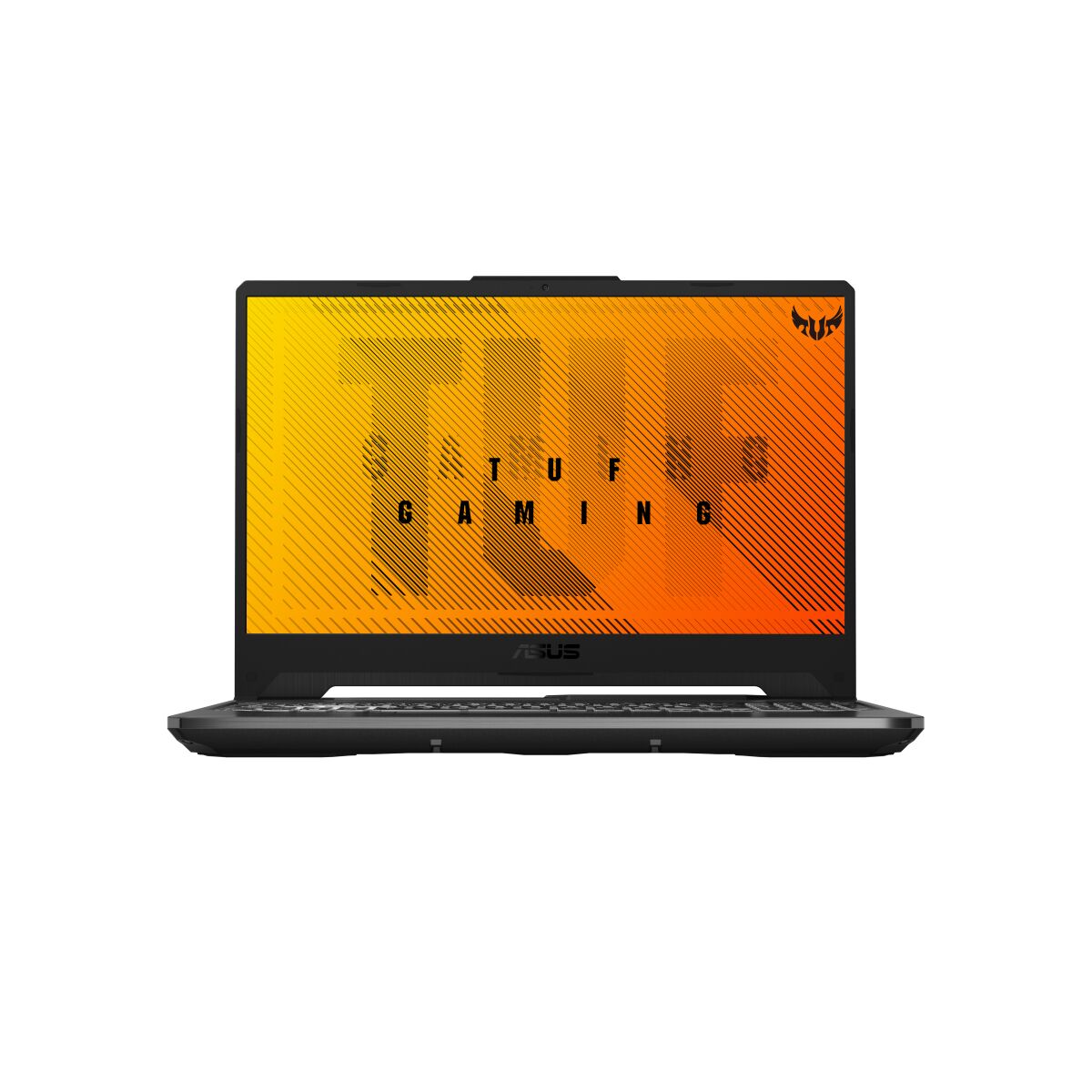

ASUS TUF Gaming FA506IM-HN019T RAM upgrade specifications
The ASUS TUF Gaming A15 FA506IM-HN019T features DDR4-SDRAM memory with two SO-DIMM slots for upgrade capability. The laptop supports a maximum RAM capacity of 32 GB, with compatible memory modules operating at 3200 MHz frequency. Each SO-DIMM slot accommodates individual memory modules, enabling users to expand the system's memory specifications according to performance requirements. The DDR4 memory standard specifications ensure compatibility with the FA506IM-HN019T platform architecture.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 28 November 2020 |
Additional Notes
- The ASUS TUF Gaming FA506IM-HN019T accepts only DDR4 modules, excluding compatibility with DDR3 or DDR5 technology due to voltage and pin configuration differences.
- SO-DIMM form factor restricts installation to laptop-specific modules, as standard desktop DIMM memory sticks will not physically fit the slots.
- The 32 GB maximum capacity limitation exists at the chipset or BIOS level, preventing recognition of higher-capacity modules even if physically compatible.
- 3200 MHz represents the supported native frequency, meaning modules rated at 3600 MHz or higher will downclock to this speed, potentially wasting the cost premium of faster memory.
- Dual SO-DIMM slots enable dual-channel configuration when populated with matched pairs, doubling memory bandwidth compared to single-channel operation with one module.
- Mixing modules with different speeds forces all memory to operate at the lowest common frequency, creating a performance bottleneck if mismatched.
- Non-matching module capacities in dual-channel mode may result in asymmetric channel operation, where only the matched portion runs in dual-channel while the remainder operates in slower single-channel mode.
- Accessing the SO-DIMM slots typically requires bottom panel removal, though certain gaming laptop designs may void warranty if specific seals are broken during user upgrades.
- Module height clearance may limit compatibility with taller heat spreader designs, particularly in compact laptop chassis with minimal internal spacing.
- Operating voltage for DDR4-3200 standardizes at 1.2V, ensuring compatibility with low-power SO-DIMM variants that meet JEDEC specifications.
- Upgrading to the 32 GB ceiling requires two 16 GB modules, as 24 GB configurations using 8 GB plus 16 GB modules create unequal channel population affecting performance symmetry.
