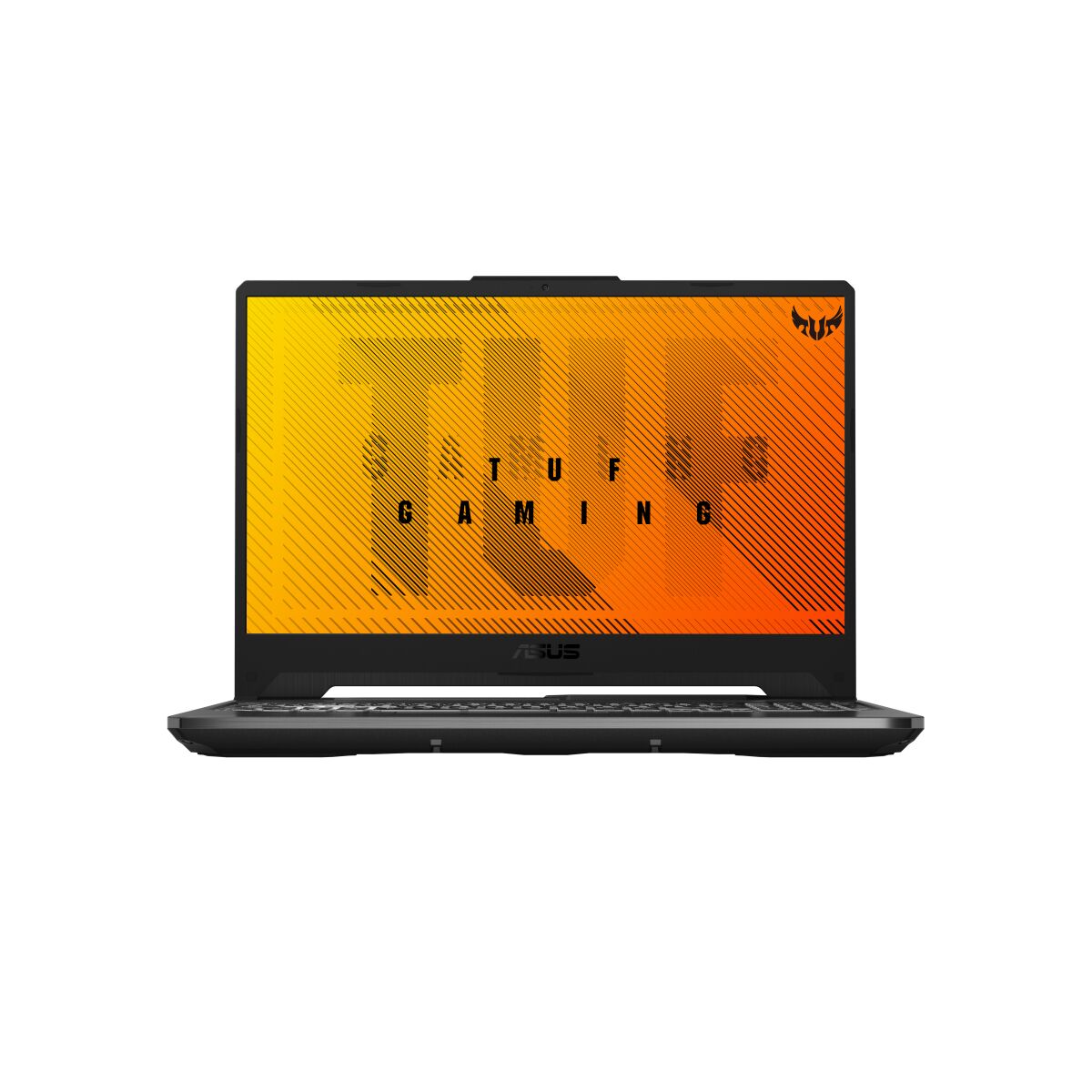

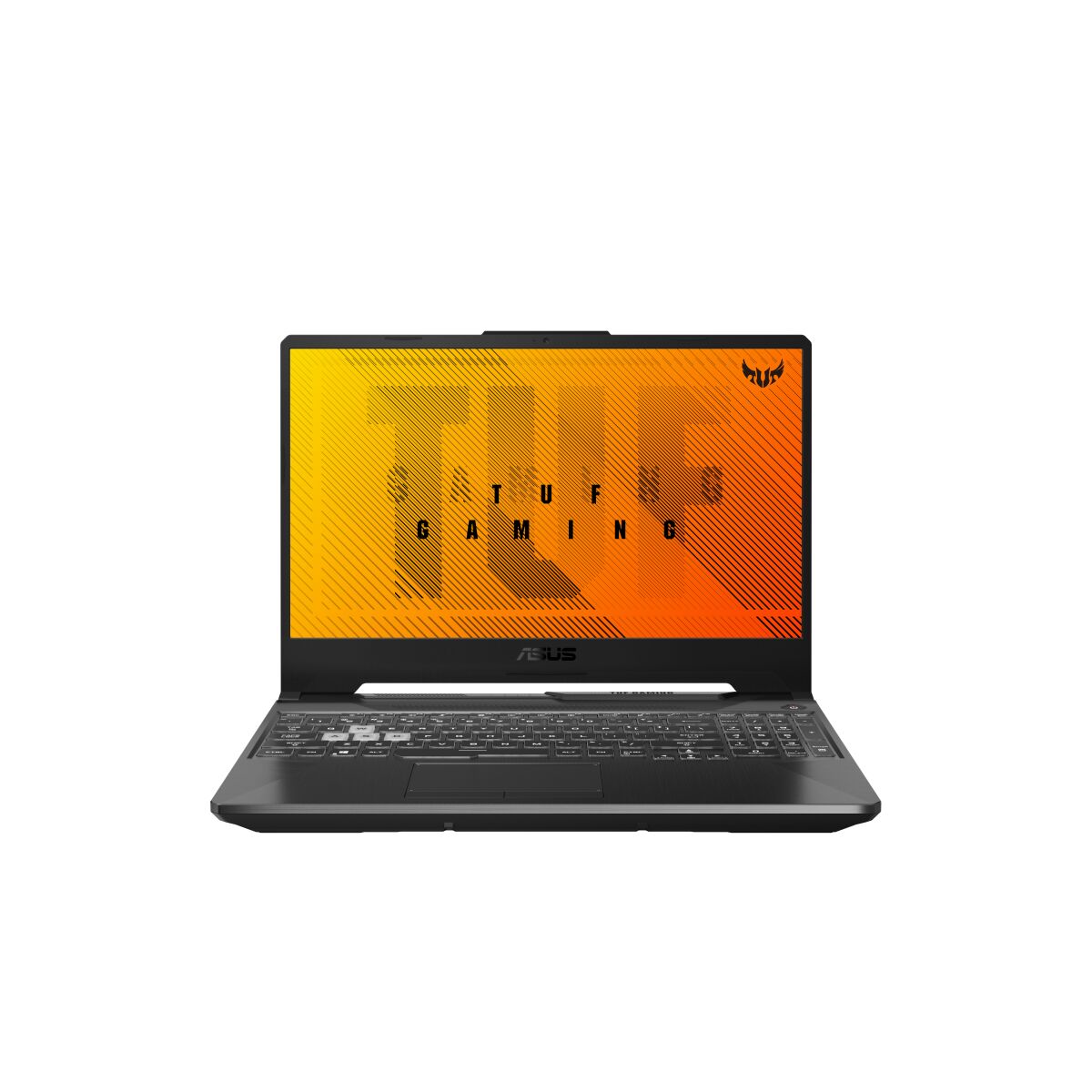

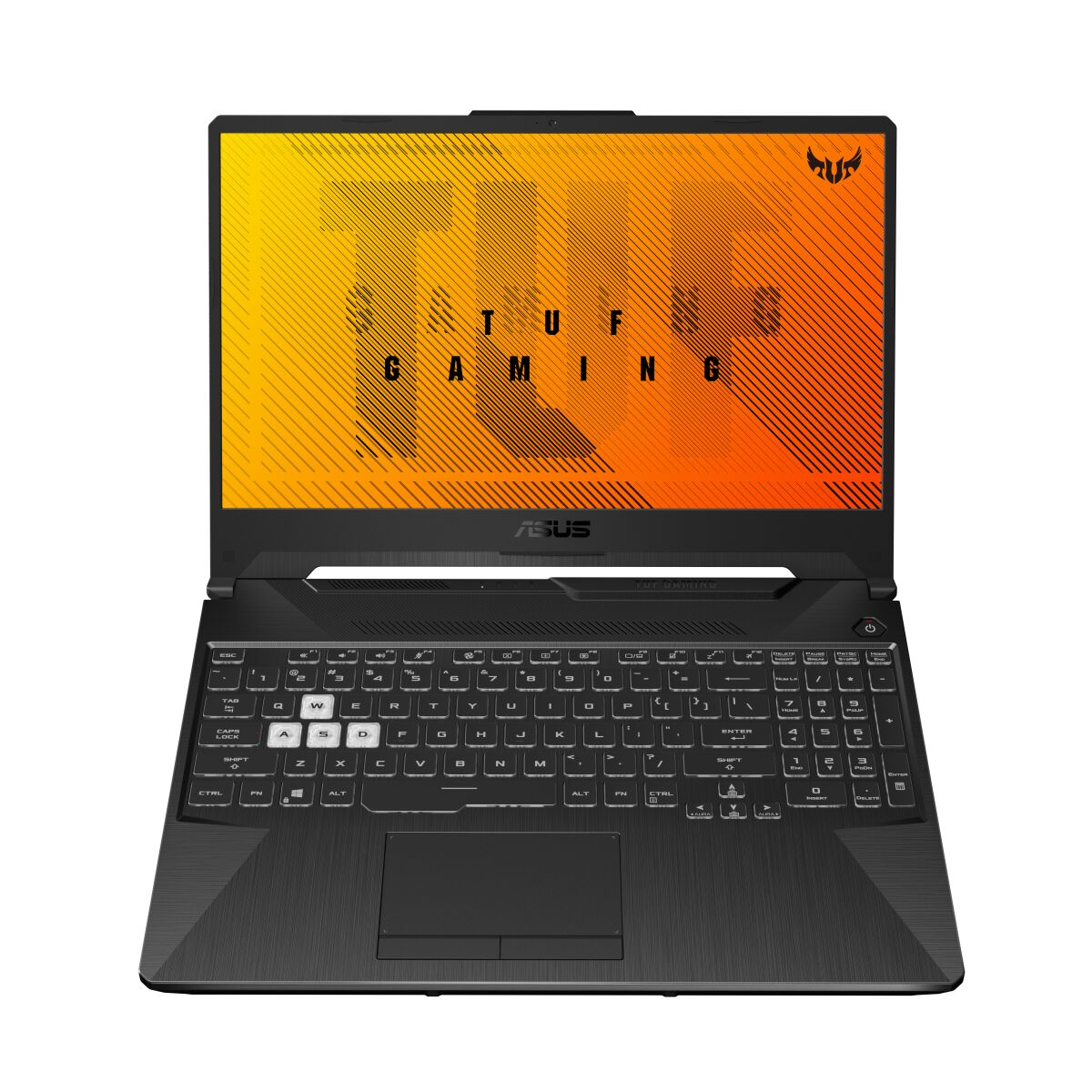

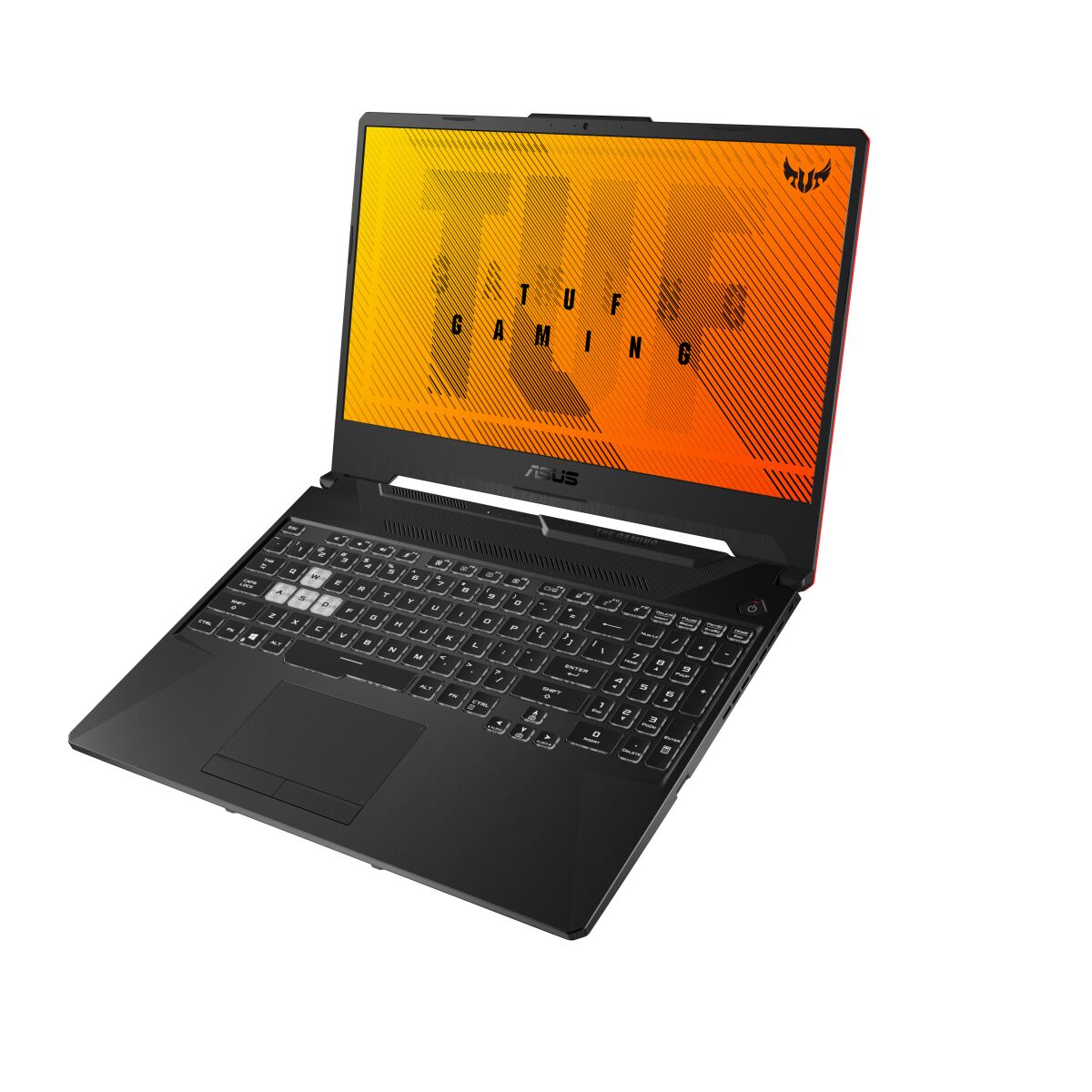

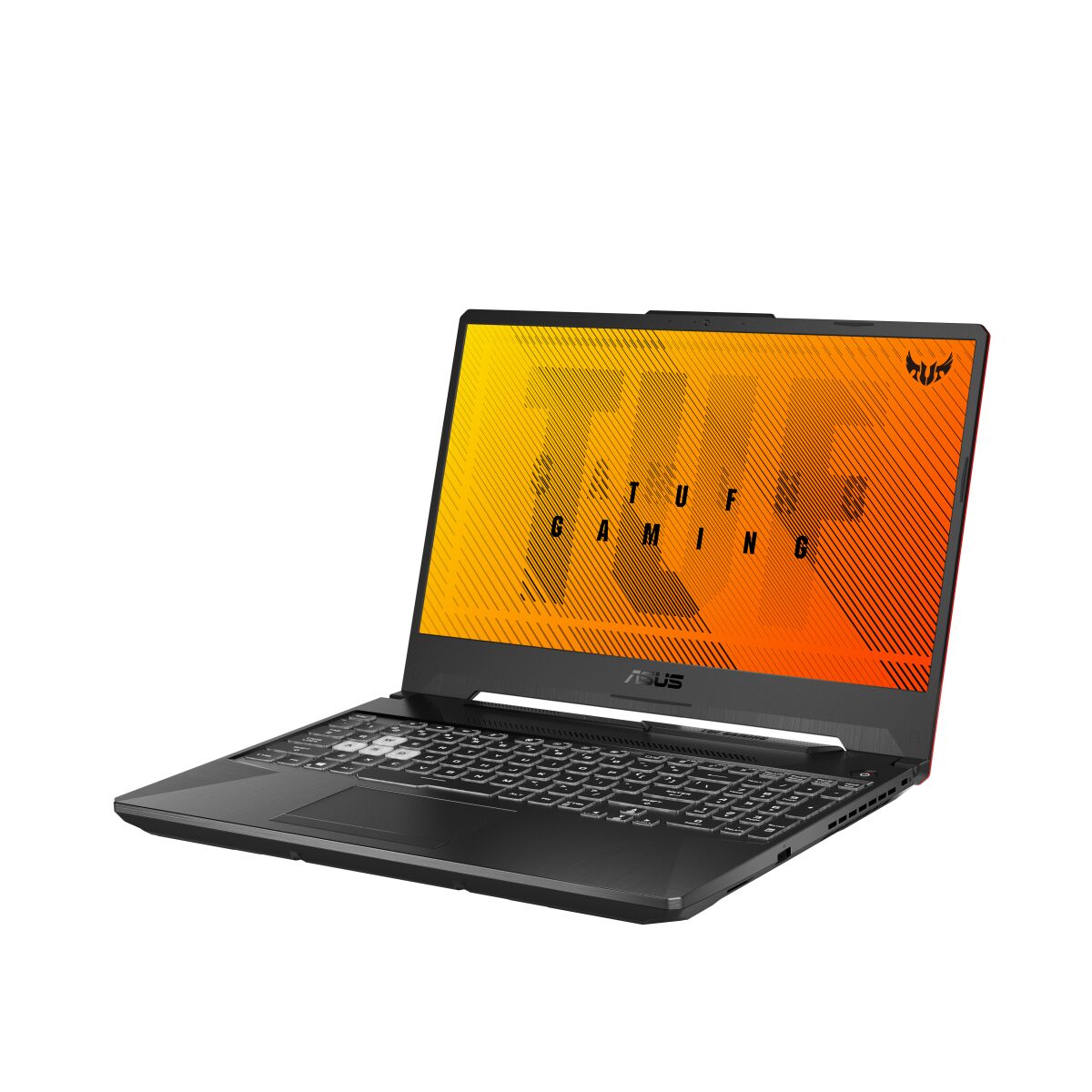

ASUS TUF Gaming FA506IV-HN196 RAM upgrade specifications
ASUS TUF Gaming A15 FA506IV-HN196 RAM upgrade specifications indicate DDR4-SDRAM memory compatibility. Laptop features 2 SO-DIMM slots supporting maximum RAM capacity of 32 GB. Memory operates at 3200 MHz frequency. Compatible DDR4 modules utilize SO-DIMM form factor for notebook installation. Upgrade slots accommodate dual memory modules to reach maximum specifications of 32 GB total capacity.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 19 January 2021 |
Additional Notes
- The dual-channel architecture requires 2 identical memory modules to achieve the maximum theoretical bandwidth of the Ryzen processor.
- Upgrading the ASUS TUF Gaming FA506IV-HN196 involves a total replacement of existing modules if the factory configuration occupies both slots.
- Installing memory with a frequency higher than 3200 MHz will result in automatic downclocking to match the system bus limitations.
- The 32 GB capacity limit indicates the motherboard firmware lacks support for high-density 32 GB single-stick modules.
- Physical installation requires a non-conductive pry tool to release the plastic clips of the bottom chassis without causing structural fatigue or short circuits.
- Latency performance depends on using modules that support JEDEC profiles at 1.2V to ensure compatibility without XMP manual tuning in the BIOS.
- Thermal constraints within the compact chassis suggest avoiding memory modules with thick integrated heat spreaders to prevent physical interference with the bottom panel.
