ASUS TUF Gaming FA506QM-HN016 RAM upgrade specifications

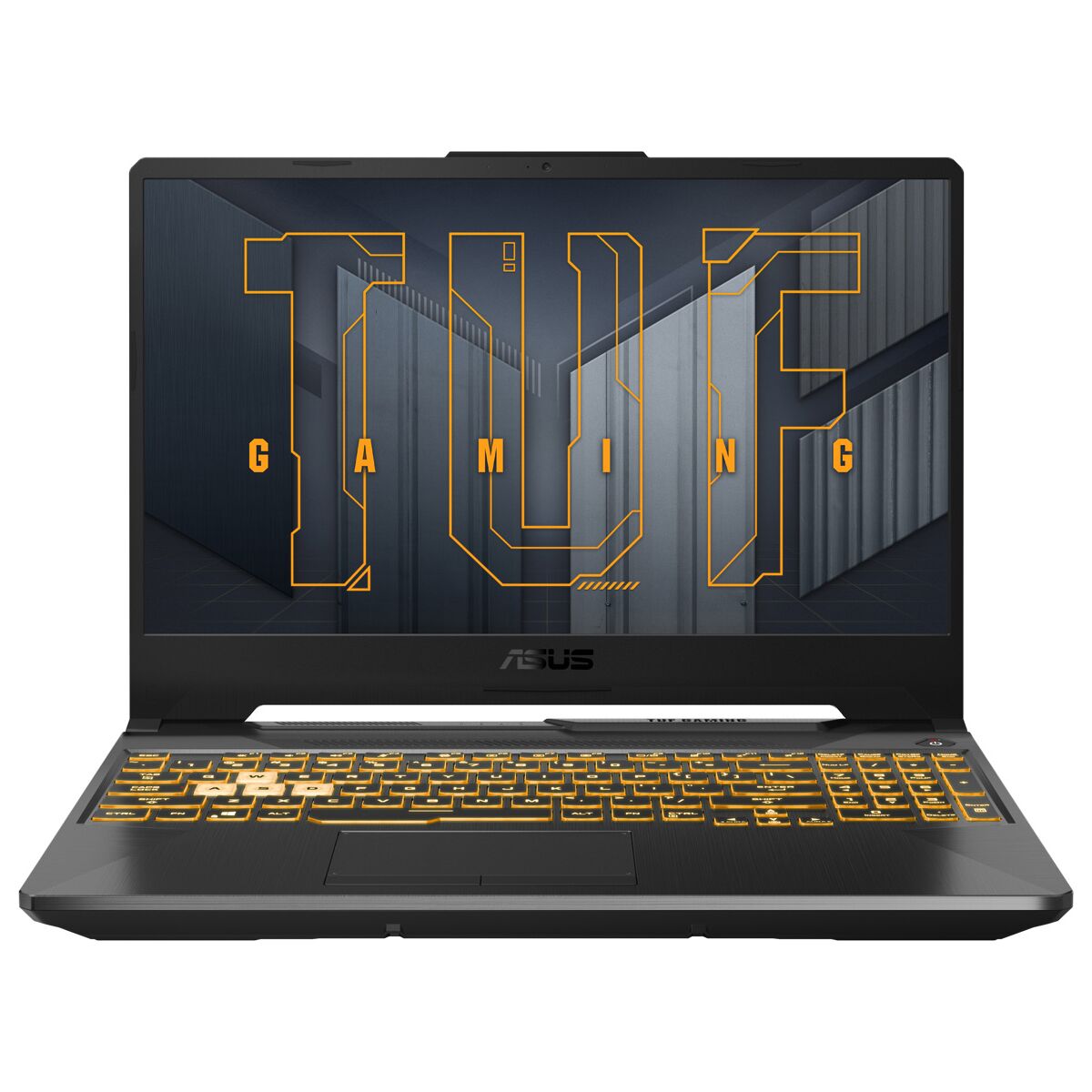

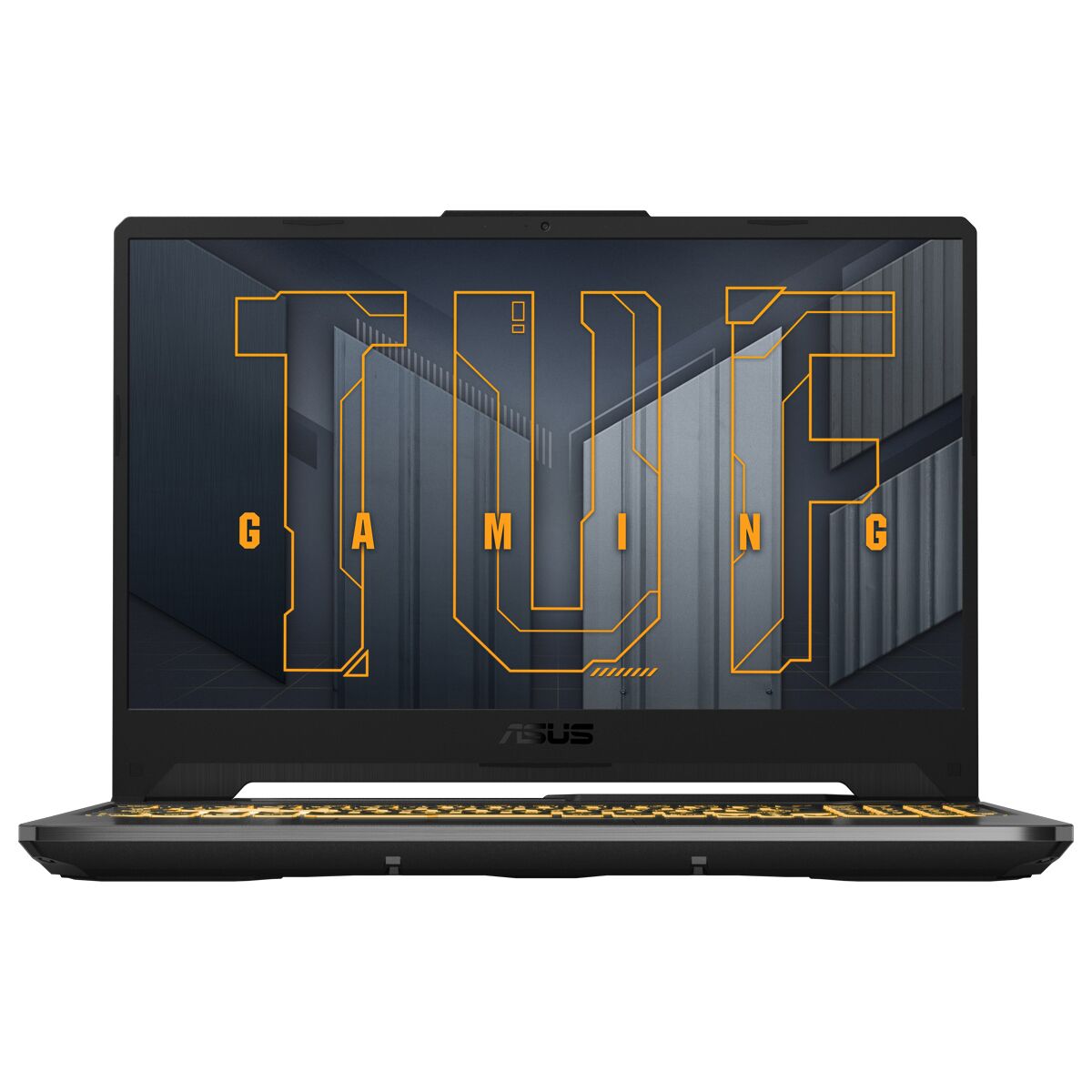

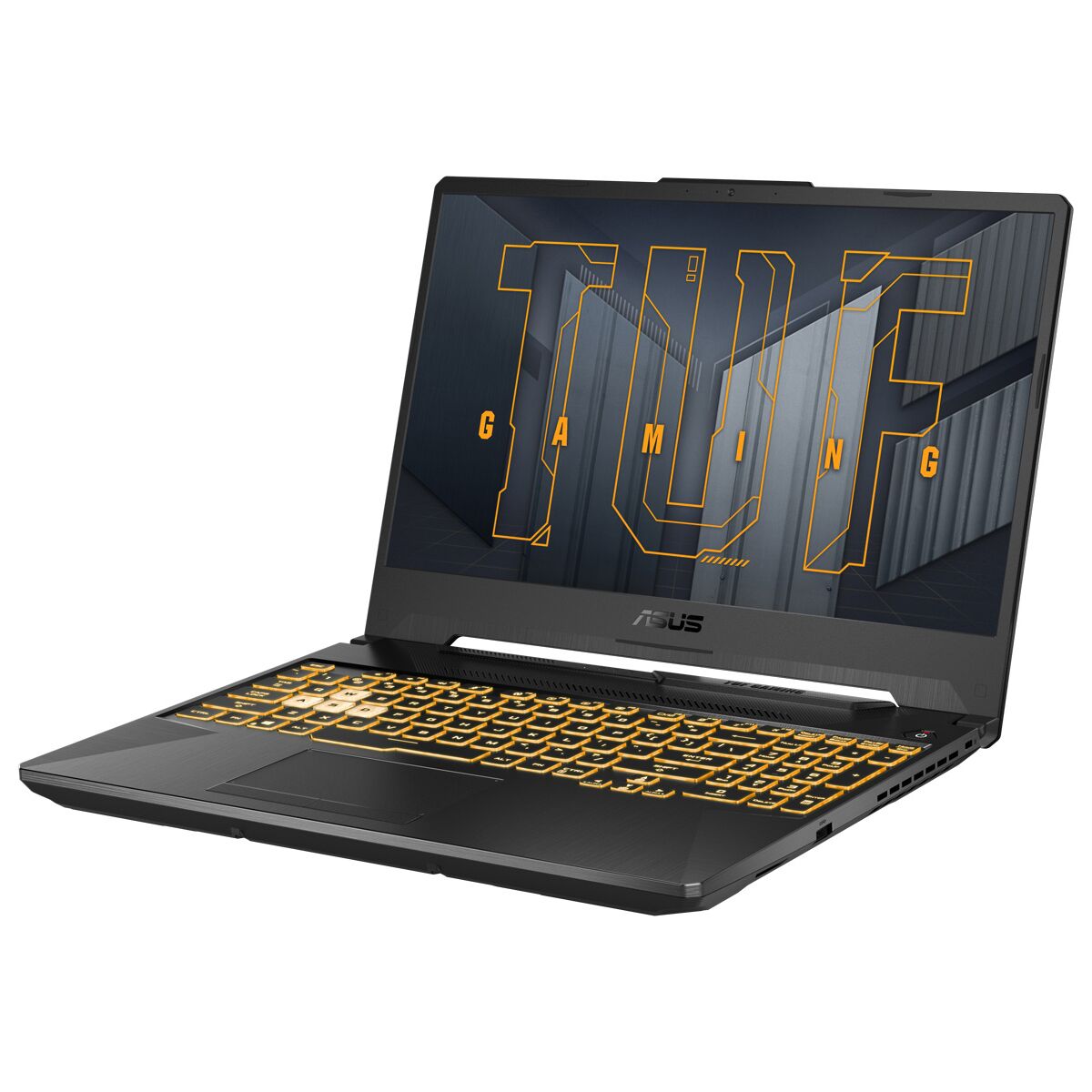

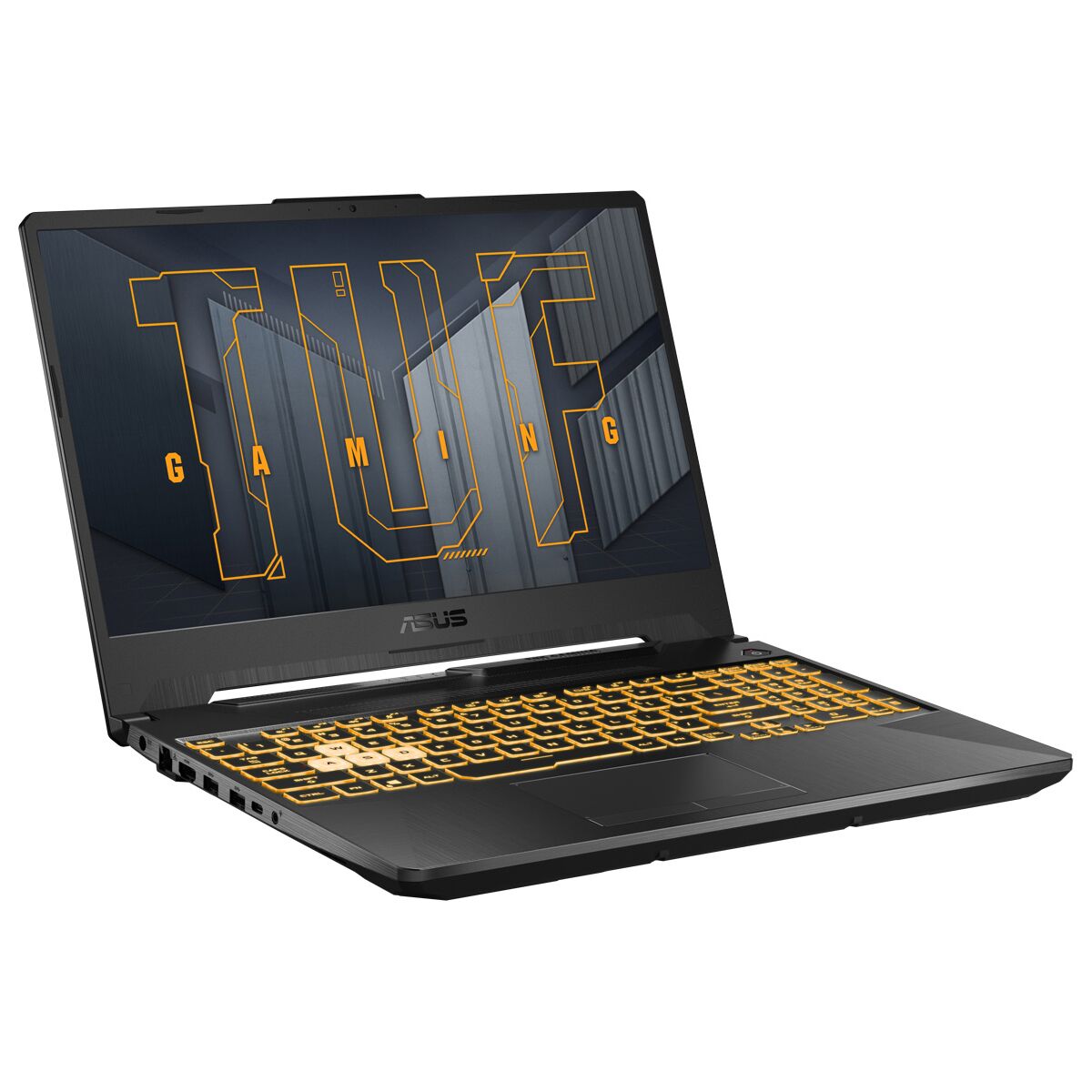

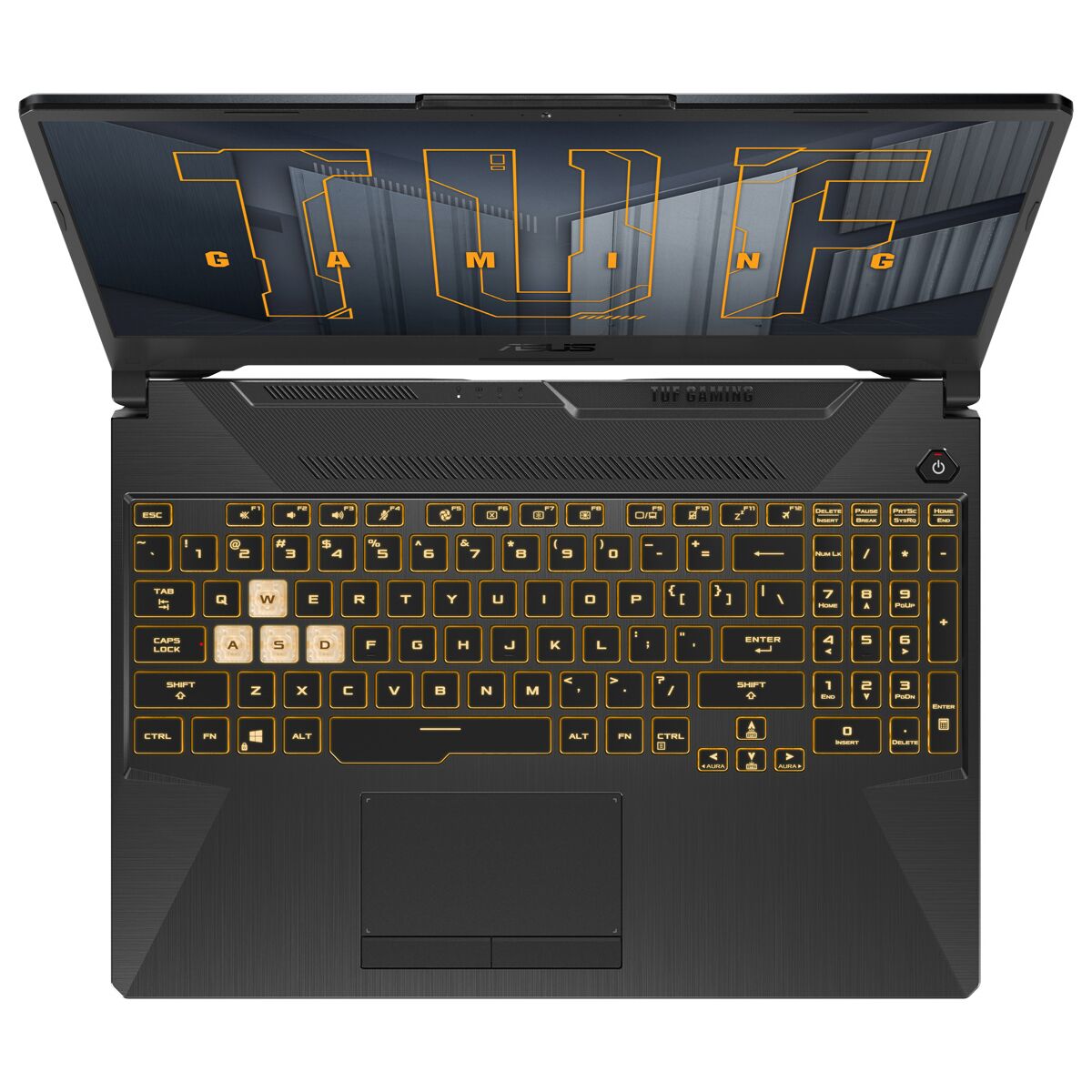

ASUS TUF Gaming A15 FA506QM-HN016 laptop features DDR4-SDRAM memory with two SO-DIMM slots supporting maximum RAM capacity of 32 GB total. Memory upgrade specifications include DDR4 modules operating at 3200 MHz frequency. Compatible RAM upgrades utilize SO-DIMM form factor. Existing memory configuration can be expanded to achieve maximum supported capacity through replacement or addition of compatible DDR4-SDRAM modules in the available slots.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 22 January 2021 |
Additional Notes
- The dual-channel architecture requires matches in density and rank across both slots to prevent the system from defaulting to single-channel mode and reducing memory bandwidth.
- Installing 32 GB of RAM in the ASUS TUF Gaming FA506QM-HN016 occupies all available physical interfaces, necessitating the removal of existing modules for any future capacity increase.
- The usage of SO-DIMM slots excludes the possibility of using low-power LPDDR memory which is typically soldered and non-replaceable.
- Utilizing modules with higher frequencies than 3200 MHz will result in downclocking to remain within the hardware stability limits of the chipset.
- The 32 GB threshold represents the maximum addressable space recognized by the BIOS, meaning modules with higher capacity will not be detected or utilized.
- The hardware design allows for memory maintenance and expansion without affecting integrated storage or cooling components located elsewhere on the motherboard.
- Non-ECC unbuffered modules are required for compatibility as the system lacks the parity checking features found in workstation-grade hardware.
