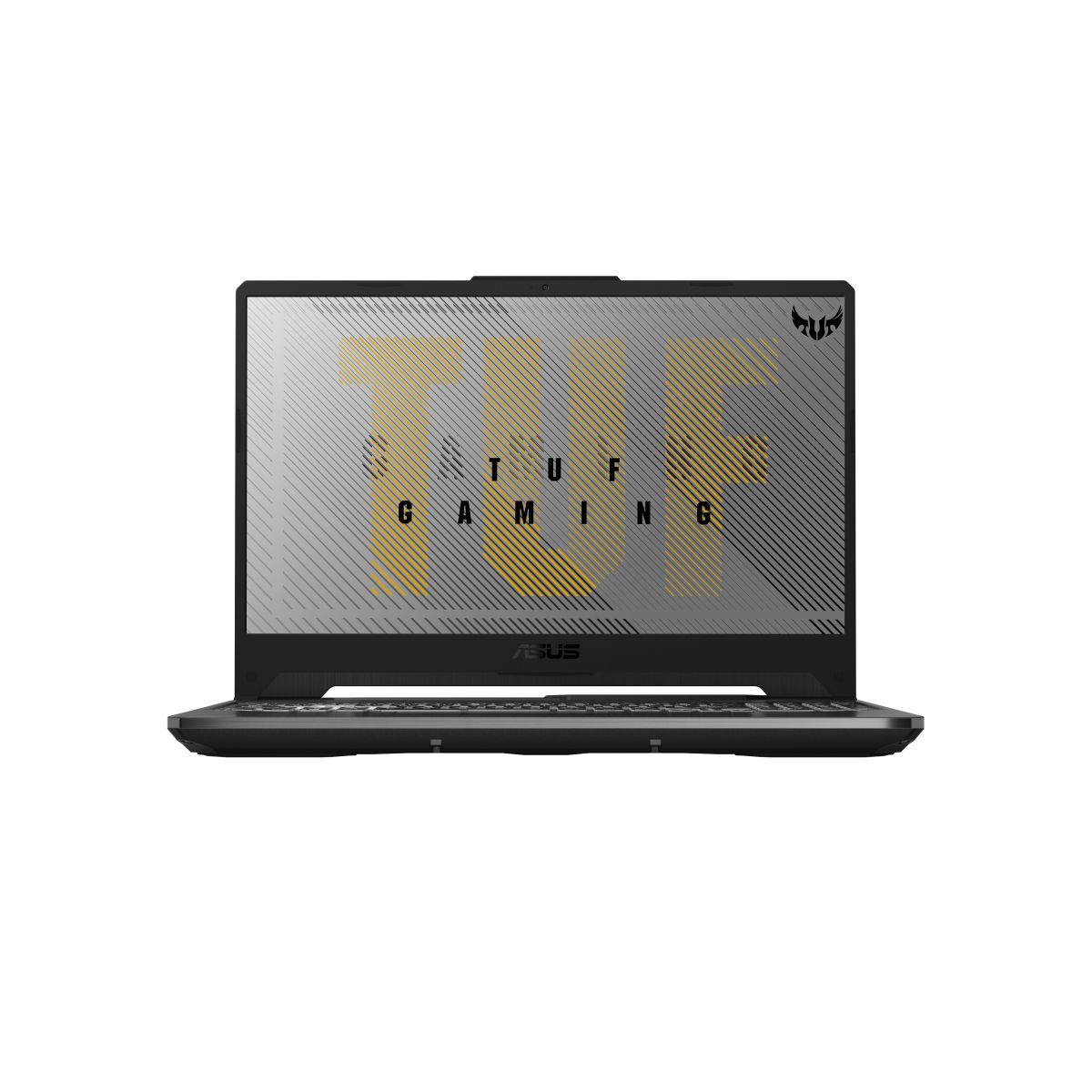

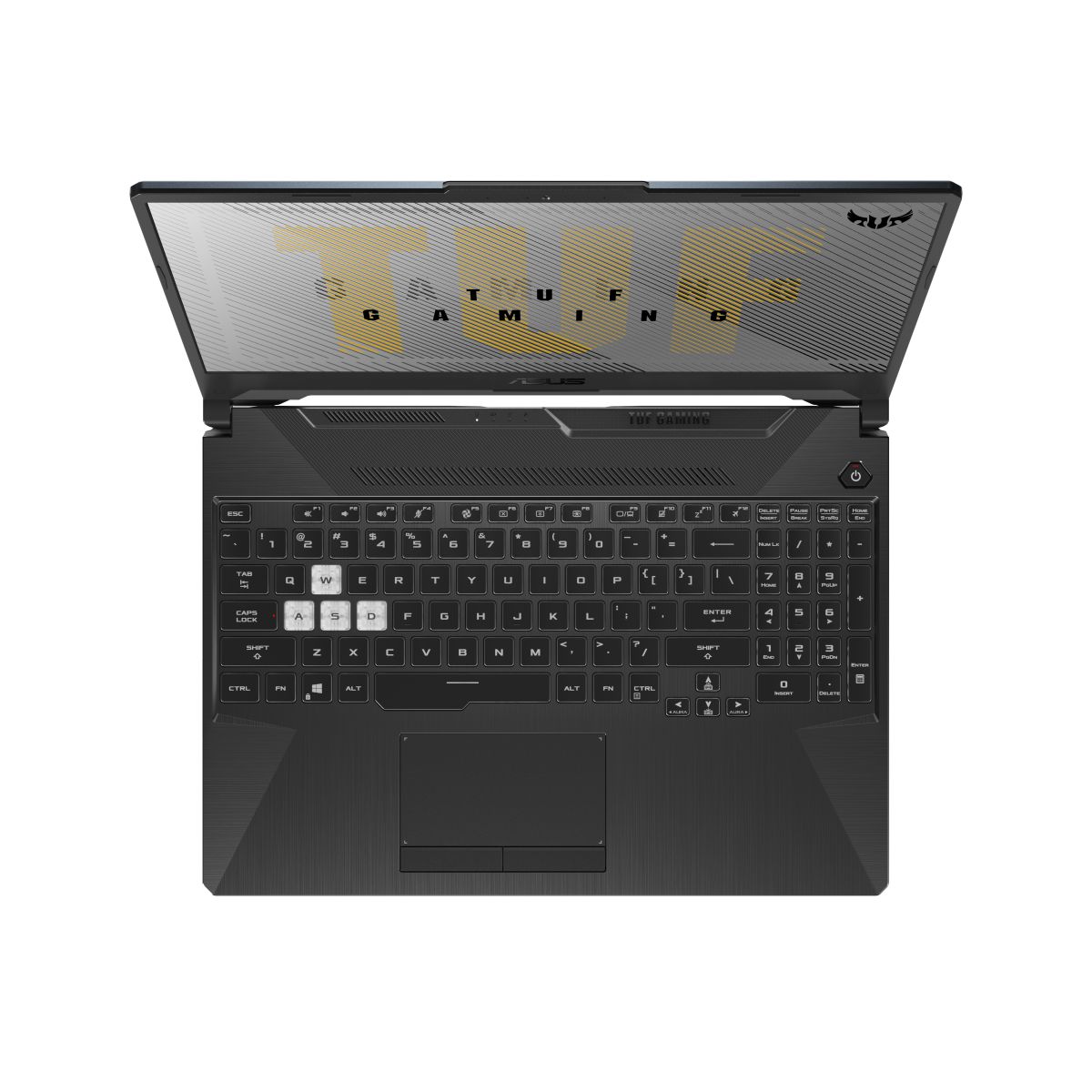

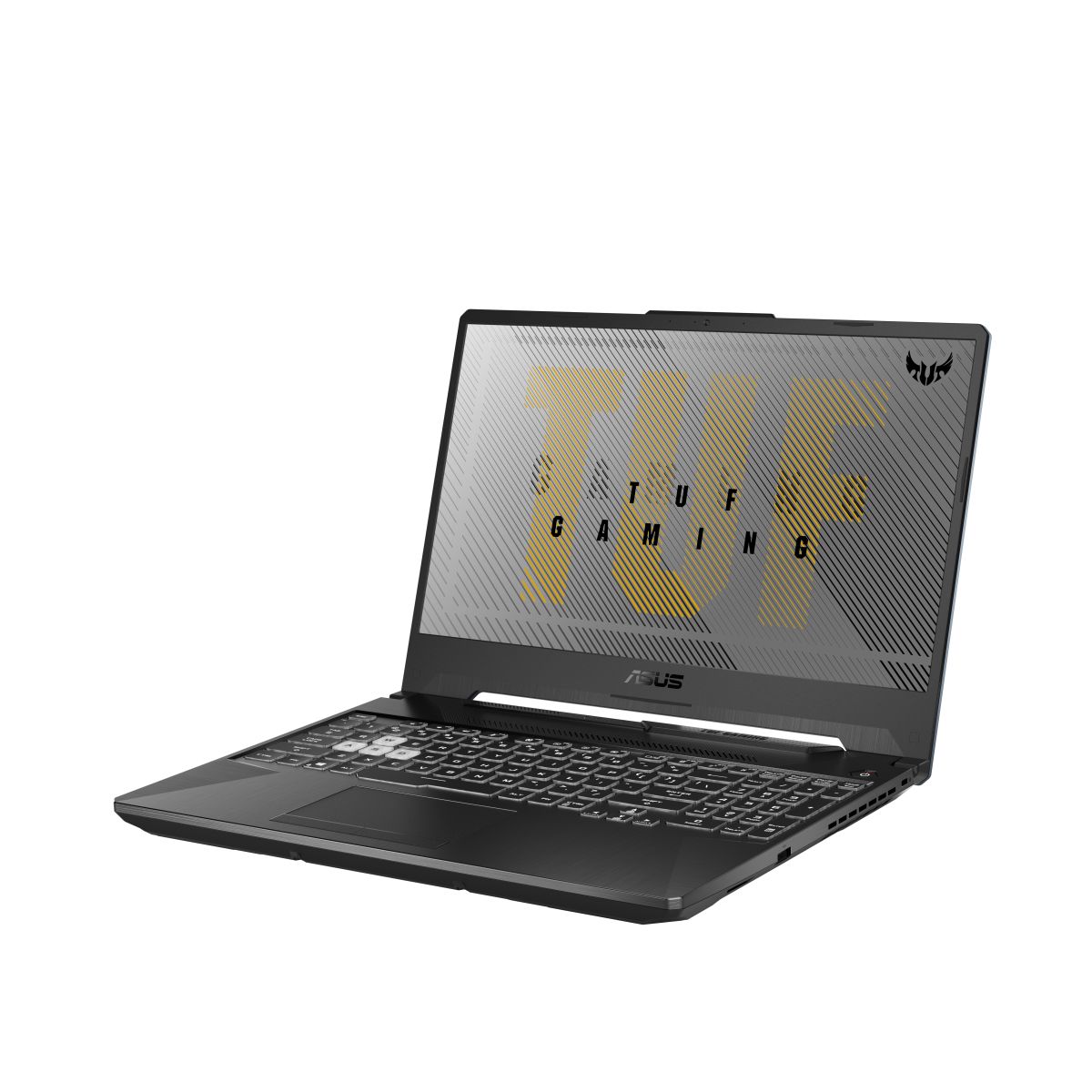

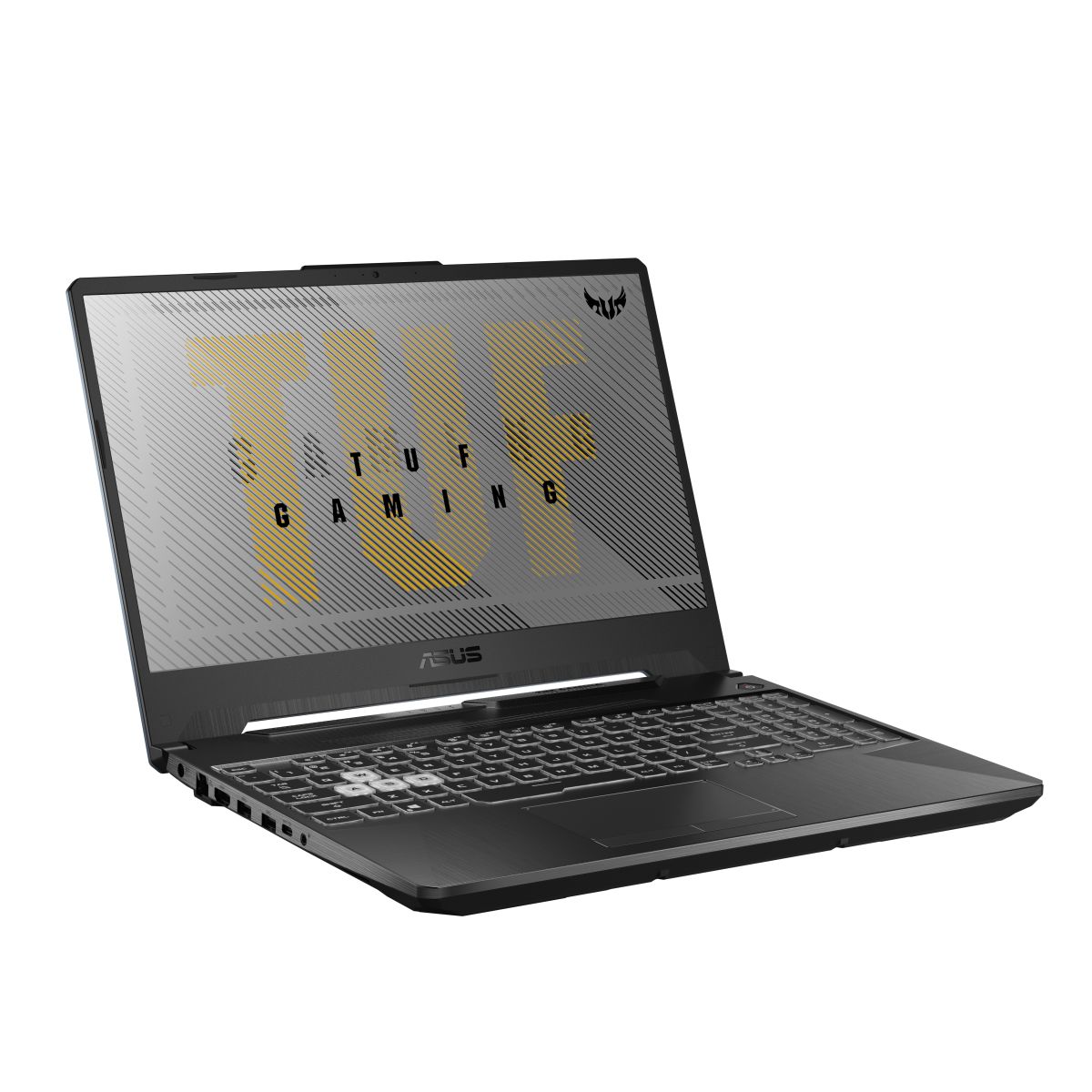

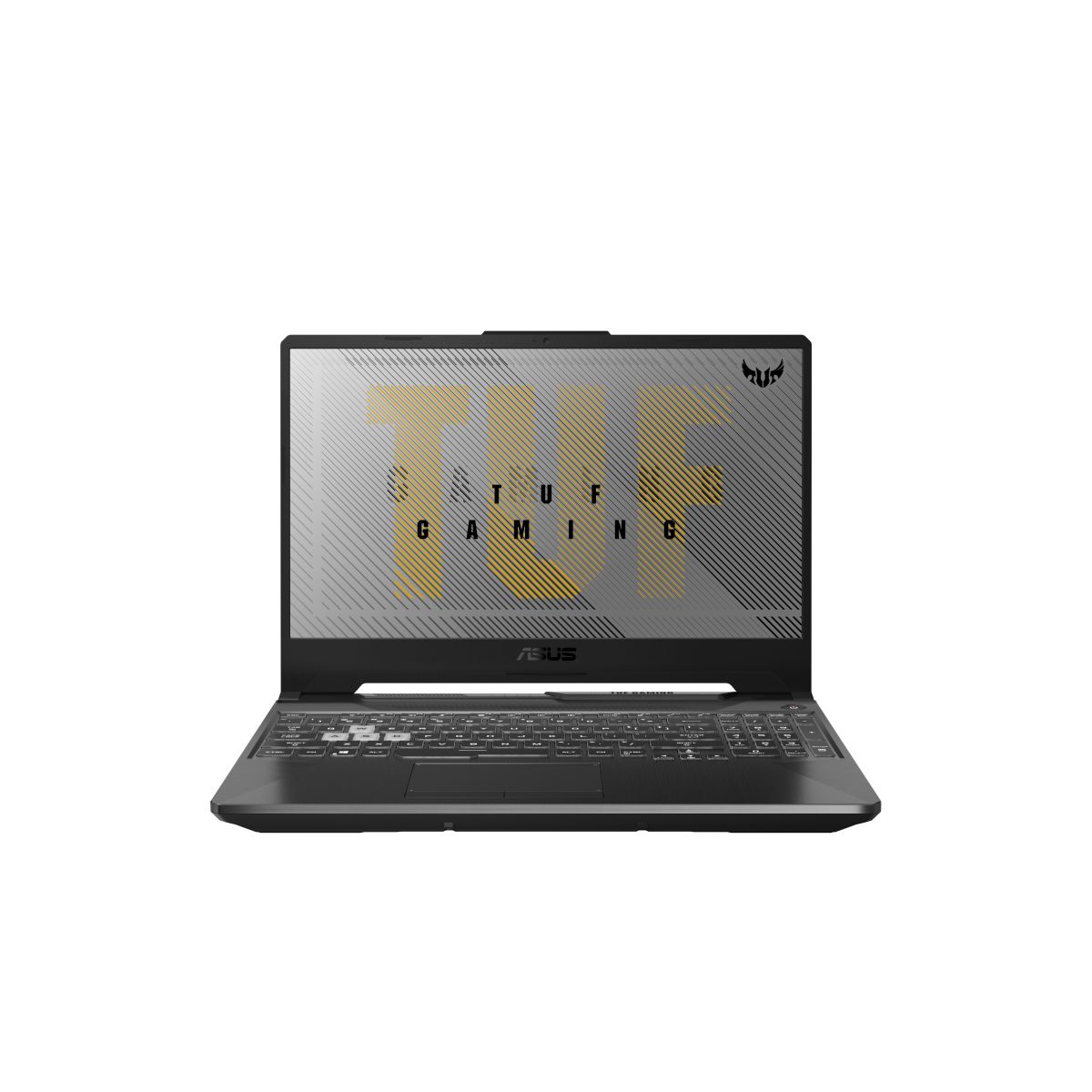

ASUS TUF Gaming FX506II-AL059T RAM upgrade specifications
The ASUS TUF Gaming A15 FX506II-AL059T features DDR4-SDRAM memory upgrade capabilities. The laptop contains 2x SO-DIMM slots supporting SO-DIMM form factor modules. Maximum compatible RAM capacity reaches 32 GB total. Memory specifications indicate DDR4 operating at 3200 MHz frequency. Upgrade specifications enable users to expand storage capacity by replacing existing modules within the available SO-DIMM slots to achieve maximum RAM configuration compatible with the FX506II-AL059T model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 13 March 2020 |
Additional Notes
- The dual channel architecture requires symmetrical module pairs to achieve maximum memory bandwidth for the Ryzen processor in this ASUS TUF Gaming FX506II-AL059T.
- Physical access to the 2 SO-DIMM slots necessitates the removal of the entire base plate which may involve captive screws and plastic clips sensitive to mechanical stress.
- Installing modules with higher rated frequencies results in automatic downclocking to 3200 MHz due to hardware controller limitations.
- Latency performance depends on choosing modules with JEDEC profiles as the BIOS typically lacks XMP or DOCP manual voltage and timing adjustments.
- Upgrading beyond 32 GB is prevented by firmware locks despite the underlying CPU architecture potentially supporting higher densities.
- The use of 1.2V DDR4 modules is mandatory to maintain thermal stability and power delivery specifications of the motherboard.
- Asynchronous memory configurations lead to a significant reduction in frame rate stability in CPU intensive gaming scenarios.
