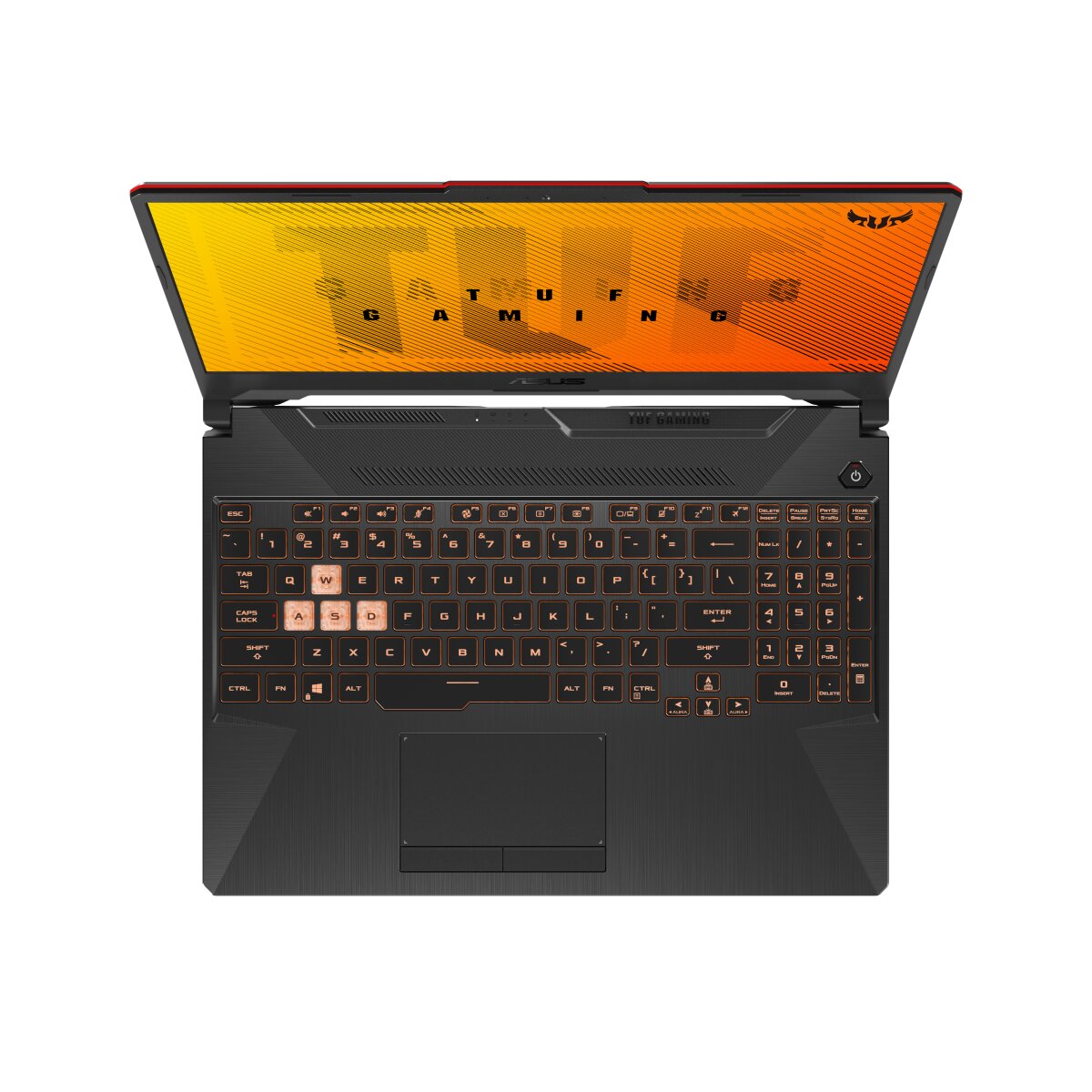

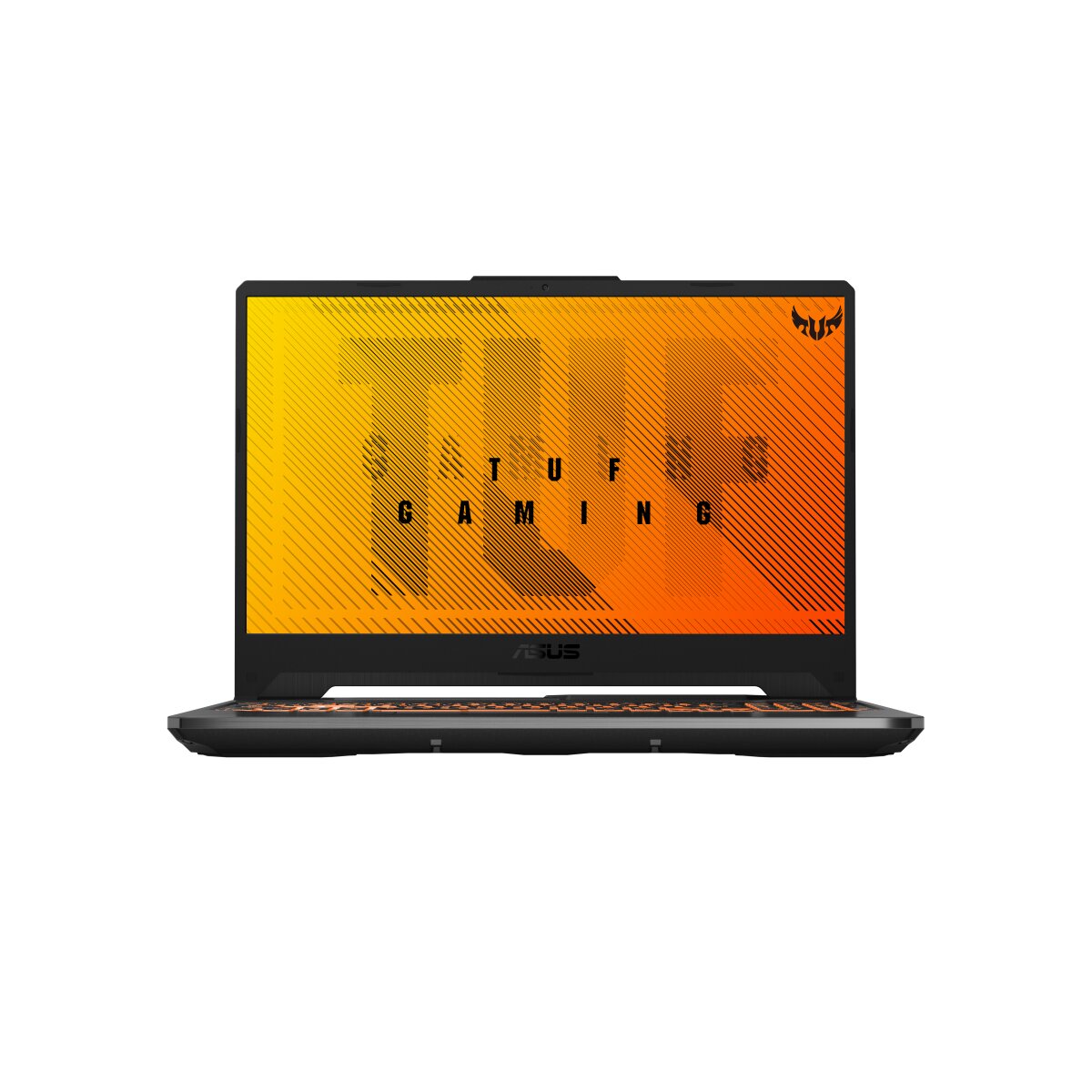

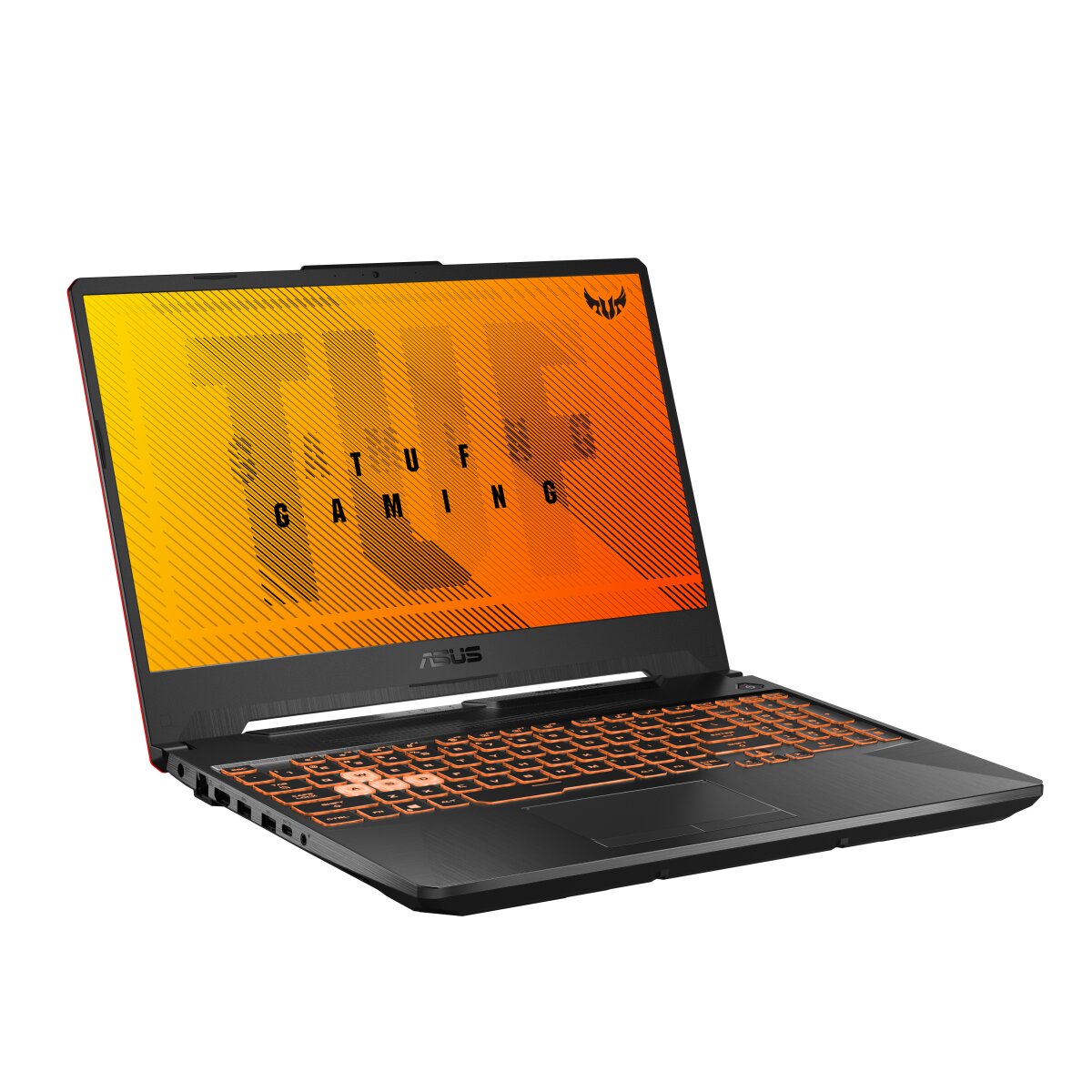

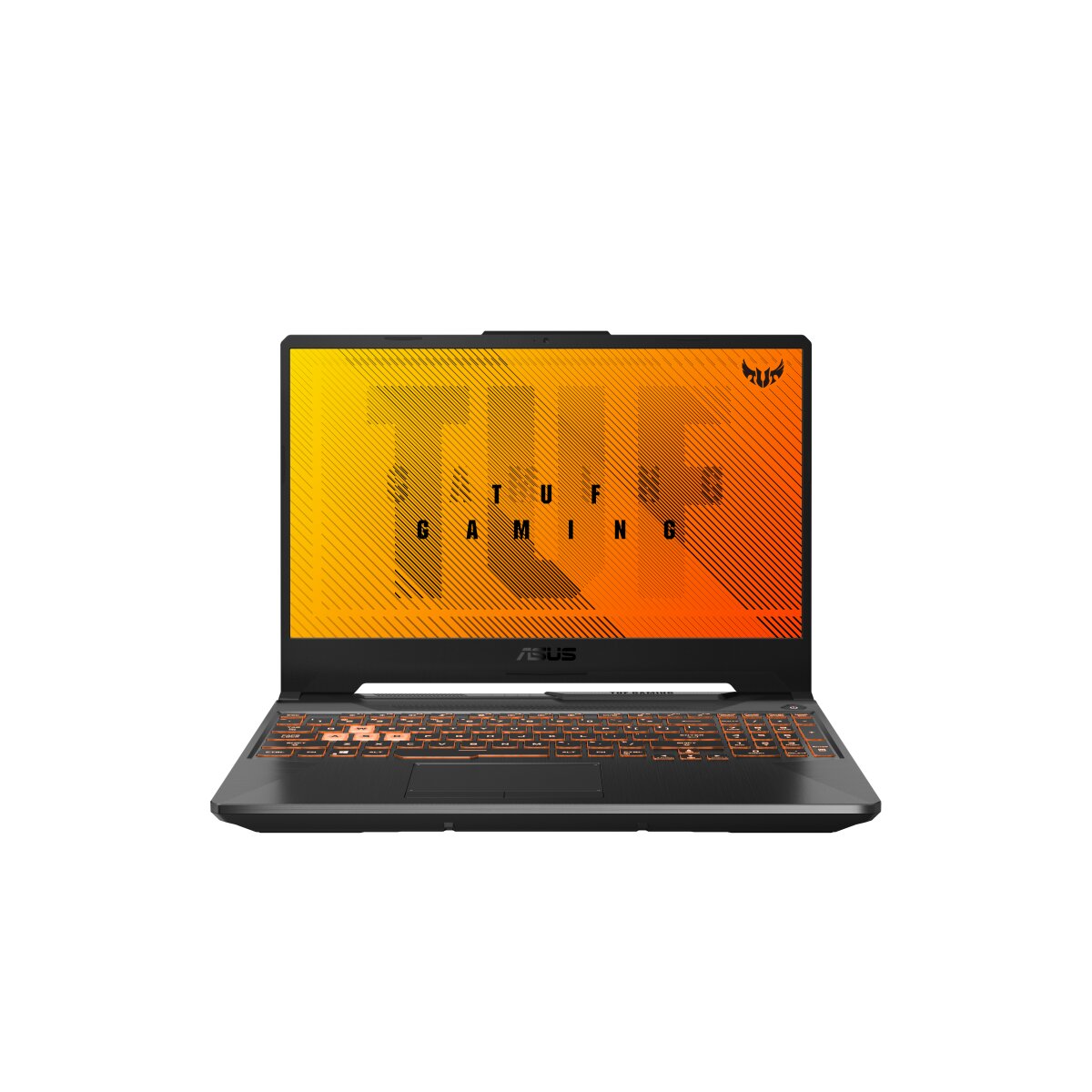

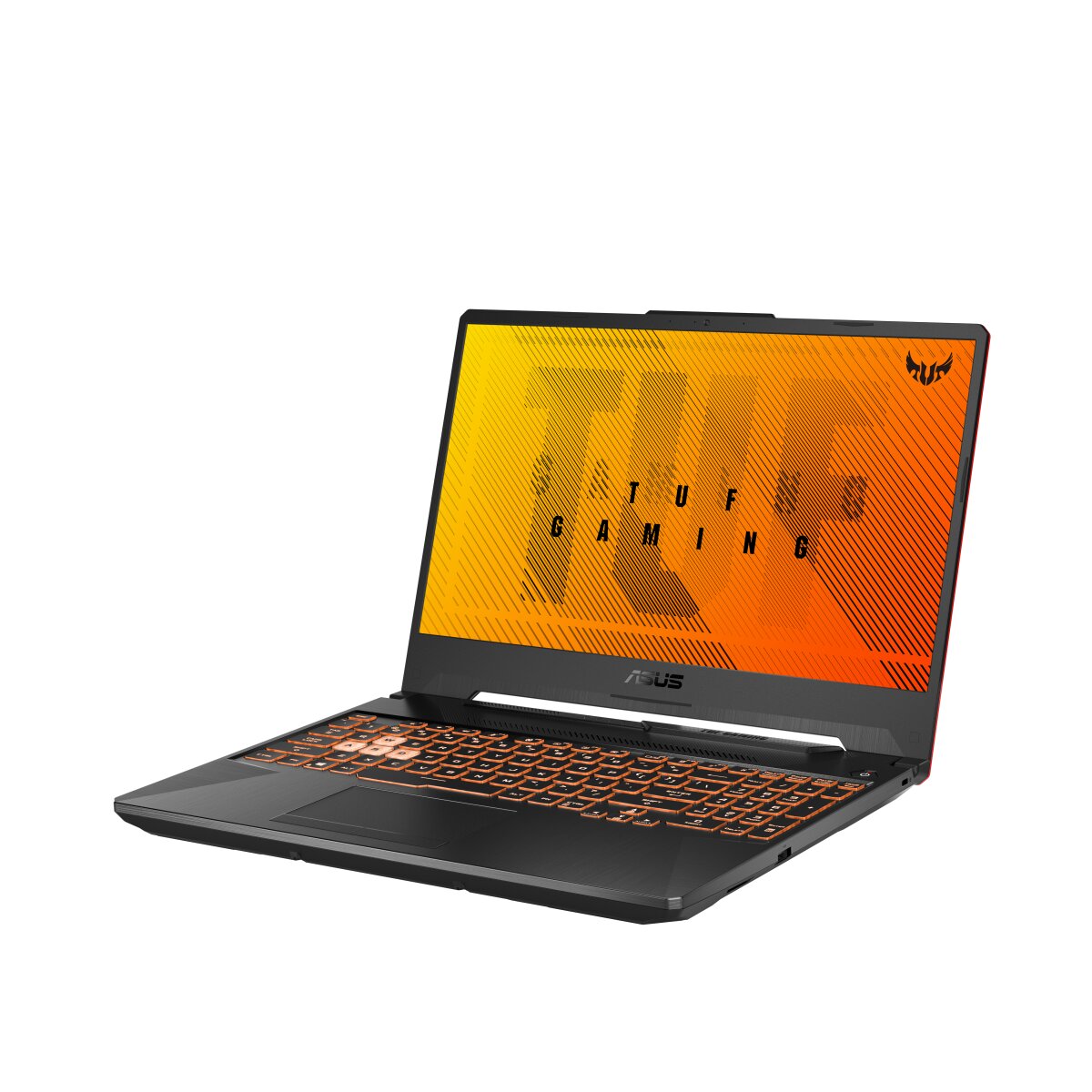

ASUS TUF Gaming FX506LH-HN002 RAM upgrade specifications
The ASUS TUF Gaming FX506LH-HN002 laptop features DDR4-SDRAM memory upgrades supported through two SO-DIMM slots. Maximum RAM capacity reaches 32 GB total. The device specifications include DDR4 memory operating at 2933 MHz frequency. Compatible upgrades utilize the SO-DIMM form factor for this gaming series notebook. Memory expansion slots accommodate standard laptop memory modules for increased performance specifications.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2933 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2933 (PC4-23464) |
| Bandwidth | 23.5 GB/s |
| Laptop Release date | 12 August 2021 |
Additional Notes
- The ASUS TUF Gaming FX506LH-HN002 operates with DDR4 memory clocked at 2933 MHz, which is below the standard JEDEC specification of 3200 MHz for DDR4. Replacement modules rated for higher frequencies will downclock to this native speed, preventing performance gains from faster memory purchases.
- Dual SO-DIMM slots create a single upgrade path constraint. Adding a second module requires matching the existing module's speed, timings, and manufacturer to avoid stability issues. Mismatched memory configurations may force both modules into conservative timing profiles, negating capacity benefits.
- The 32 GB capacity ceiling is fixed by BIOS and address bus limitations. Purchasing modules exceeding this total will result in unrecognized excess capacity regardless of slot availability.
- SO-DIMM form factor limits module selection to laptop-grade memory. Desktop DDR4 (UDIMM) modules are physically incompatible and cannot be force-fitted without permanent damage to the connector or module.
- The 2 slot configuration prevents future multi-channel expansion beyond dual-channel operation. All memory upgrades will maintain 2-channel bandwidth architecture, with no path to 4-channel or higher configurations.
- Replacing a single module while retaining the original creates asymmetric dual-channel pairing. If the original module operates at non-standard timings, the new module will operate at reduced performance to match the legacy module rather than achieve rated specifications.
