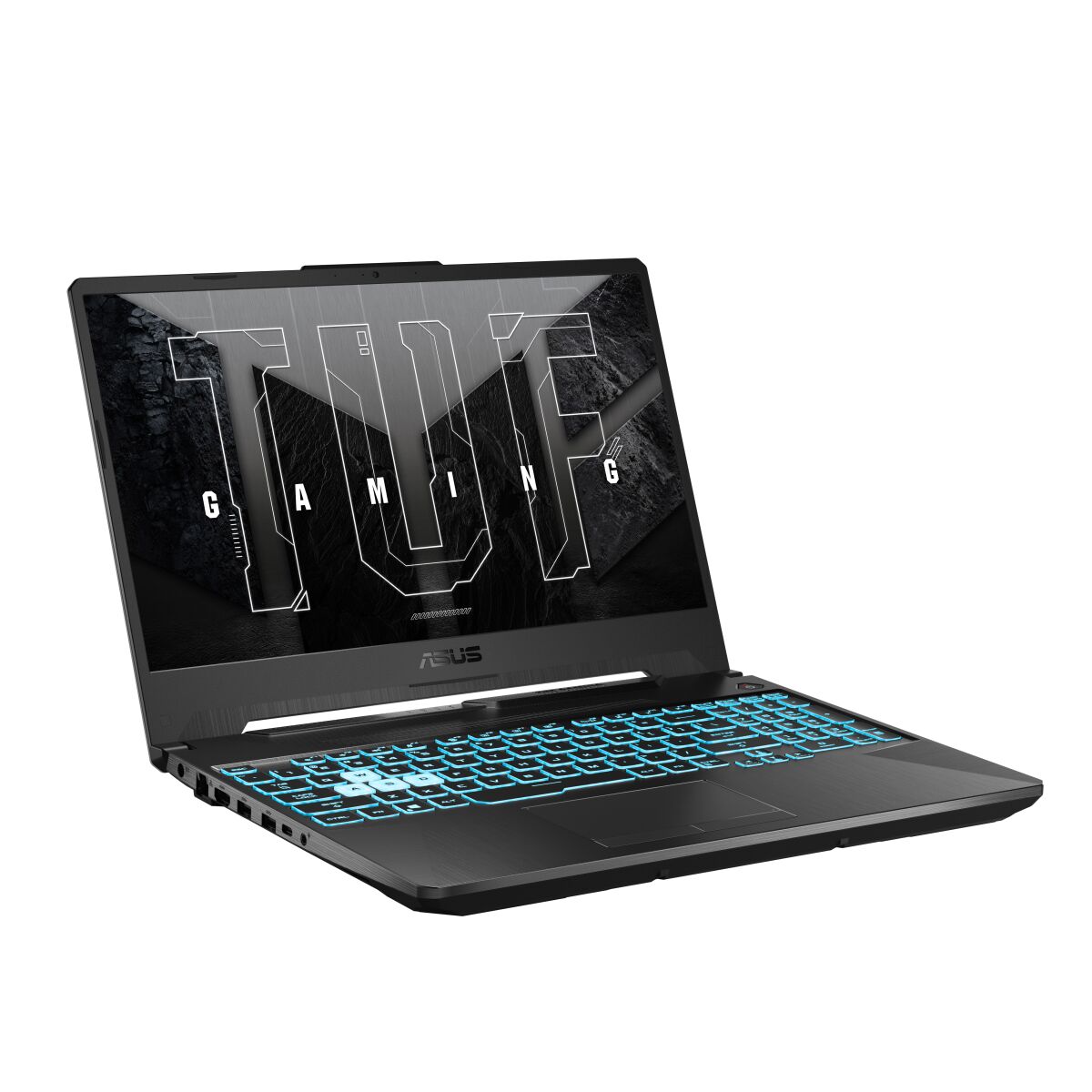

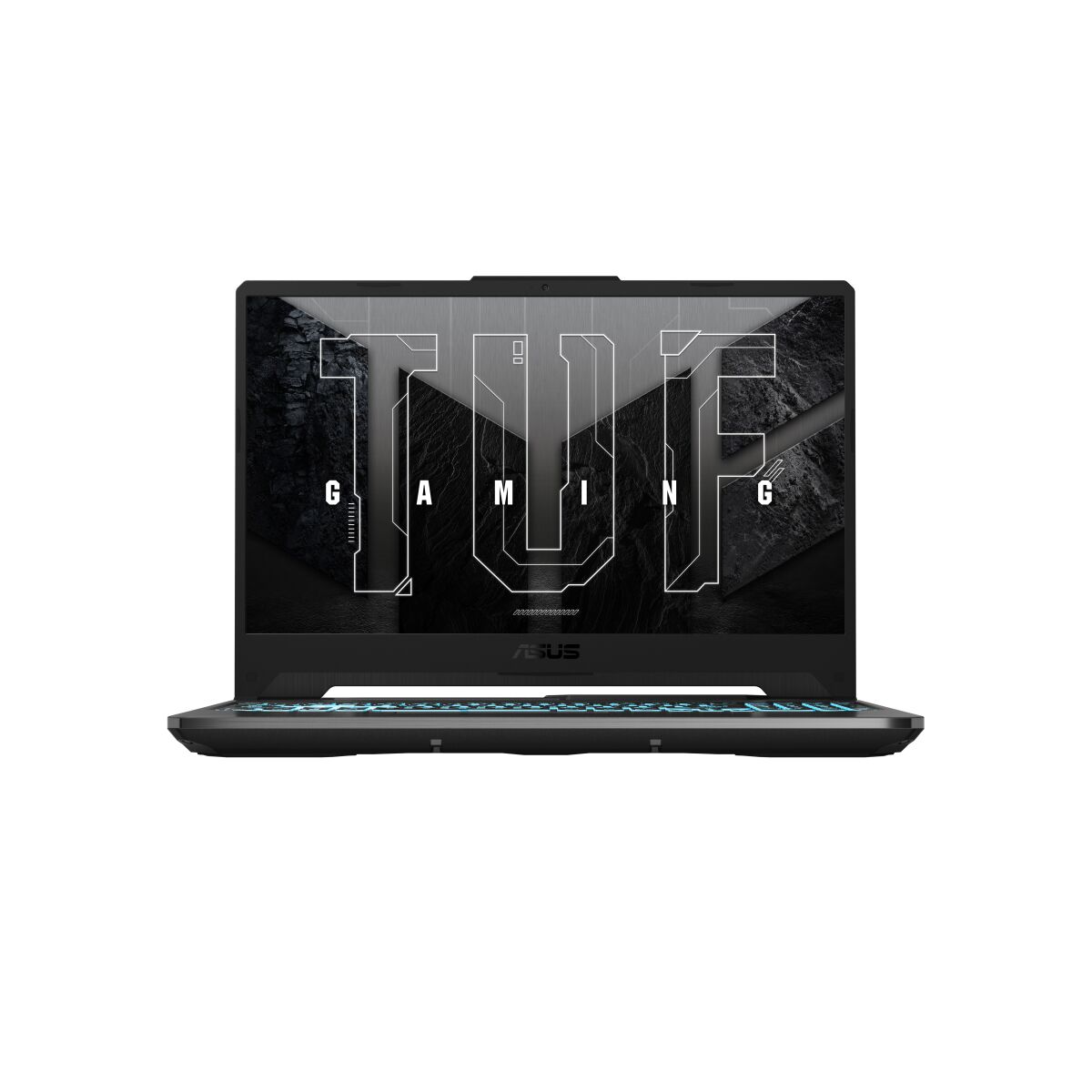

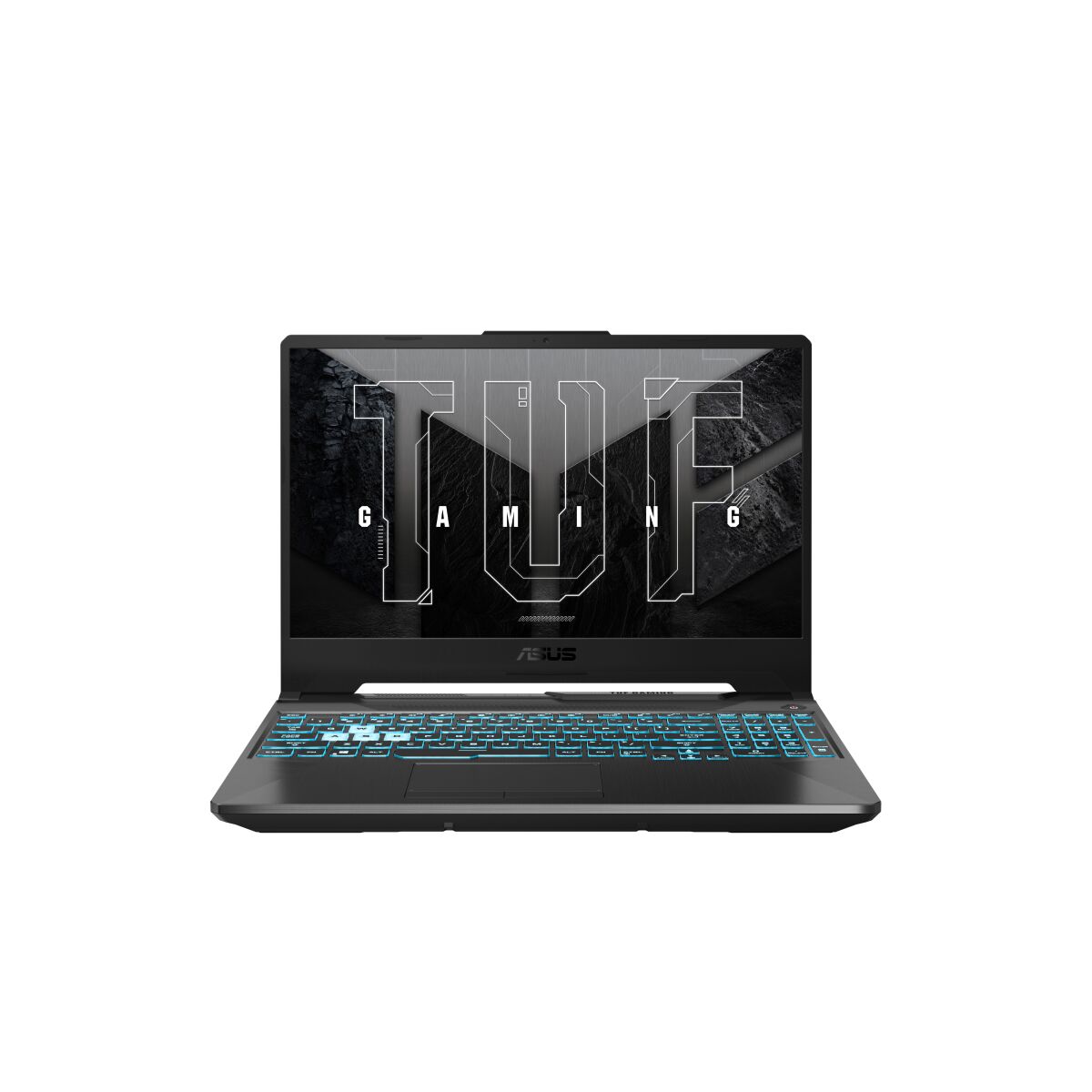

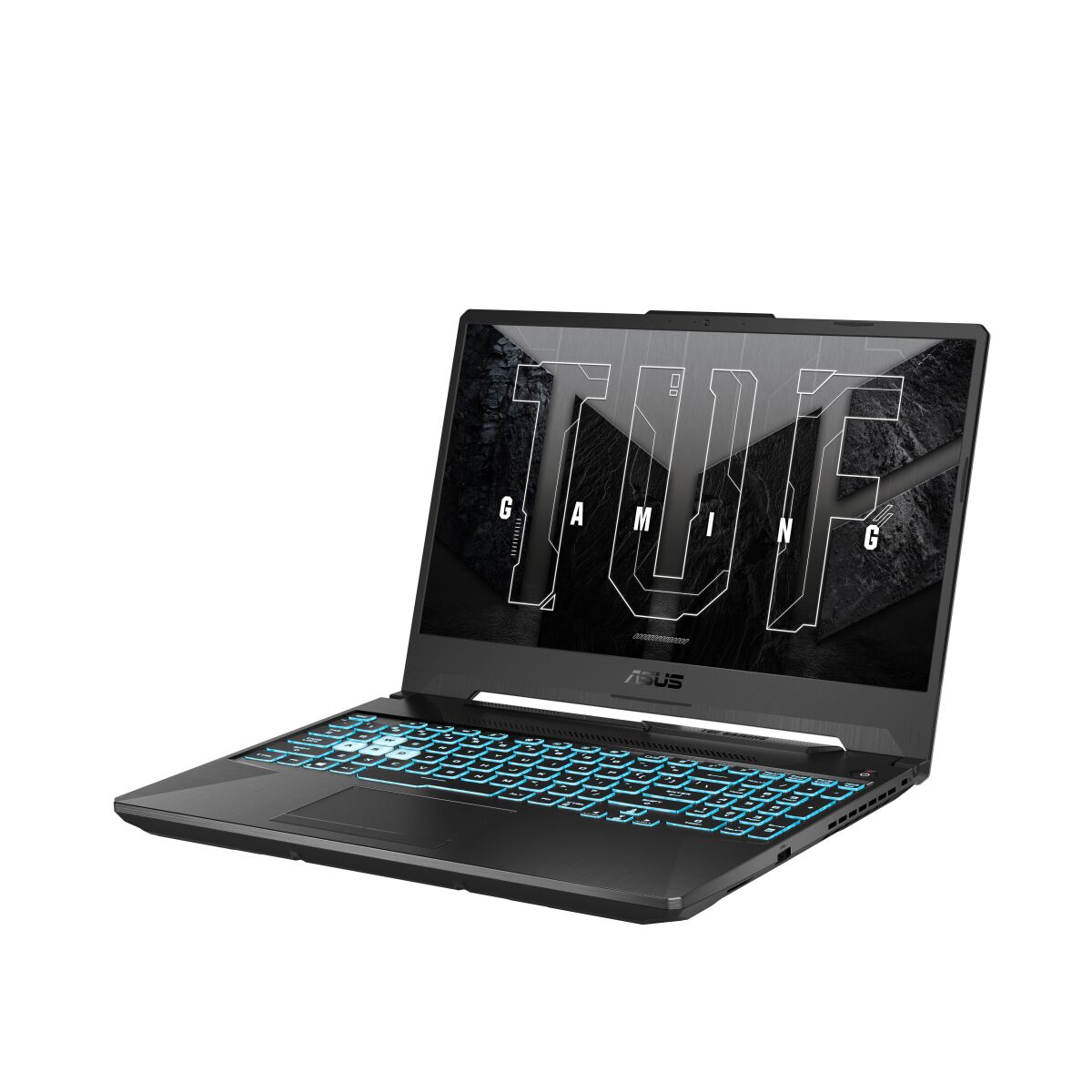

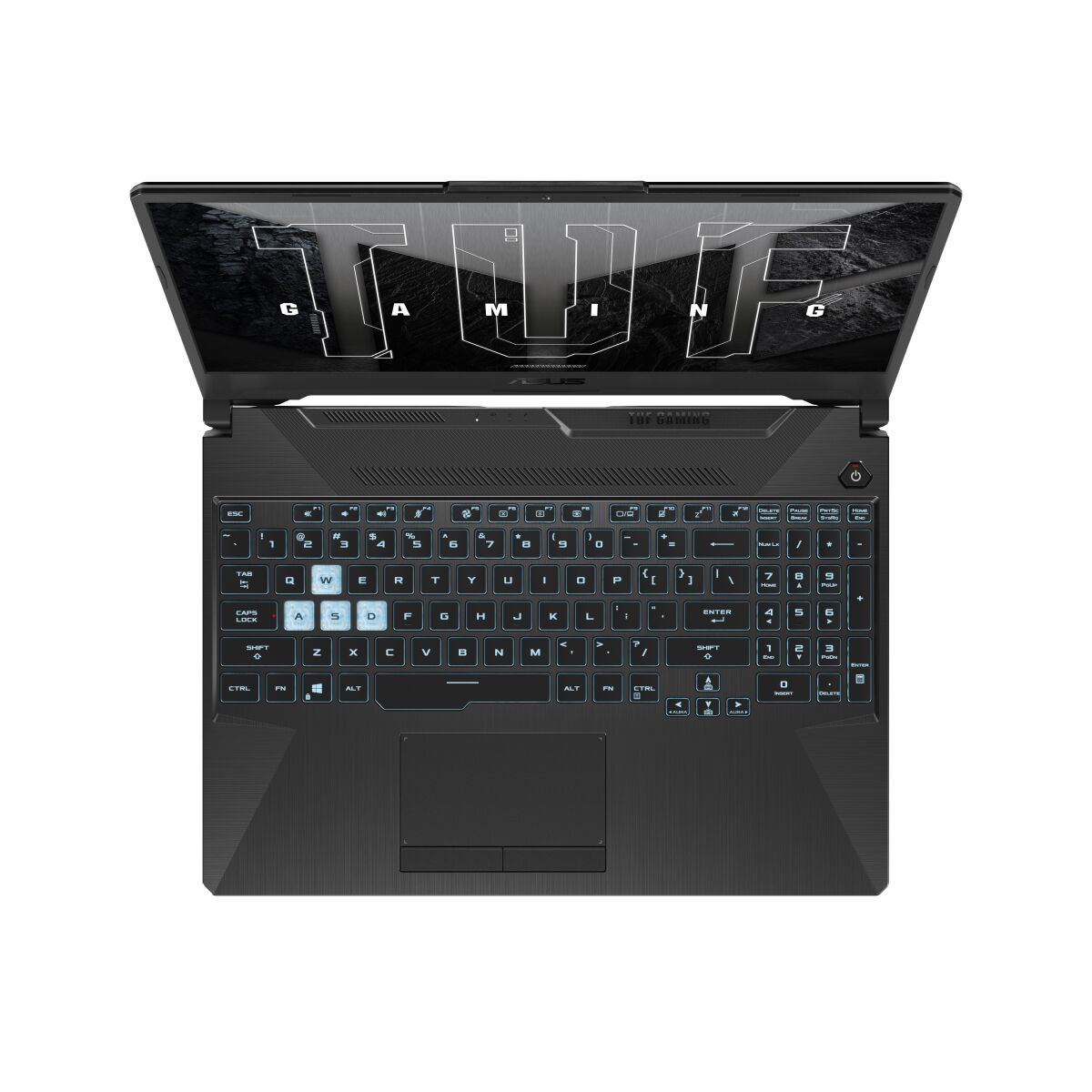

ASUS TUF Gaming FX506QM-HN052T-BE RAM upgrade specifications
ASUS TUF Gaming A15 series FX506QM-HN052T-BE laptop features DDR4-SDRAM memory upgrade capabilities. The system contains 2x SO-DIMM slots supporting maximum RAM capacity of 32 GB. Memory specifications require DDR4 modules operating at 3200 MHz frequency. SO-DIMM form factor modules are compatible with this gaming laptop model. Upgrade configurations allow for total memory expansion up to 32 GB across the two available memory slots.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 14 January 2021 |
Additional Notes
- Dual channel memory architecture requires matching pair modules to eliminate potential bandwidth bottlenecks during high CPU load scenarios.
- The physical configuration involves 2 independent SO-DIMM slots which allows for the total removal of factory memory to reach the parity threshold of 16 GB per slot.
- The ASUS TUF Gaming FX506QM-HN052T-BE motherboard firmware strictly enforces a 32 GB ceiling regardless of available high density 32 GB modules on the market.
- Installing memory with clock speeds exceeding 3200 MHz will result in automatic downclocking to the system bus limit due to chipset frequency restrictions.
- System stability depends on selecting modules that support JEDEC standard timings because the BIOS typically lacks XMP profile manual toggle adjustments.
- Upgrade procedures involve removing the bottom chassis panel which requires careful handling of internal ribbon cables to maintain warranty eligibility.
- Mixing modules with different latencies or ranks can cause the memory controller to default to the slowest common denominator affecting overall system response times.
