ASUS TUF Gaming FX506QR-AZ027T RAM upgrade specifications

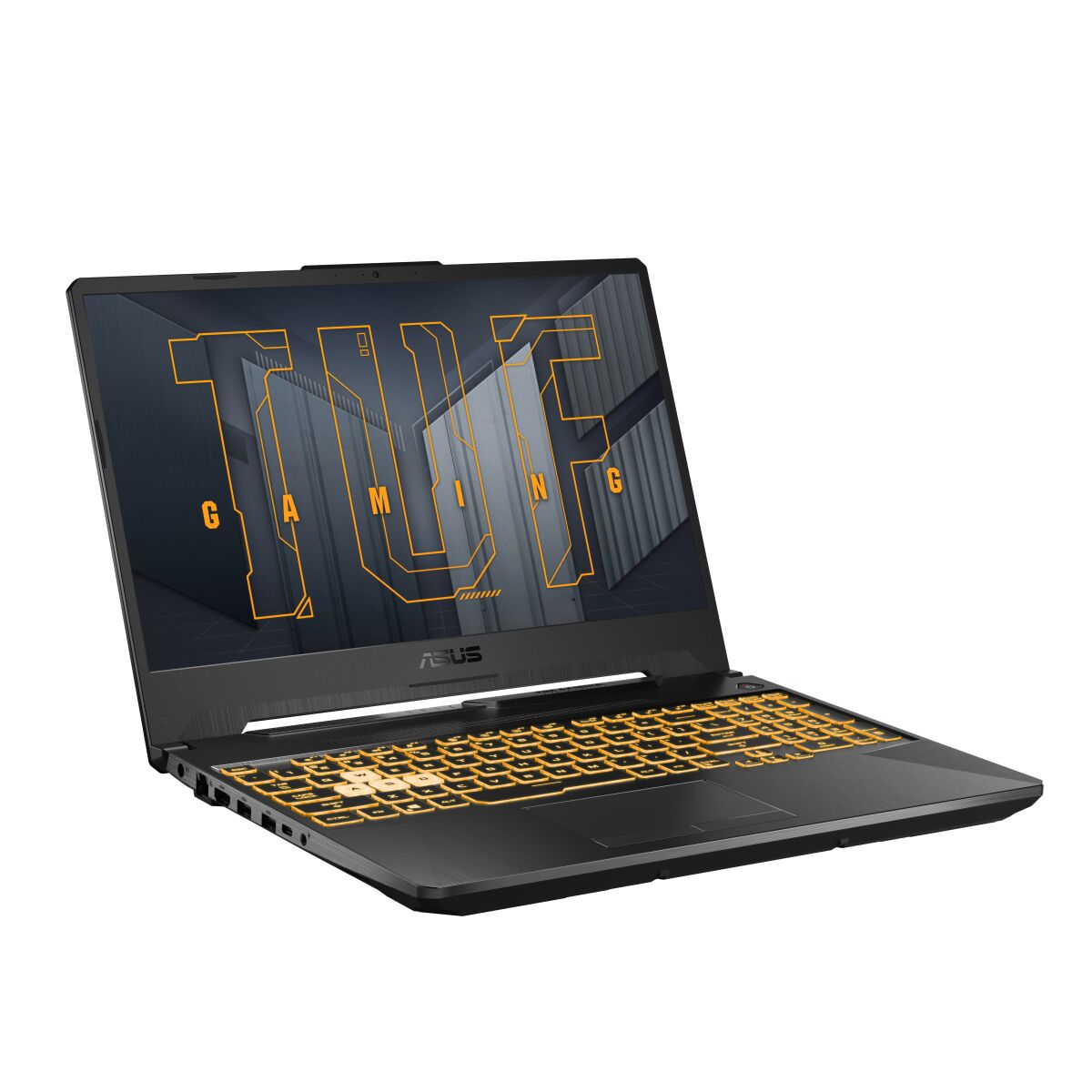

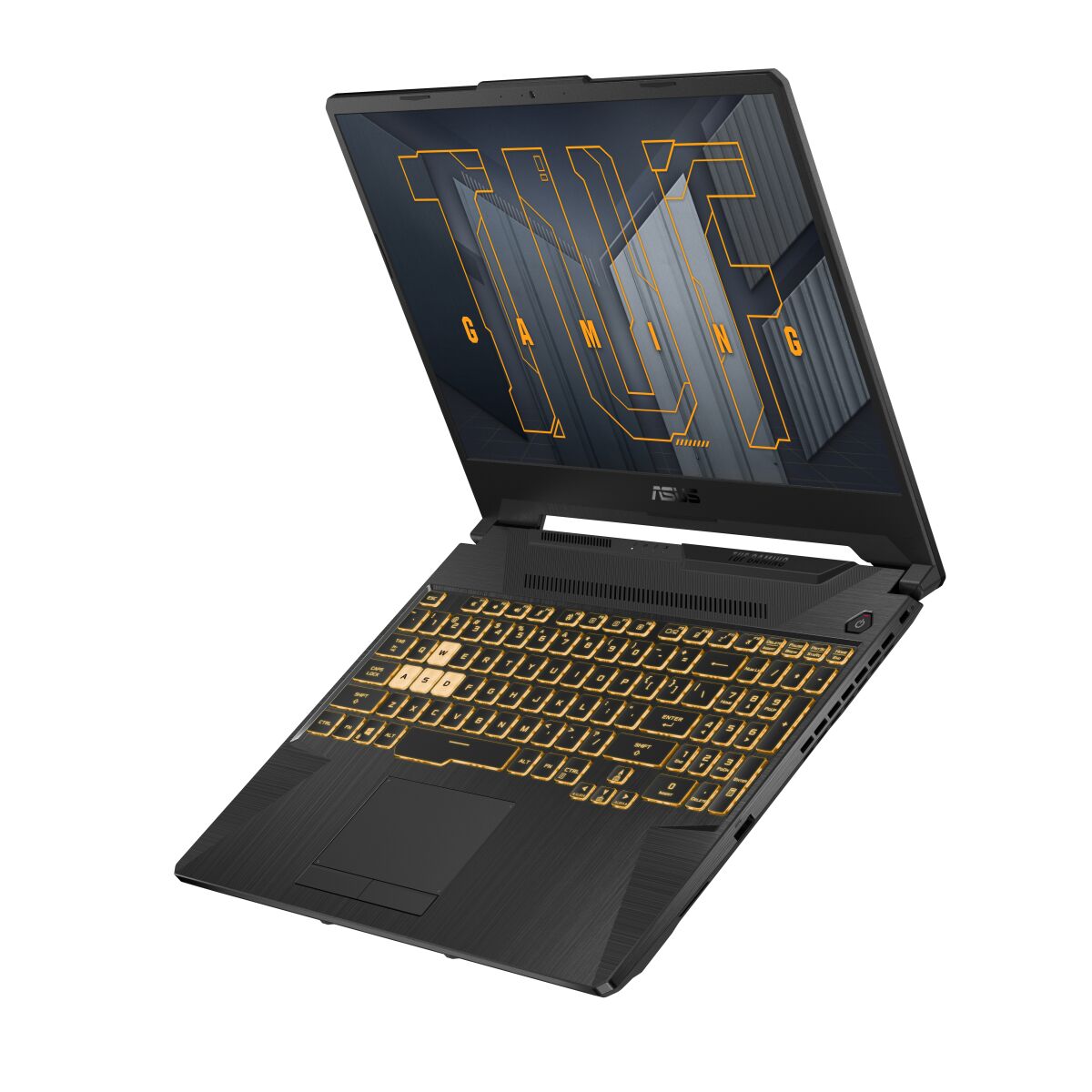

ASUS TUF Gaming A15 FX506QR-AZ027T laptop features DDR4-SDRAM memory configuration with two SO-DIMM slots supporting maximum RAM capacity of 32 GB. Memory upgrade specifications include DDR4 modules operating at 3200 MHz frequency. Compatible memory modules utilize SO-DIMM form factor for slot installation. Specifications indicate laptop RAM upgrade potential up to 32 GB total capacity through replacement or addition of compatible DDR4-SDRAM modules in available SO-DIMM slots.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 14 January 2021 |
Additional Notes
- The dual slot configuration allows for a symmetrical dual channel architecture which doubles the potential memory bandwidth compared to single channel setups.
- The 32 GB ceiling implies the motherboard firmware lacks support for high density 32 GB modules per slot despite the underlying chipset capabilities.
- Upgrading the ASUS TUF Gaming FX506QR-AZ027T requires the removal of the entire lower chassis plate which exposes sensitive internal components to static discharge.
- Selecting modules with higher frequencies results in automatic downclocking to the 3200 MHz system limit due to hardcoded BIOS constraints.
- Replacing factory hardware with aftermarket low latency memory requires JEDEC profile compatibility because the system typically lacks XMP or manual timing adjustment features in the firmware.
- Physical installation of 2 matching capacity modules is necessary to maintain synchronized data rates and avoid stuttering during high load gaming scenarios.
- The use of SO-DIMM standard modules necessitates 260 pin connectors and prevents the use of low power soldered memory variants.
