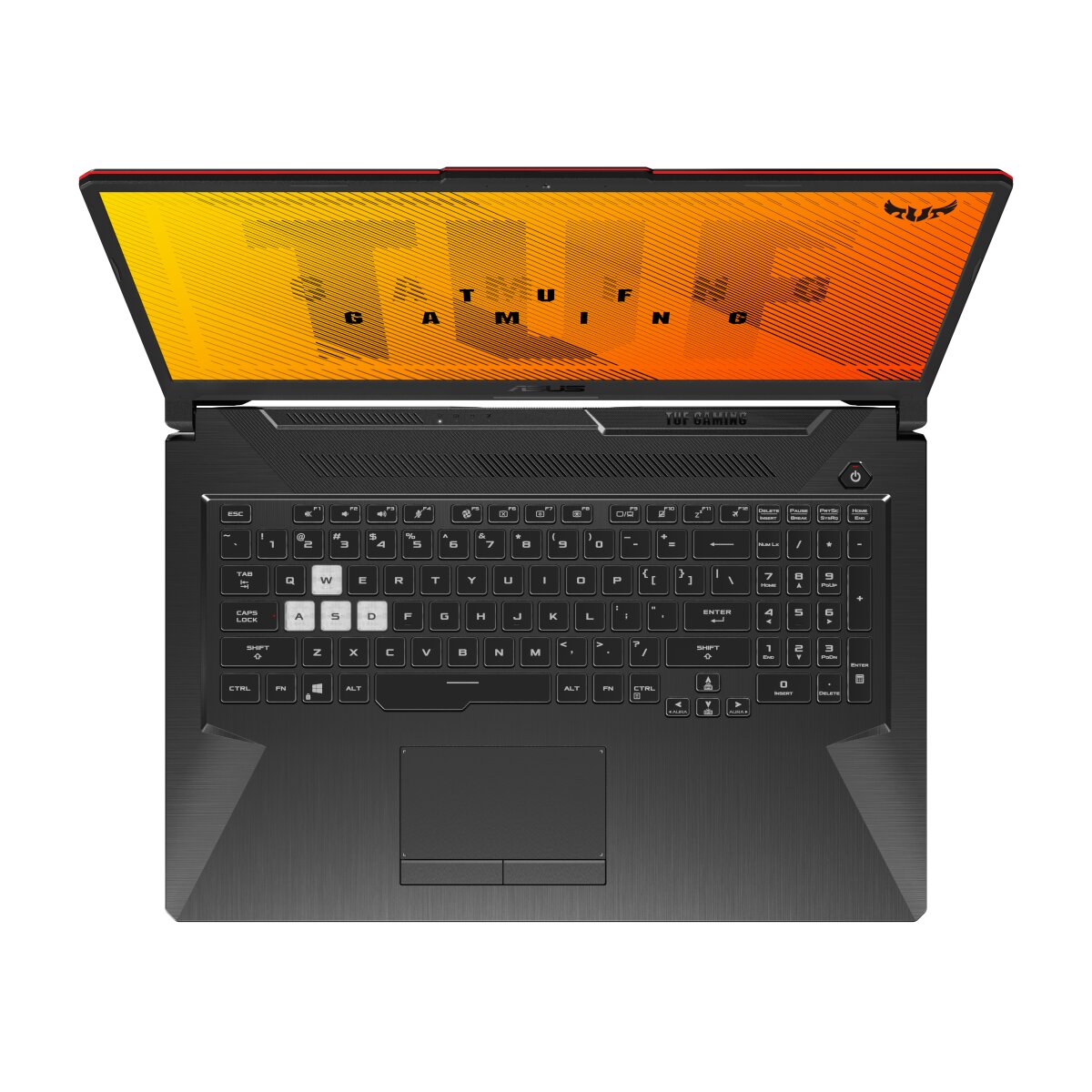

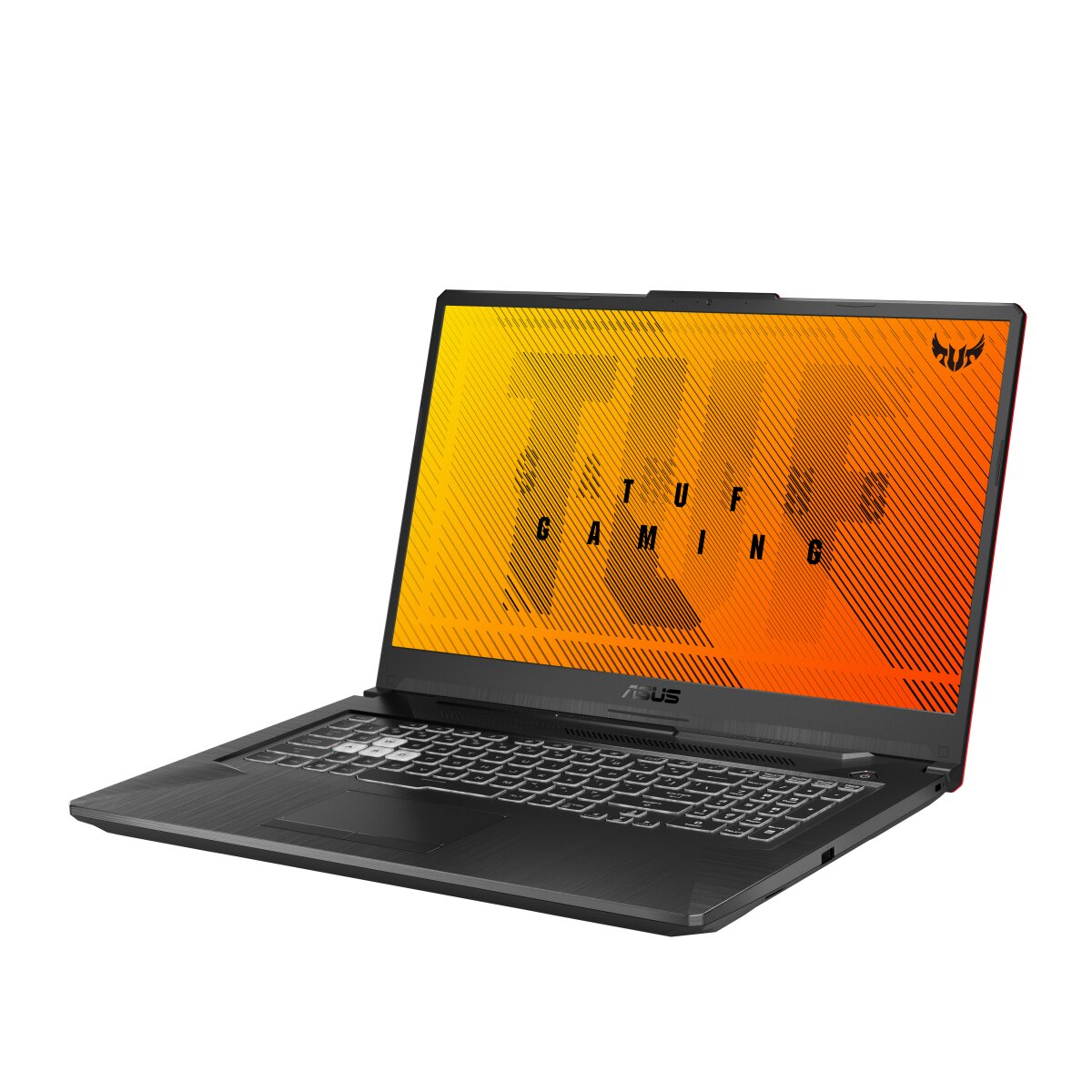

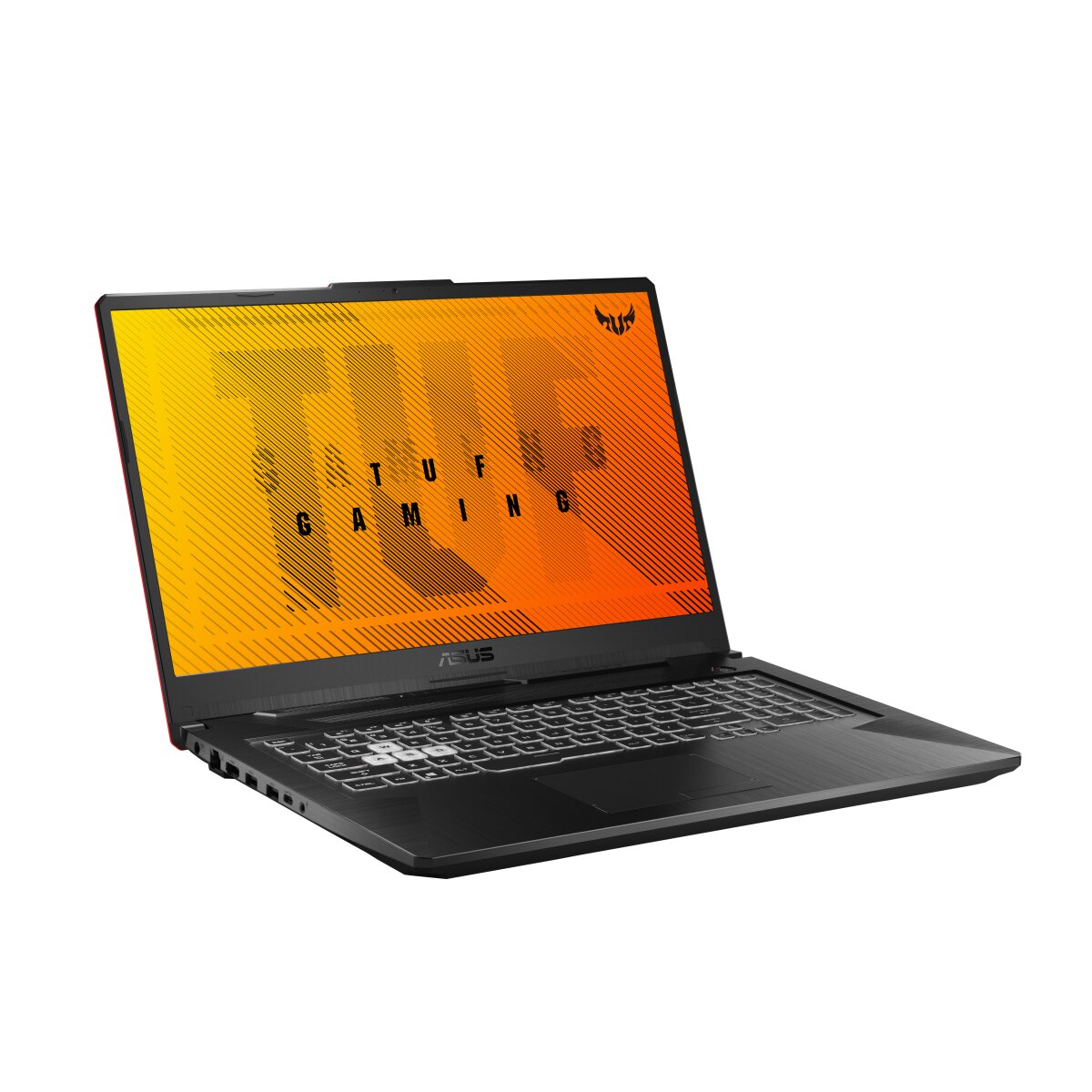

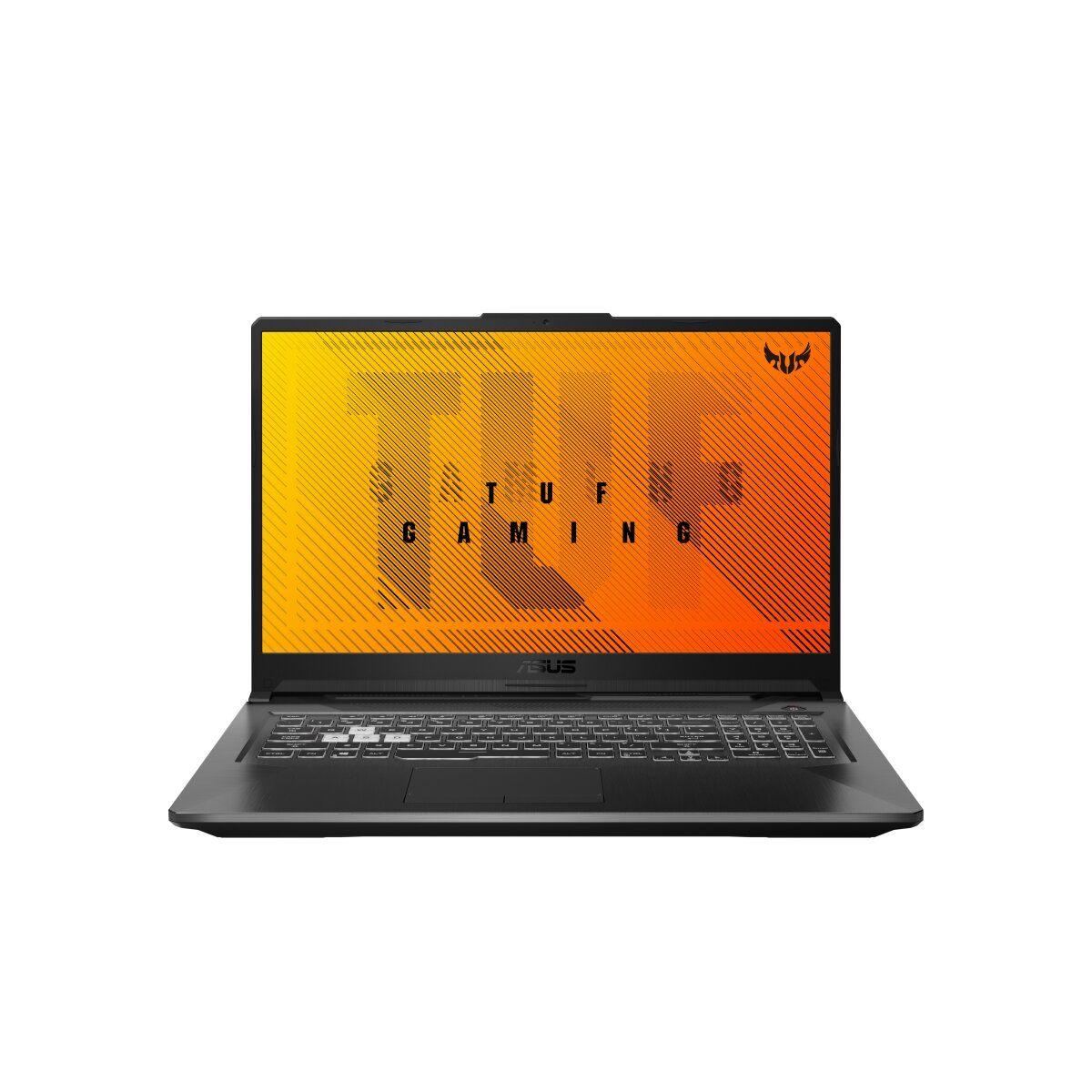

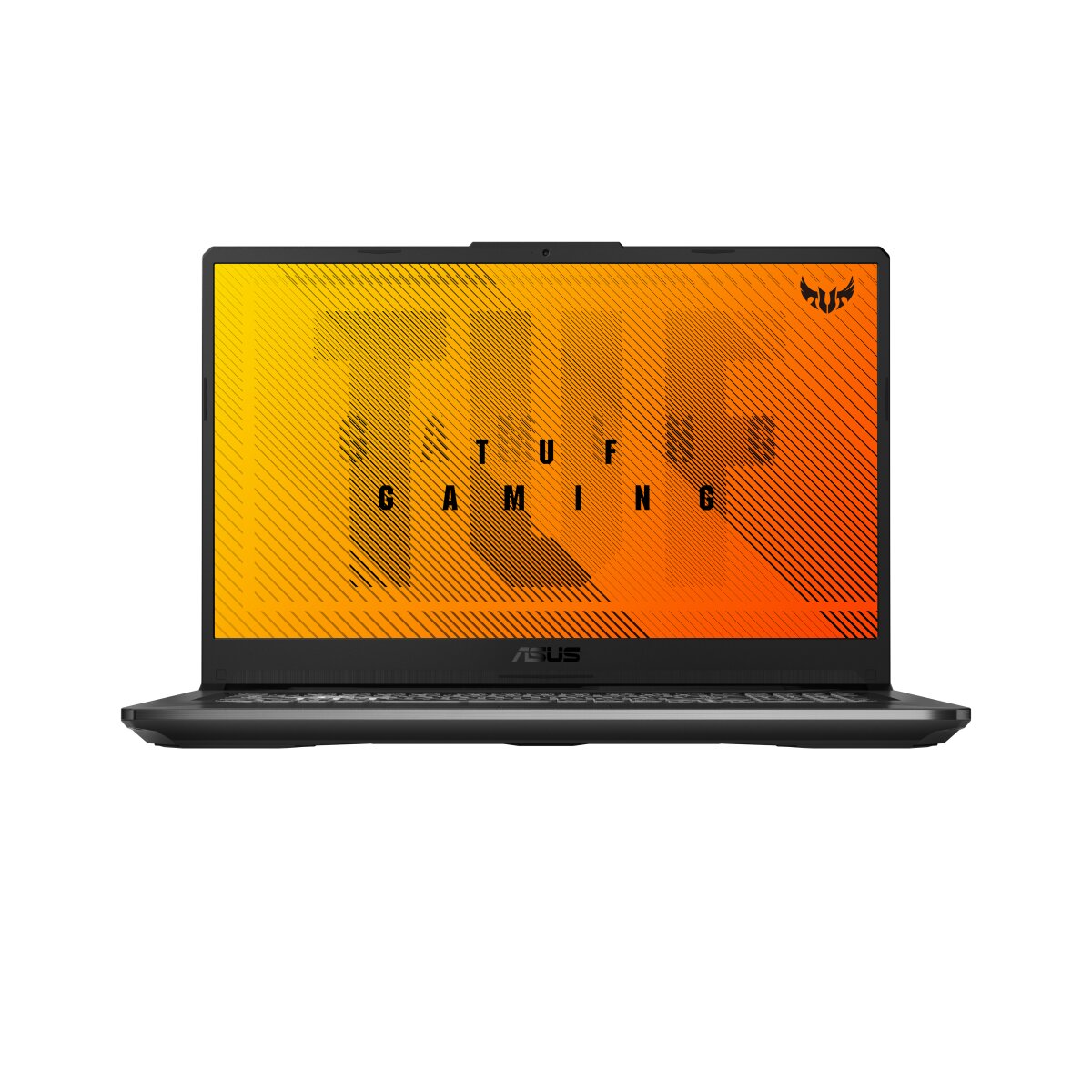

ASUS TUF Gaming FX706IC-HX009T RAM upgrade specifications
ASUS TUF Gaming A17 series model FX706IC-HX009T accommodates DDR4-SDRAM memory upgrades through 2x SO-DIMM slots. Specifications support maximum RAM capacity of 32 GB total. Compatible memory operates at 3200 MHz frequency. Upgrade capacity is determined by dual SO-DIMM slot configuration, allowing installation of individual modules up to 16 GB per slot for optimal performance compatibility with specifications.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 20 October 2021 |
Additional Notes
- Dual channel mode requires matched capacity and clock speeds across both slots to maximize memory bandwidth for the processor.
- The 32 GB ceiling indicates the motherboard firmware cannot address high density 32 GB modules in a single slot.
- Utilizing memory modules with higher rated frequencies results in downclocking to the 3200 MHz system bus limit.
- The ASUS FX706IC-HX009T utilizes a SO-DIMM form factor which prevents the installation of desktop sized DIMM modules.
- Concurrent access to both slots facilitates full utilize of the integrated graphics memory buffer.
- Mixing modules with different latency timings forces the system to operate at the slowest common denominator.
- Internal component access for memory replacement necessitates the removal of the bottom chassis panel which exposes sensitive internal connectors.
