ASUS TUF Gaming FX506HC-HN056 RAM upgrade specifications

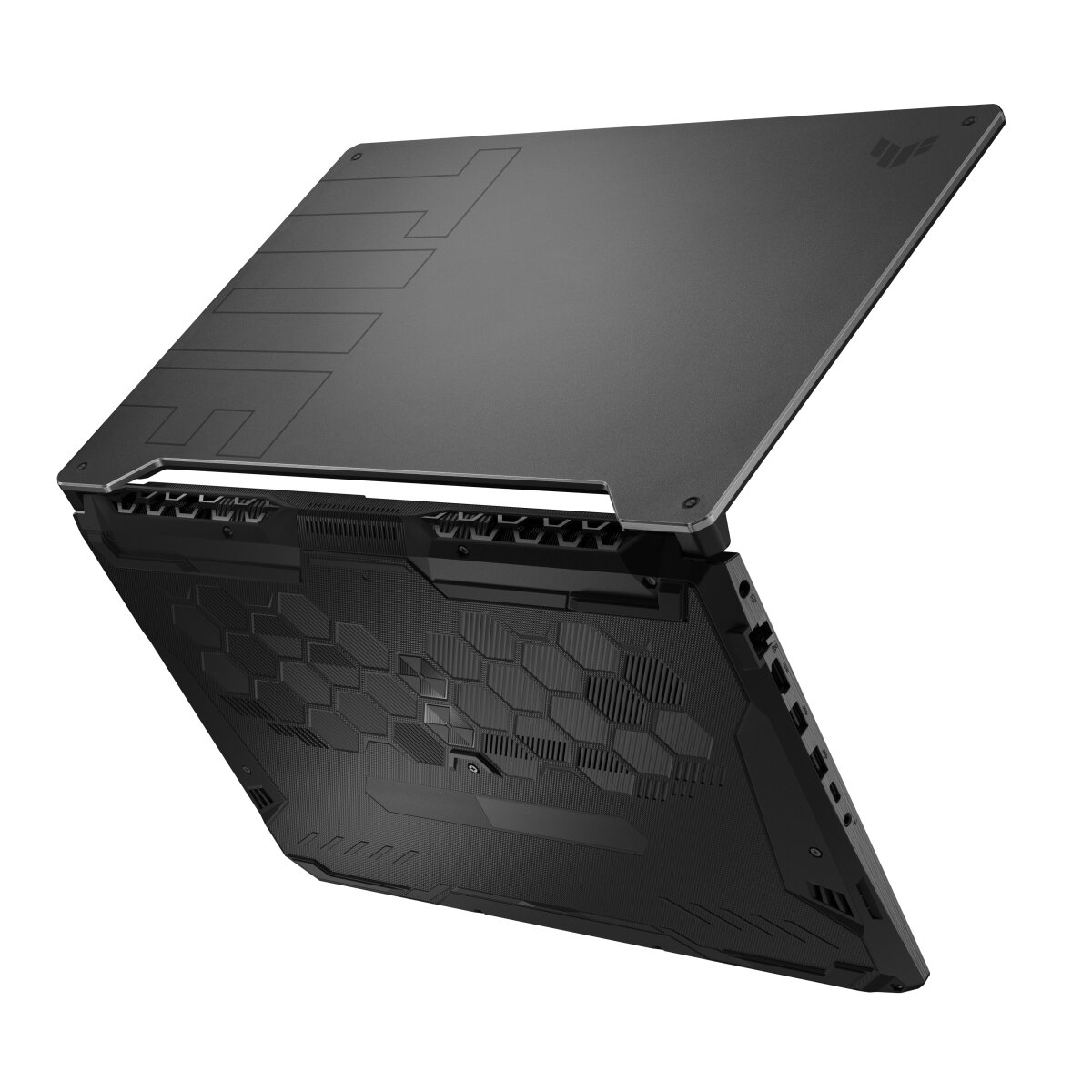

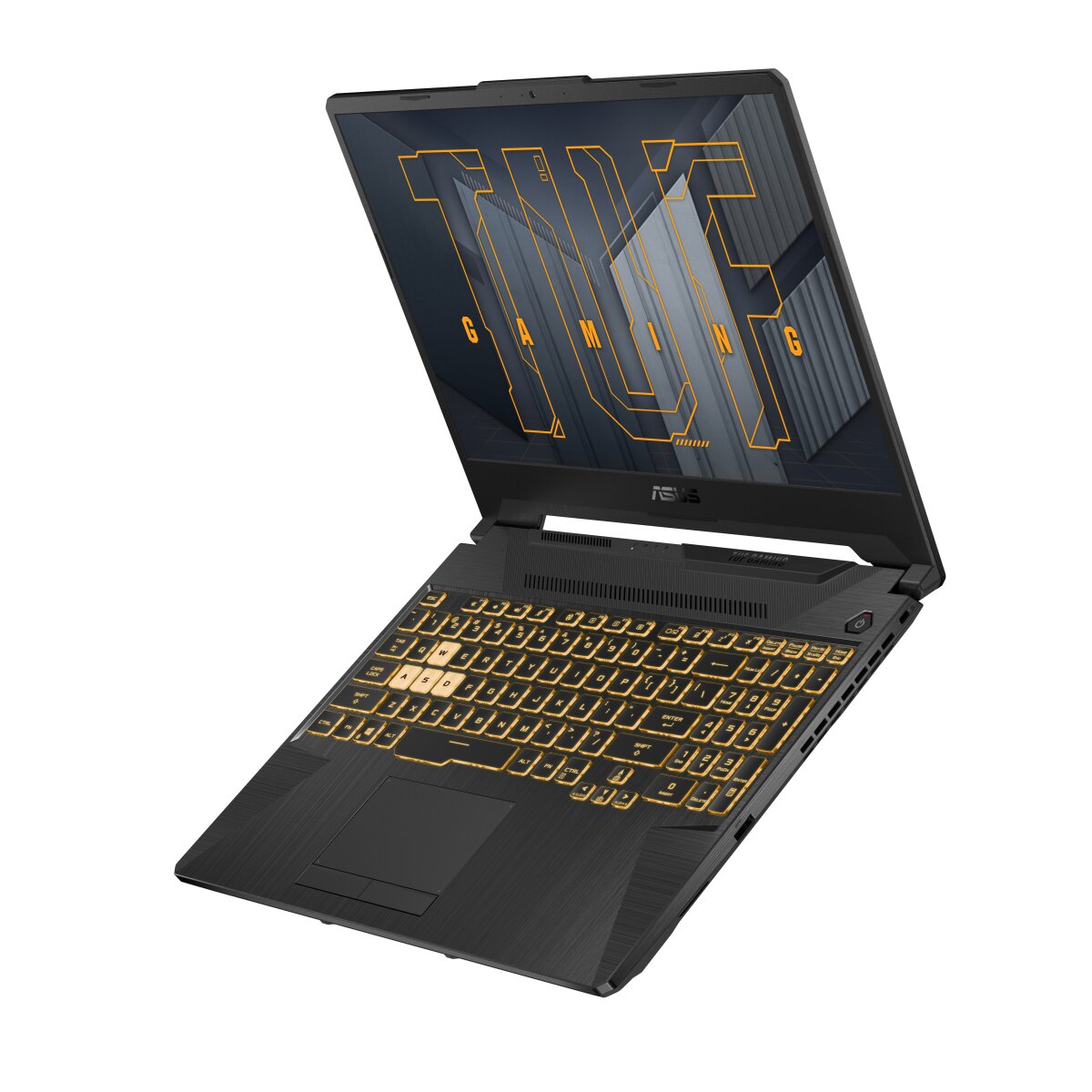

The ASUS TUF Gaming F15 FX506HC-HN056 features DDR4-SDRAM memory with two SO-DIMM slots supporting a maximum RAM capacity of 32 GB. The upgrade specifications indicate compatibility with DDR4 modules operating at 3200 MHz frequency. This gaming laptop accommodates standard SO-DIMM form factor memory upgrades, allowing users to expand or reconfigure the existing memory configuration up to the stated maximum capacity for enhanced multitasking and application performance.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 01 July 2021 |
Additional Notes
- Dual channel architecture requires matching memory modules to reach peak data transfer rates and eliminate single channel bandwidth limitations during gaming workloads.
- The 32 GB ceiling necessitates the use of 16 GB modules in each of the 2 SO-DIMM slots as larger capacities will likely result in a failure to post.
- Operating at 3200 MHz requires modules that support standard JEDEC profiles to ensure compatibility without needing XMP adjustments in the BIOS.
- Upgrading the ASUS TUF Gaming FX506HC-HN056 requires 260-pin hardware which serves as a physical barrier against installing incompatible desktop or DDR5 alternatives.
- Latencies remain a critical performance factor where installing modules with lower CL ratings than the factory hardware may cause the system to downclock to the slowest common denominator.
- Physical installation involves removing the bottom chassis panel which exposes internal components to electrostatic discharge risks necessitating proper grounding procedures.
- Total memory capacity is limited by the integrated memory controller on the CPU which dictates the maximum addressable space regardless of higher capacity sticks being physically available.
