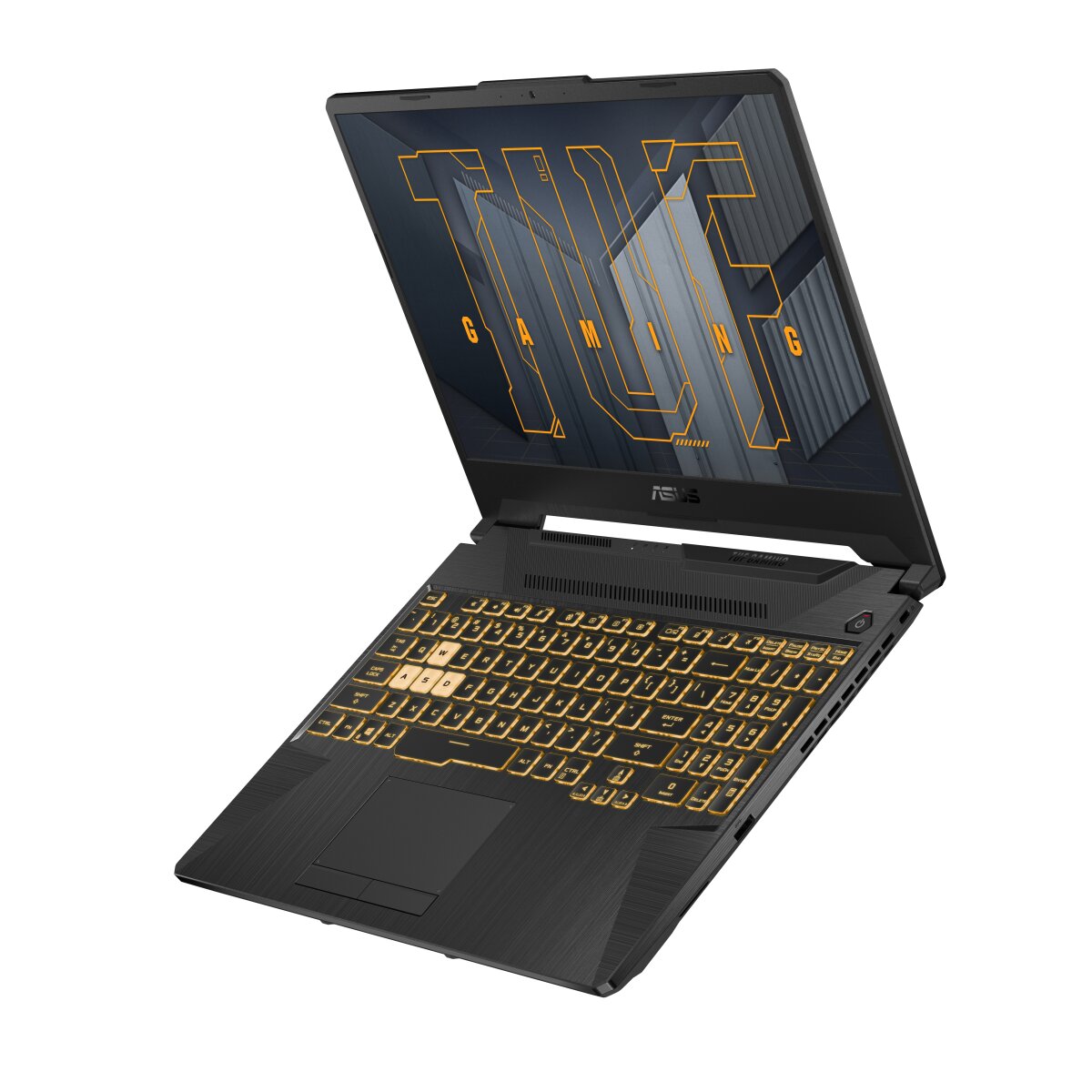

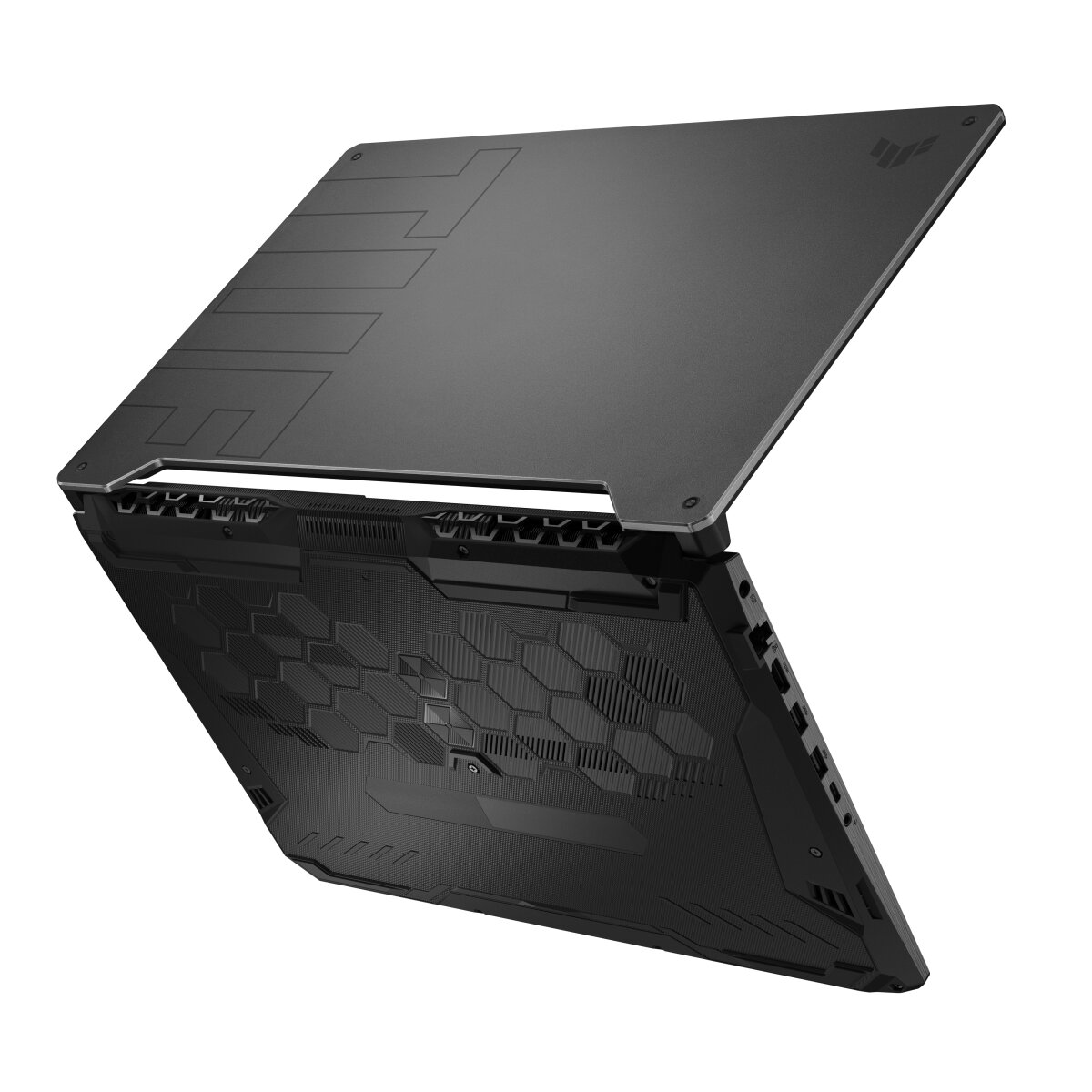

ASUS TUF Gaming FX506HC-HN057 RAM upgrade specifications
ASUS TUF Gaming F15 FX506HC-HN057 supports DDR4-SDRAM memory upgrades through two SO-DIMM slots. The laptop accommodates a maximum RAM capacity of 32 GB total. Compatible memory modules operate at 3200 MHz frequency. Specifications indicate SO-DIMM form factor for memory compatibility. The upgrade configuration allows users to enhance system performance by installing compatible DDR4 memory modules within the available slots, subject to maximum capacity constraints.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 19 March 2022 |
Additional Notes
- Dual channel architectural benefits depend on populating both SO-DIMM slots with matching module capacities to maximize memory bandwidth.
- The hardware platform lacks support for XMP profiles, meaning aftermarket modules must possess a native JEDEC profile to reach the rated 3200 MHz speed.
- Installation of high density 32 GB kits requires the removal of all existing factory modules due to the total capacity ceiling of the ASUS TUF Gaming FX506HC-HN057 motherboard.
- Internal component access involves standard Phillips head screws but necessitates specialized prying tools to avoid cracking the plastic chassis clips during the bottom panel removal.
- Latency performance remains restricted by the physical DDR4 interface, preventing the use of newer DDR5 hardware which uses a different pin configuration and voltage regulation.
- Data transfer rates will downclock to 2666 MHz or 2933 MHz if the installed processor does not support the maximum 3200 MHz frequency provided by the RAM modules.
- Static electricity precautions remain mandatory during the upgrade process to prevent permanent damage to the integrated circuit controllers located near the memory bank.
