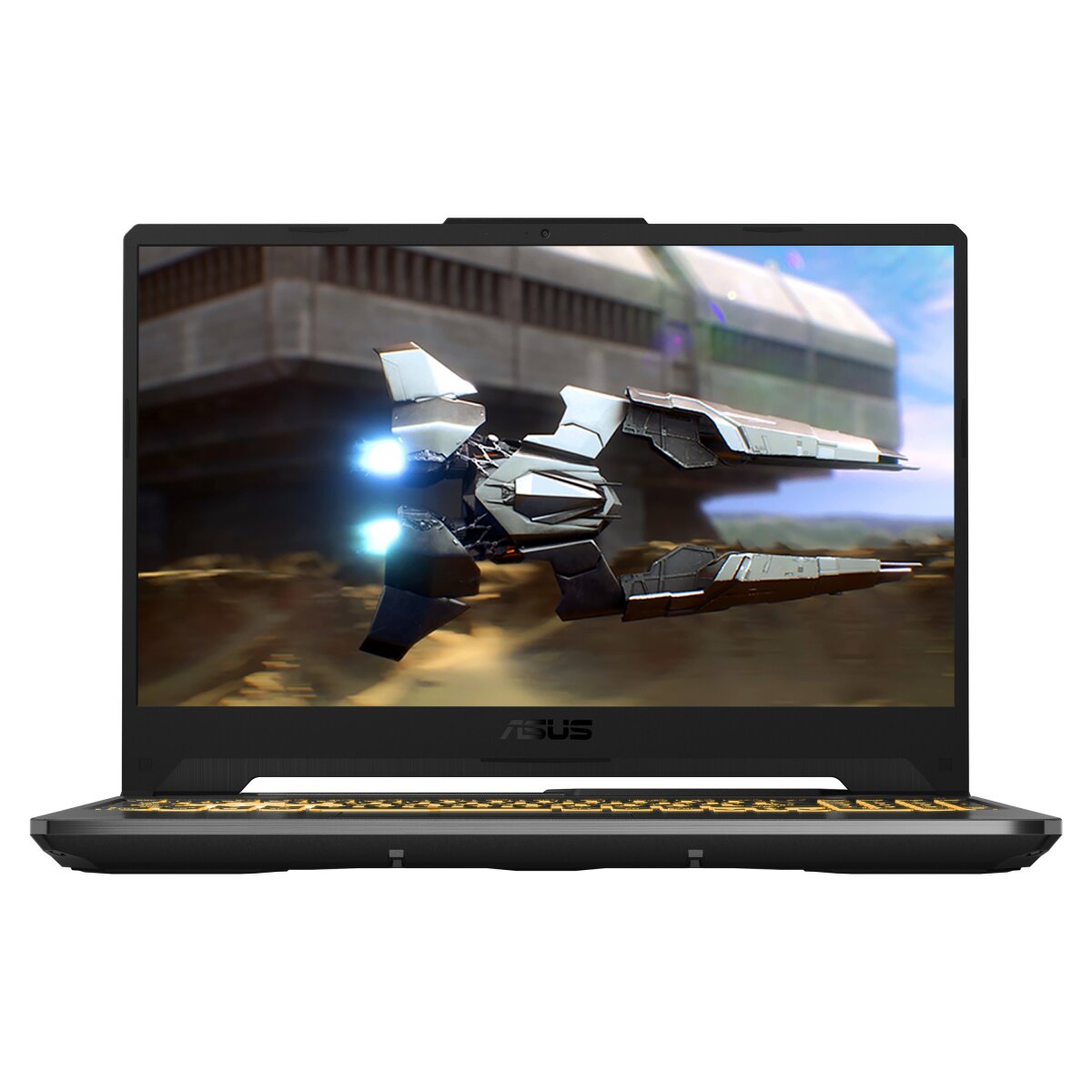

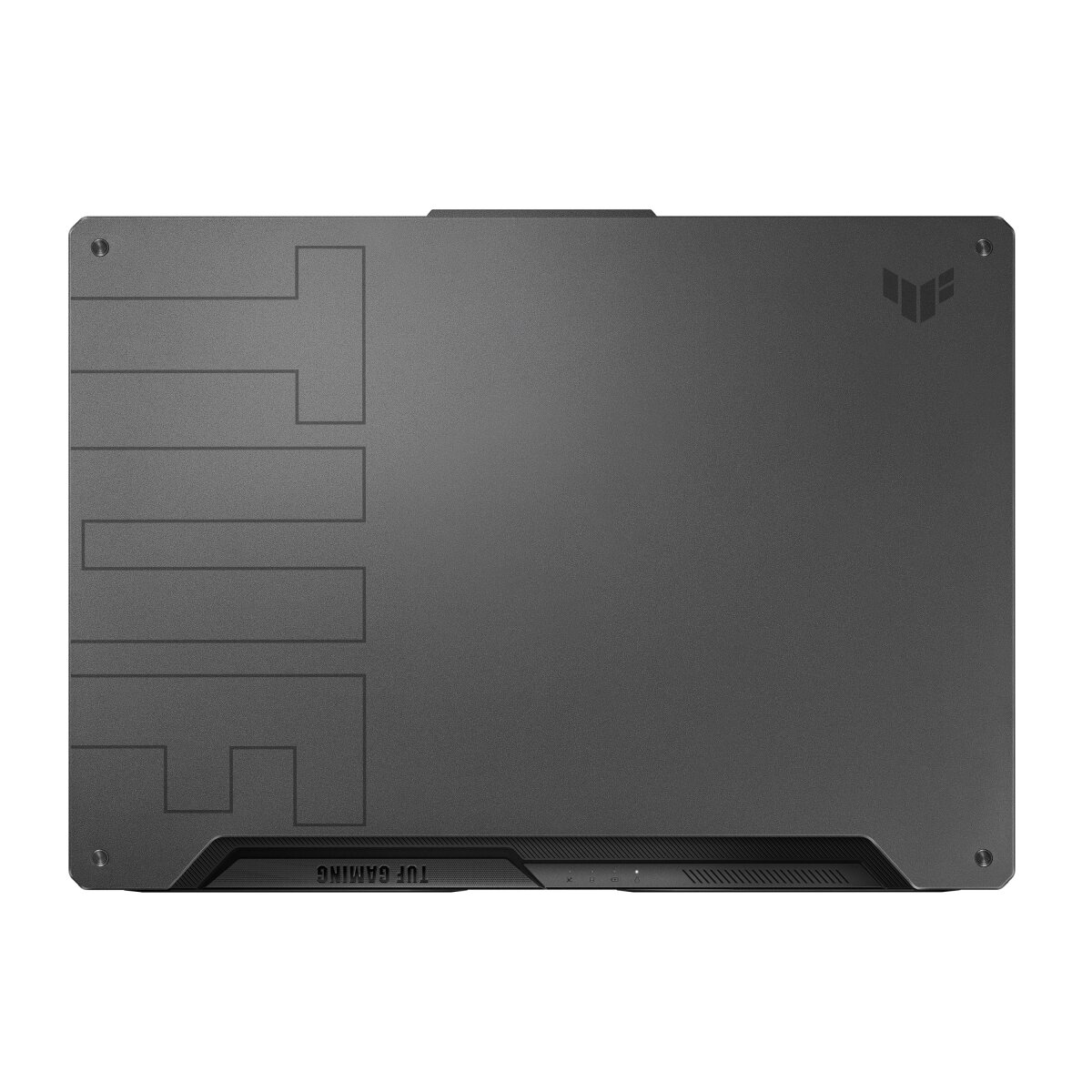

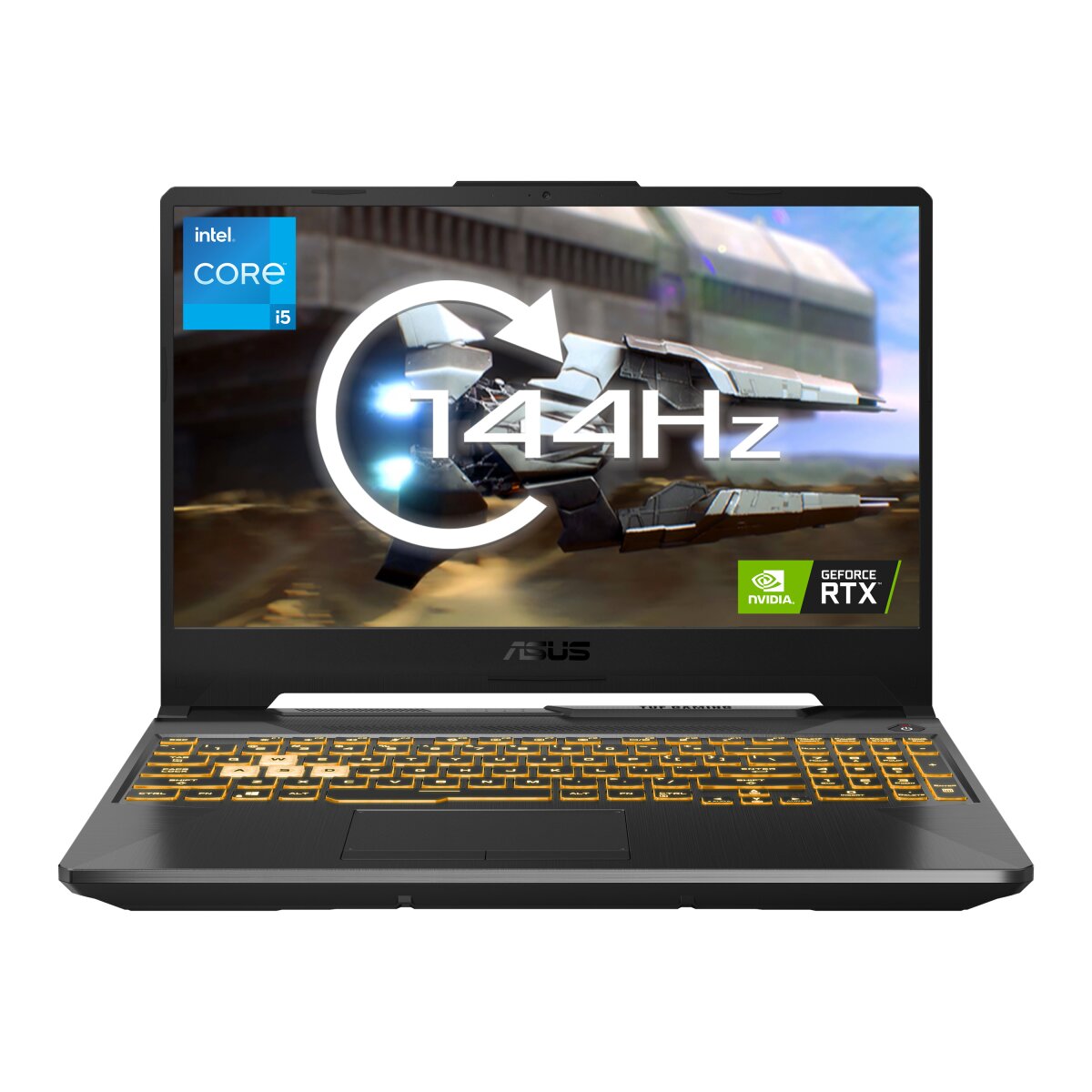

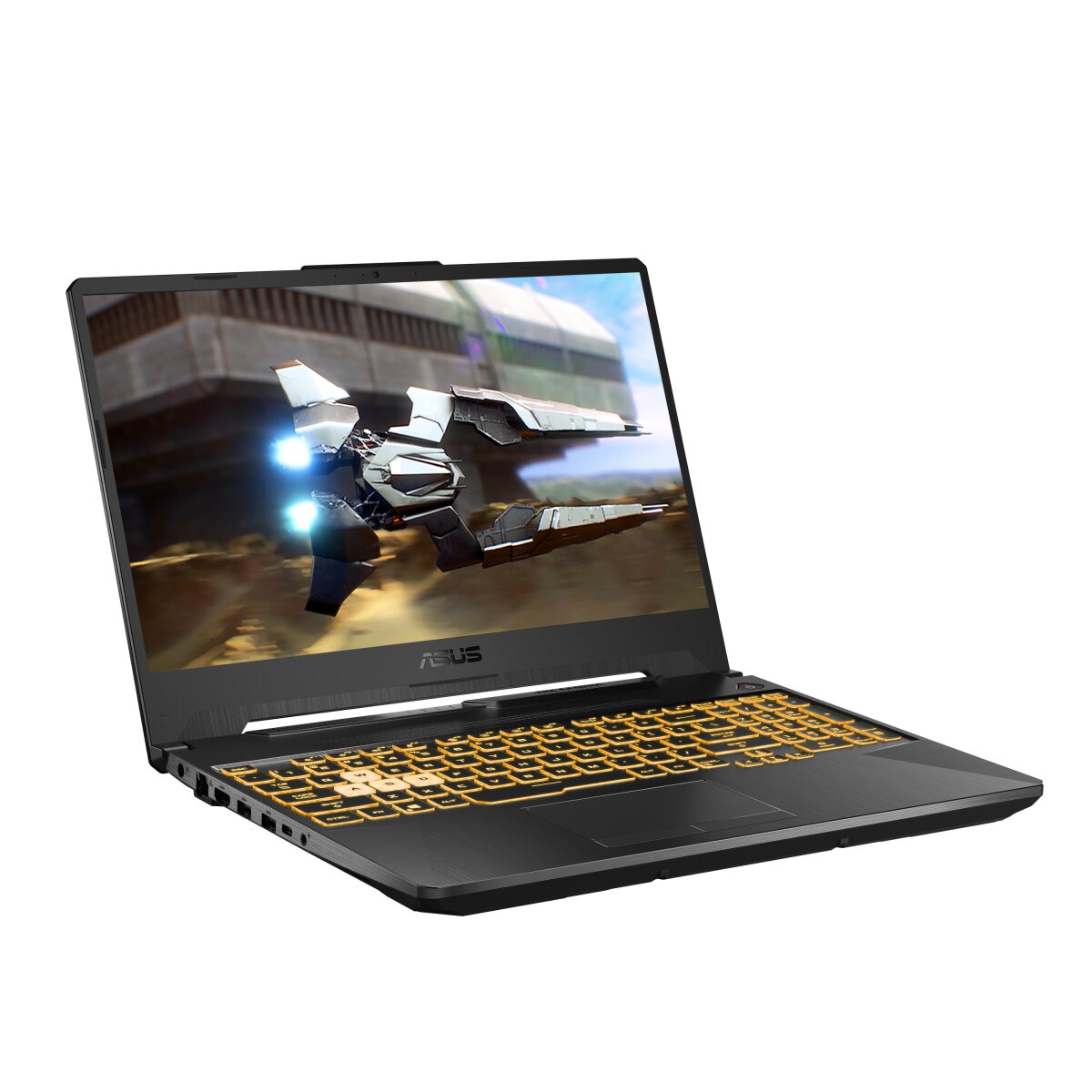

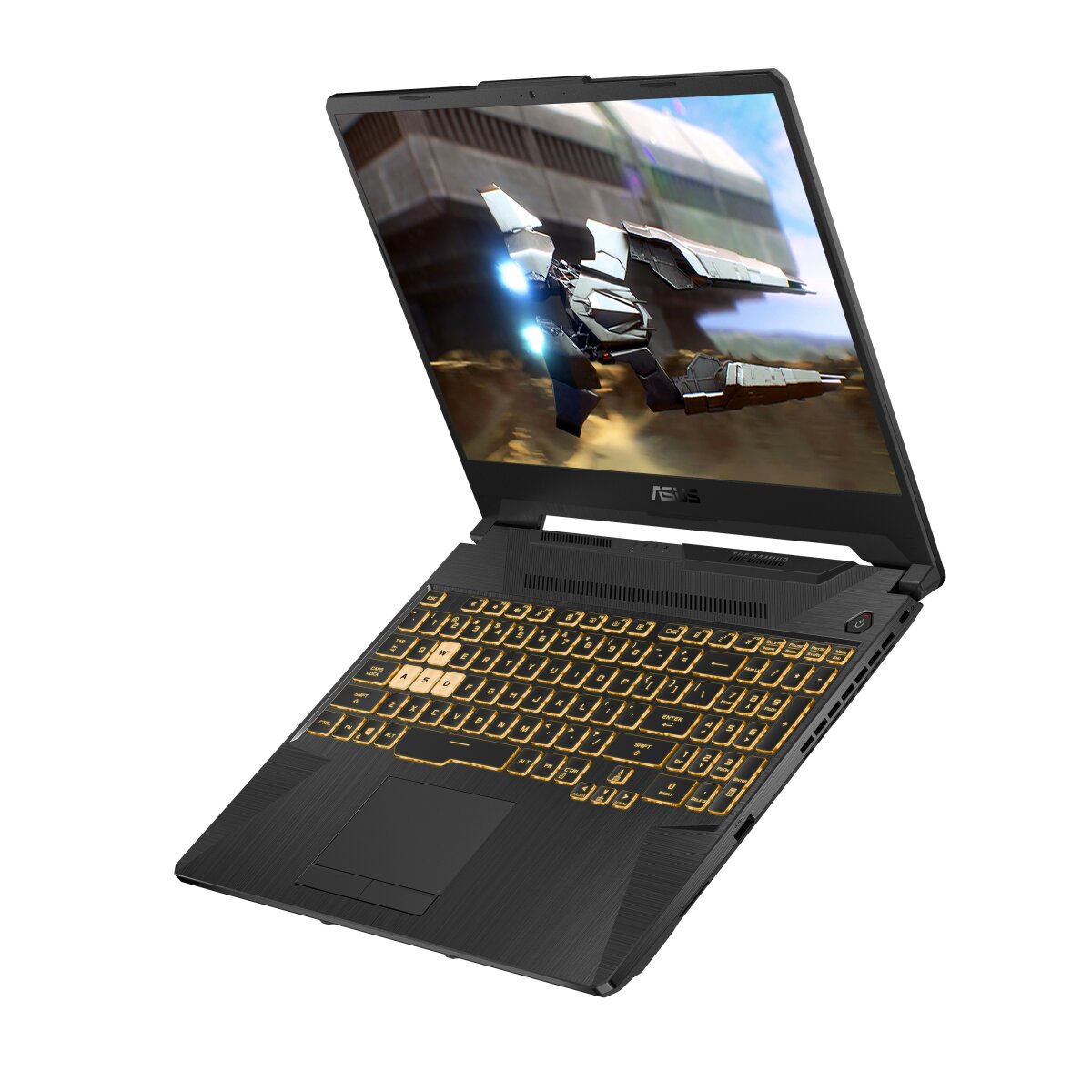

ASUS TUF Gaming FX506HCB-HN1138W RAM upgrade specifications
ASUS TUF Gaming F15 series FX506HCB-HN1138W laptop features DDR4-SDRAM memory configuration with two SO-DIMM upgrade slots. Maximum supported RAM capacity reaches 32 GB total. Compatible memory specifications include 3200 MHz frequency DDR4 modules in SO-DIMM form factor. Current upgrade slots allow installation of additional memory modules to increase system RAM performance and multitasking capabilities.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 10 November 2021 |
Additional Notes
- The dual-channel architecture requires matching module pairs to achieve full memory bandwidth and optimize frame rates in CPU-bound gaming scenarios.
- Utilizing both SO-DIMM slots reduces the electrical load on individual memory controllers compared to single-channel configurations.
- The 32 GB ceiling necessitates the removal of existing modules during a maximum capacity transition since no additional vacant slots are available.
- The ASUS TUF Gaming FX506HCB-HN1138W maintains compatibility with lower latency CL22 JEDEC profiles without requiring manual BIOS voltage adjustments.
- Mixing modules with different internal rank densities can cause system instability or force the memory controller to downclock below the target 3200 MHz frequency.
- Integrated graphics performance scales directly with the speed and latency of the installed RAM because the GPU shares the system memory pool.
- Internal component access for memory installation involves a captive screw mechanism designed to prevent chassis damage during the panel removal process.
