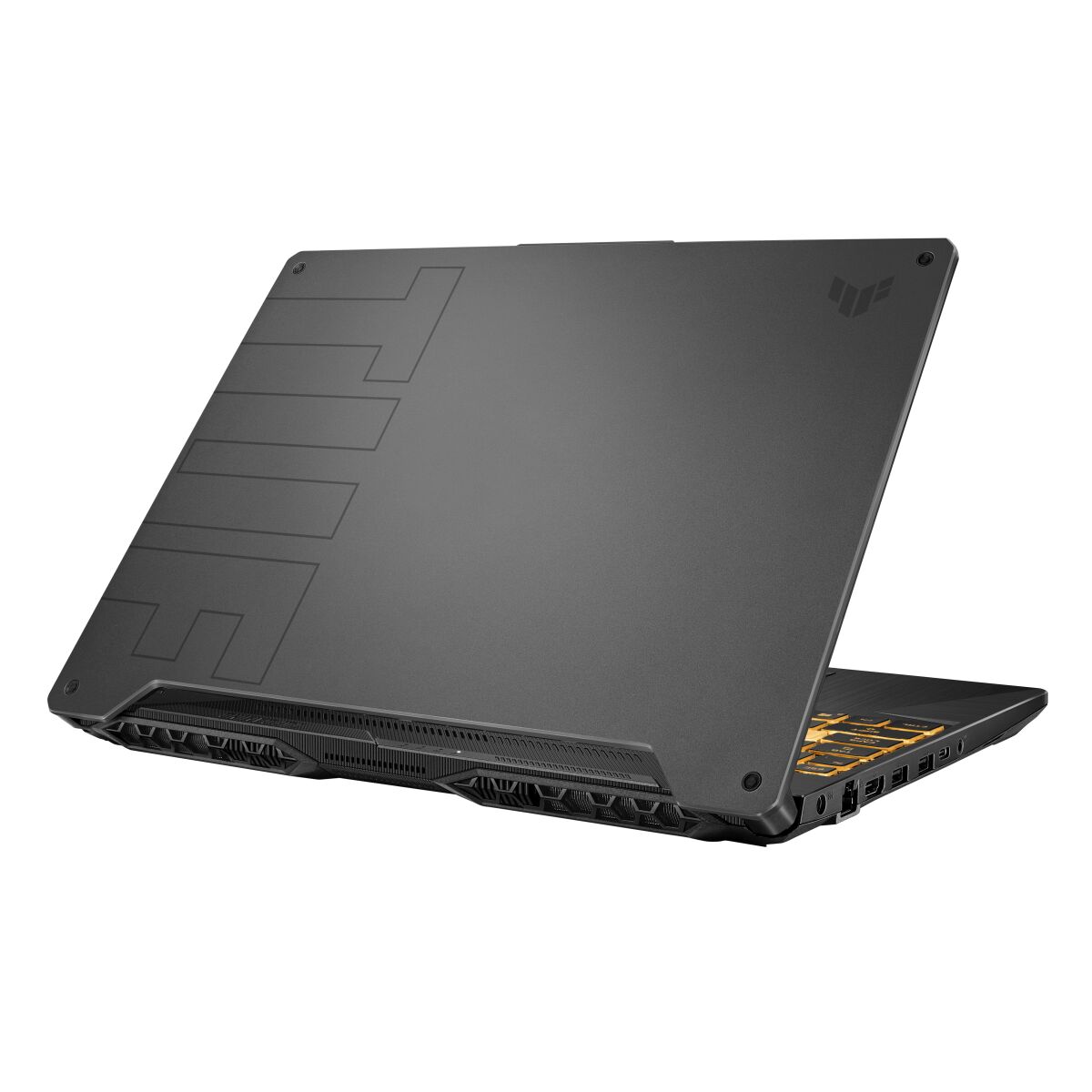

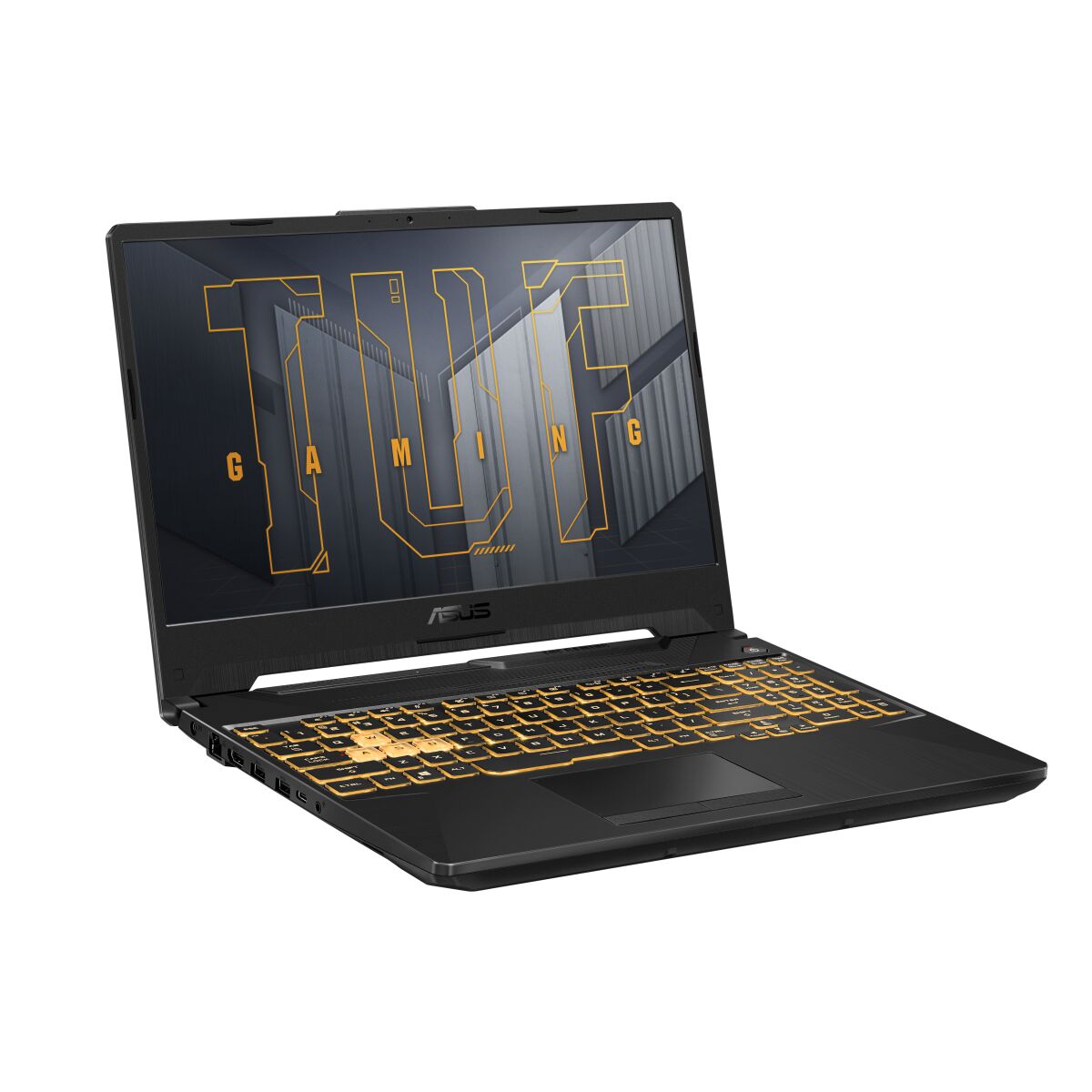

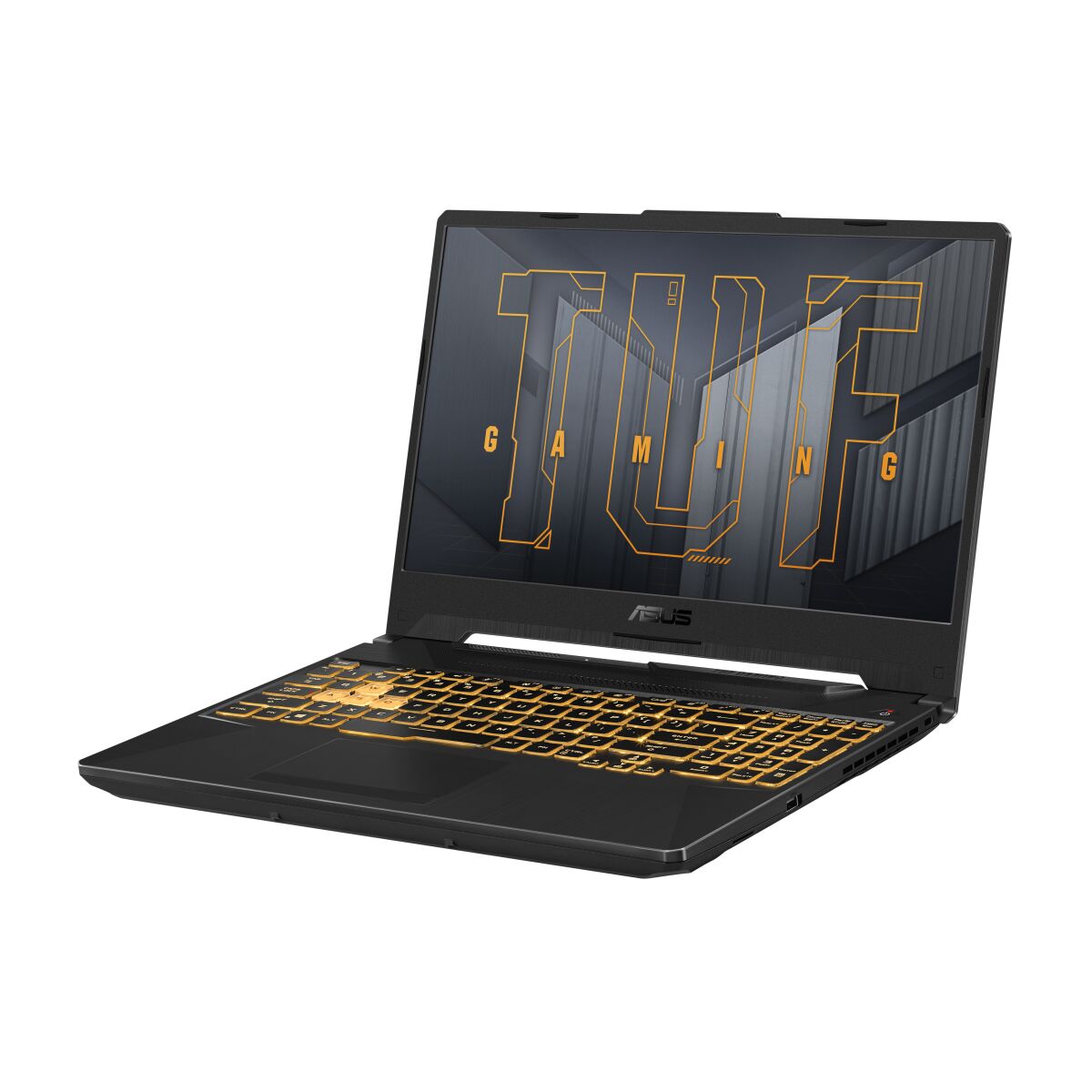

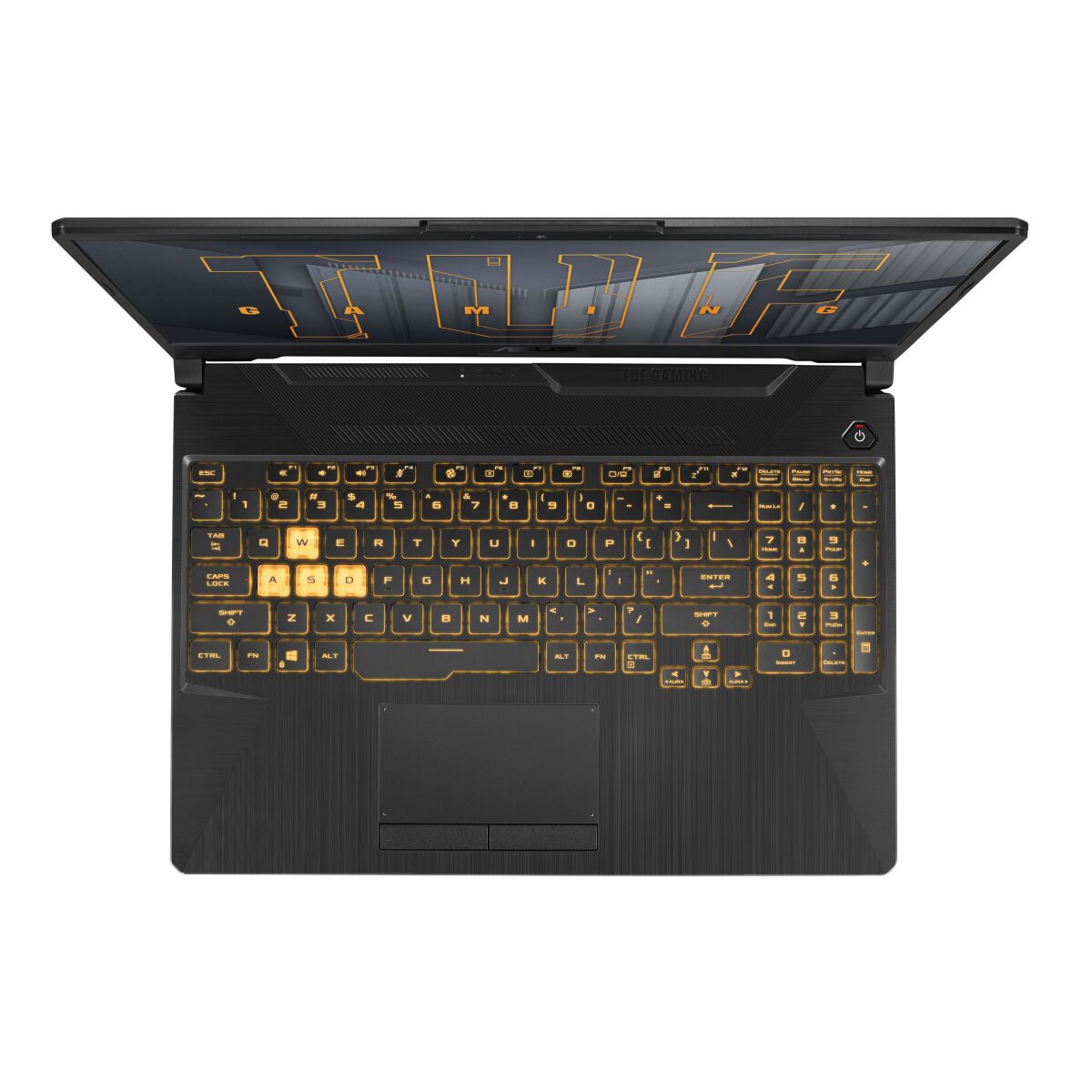

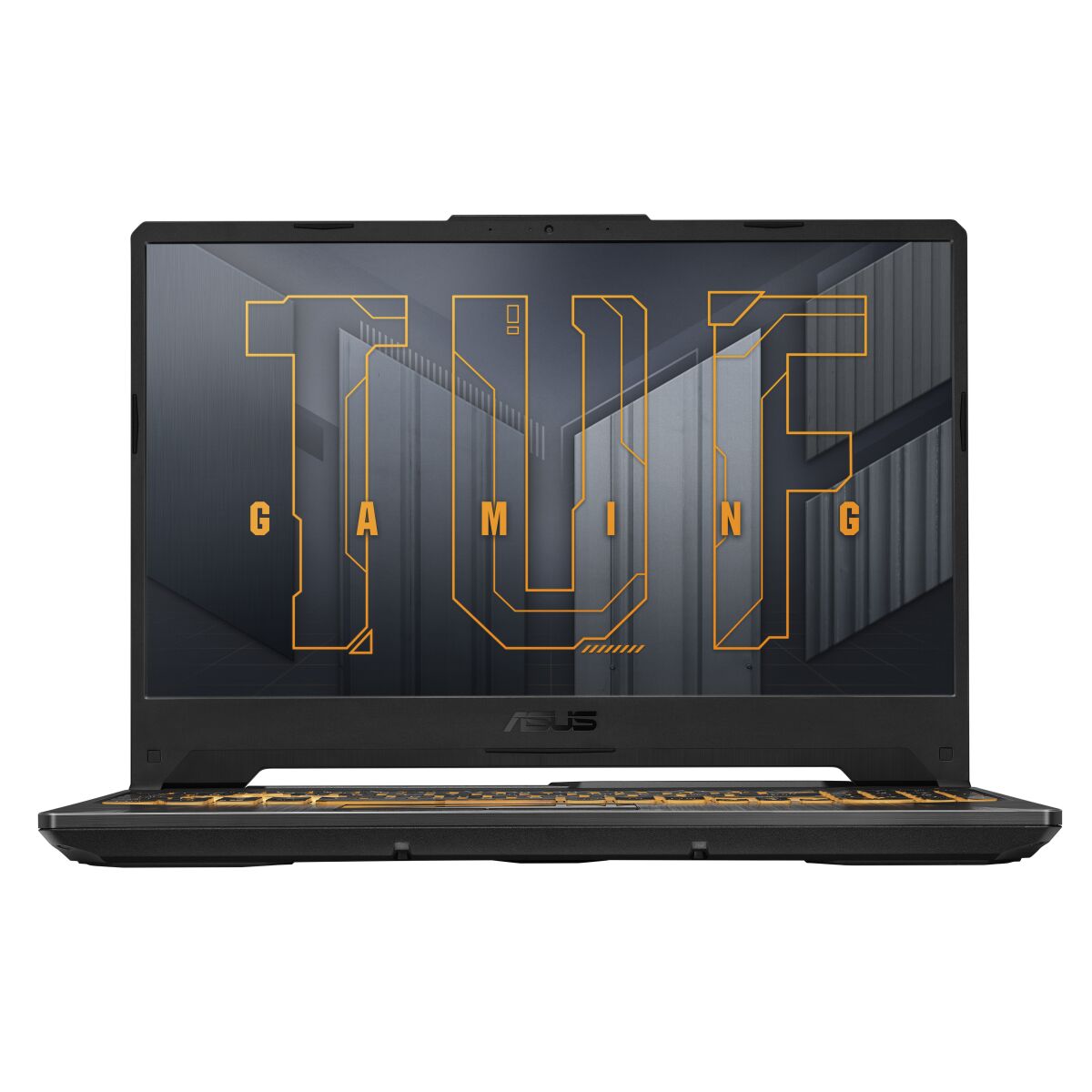

ASUS TUF Gaming FX506HCB-US51 RAM upgrade specifications
ASUS TUF Gaming F15 FX506HCB-US51 supports DDR4-SDRAM memory upgrades through two SO-DIMM slots. Maximum RAM capacity reaches 32 GB total. Compatible memory modules operate at 3200 MHz frequency. The laptop features dual memory slots for upgrade flexibility, allowing users to expand beyond factory configurations. Specifications indicate SO-DIMM form factor compatibility for this gaming notebook model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 04 May 2022 |
Additional Notes
- Dual channel memory architecture requires matching modules in both slots to maximize memory controller bandwidth and enhance gaming frame rates for the ASUS TUF Gaming FX506HCB-US51.
- Physical access to the motherboard necessitates the removal of the bottom chassis cover which exposes internal components to potential electrostatic discharge risk.
- Installation of memory modules with frequencies higher than 3200 MHz will result in downclocking to the processor limit of the system chipset.
- The presence of 2 SO-DIMM slots implies that reaching the 32 GB maximum capacity requires replacing existing lower capacity modules rather than adding to them.
- Storage of system settings and integrated graphics performance relies heavily on the stability of the DDR4-SDRAM voltage profile maintained by the BIOS.
- Latency variations between different brands of memory sticks can cause boot failures or system instability if timings are not identical across both populated slots.
- Upgrade procedures performed without damaging internal security seals generally preserve the manufacturer hardware warranty provided no physical damage occurs to the socket pins.
