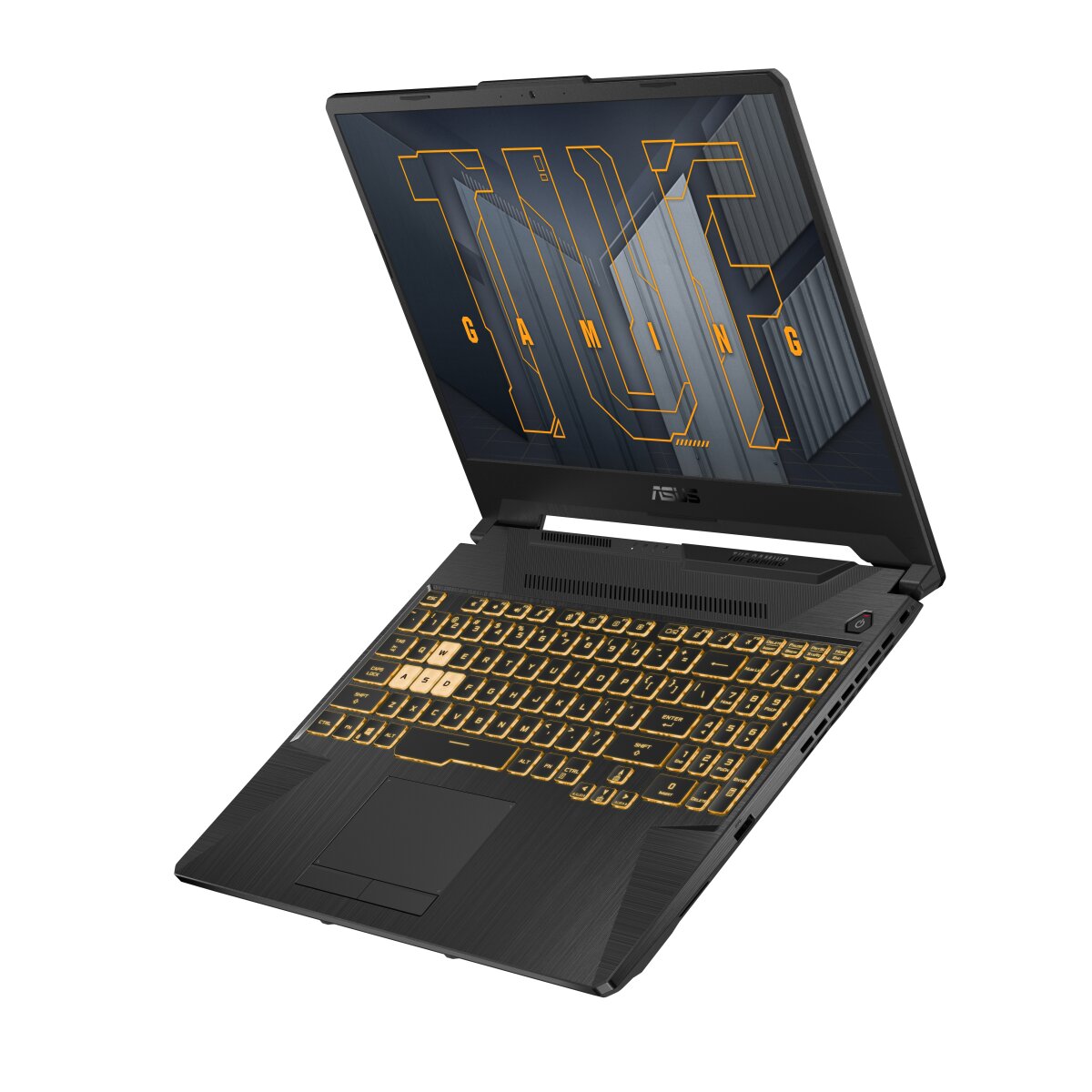

ASUS TUF Gaming FX506HE-HN005 RAM upgrade specifications
The ASUS TUF Gaming F15 FX506HE-HN005 laptop features two SO-DIMM slots supporting DDR4-SDRAM memory modules. The upgrade specifications indicate maximum RAM capacity of 32 GB, with compatible modules operating at 3200 MHz frequency. The memory slots accommodate standard SO-DIMM form factor upgrades, enabling users to expand the system's RAM capacity beyond factory specifications.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 01 July 2021 |
Additional Notes
- Dual channel architecture requires matching memory modules in both slots to provide maximum bandwidth for the integrated graphics and CPU subprocesses.

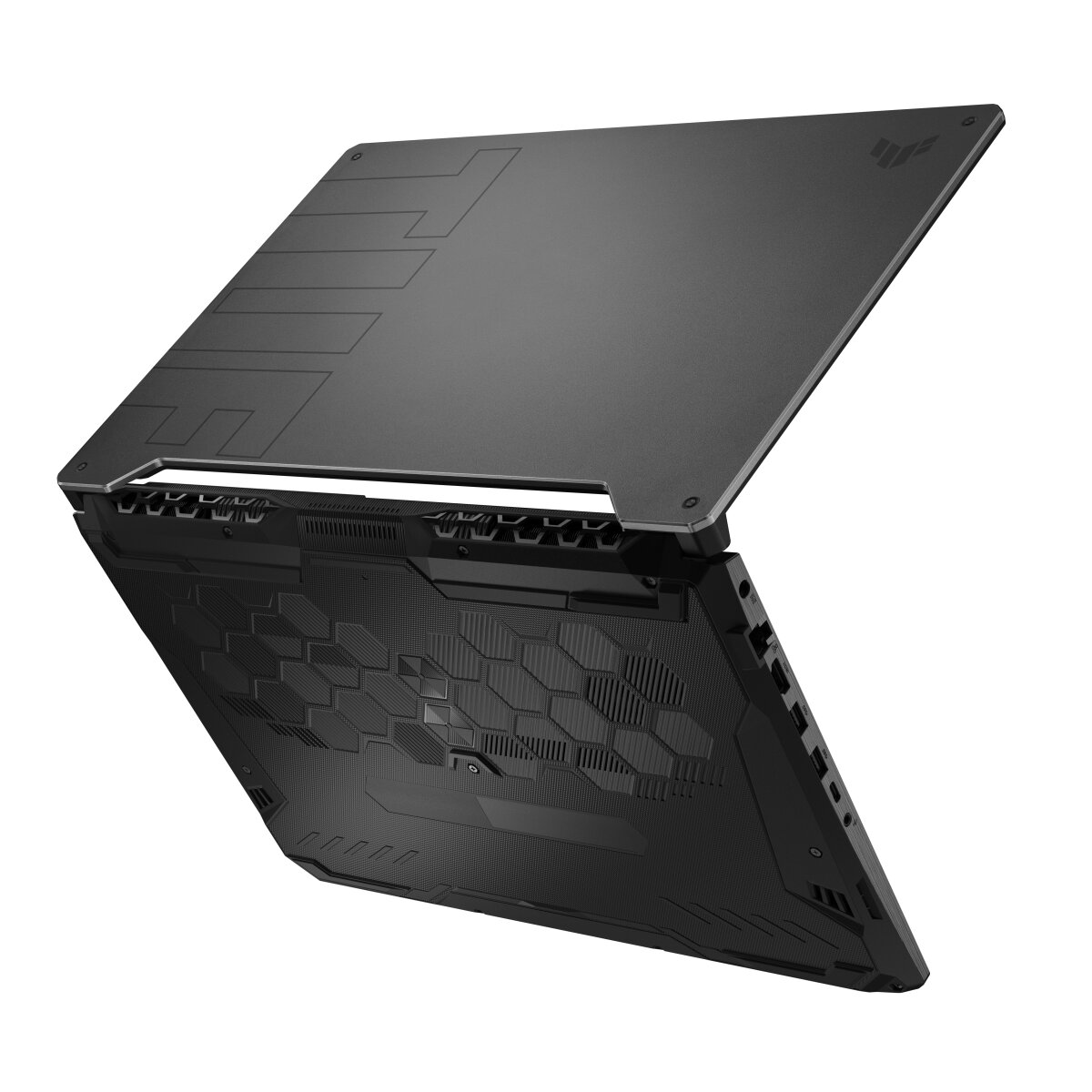

- The physical layout of the ASUS TUF Gaming FX506HE-HN005 necessitates the removal of the entire bottom chassis panel to access the SO-DIMM slots for hardware changes.
- Installing modules with higher clock speeds than 3200 MHz results in automatic downclocking to the motherboard limit because the chipset lacks XMP overclocking profiles.
- Total system capacity is capped by the BIOS firmware which prevents the recognition of 32 GB individual sticks regardless of physical pin compatibility.
- Using high density 1RX16 modules instead of 1RX8 or 2RX8 configurations causes a measurable drop in frame rates during memory intensive workloads.
- The absence of soldered memory on the mainboard allows for the complete replacement of the factory RAM without leaving orphaned low capacity chips in the system.
