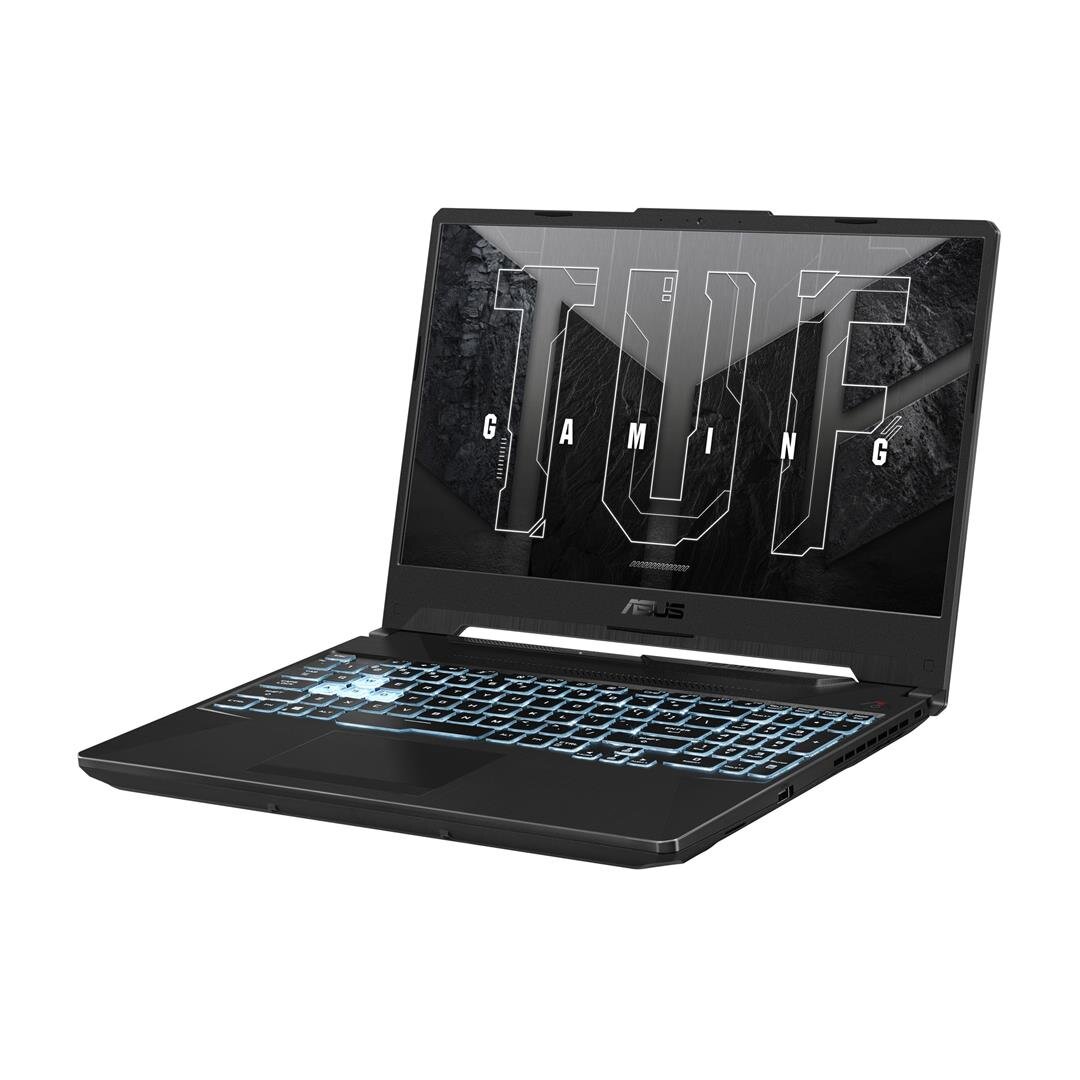

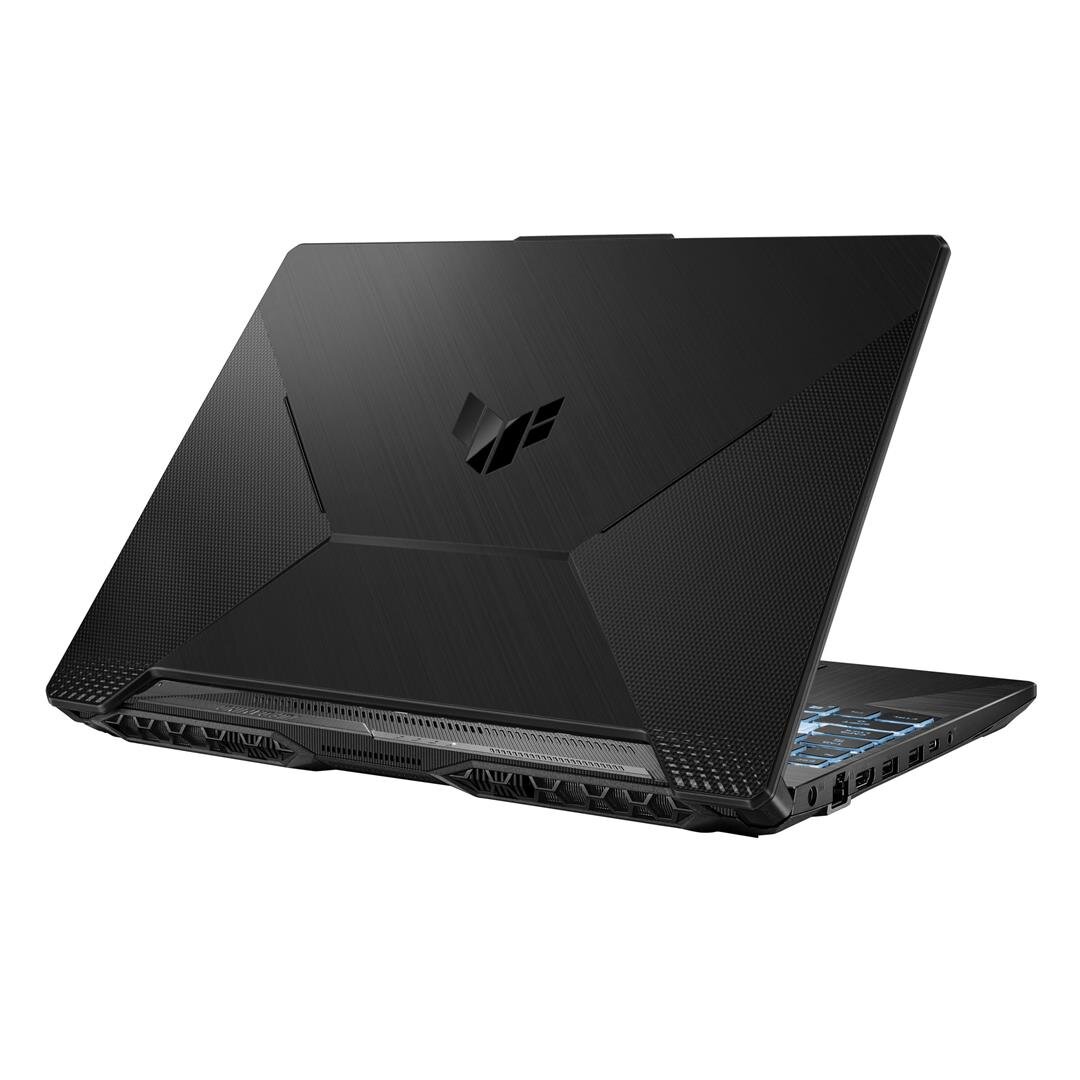

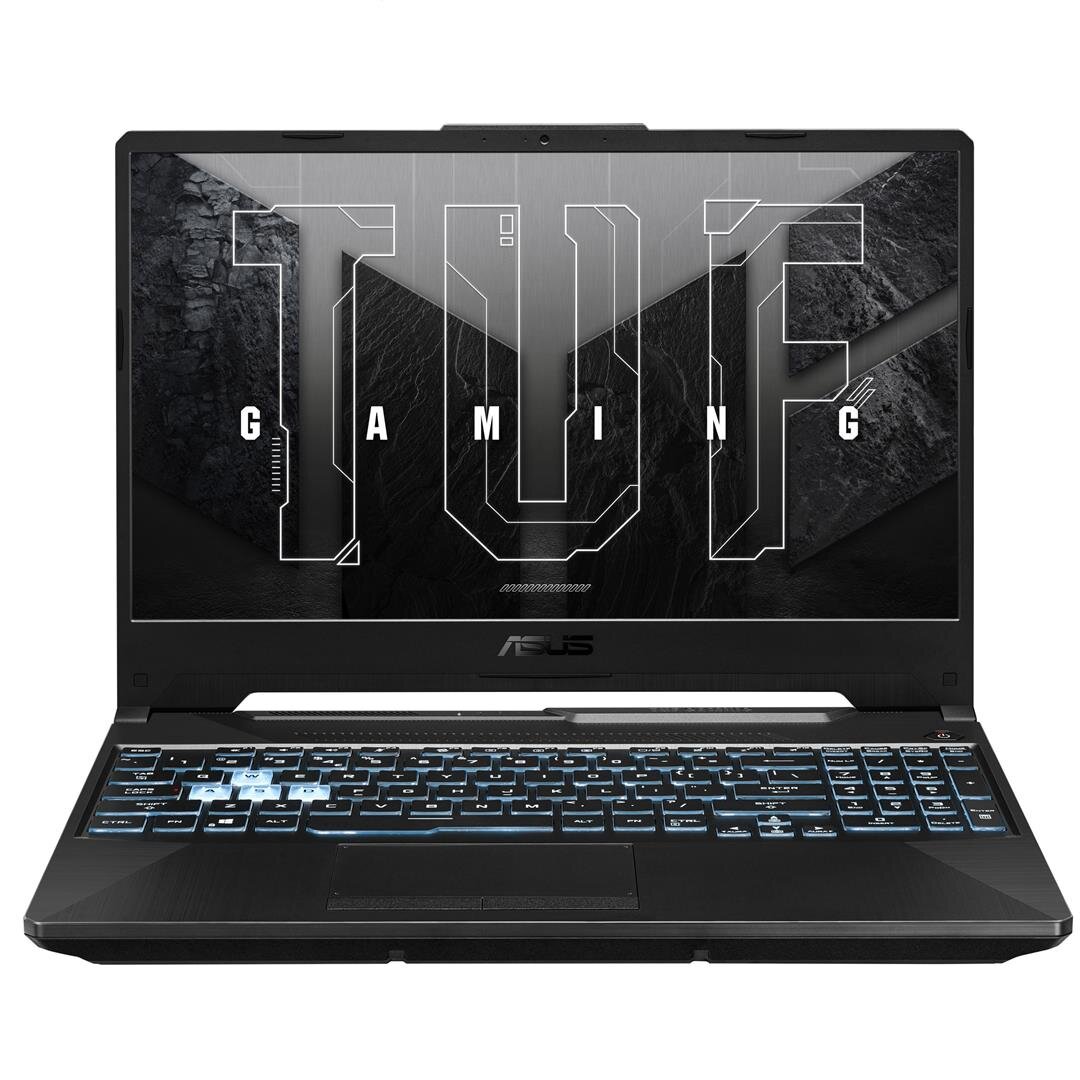

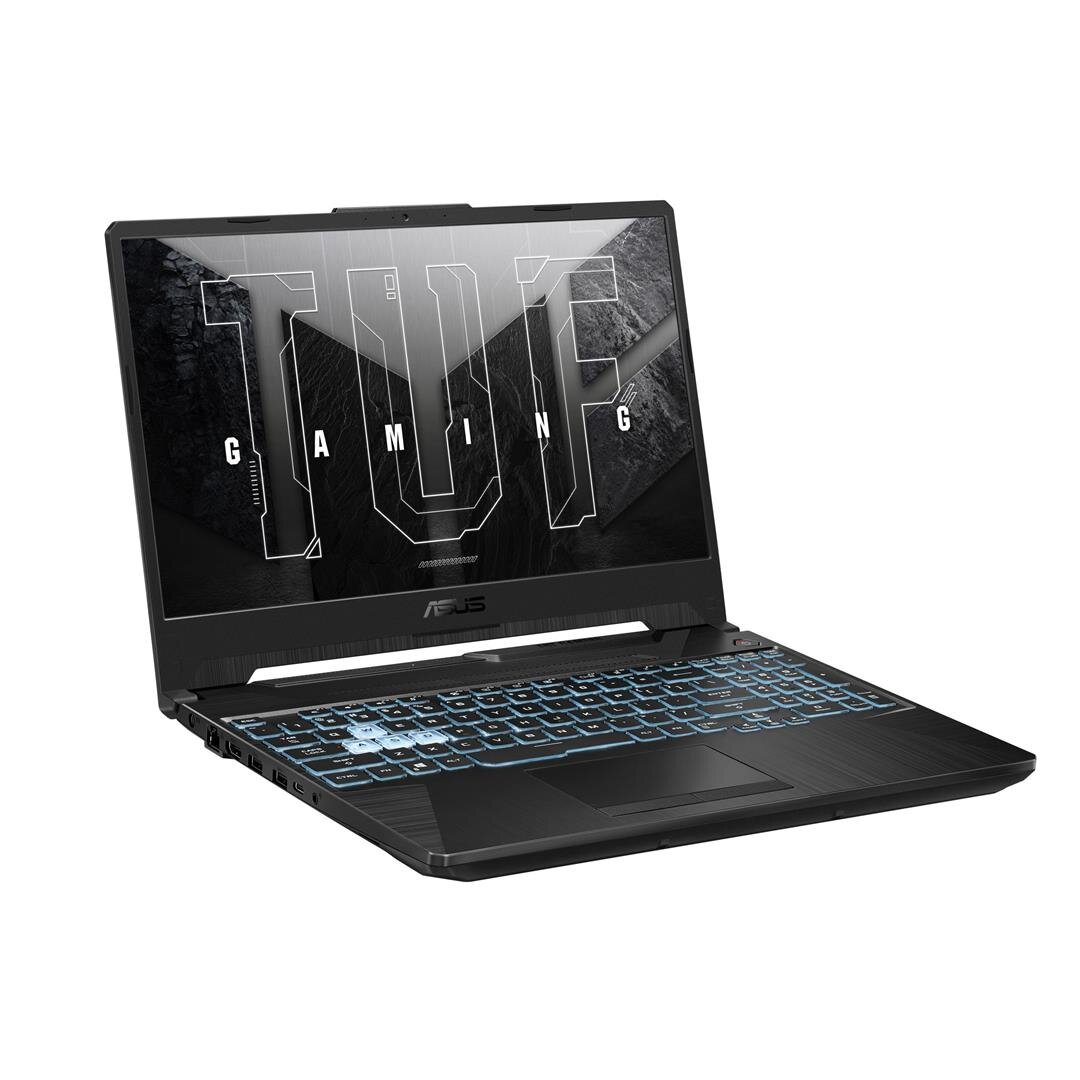

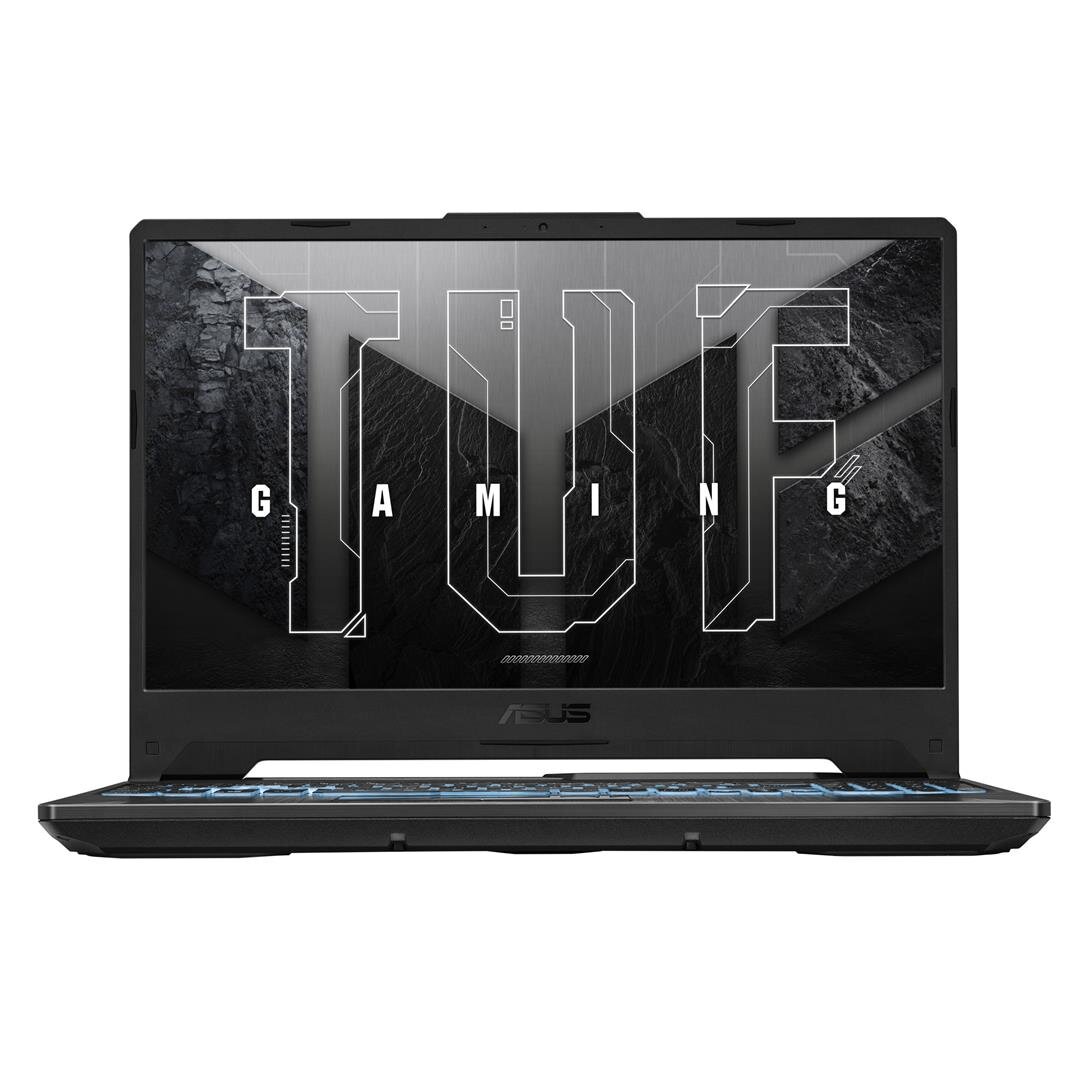

ASUS TUF Gaming FX506HF-HN001W RAM upgrade specifications
The ASUS TUF Gaming F15 FX506HF-HN001W features two SO-DIMM slots supporting DDR4-SDRAM memory at 3200 MHz frequency. The laptop accommodates a maximum RAM capacity of 32 GB total. Upgrade specifications indicate compatibility with standard SO-DIMM DDR4 modules. The device supports memory expansion through its dual slots, allowing users to upgrade from factory configuration to the maximum supported capacity of 32 GB by installing compatible DDR4-SDRAM modules in either or both available slots.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
Additional Notes
- Dual channel mode requires identical module pairs to optimize memory bandwidth and reduce frame time latency in the ASUS TUF Gaming FX506HF-HN001W.
- The maximum capacity threshold indicates a BIOS limitation that prevents the recognition of high density 32 GB single sticks.
- Installation of modules with higher frequency ratings results in downclocking to the system bus limit of 3200 MHz.
- The SO-DIMM architectural standard necessitates the use of unbuffered non-ECC modules to ensure successful POST sequences.
- Physical access to both slots involves removing the base panel which potentially exposes delicate internal ribbon cables to accidental damage.
- Memory latency timings fluctuate based on the secondary module compatibility with the pre-installed factory hardware.
- Power consumption increases slightly when both memory slots are populated compared to single module configurations.
