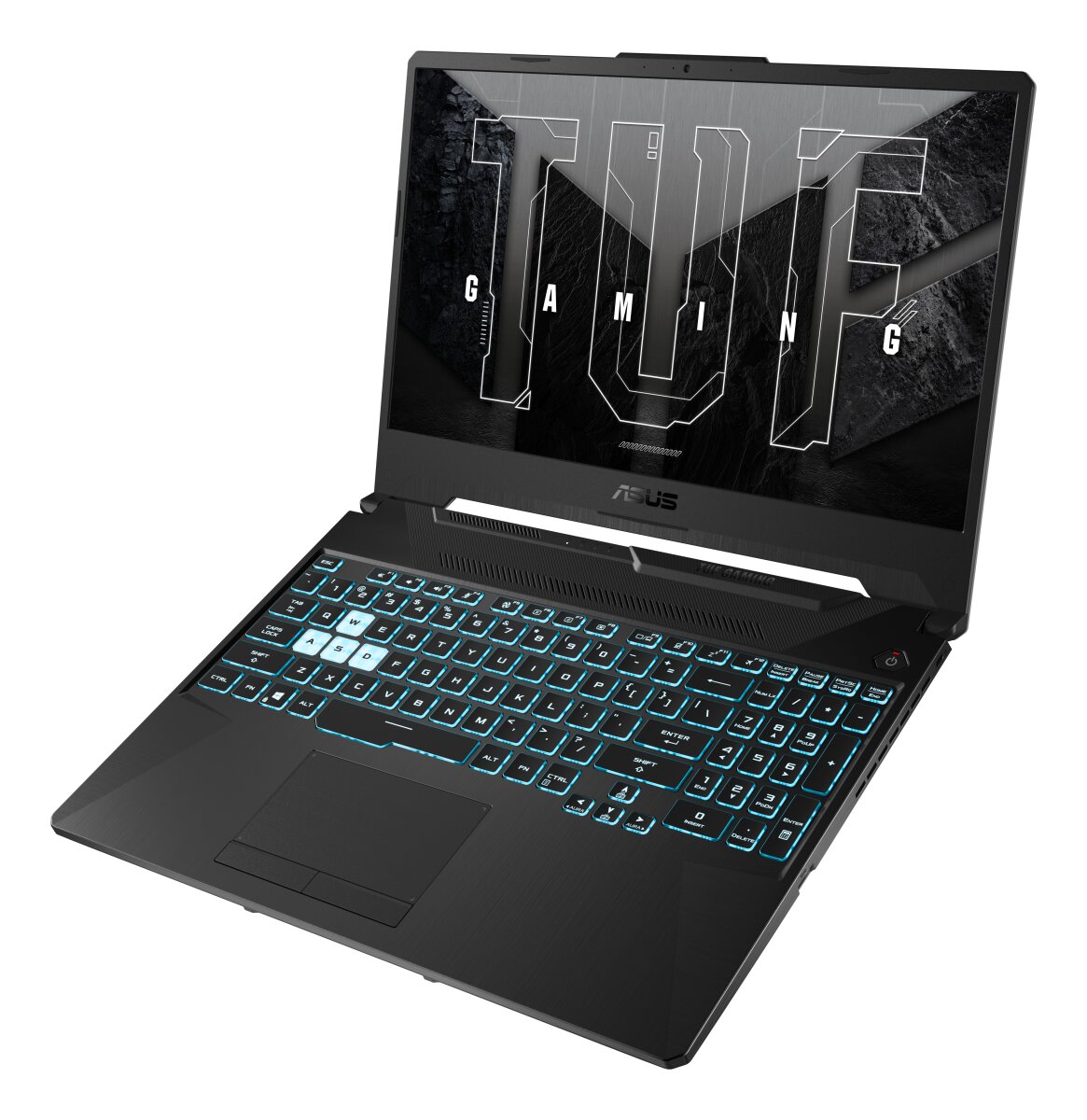

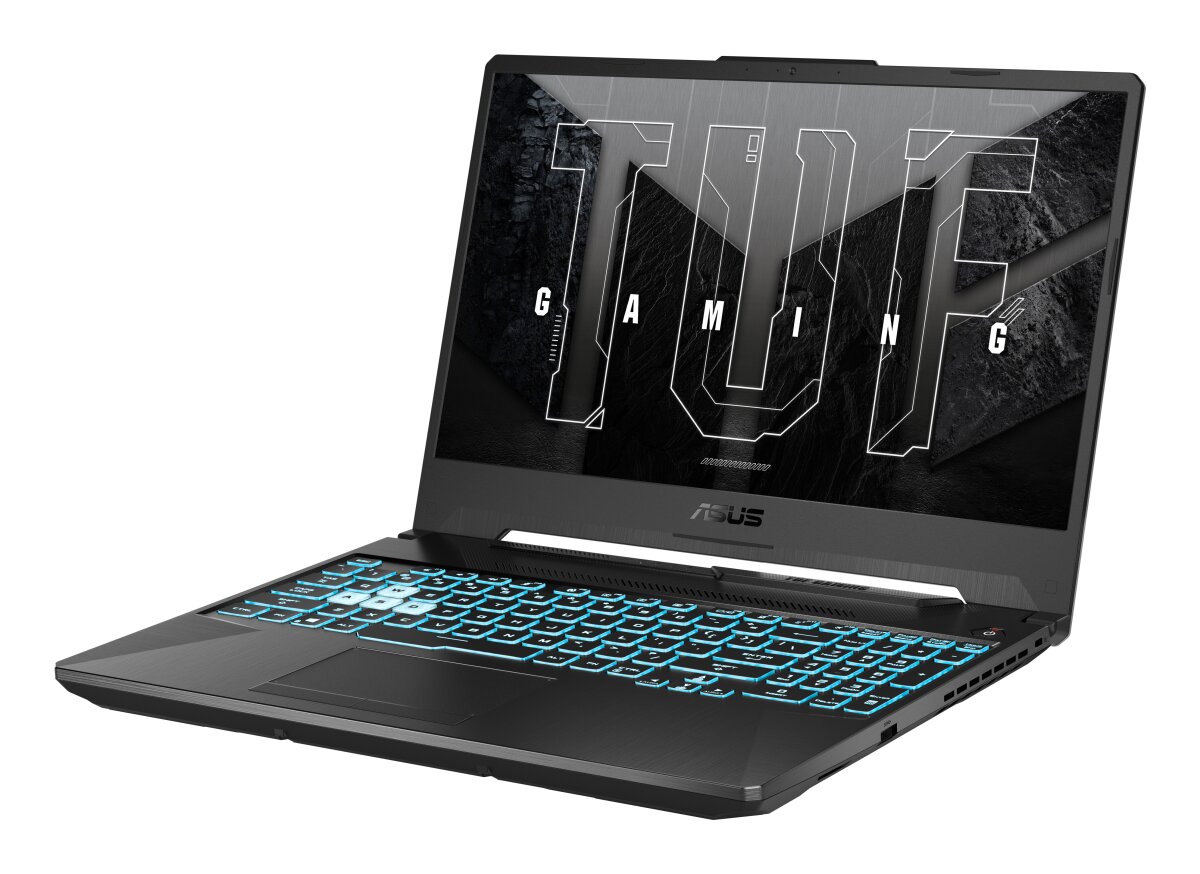

ASUS TUF Gaming FX506HF-HN007W RAM upgrade specifications
The ASUS TUF Gaming F15 FX506HF-HN007W features DDR4-SDRAM memory upgrade specifications with two SO-DIMM slots supporting maximum capacity of 32 GB. Compatible memory modules operate at 3200 MHz frequency. Upgrade options allow installation of additional DDR4 SO-DIMM modules to enhance system performance. Specifications support standard DDR4 memory configurations with SO-DIMM form factor compatibility. Maximum RAM capacity reaches 32 GB across both available memory slots, enabling significant performance improvements for gaming and multitasking applications on this TUF Gaming series laptop.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
Additional Notes
- The ASUS TUF Gaming FX506HF-HN007W accommodates only 2 memory slots, which means the system cannot be expanded beyond 32 GB regardless of future DDR4 module availability.
- DDR4-3200 modules operate at a fixed frequency ceiling; upgrading to higher-frequency DDR4 variants (3600 MHz or beyond) will result in automatic downclocking to 3200 MHz, eliminating any performance gain from premium memory purchases.
- SO-DIMM form factor restricts upgrade options to laptop-specific modules; standard desktop DDR4 DIMMs are physically incompatible and cannot be retrofitted into this system.
- The dual-slot configuration creates a single point of failure for memory subsystem integrity; if one slot develops electrical contact issues, the remaining slot provides no redundancy and cannot compensate for hardware degradation.
- Upgrading from factory-installed memory to 32 GB maximum capacity requires removing existing modules; this action typically voids memory-related warranty coverage unless performed by authorized ASUS service personnel.
- Memory bandwidth will be constrained by the H-series chipset architecture; adding RAM beyond factory specifications does not increase throughput capacity between CPU and memory controller, only total addressable storage.
- Thermal considerations apply to dense SO-DIMM stacks; high-capacity modules (16 GB per slot) generate measurably more heat than lower-capacity equivalents, which may affect nearby M.2 slot thermal performance.
