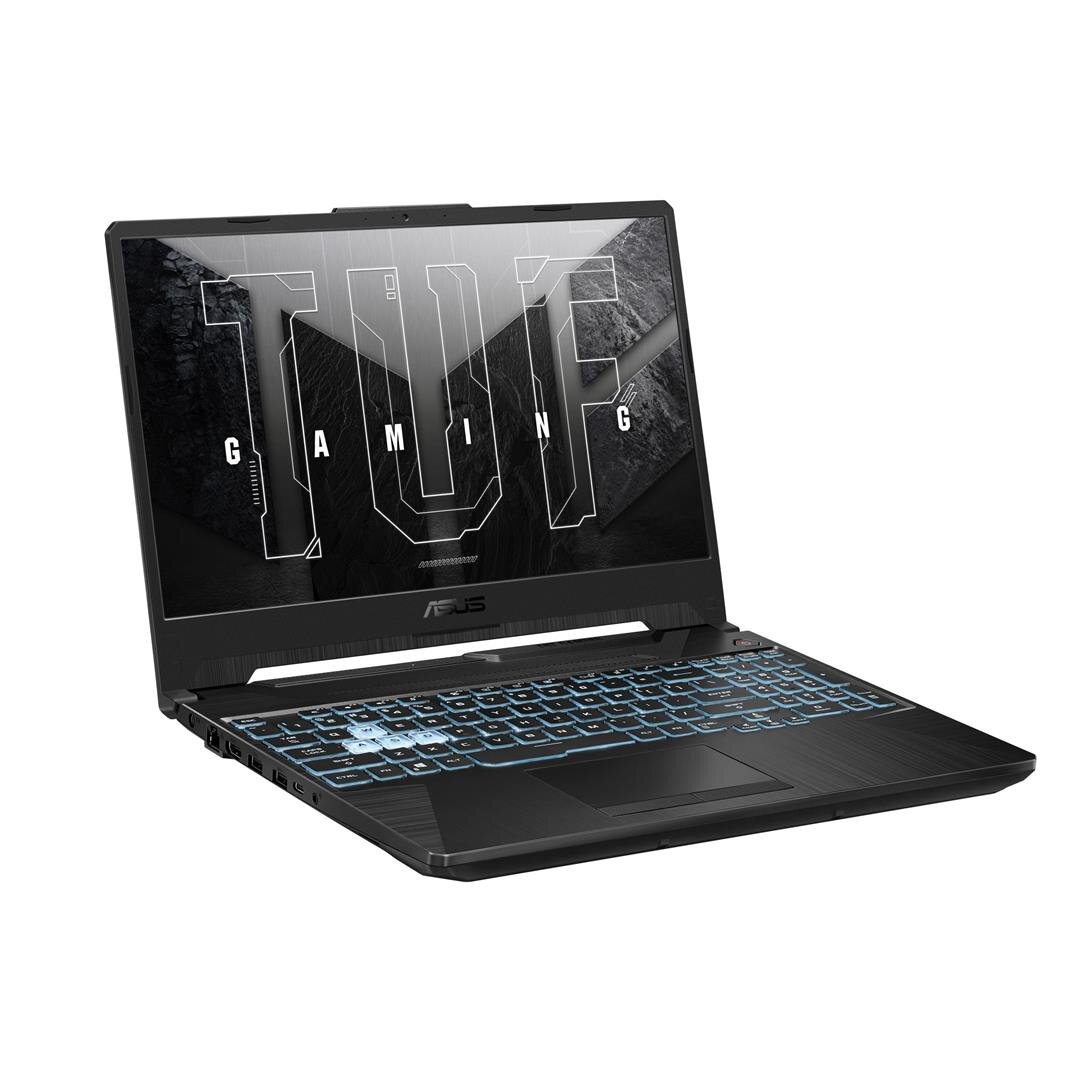

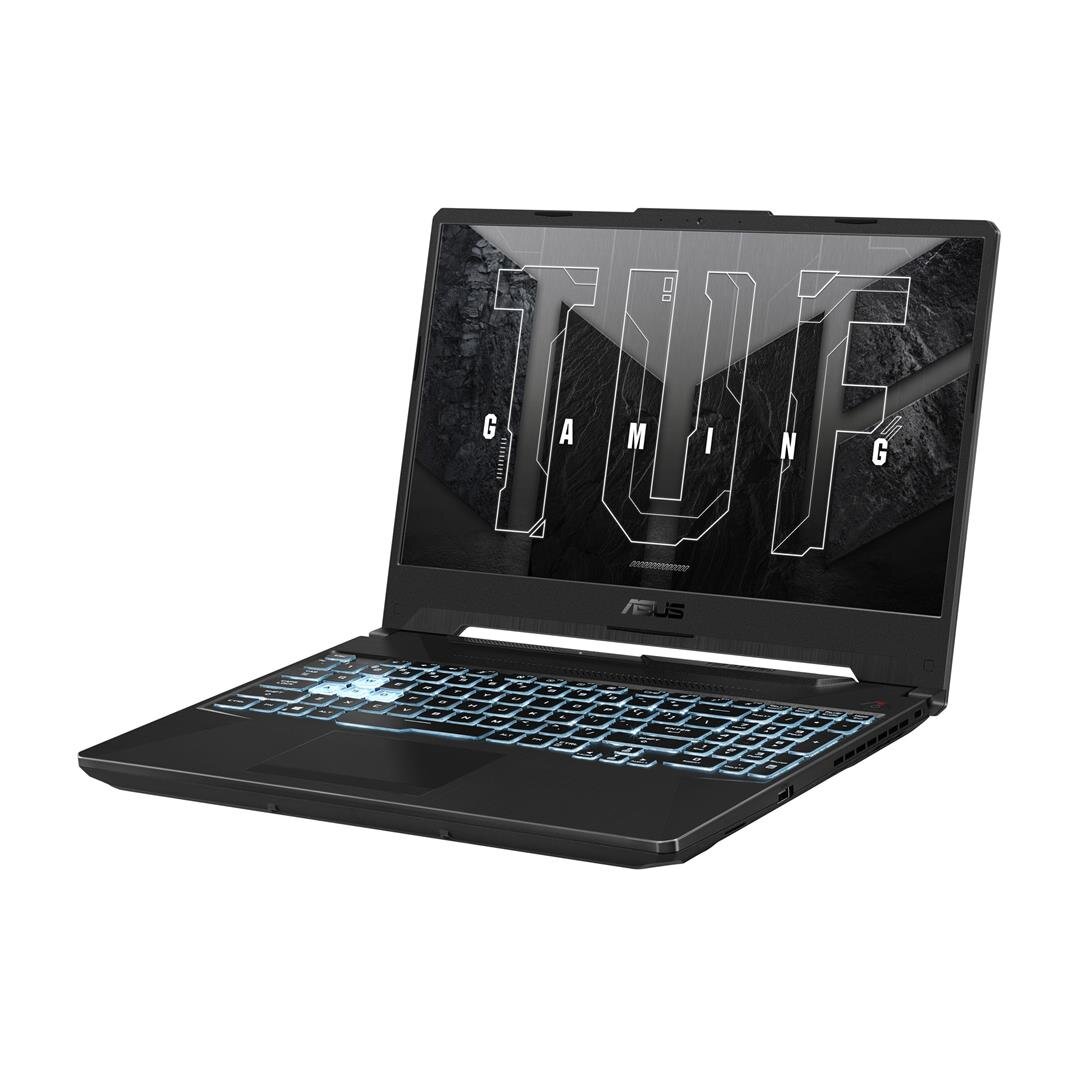

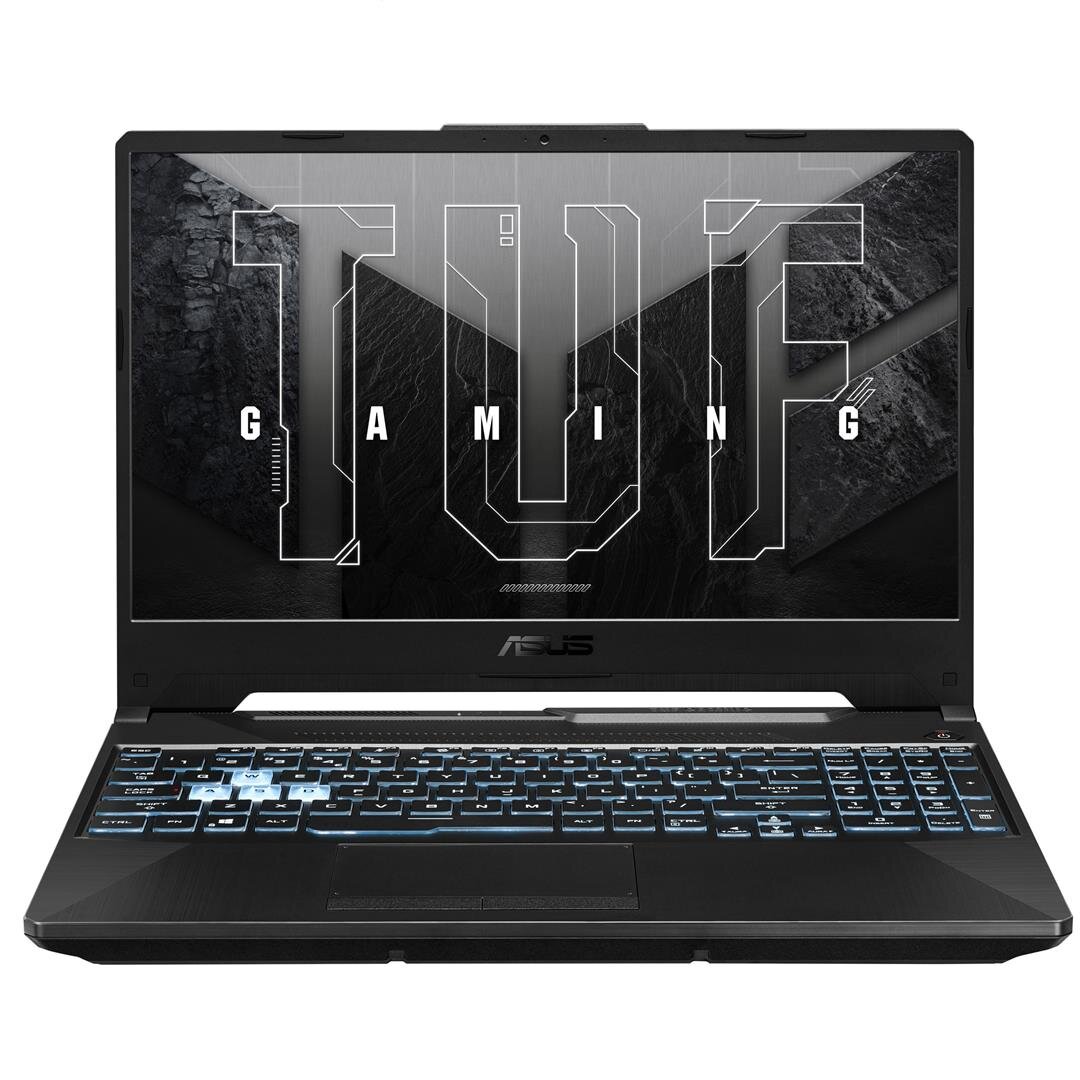

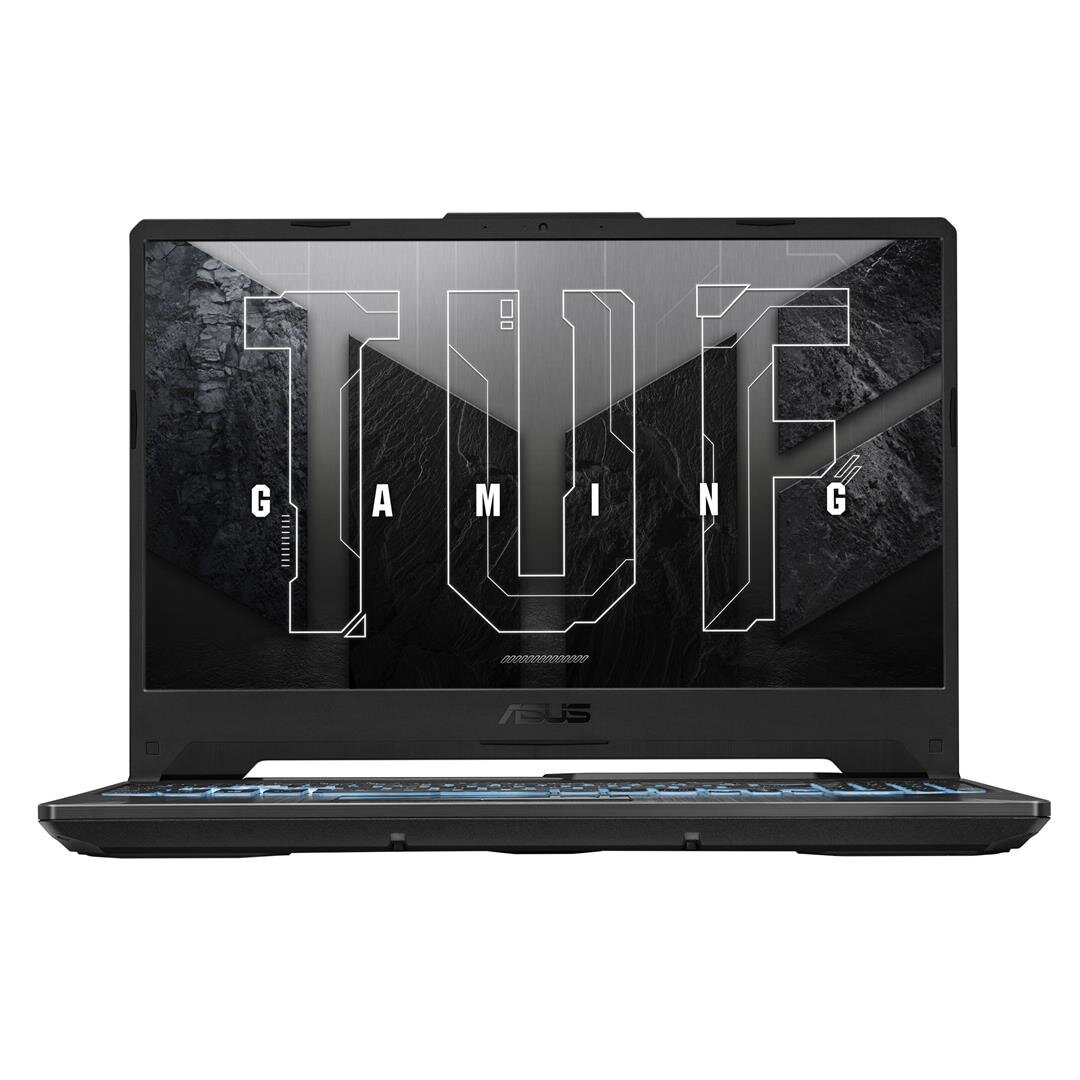

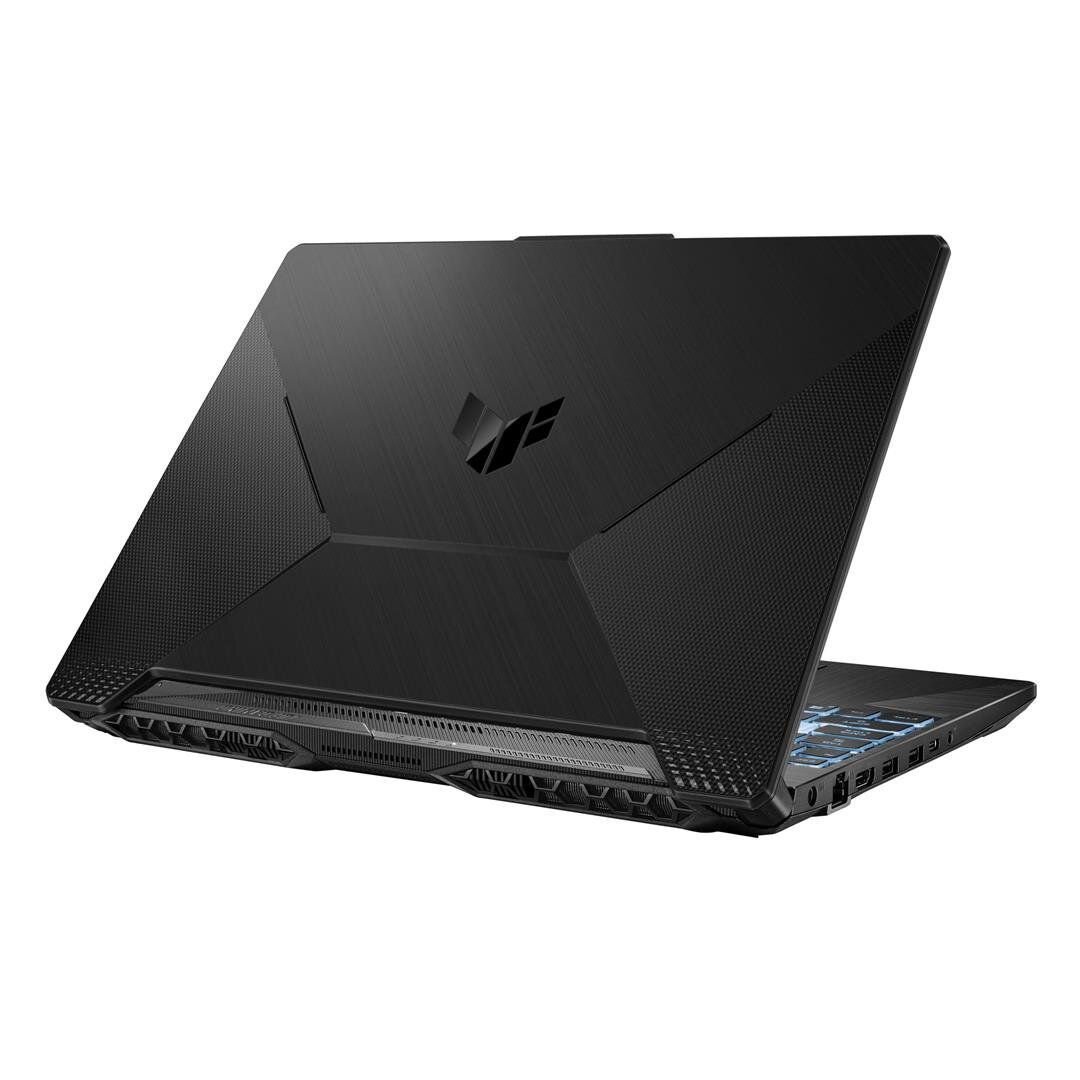

ASUS TUF Gaming FX506HF-HN004 RAM upgrade specifications

ASUS TUF Gaming F15 FX506HF-HN004 laptop features two SO-DIMM memory slots supporting DDR4-SDRAM modules at 3200 MHz frequency. The system accommodates a maximum RAM capacity of 32 GB total. Upgrade specifications indicate compatible memory modules must utilize the SO-DIMM form factor for installation into available slots. Current and maximum memory configurations are supported for enhanced multitasking and performance capabilities.

Additional Notes

• The ASUS TUF Gaming FX506HF-HN004 memory controller imposes a per-slot capacity ceiling of 16 GB, meaning configurations exceeding this limit will trigger BIOS-level rejection or operate in downclocked fallback modes.
• DDR4-3200 operates at 1.2V nominal voltage, while older DDR4-2666 or DDR4-2400 modules typically require 1.2V as well, but mixing speeds forces the memory controller to downclock all modules to the slowest common frequency, sacrificing bandwidth headroom.
• SO-DIMM modules rated above 3200 MHz (such as DDR4-3600) will physically install but undergo automatic frequency reduction to 3200 MHz due to chipset limitations, eliminating any performance advantage from higher-spec RAM.
• Dual-channel architecture requires matched module capacities in both slots to activate full bandwidth; asymmetric configurations (such as 8 GB paired with 16 GB) force partial single-channel operation for the excess capacity.
• Non-ECC unbuffered modules represent the only compatible architecture, as server-grade ECC or registered DIMMs introduce electrical signaling incompatibilities with consumer-platform memory controllers.
• CAS latency variations between CL22 and CL16 modules at 3200 MHz produce measurable latency differences in memory-sensitive workloads, though gaming frame rates typically show less than 3 percent variance across this latency range.
• The 260-pin SO-DIMM standard requires PCB notch alignment during insertion; reversed installation attempts will encounter physical resistance before electrical contact, preventing permanent damage but necessitating careful orientation verification.
• Operating temperature thresholds for consumer DDR4 modules (typically 0°C to 85°C) align with laptop thermal envelopes, but sustained gaming loads may trigger thermal throttling if module heat spreaders contact nearby components without adequate airflow.
• Warranty preservation typically depends on avoiding voltage modifications and maintaining JEDEC-standard frequencies, meaning XMP profiles requiring voltage adjustments above 1.2V may void manufacturer coverage despite physical compatibility.
• Single-rank versus dual-rank module architectures at identical capacities introduce interleaving efficiency differences, with dual-rank configurations sometimes yielding 2 to 5 percent performance gains in memory bandwidth benchmarks.
