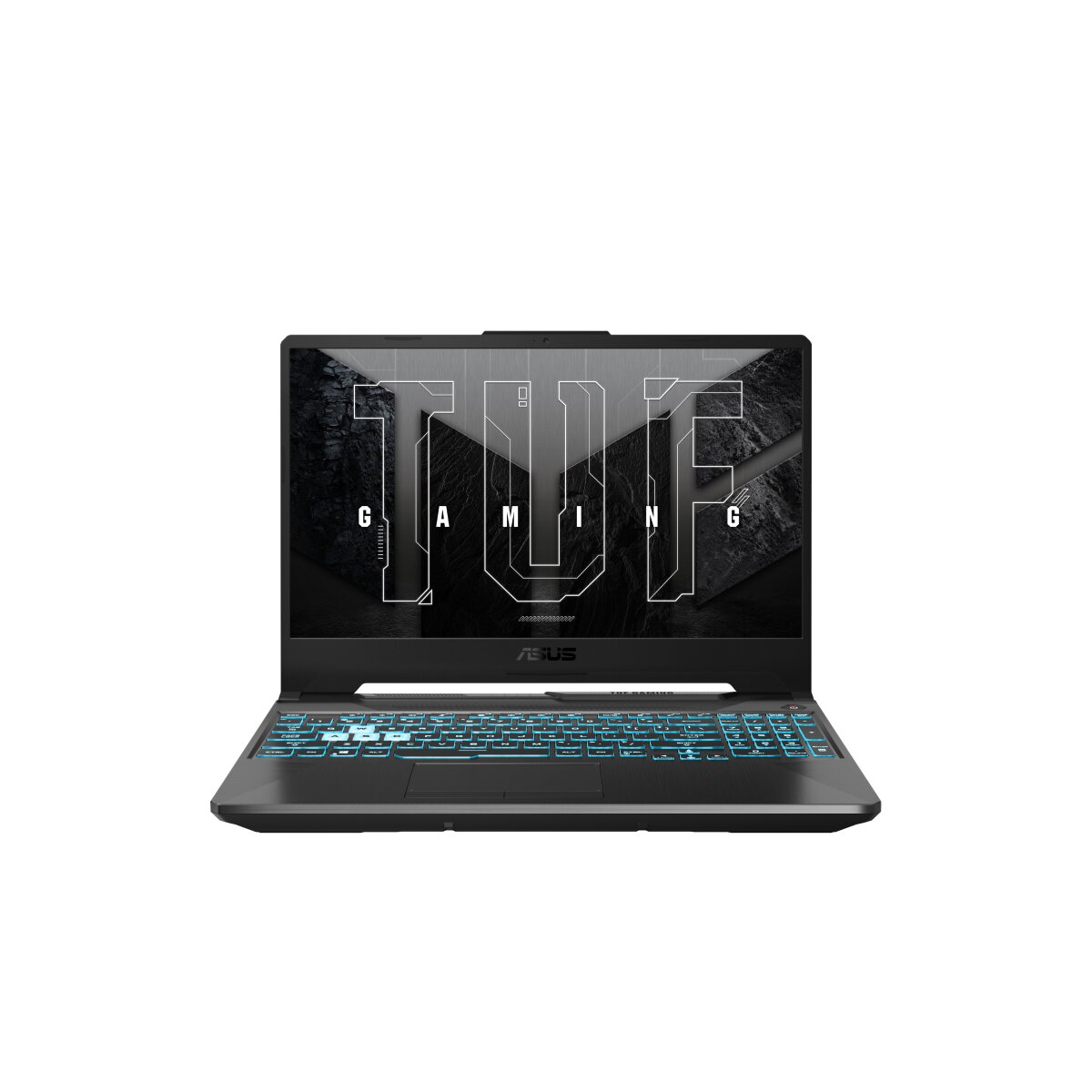

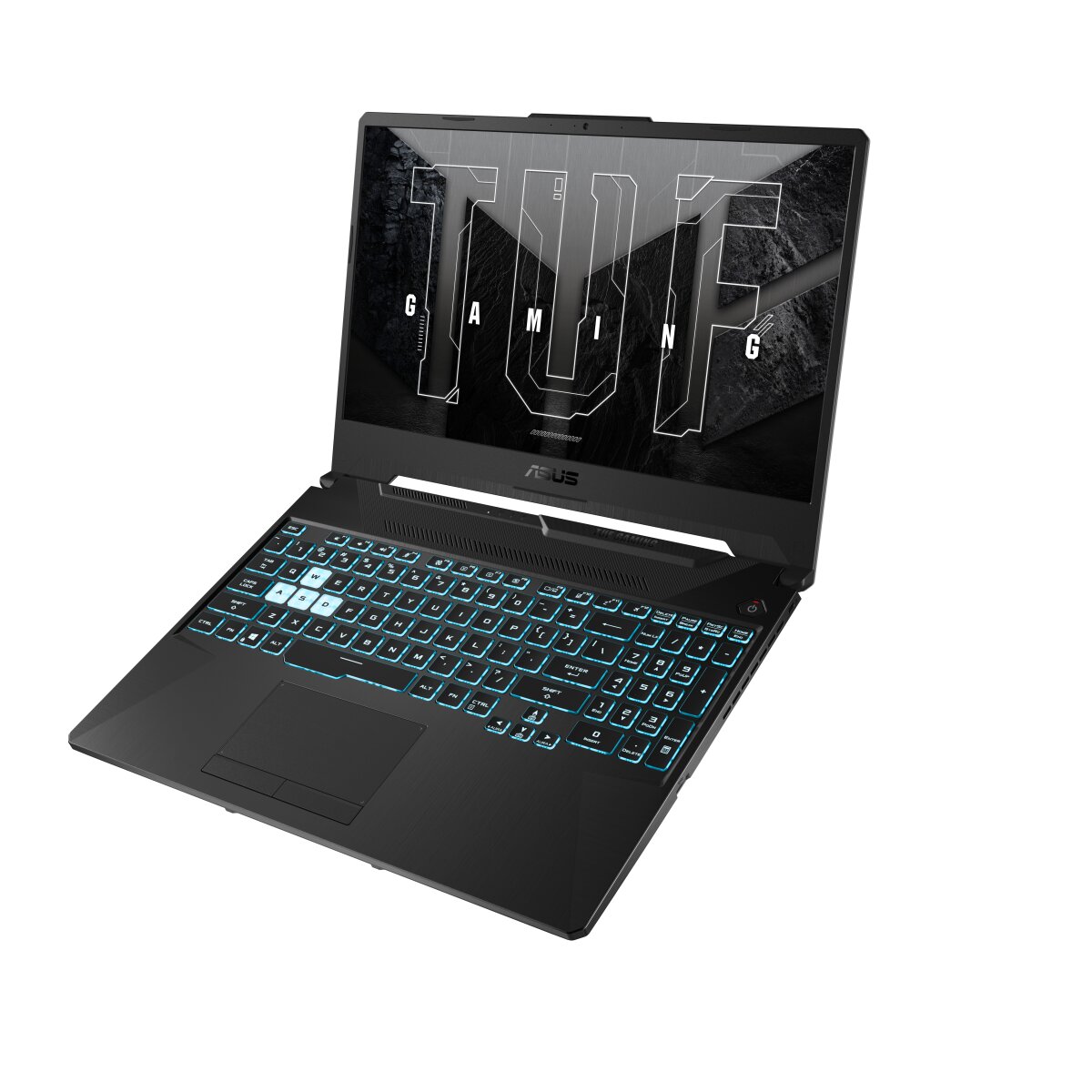

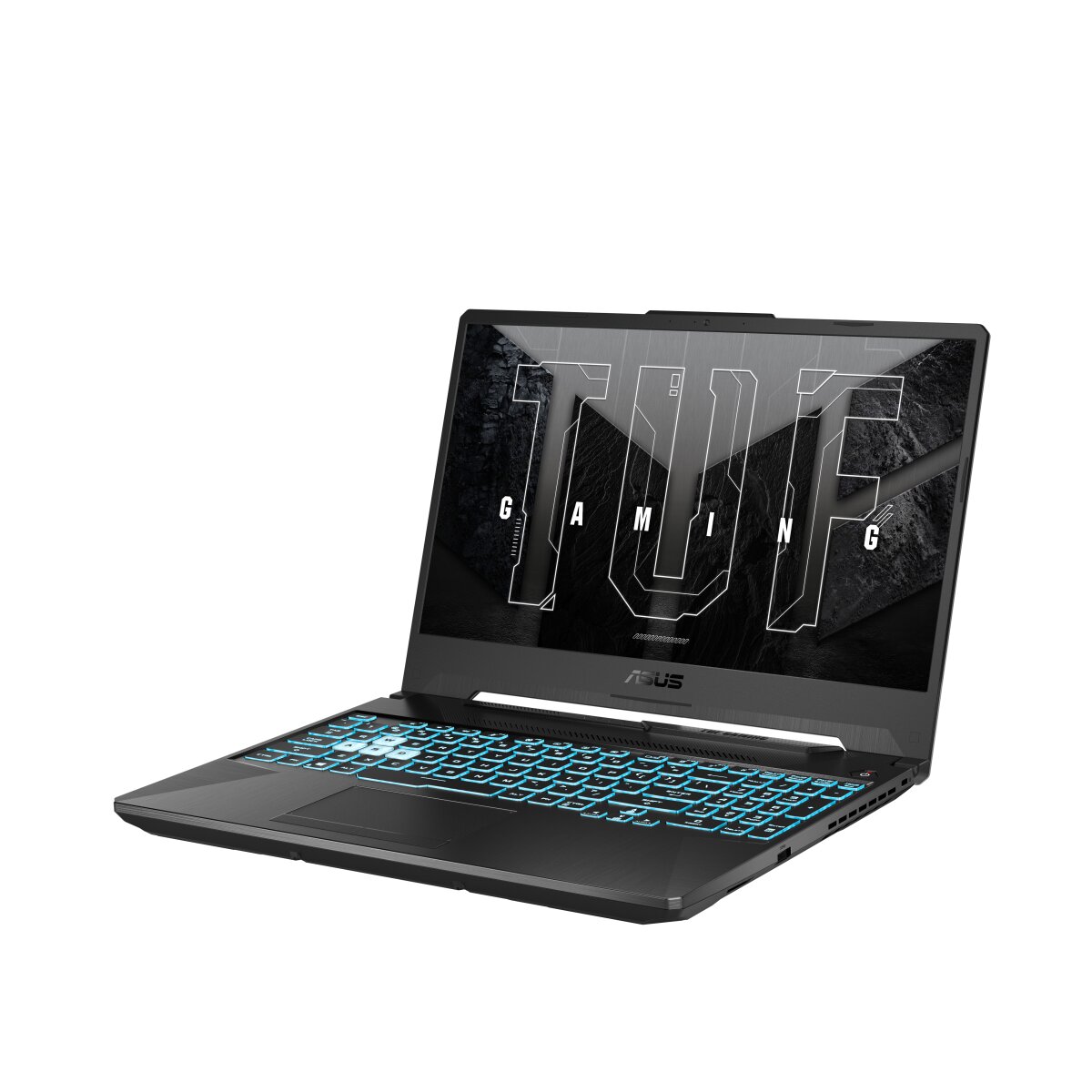

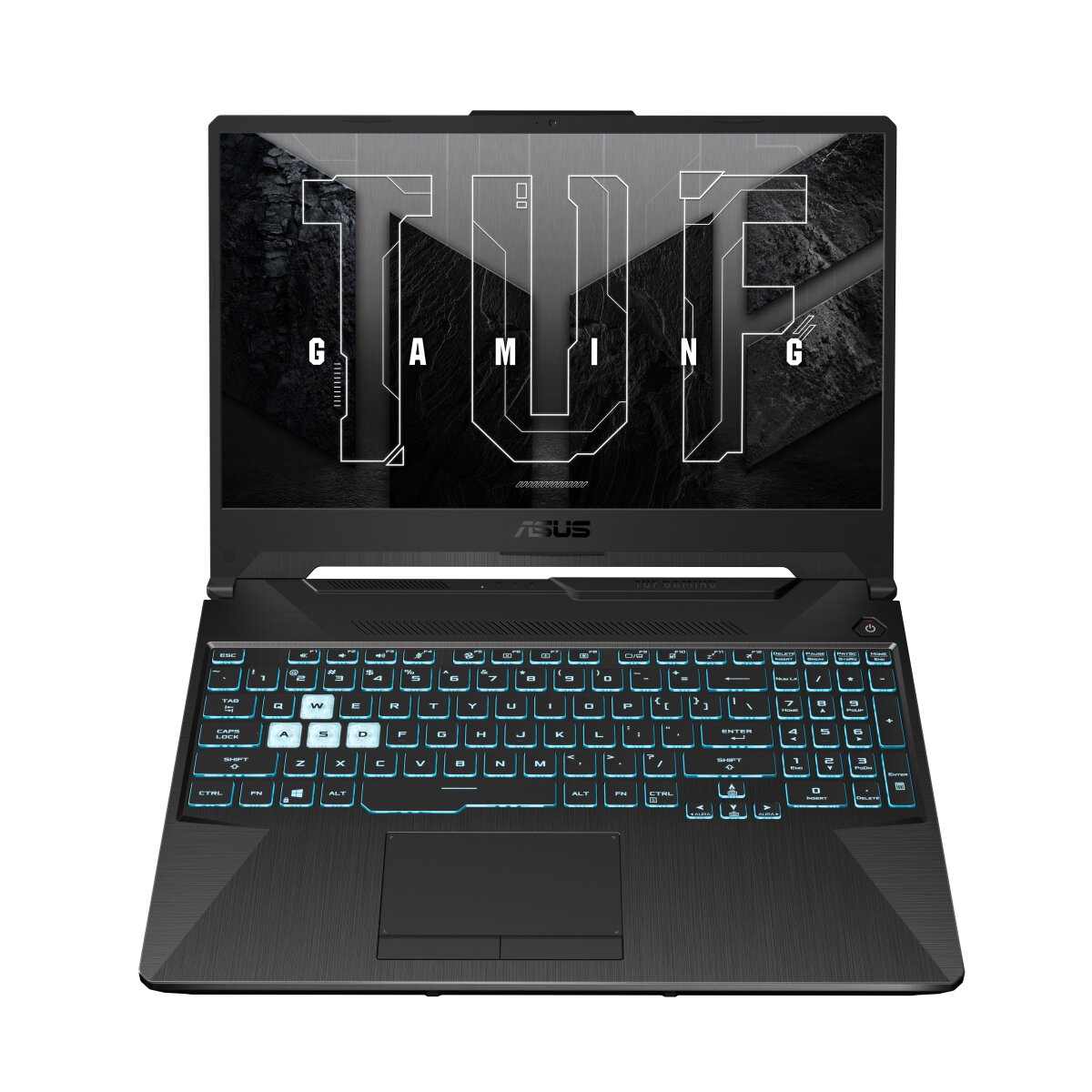

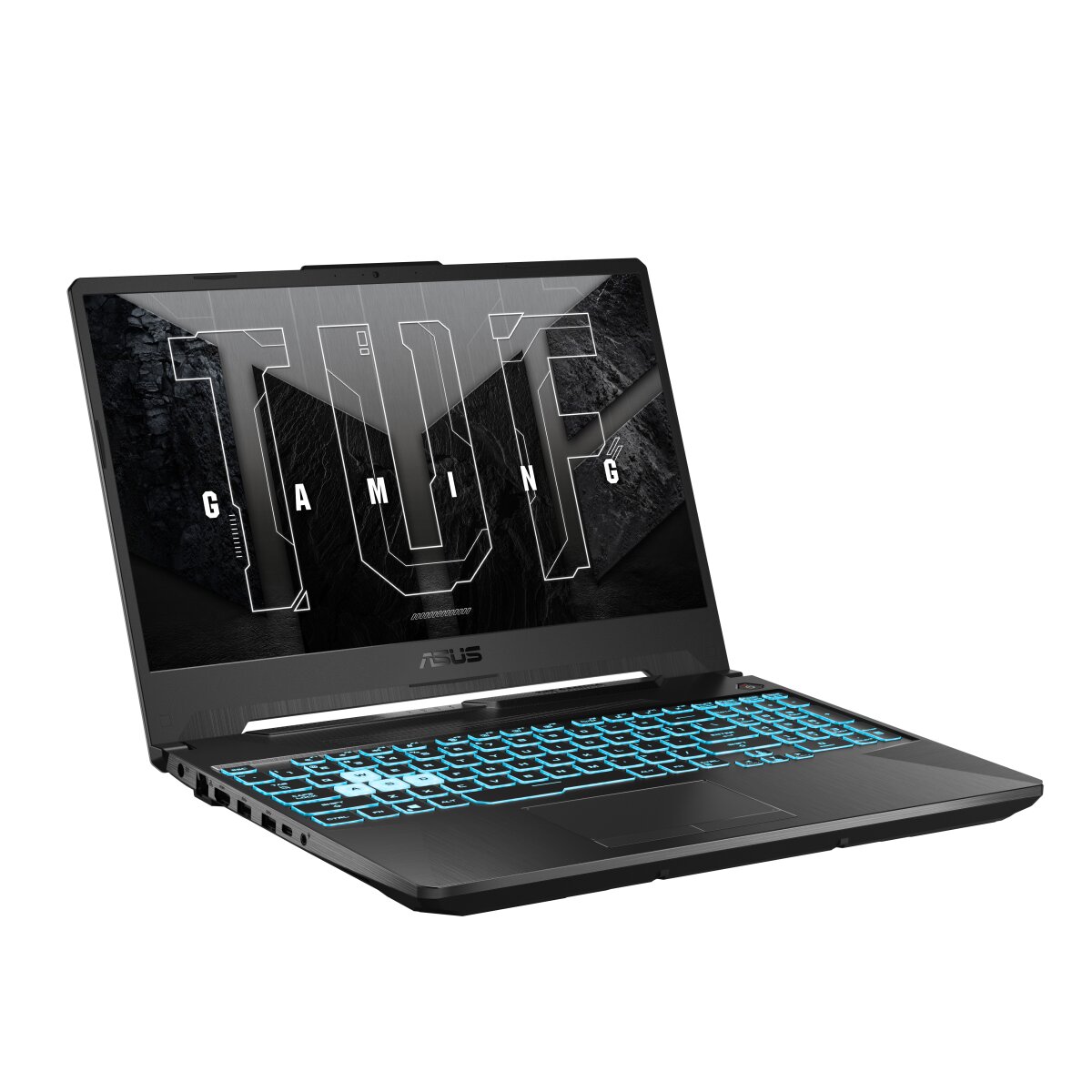

ASUS TUF Gaming FX506HM-HN060 RAM upgrade specifications
ASUS TUF Gaming F15 FX506HM-HN060 features DDR4-SDRAM memory upgrade capabilities with 2x SO-DIMM slots supporting maximum RAM capacity of 32 GB. Compatible memory specifications include DDR4 modules operating at 3200 MHz frequency with SO-DIMM form factor. Upgrade slots accommodate compatible DDR4-SDRAM memory modules for enhanced system performance.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 10 July 2021 |
Additional Notes
- The dual-slot configuration indicates that achieving maximum memory capacity requires the removal of any factory-installed modules to prevent mismatched densities.
- Operating the ASUS FX506HM-HN060 with two identical modules enables dual-channel mode, which significantly increases memory bandwidth for CPU-intensive tasks compared to single-channel setups.
- Standard 3200 MHz modules are necessary to prevent the system from downclocking to lower speeds, ensuring the processor remains unhindered by transmission latency.
- The use of SO-DIMM slots implies that the hardware is non-soldered, allowing for future replacements or repairs without requiring specialized soldering equipment or a motherboard swap.
- Capacity limits at 32 GB suggest the BIOS or chipset prevents the recognition of high-density 32 GB individual sticks, restricting the architecture to 16 GB per slot.
- Thermal management remains a factor during physical installation as these slots sit in close proximity to the central cooling pipes, necessitating careful handling of the tension clips.
