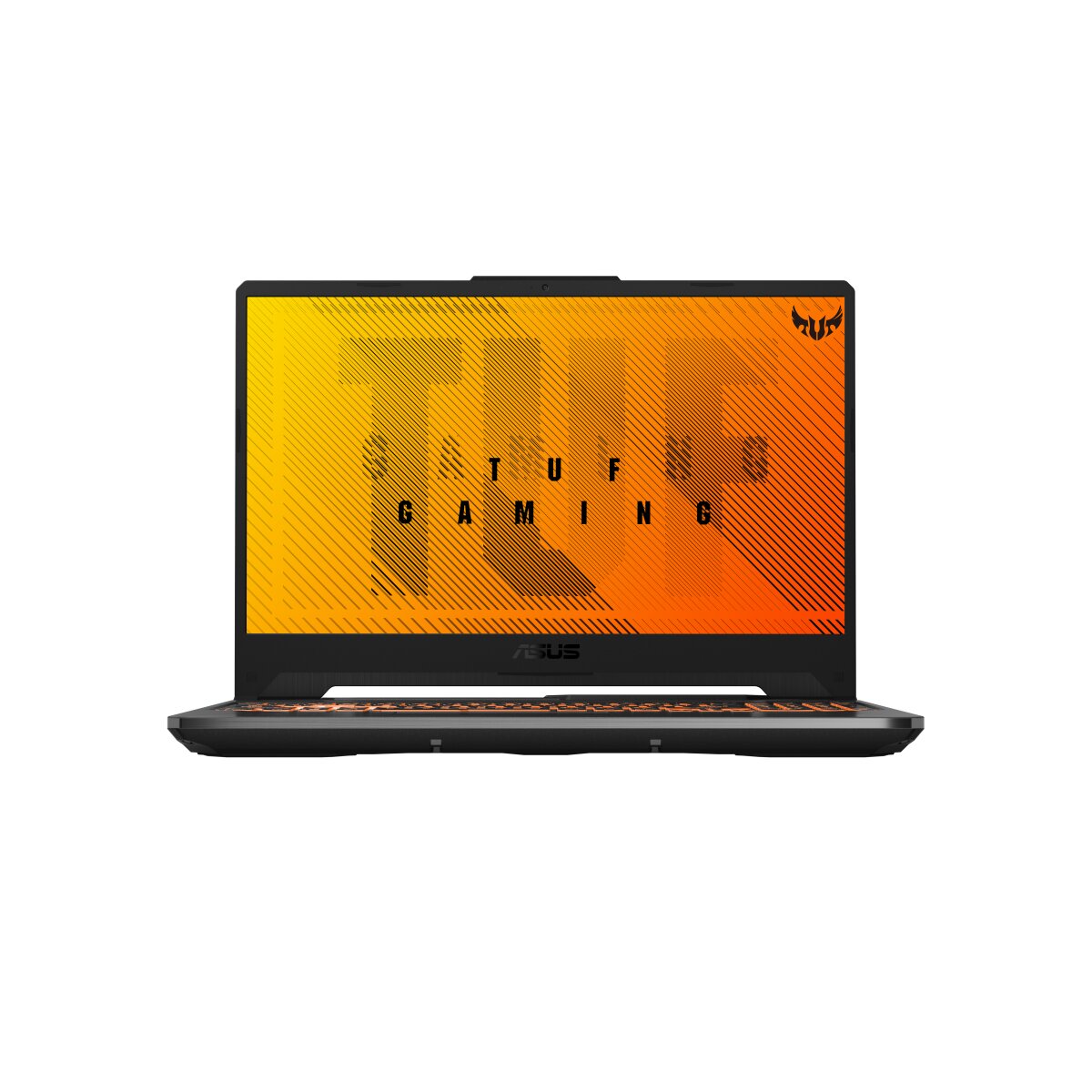

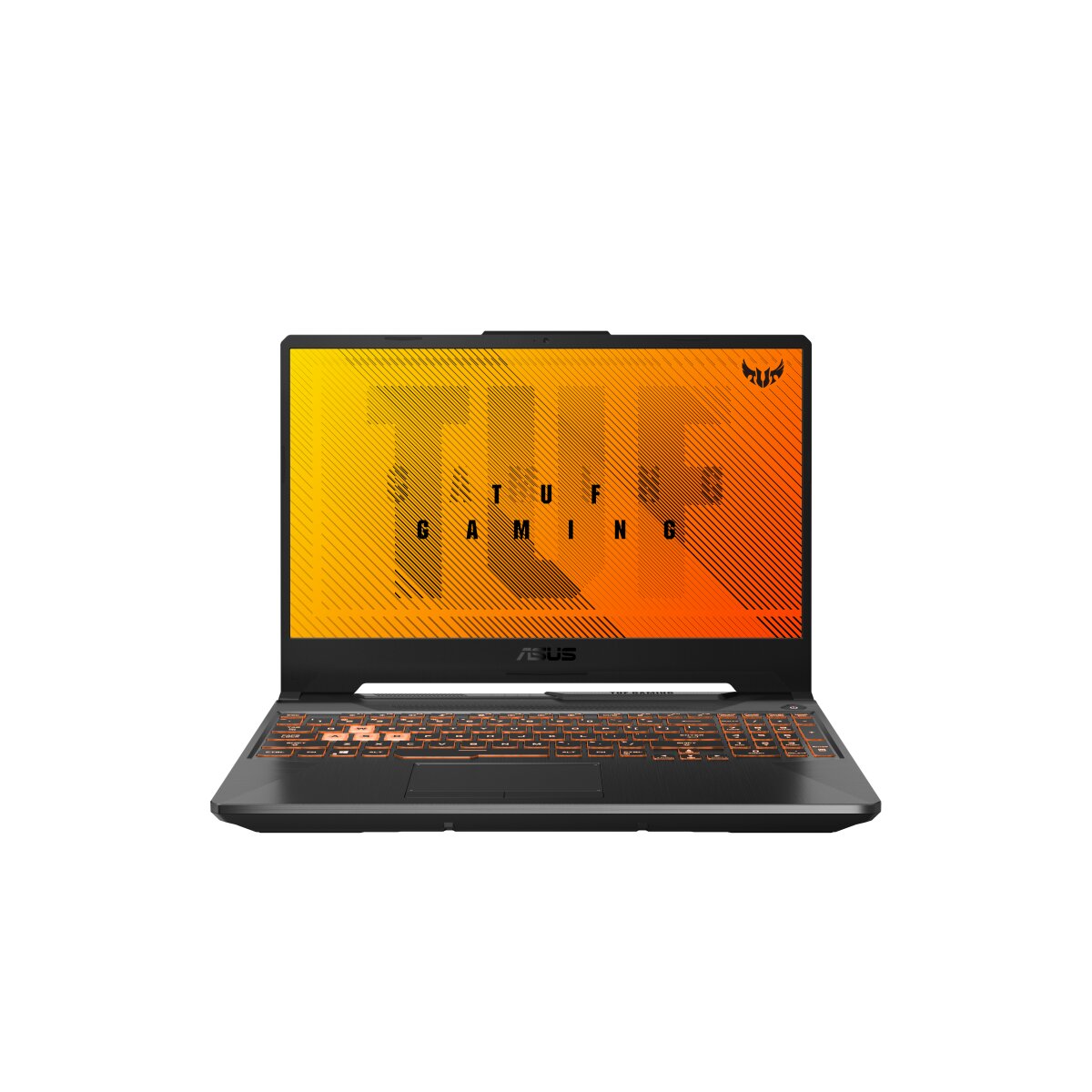

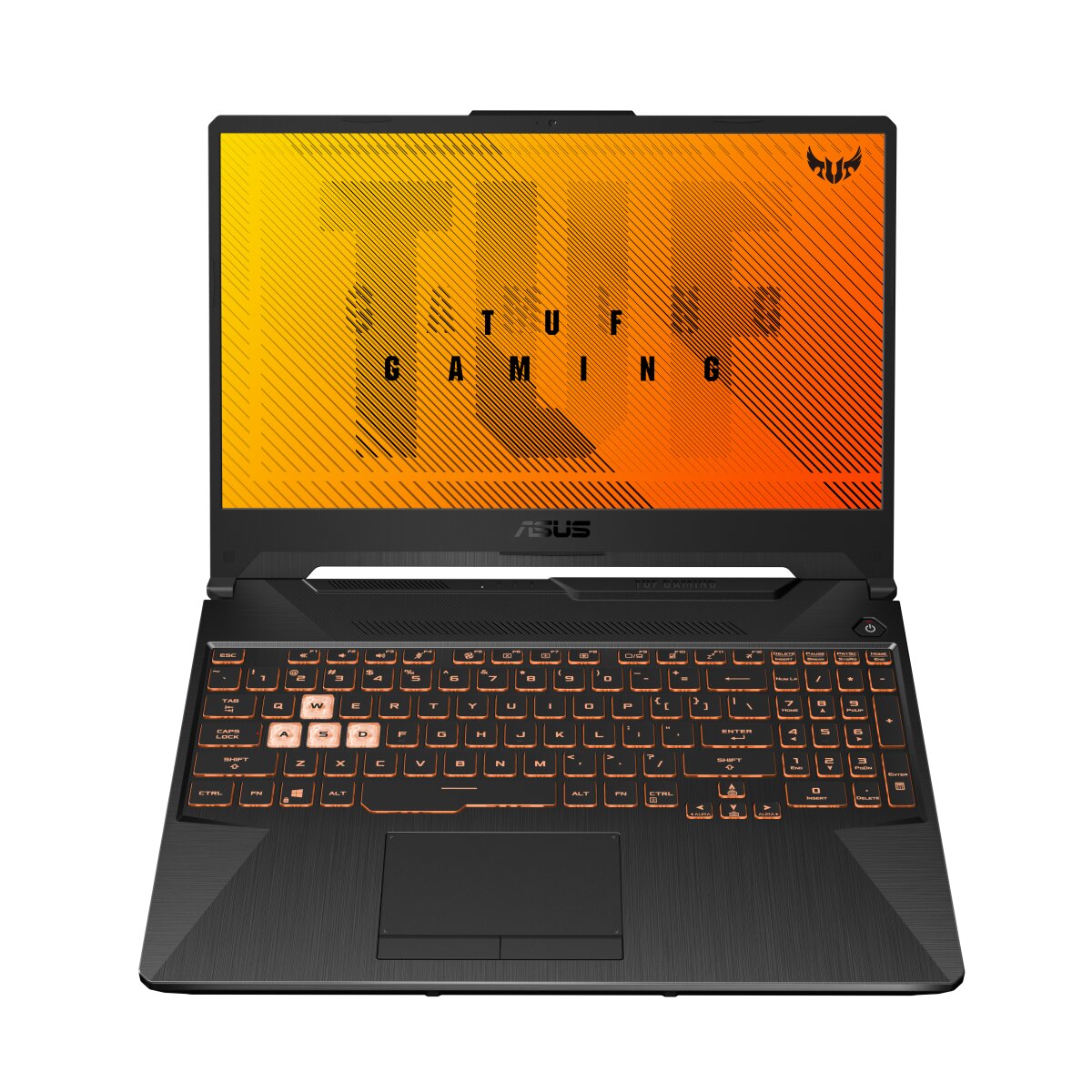

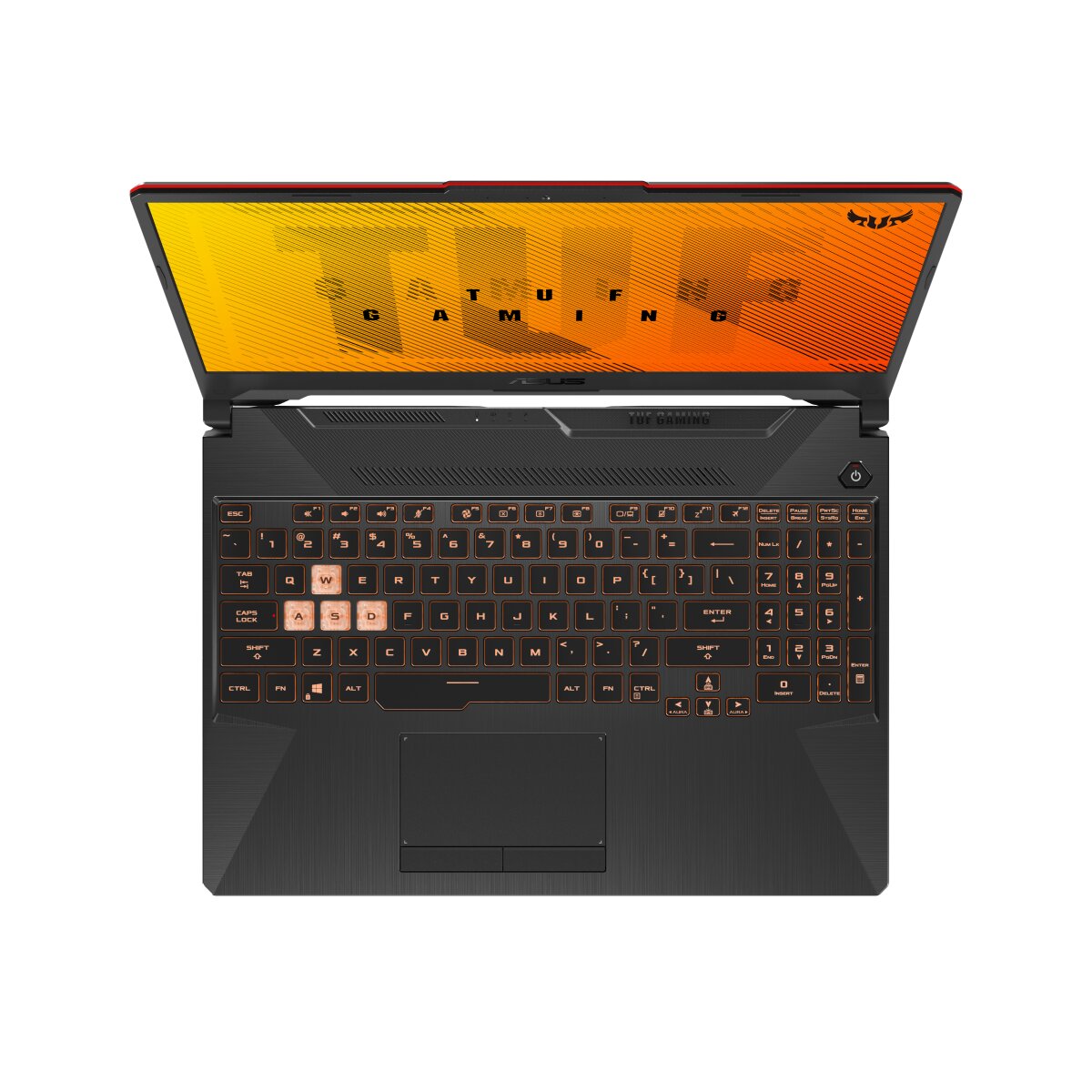

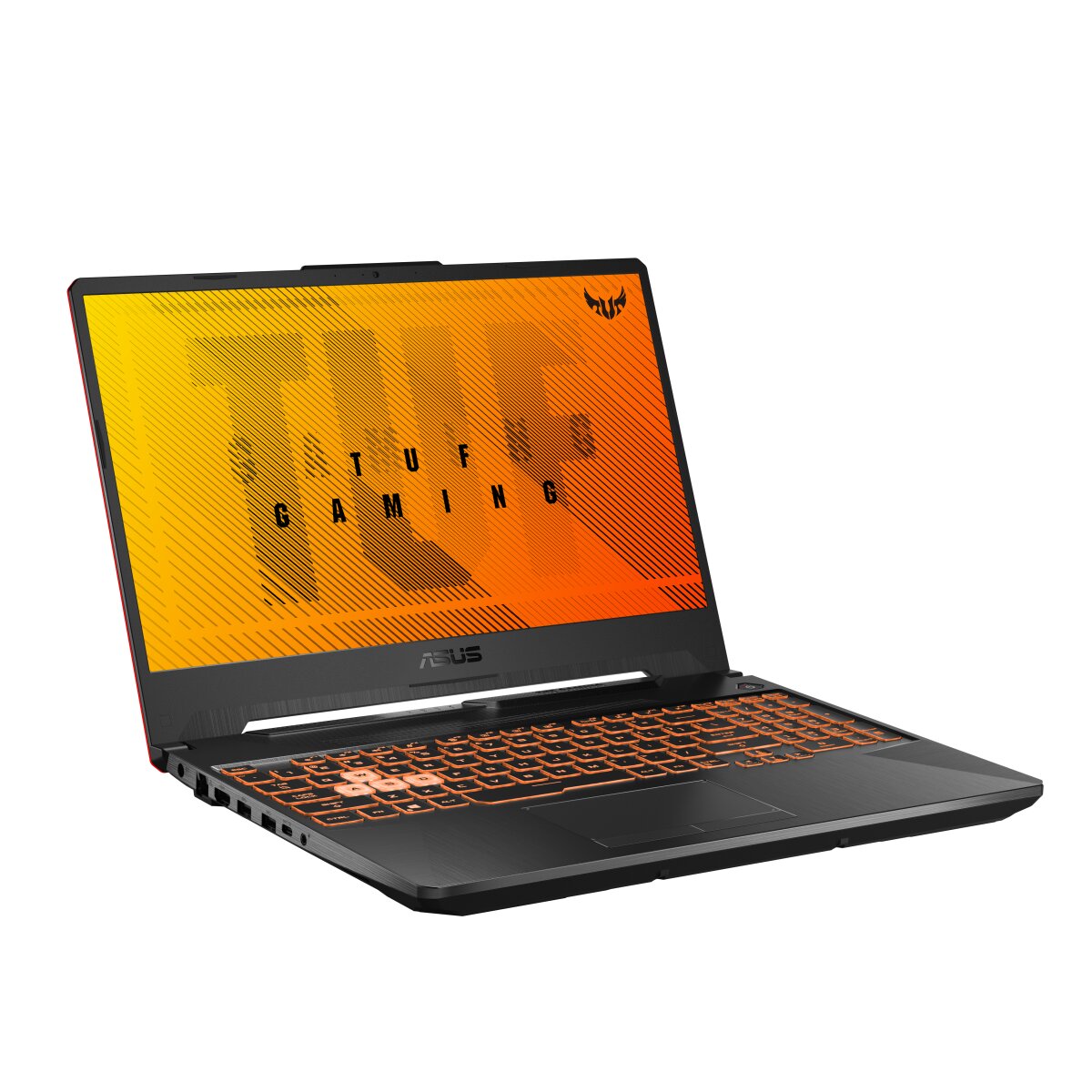

ASUS TUF Gaming FX506LH-DS51-CA RAM upgrade specifications
ASUS TUF Gaming F15 FX506LH-DS51-CA laptop features DDR4-SDRAM memory upgrade specifications with 2x SO-DIMM slots supporting maximum capacity of 32 GB RAM. Memory operates at 2933 MHz frequency. Upgrade configurations are compatible with SO-DIMM form factor modules. Specifications enable memory expansion for enhanced multitasking and performance capabilities on this gaming notebook model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2933 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2933 (PC4-23464) |
| Bandwidth | 23.5 GB/s |
| Laptop Release date | 07 June 2022 |
Additional Notes
- The ASUS TUF Gaming FX506LH-DS51-CA uses SO-DIMM slots, which are laptop-specific form factors that are not interchangeable with desktop DDR4 modules; desktop RAM will not fit physically into these sockets.
- DDR4-2933 MHz modules operate below JEDEC standard DDR4-3200 speeds, indicating the system's memory controller has conservative timing specifications; aftermarket DDR4-3200 modules will downclock to 2933 MHz when installed, preventing performance gains from faster RAM purchases.
- The 2-slot configuration with a 32 GB maximum capacity means each SO-DIMM slot accepts up to 16 GB; users cannot exceed the 32 GB ceiling even with future module releases, establishing a hard upgrade limit.
- Populating both SO-DIMM slots simultaneously may increase thermal output in the memory area; single-channel operation with one populated slot will reduce memory bandwidth by 50% compared to dual-channel configuration, creating a performance trade-off between capacity and speed.
- SO-DIMM modules require more careful handling during installation than desktop RAM due to their smaller contact surface area and lower mechanical retention force; improper seating will cause boot failures without visible physical damage to connectors.
- Any RAM upgrade conducted outside factory service will likely void the standard manufacturer warranty; official ASUS service documentation should be consulted before opening the system for memory replacement.
