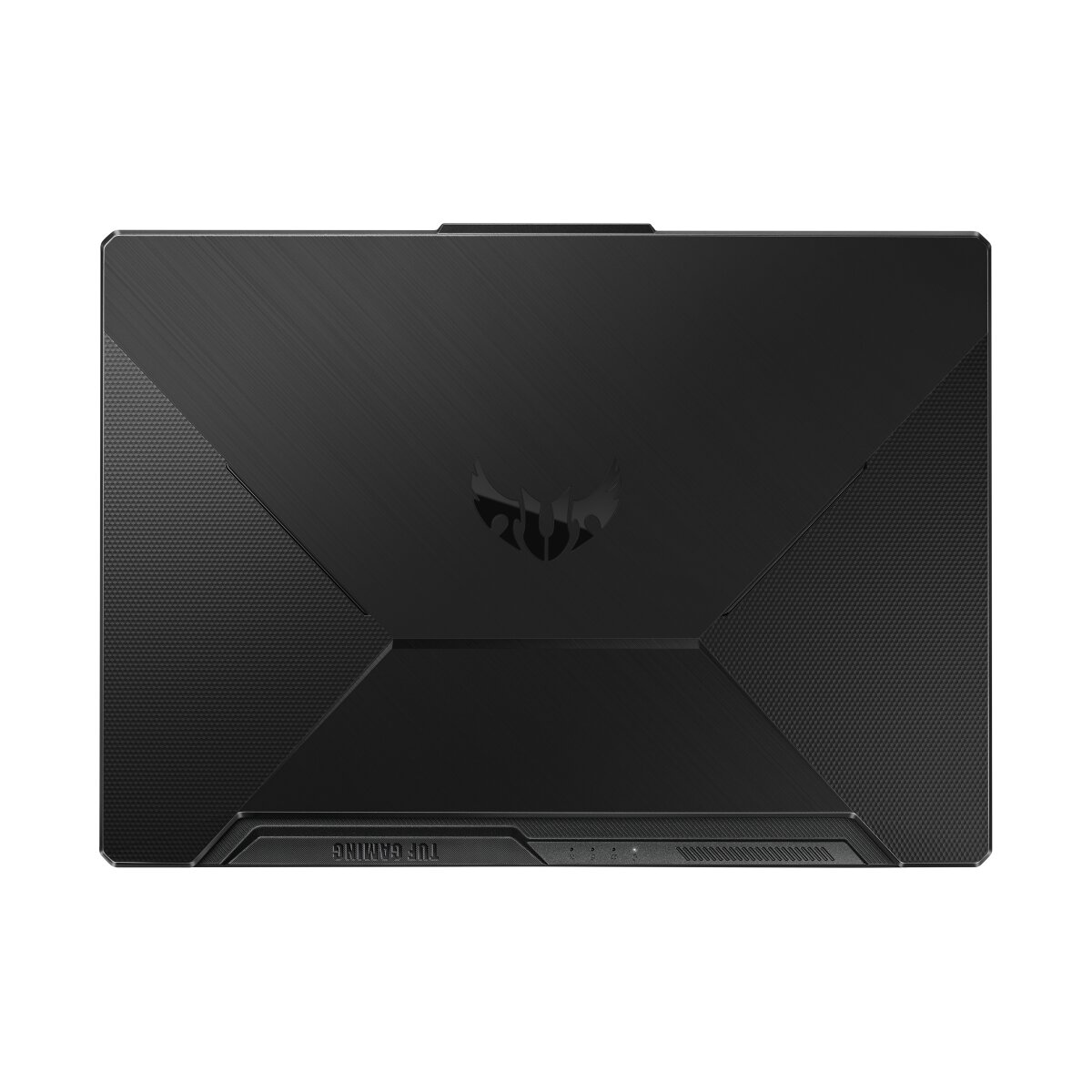

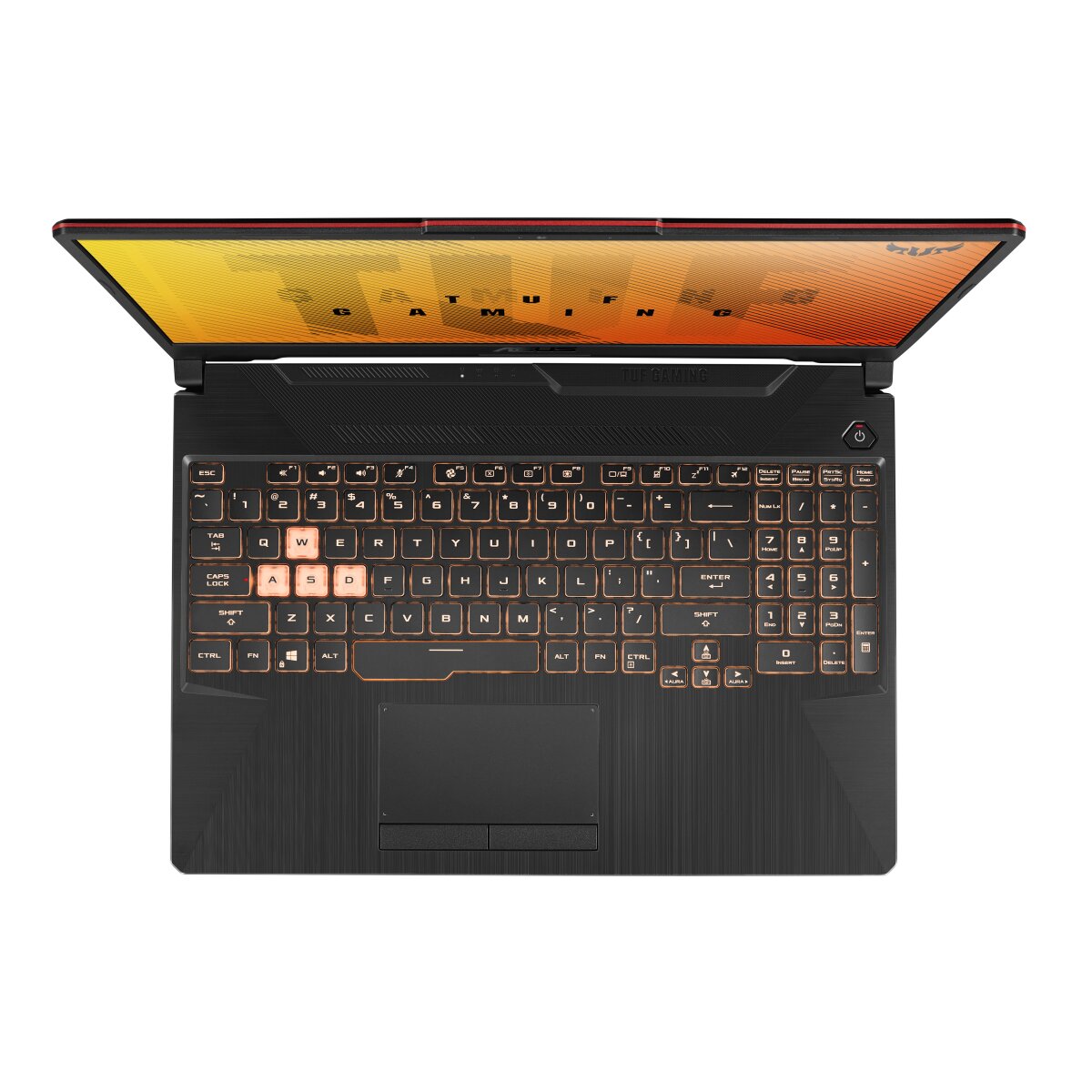

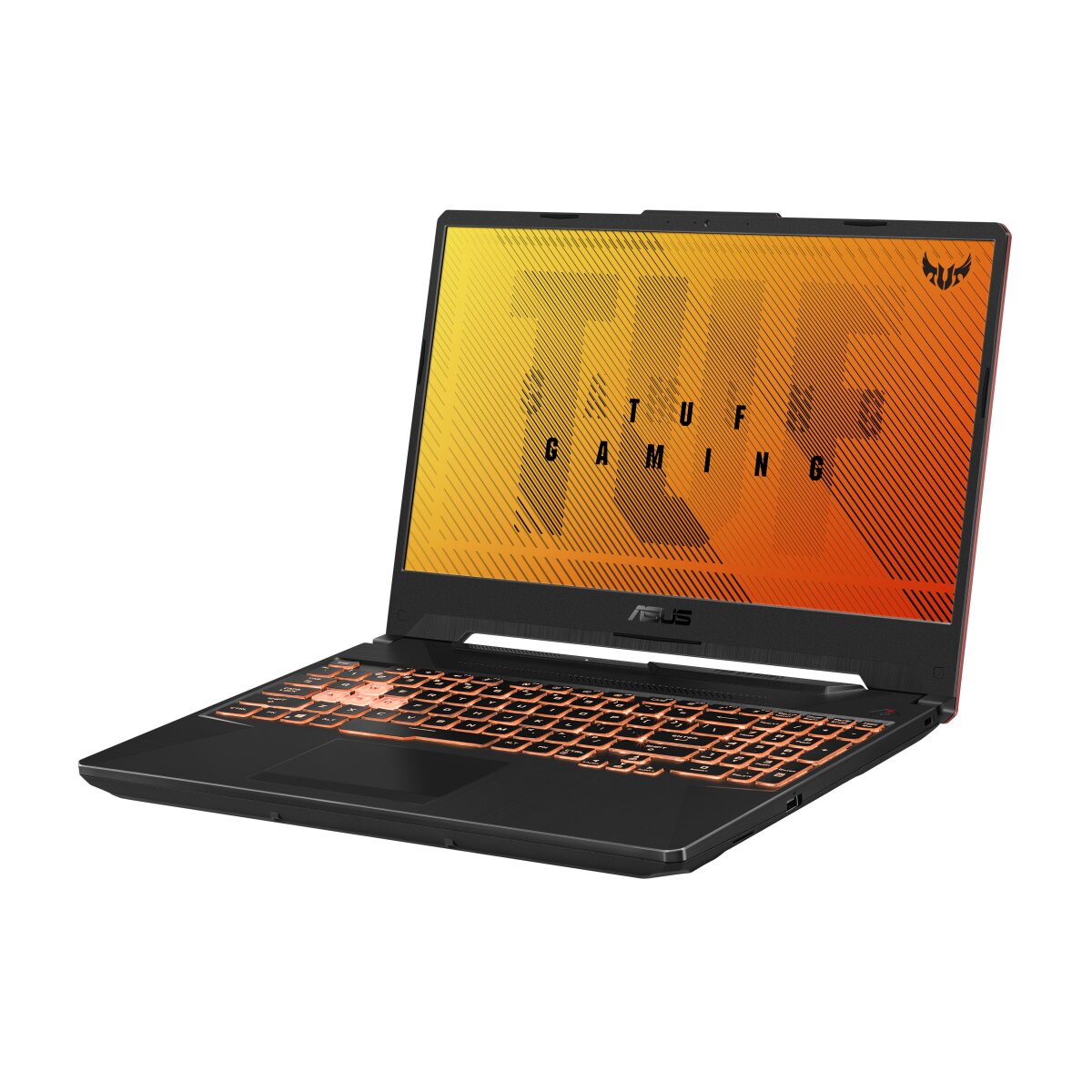

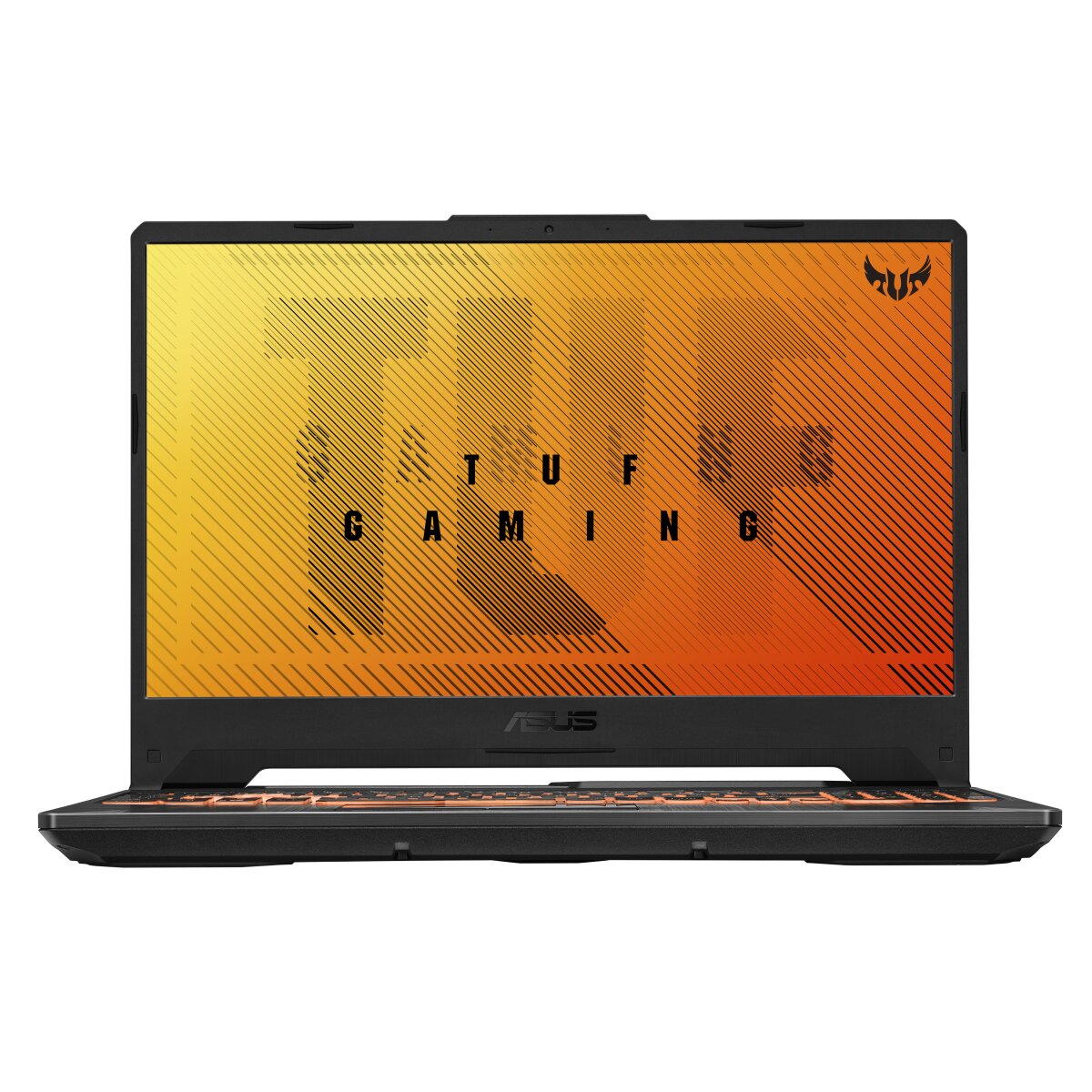

ASUS TUF Gaming FX506LH-HN004 RAM upgrade specifications

ASUS TUF Gaming F15 FX506LH-HN004 memory upgrade specifications include DDR4-SDRAM support with 2x SO-DIMM slots and maximum RAM capacity of 32 GB. Compatible memory modules operate at 2933 MHz frequency. Upgrade slots support SO-DIMM form factor components. Specifications enable significant memory expansion for enhanced multitasking performance on the FX506LH-HN004 laptop model.

Additional Notes

• The ASUS TUF Gaming FX506LH-HN004 accepts DDR4 modules exclusively, preventing the installation of older DDR3 or newer DDR5 memory due to incompatible voltage requirements and physical notch positions.
• Both memory slots support dual-channel operation when populated with matching modules, potentially doubling memory bandwidth compared to single-channel configurations.
• The 32 GB maximum capacity translates to a practical limit of 2 modules at 16 GB each, as SO-DIMM modules larger than 16 GB are not manufactured for DDR4 technology.
• Memory operating at speeds higher than 2933 MHz will automatically downclock to match the supported frequency, eliminating any performance benefit from premium-priced modules rated at 3200 MHz or above.
• SO-DIMM form factor modules measure approximately 67.6 mm in length, substantially shorter than standard desktop DIMM modules, making desktop memory physically incompatible with this laptop chassis.
• Upgrading from single-rank to dual-rank modules at maximum capacity may provide marginal performance improvements in memory-intensive applications, though compatibility depends on the specific memory controller implementation.
• Accessing the memory slots typically requires removing the bottom panel, which may void warranty seals depending on regional warranty policies and service agreements.
• DDR4-2933 operates at 1.2 volts standard, while DDR4-2400 modules designed for 1.2 volts remain compatible, but low-voltage DDR3L modules at 1.35 volts cannot function in DDR4 slots.
• Mixing modules with different latencies will force the system to operate all memory at the slowest timing specifications, potentially reducing performance below the capabilities of faster modules.
• The absence of ECC support in consumer SO-DIMM slots means error-correcting memory modules, while physically compatible, will operate in non-ECC mode without providing data integrity features.
