ASUS TUF Gaming FX506LH-HN004T RAM upgrade specifications
ASUS TUF Gaming F15 FX506LH-HN004T laptop features DDR4-SDRAM memory upgrade specifications with 2x SO-DIMM slots supporting maximum capacity of 32 GB RAM. Compatible memory operates at 2933 MHz frequency. Upgrade slots accommodate SO-DIMM form factor memory modules. Maximum specifications allow installation of up to 32 GB total RAM across available upgrade slots.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2933 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2933 (PC4-23464) |
| Bandwidth | 23.5 GB/s |
| Laptop Release date | 01 March 2021 |
Additional Notes
- The dual slot configuration allows for a symmetrical dual channel architecture which improves integrated graphics processing and system memory throughput.
- Installing 3200 MHz modules results in automatic downclocking to remain within the native 2933 MHz bus speed limitation of the processor chipset.

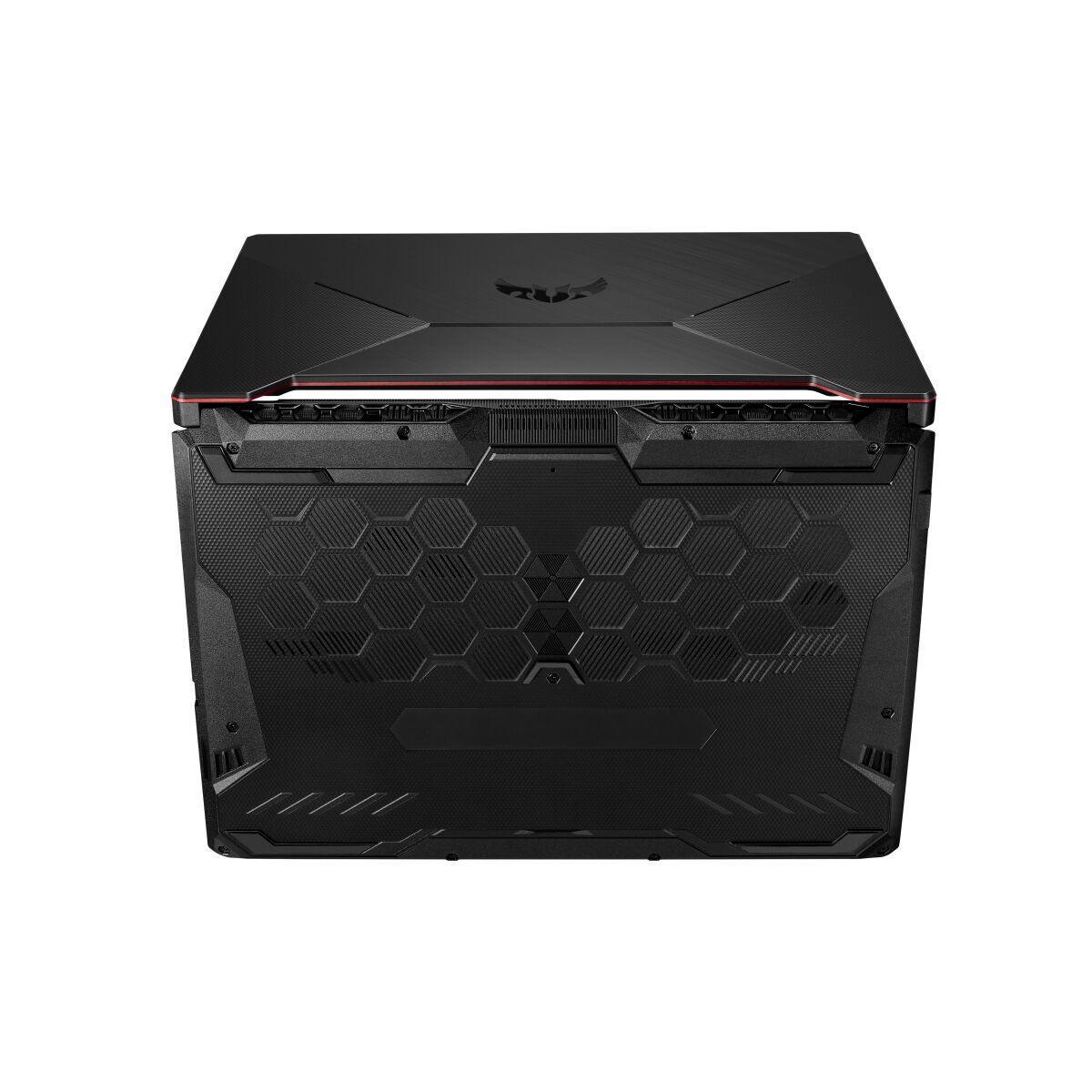

- Accessing the SO-DIMM slots requires the removal of the entire lower chassis panel which may involve various screw lengths and plastic retention clips.
- The ASUS TUF Gaming FX506LH-HN004T maintains stability at maximum capacity only when using non-ECC unbuffered modules.
- Upgrading to the 32 GB ceiling necessitates the replacement of any existing pre-installed modules since no additional expansion slots are available beyond the primary 2 banks.
- Latency performance depends on the SPD profile of the replacement sticks as the BIOS typically lacks manual voltage or timing adjustments for overclocking.
- Physical clearance within the compact housing restricts the use of memory modules equipped with thick spreaders or large heat sinks.
