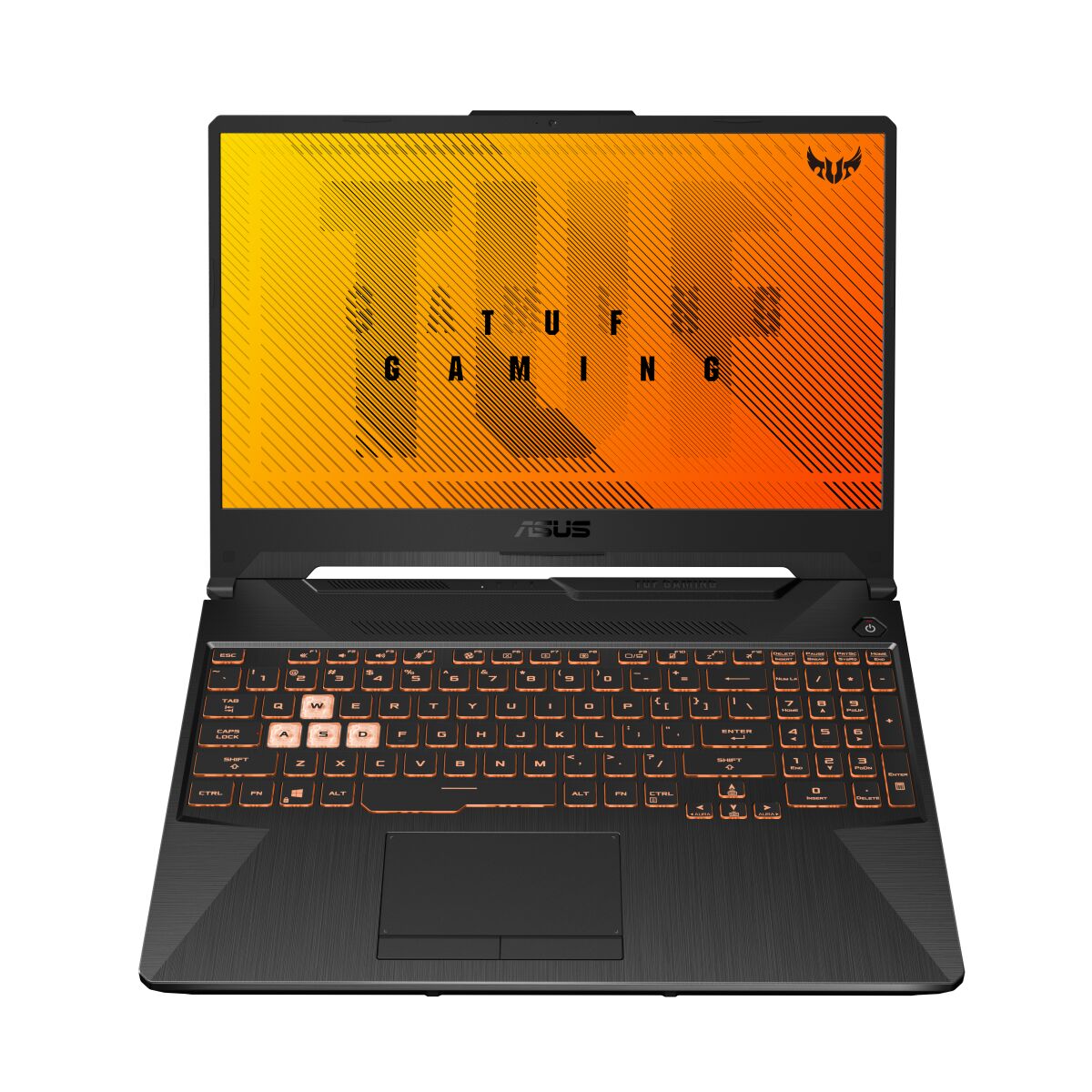

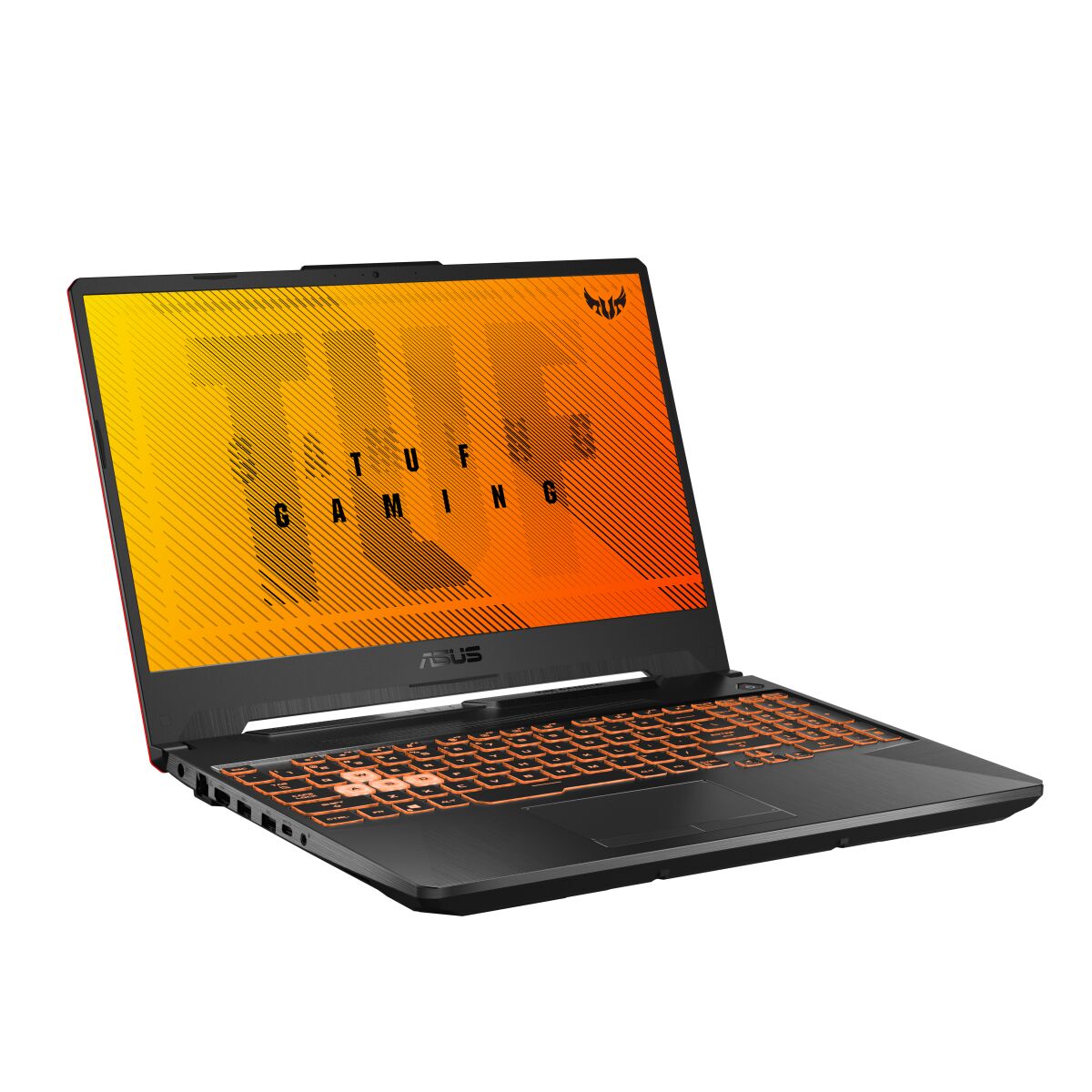

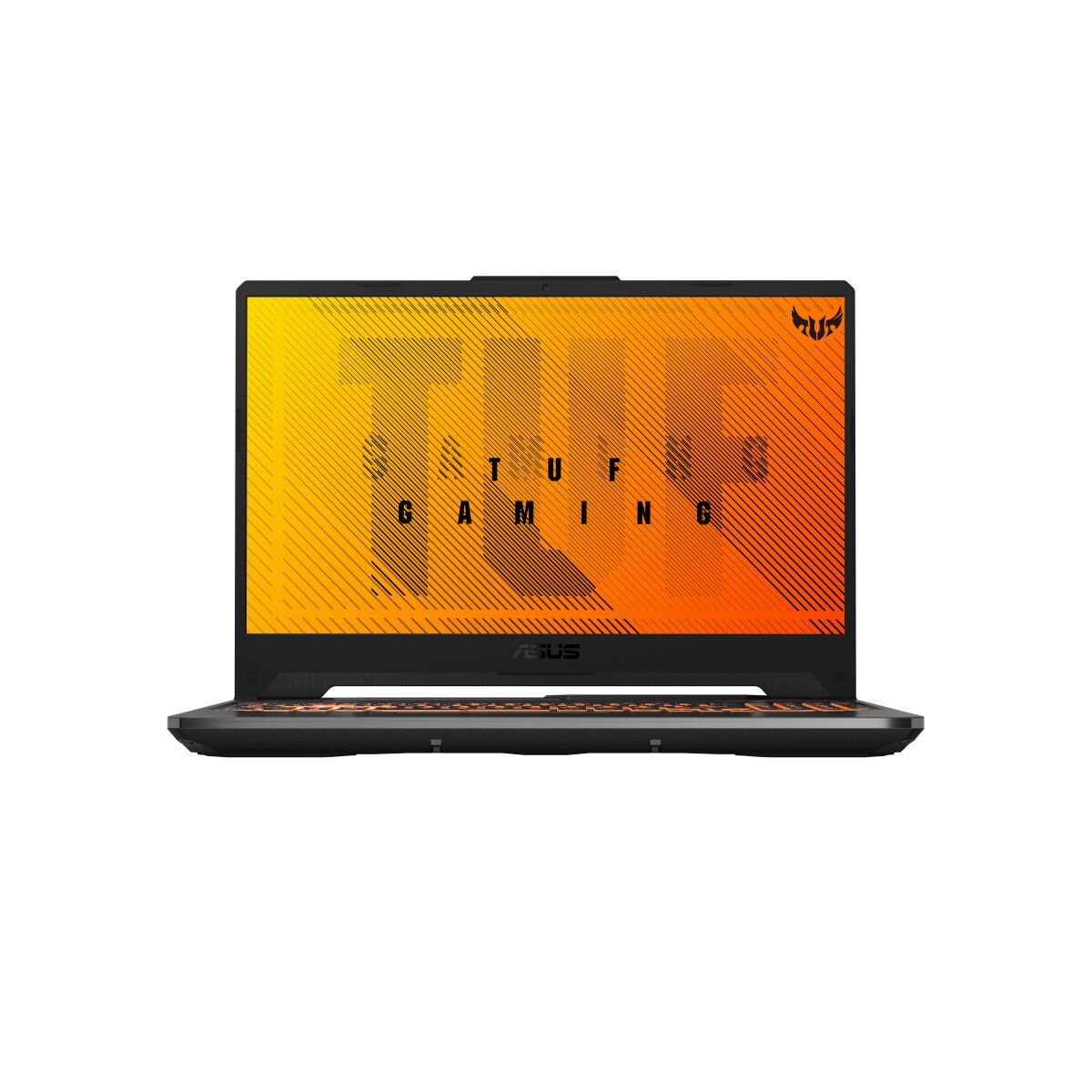

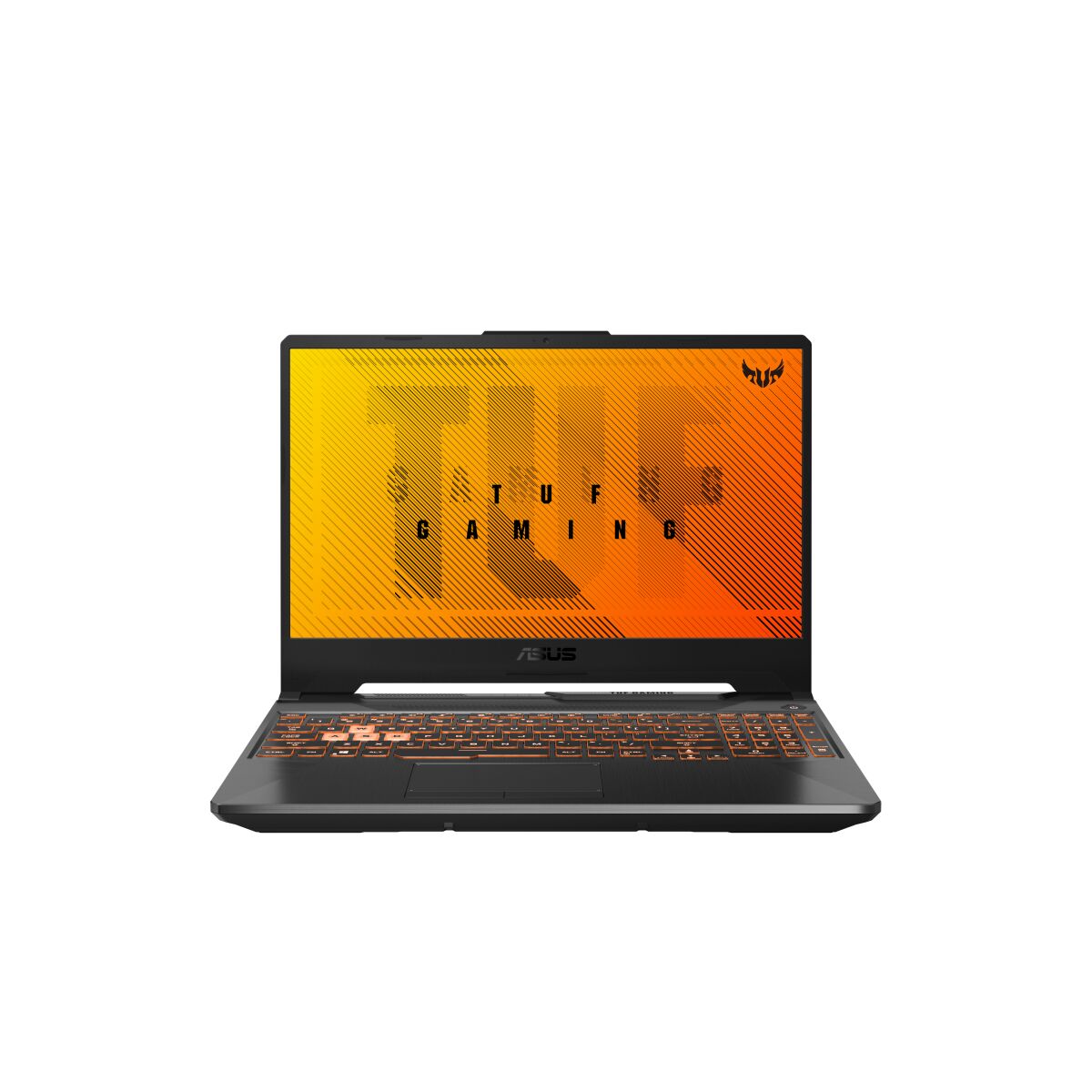

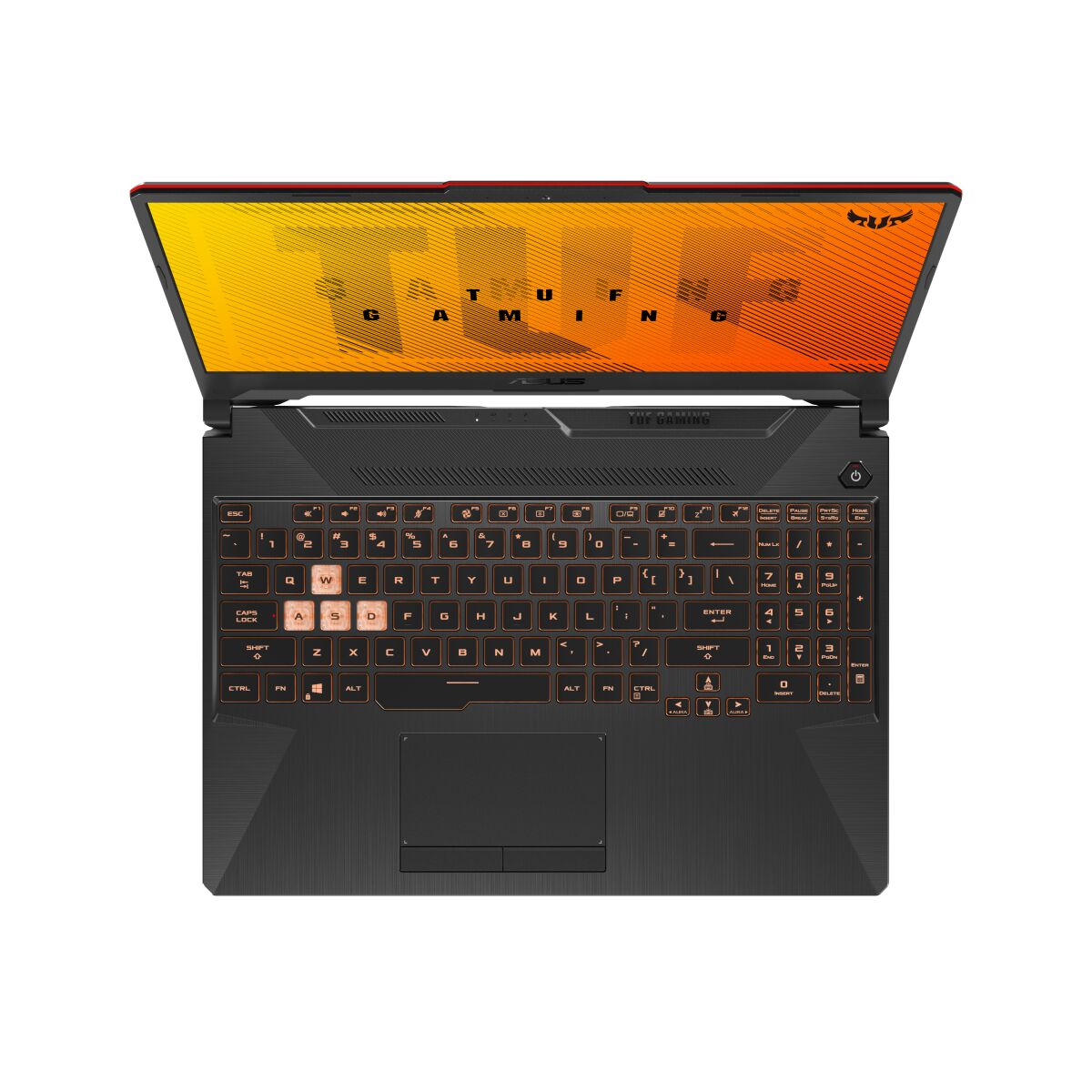

ASUS TUF Gaming FX506LH-HN004W-BE RAM upgrade specifications
The ASUS TUF Gaming F15 FX506LH-HN004W-BE laptop features DDR4-SDRAM memory upgrade capabilities with 2x SO-DIMM slots. Maximum supported RAM capacity reaches 32 GB total. Memory specifications include DDR4 modules at 2933 MHz frequency operating on SO-DIMM form factor. Compatible upgrades must match DDR4-SDRAM specifications for optimal performance with the FX506LH-HN004W-BE model. Current configuration supports dual-channel memory architecture through available SO-DIMM upgrade slots.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2933 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2933 (PC4-23464) |
| Bandwidth | 23.5 GB/s |
| Laptop Release date | 10 January 2022 |
Additional Notes
- The dual slot configuration allows for a symmetrical dual channel architecture which doubles the available memory bandwidth compared to single module setups.
- Installing modules with frequencies higher than 2933 MHz results in automatic downclocking to match the system bus limitations of the ASUS TUF Gaming FX506LH-HN004W-BE hardware.
- Upgrading to the 32 GB maximum requires the removal of all existing factory modules because no additional unoccupied slots are available for expansion.
- The use of SO-DIMM form factor components necessitates specific low voltage 1.2V DDR4 modules to ensure thermal stability within the compact chassis.
- Latency performance depends on matching the CAS latency of both modules to prevent the system from defaulting to the timings of the slowest installed stick.
- Accessing the memory slots involves removing the base plate which exposes internal cooling components to potential electrostatic discharge risks during installation.
