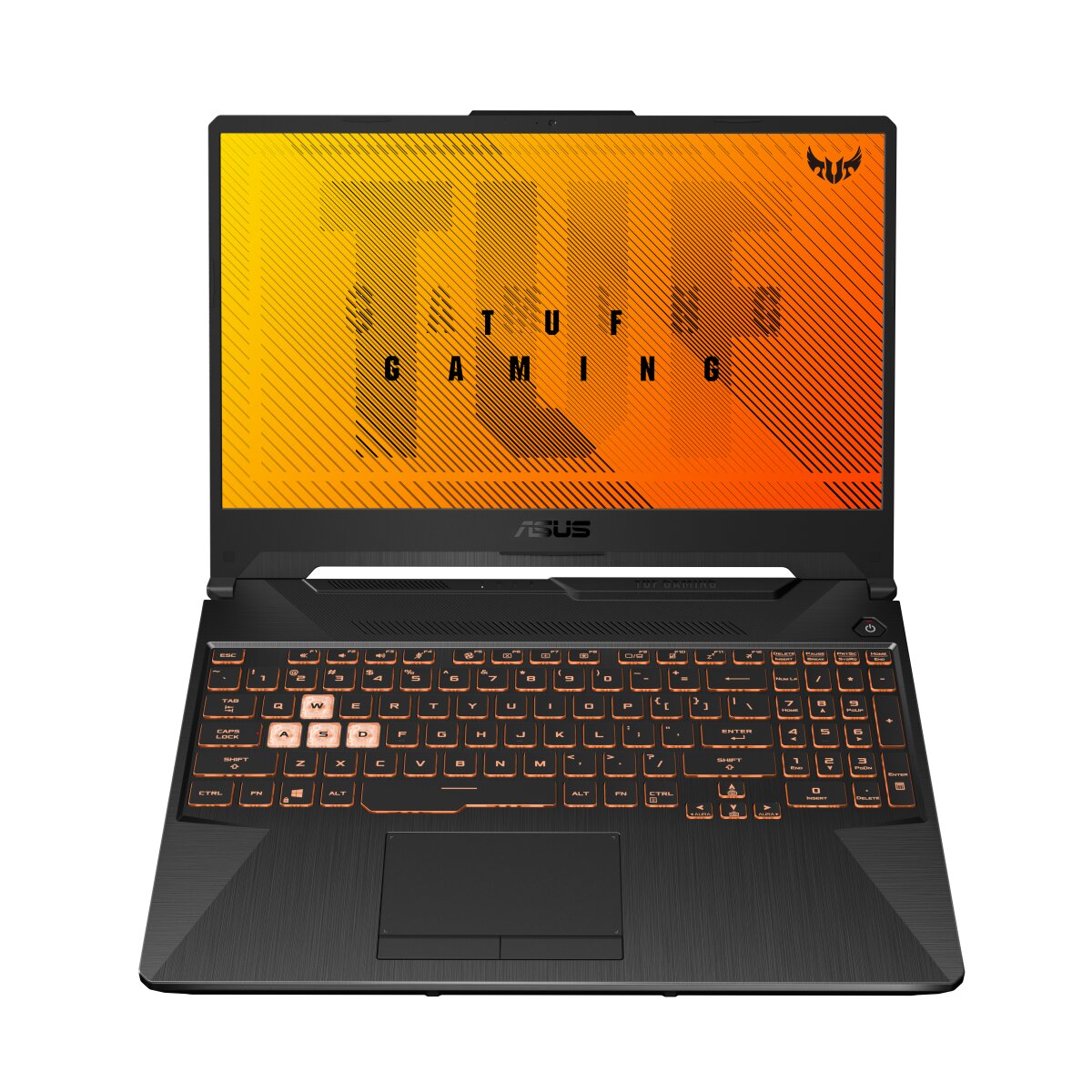

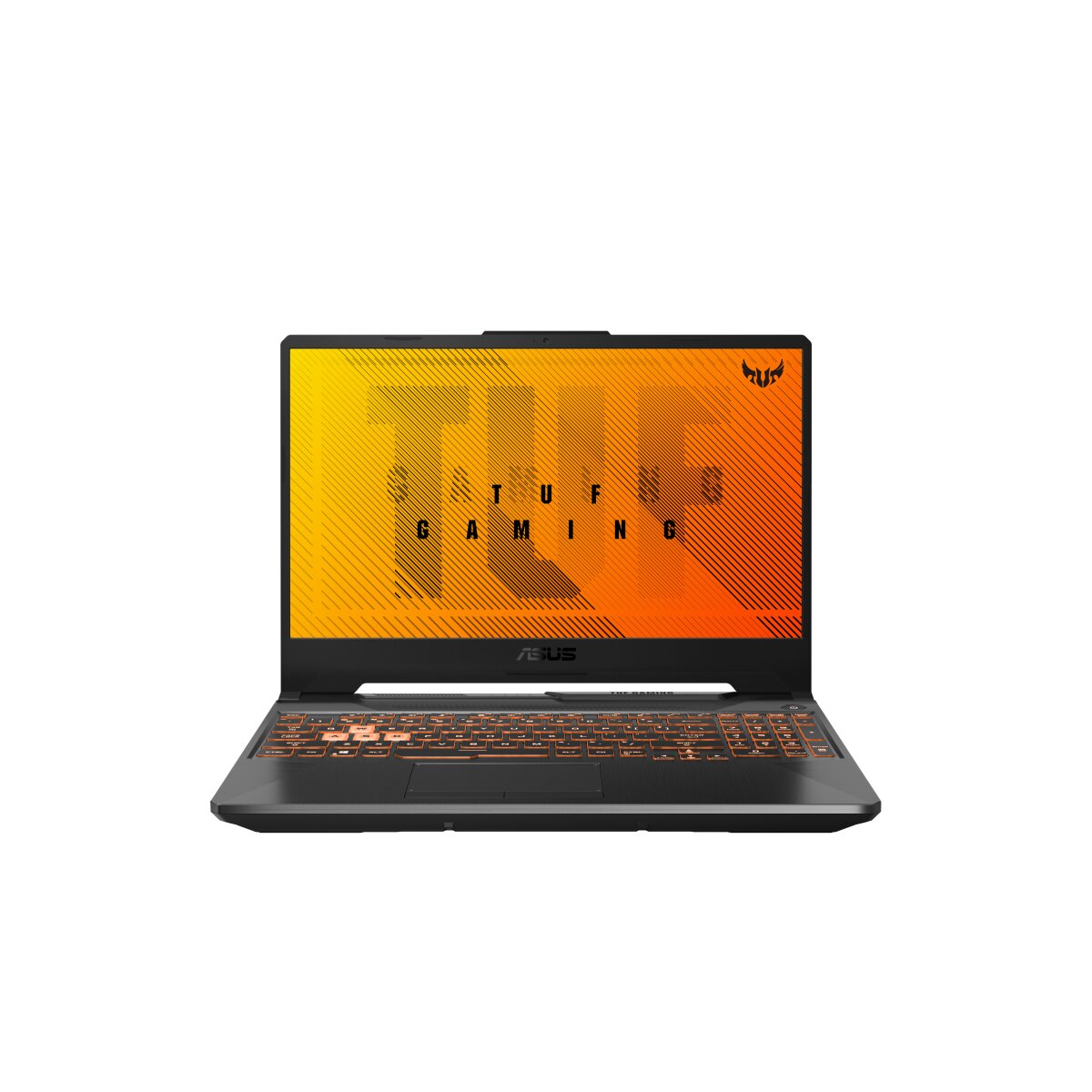

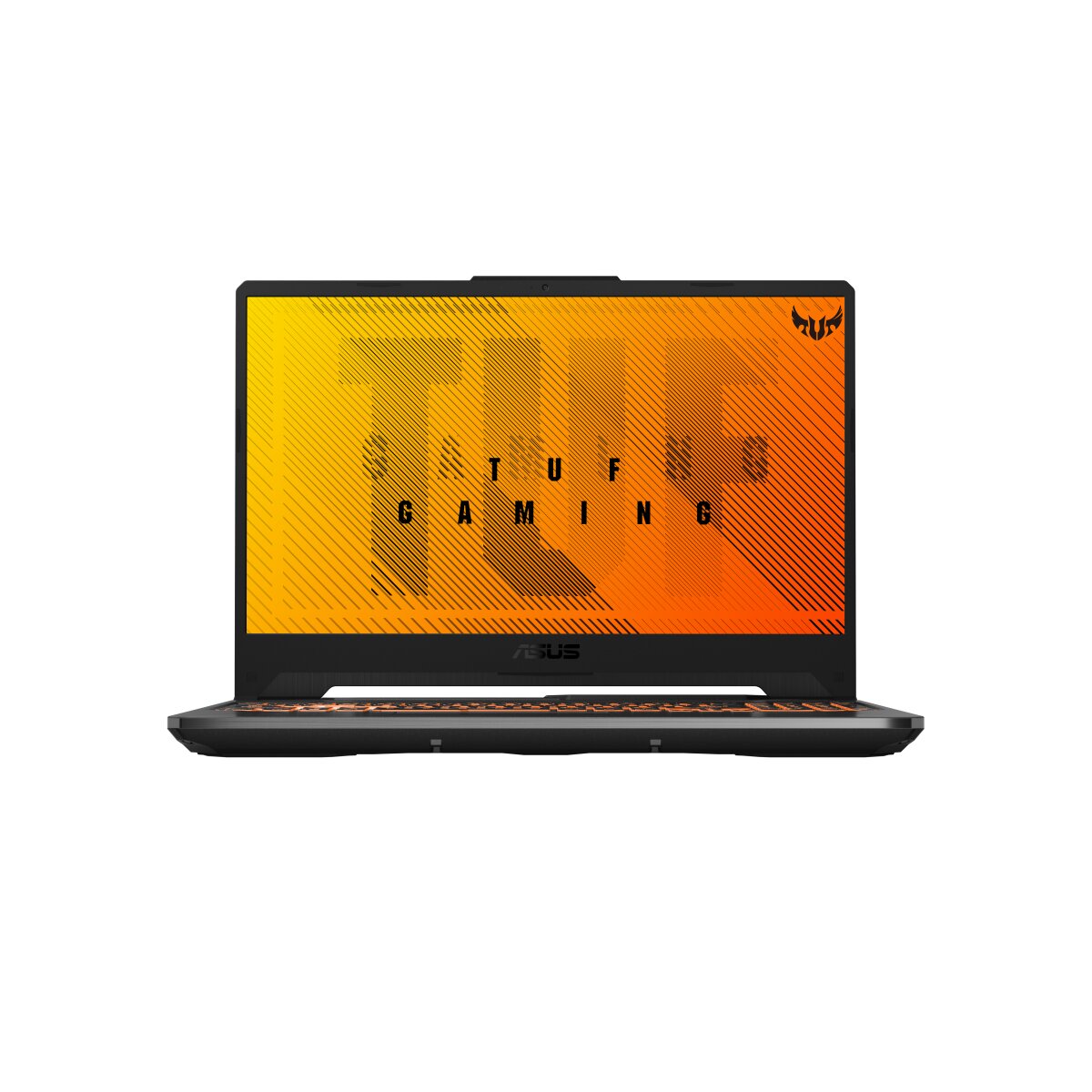

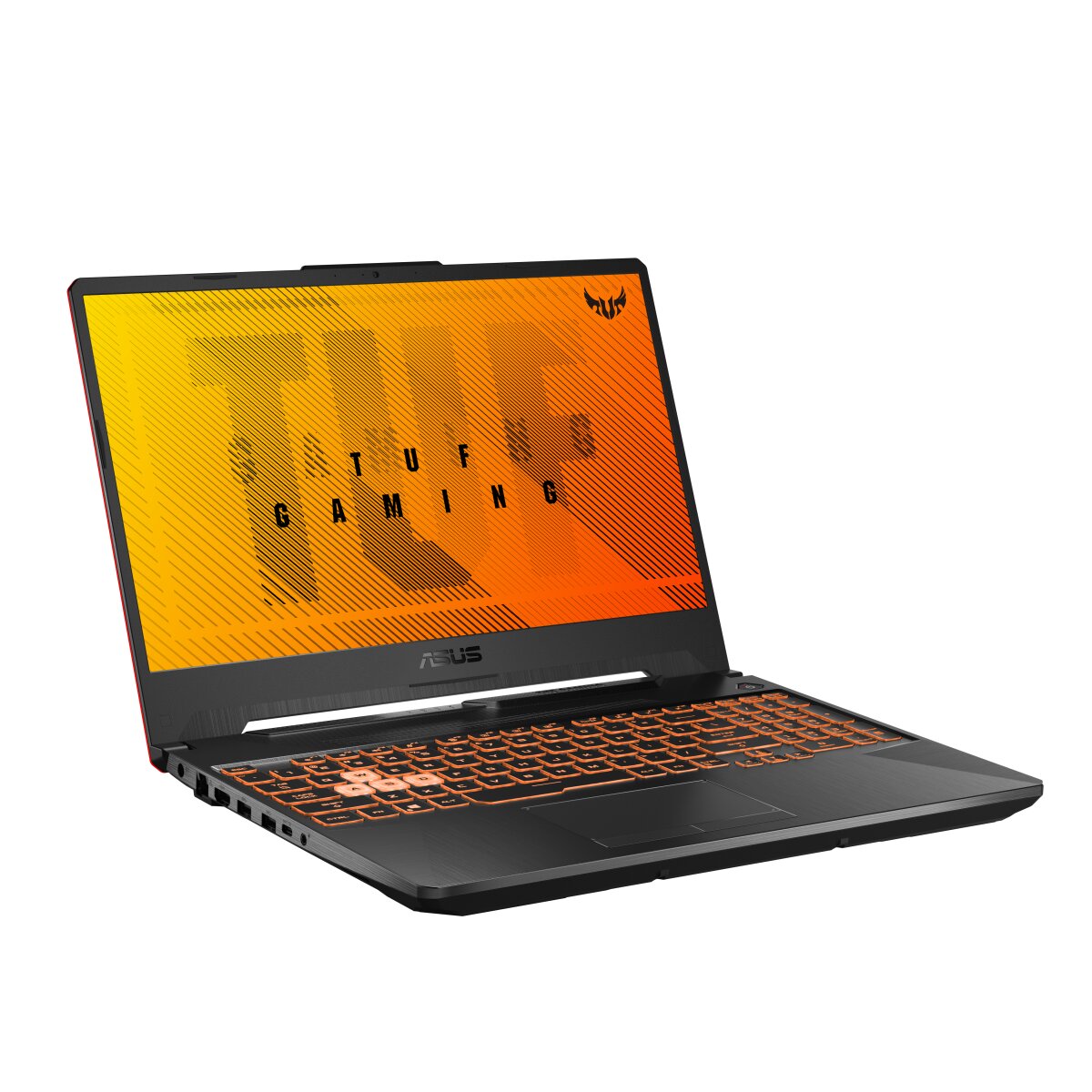

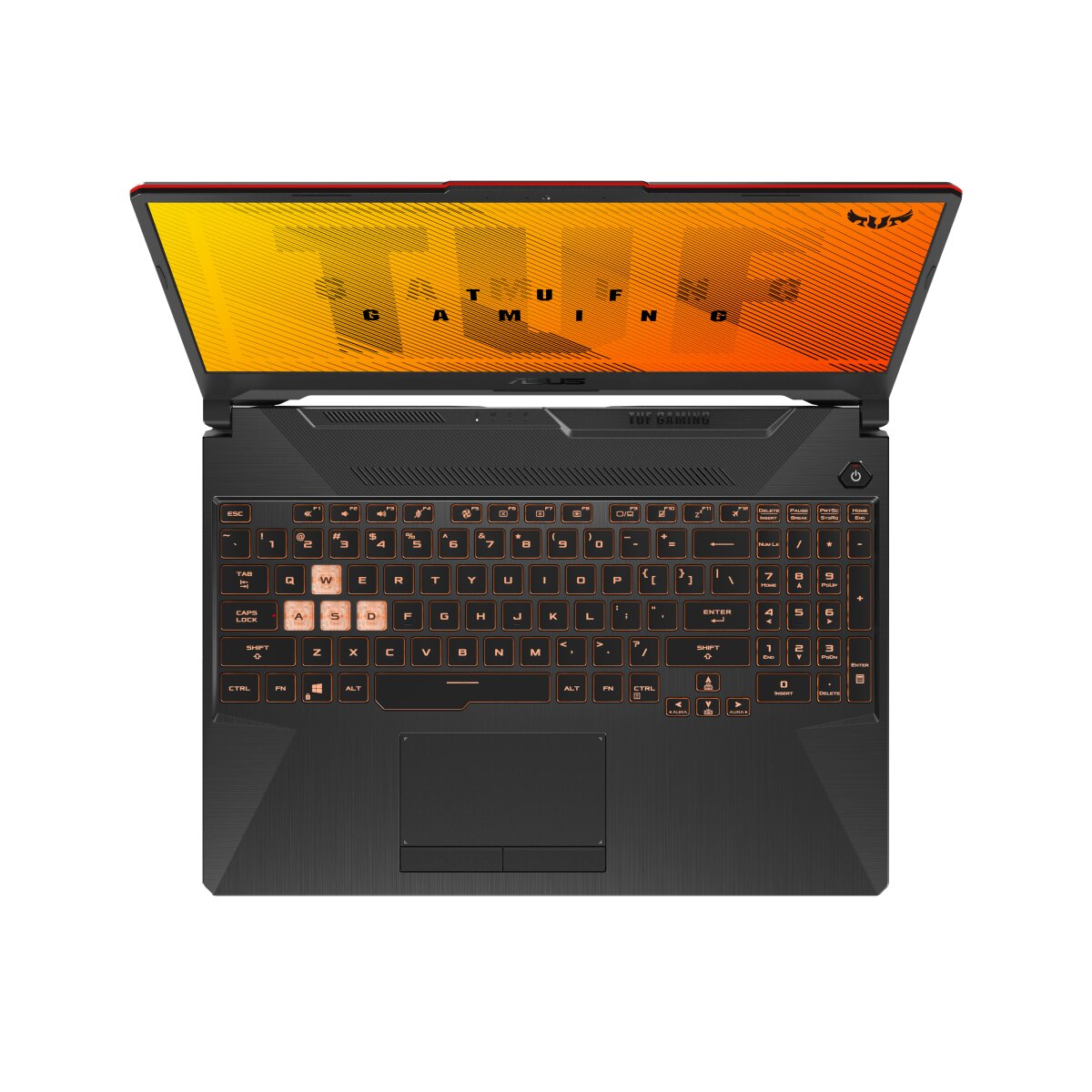

ASUS TUF Gaming FX506LHB-HN345W RAM upgrade specifications
ASUS TUF Gaming F15 model FX506LHB-HN345W accommodates DDR4-SDRAM memory upgrades through two SO-DIMM slots. The laptop supports maximum RAM capacity of 32 GB, with compatible memory operating at 2933 MHz frequency. Current specifications enable memory expansion via the available upgrade slots, allowing users to enhance system performance by installing additional SO-DIMM modules up to the maximum supported capacity.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2933 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2933 (PC4-23464) |
| Bandwidth | 23.5 GB/s |
| Laptop Release date | 28 September 2022 |
Additional Notes
- Dual channel memory architecture is active only when both slots are occupied by modules of matched capacity and timing.
- Installing modules with frequencies above 2933 MHz results in automatic downclocking to the motherboard limit.
- Accessing the SO-DIMM slots on the ASUS TUF Gaming FX506LHB-HN345W requires the removal of the entire base plate which may expose sensitive internal ribbons.
- Potential throughput bottlenecks occur during heavy multitasking if only 1 slot is utilized due to single channel bandwidth limitations.
- Upgrading beyond the 32 GB threshold is restricted by the BIOS firmware despite hardware controller capabilities.
- The physical height of the RAM modules must adhere to standard SO-DIMM profiles to avoid contact with the bottom chassis plate or heat pipes.
- Mixing modules with different CAS latency values forces the system to operate at the slowest common denominator.
- Voltage compatibility must be verified at 1.2V to prevent thermal instability or boot failures in this specific architecture.
