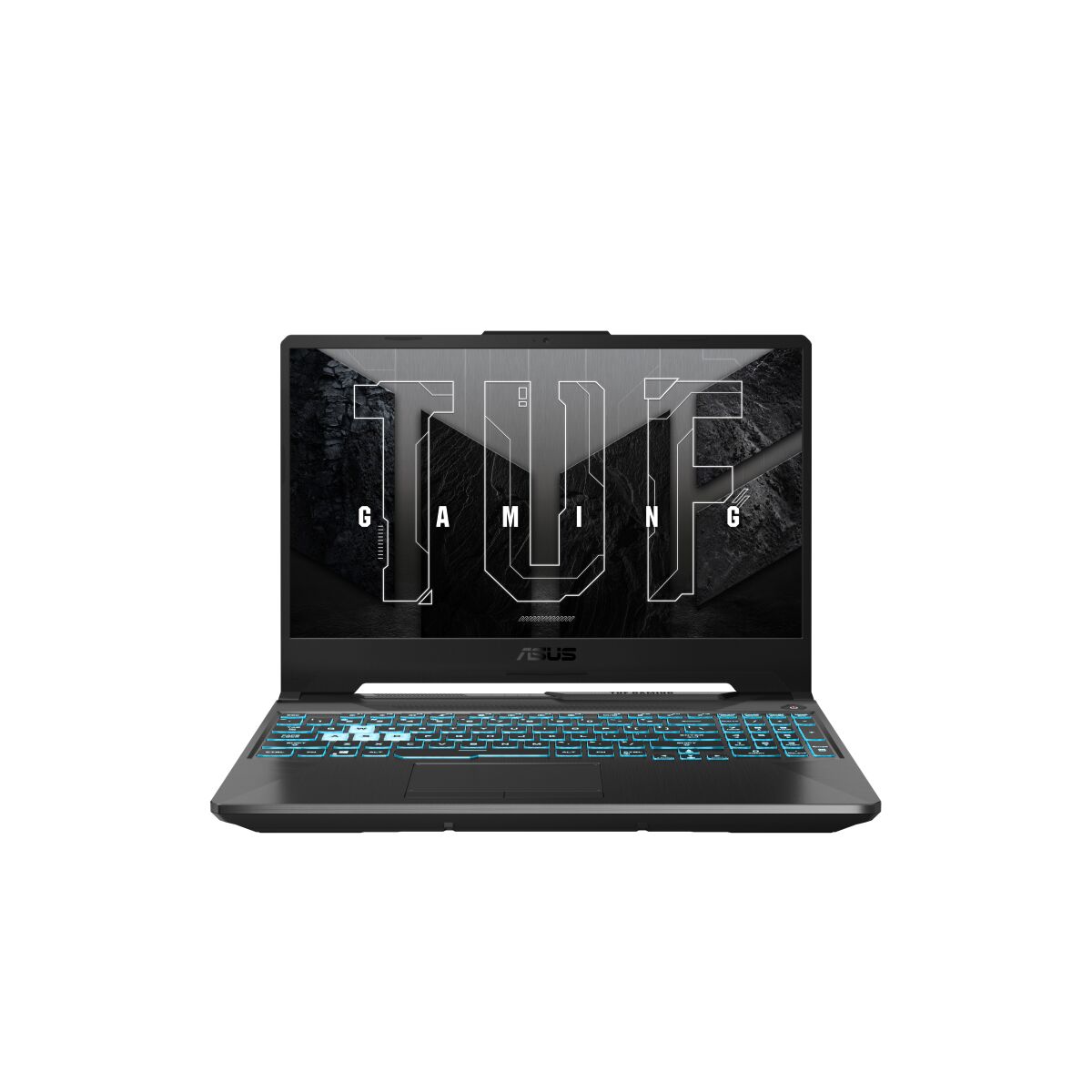

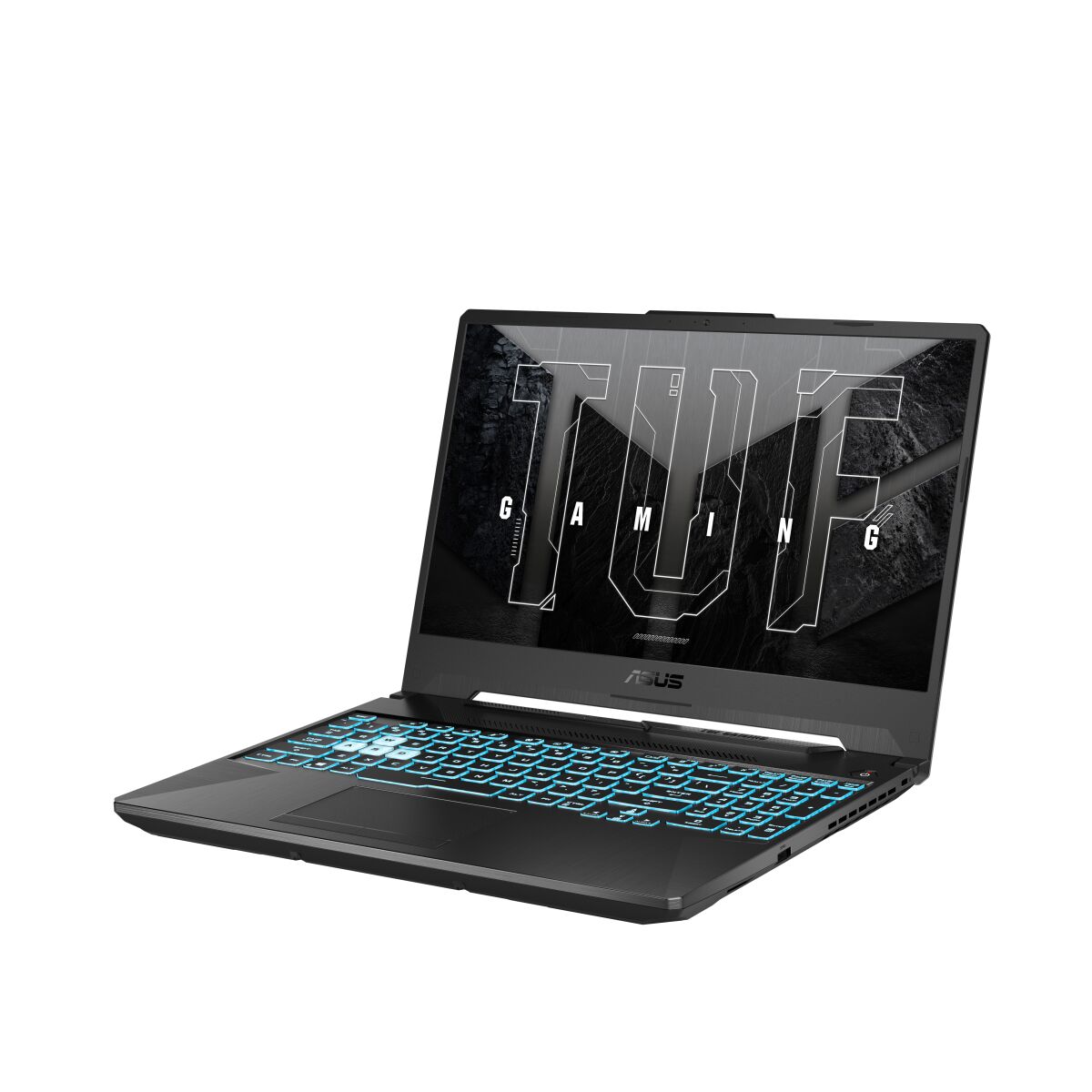

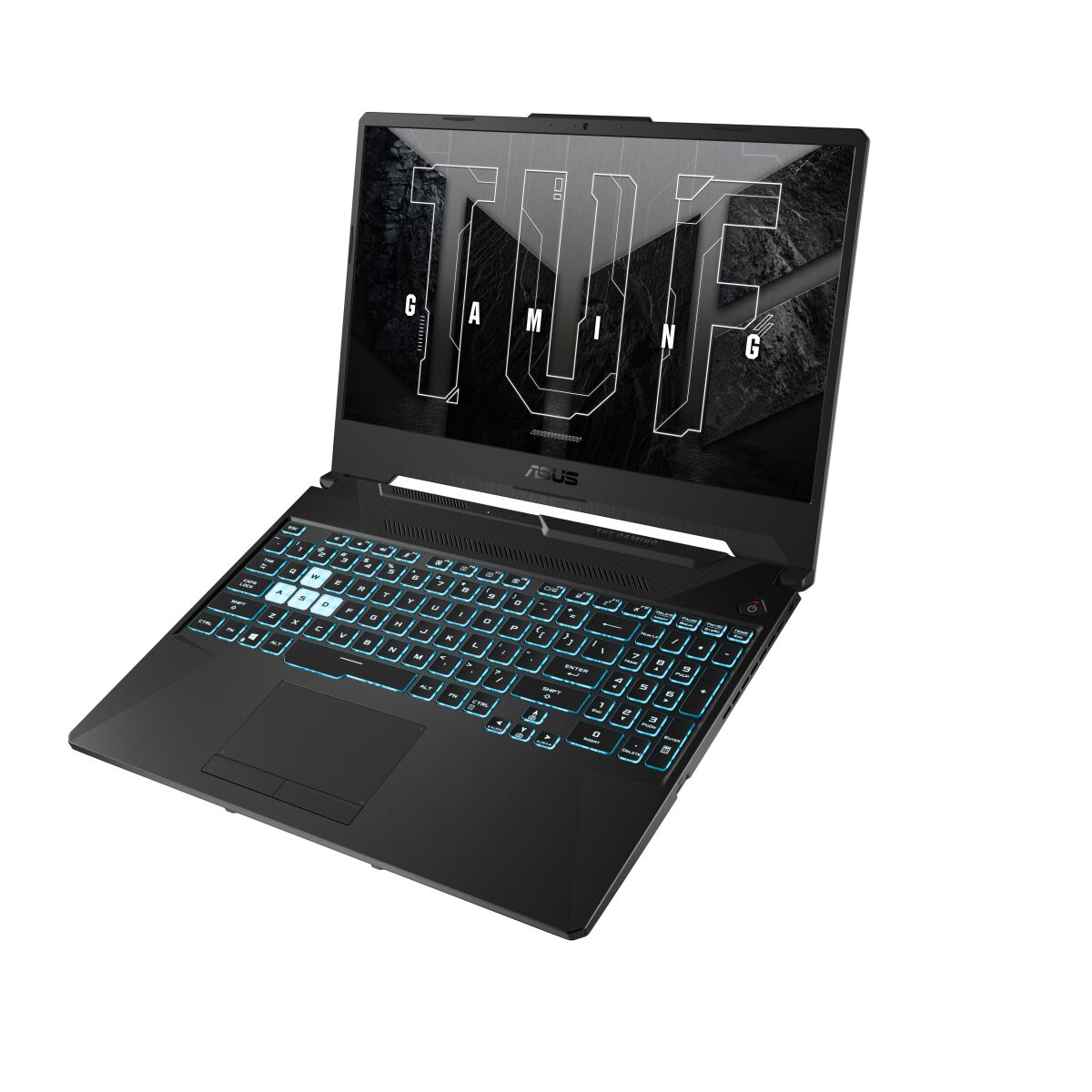

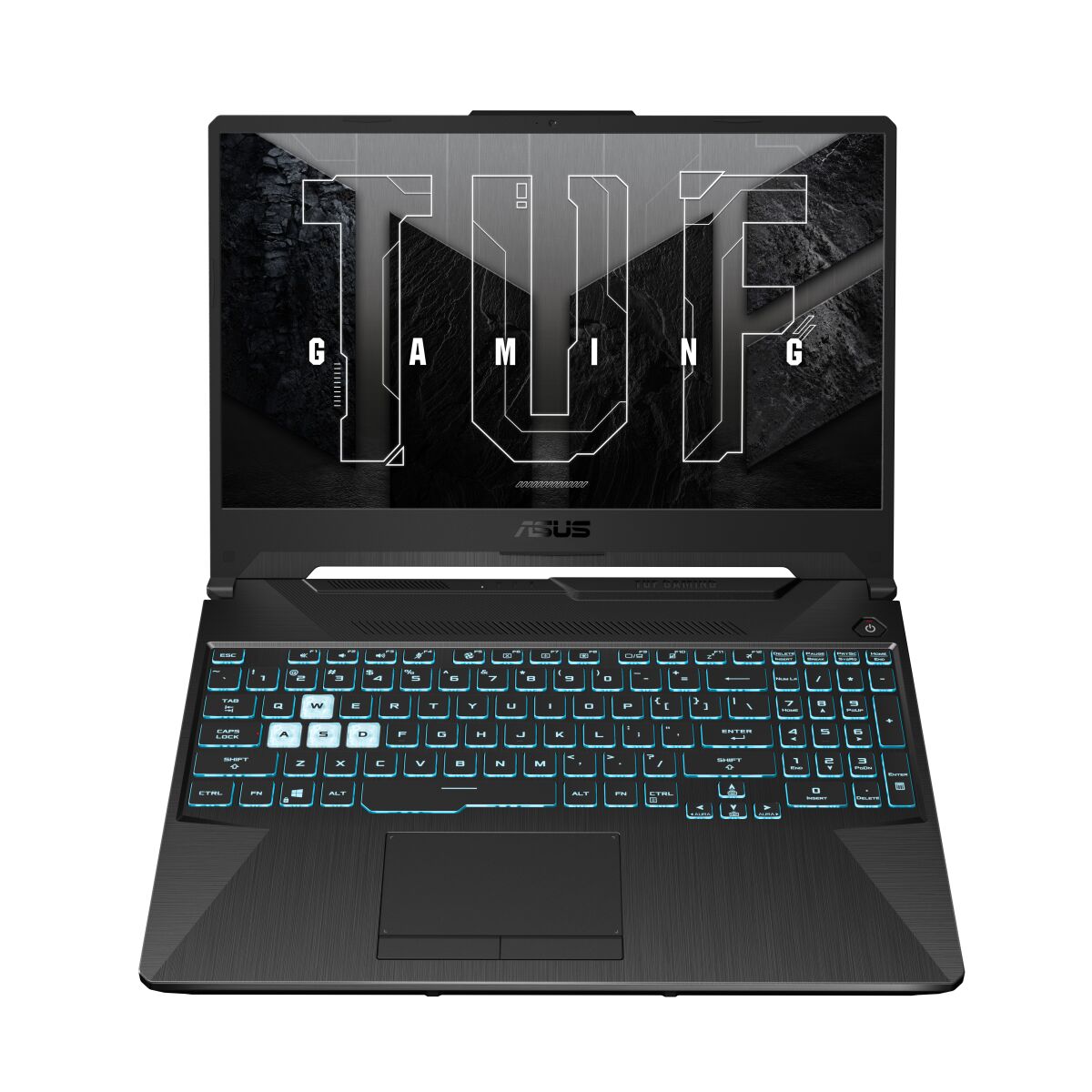

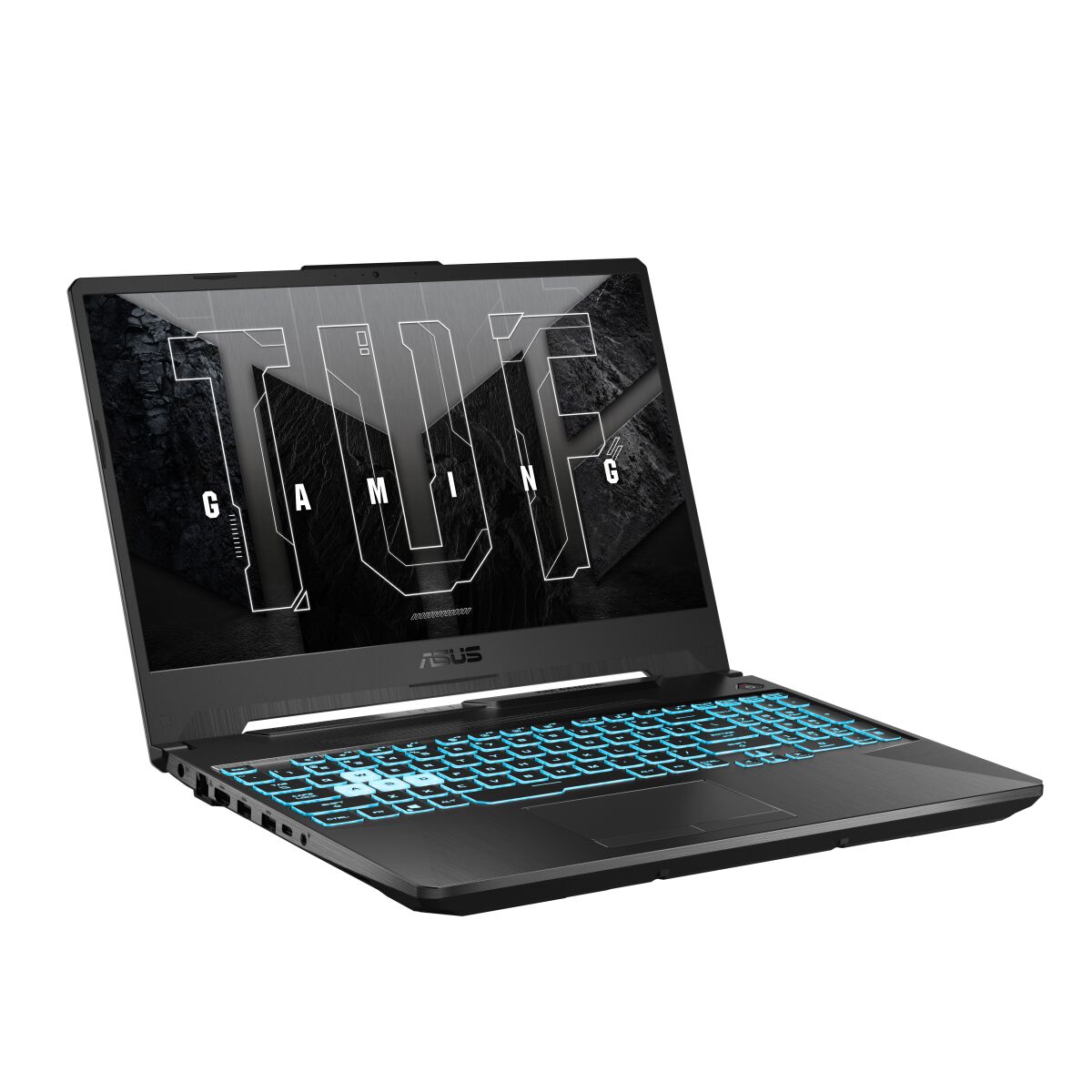

ASUS TUF Gaming TUF506HC-HN088 RAM upgrade specifications
The ASUS TUF Gaming F15 series model TUF506HC-HN088 features DDR4-SDRAM memory upgrade specifications. The laptop contains 2x SO-DIMM slots for memory expansion. Maximum compatible RAM capacity reaches 32 GB total. Memory modules operate at 3200 MHz frequency. Upgrades utilize SO-DIMM form factor modules. Specifications support DDR4-SDRAM technology for enhanced system performance and multitasking capabilities.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 09 March 2022 |
Additional Notes
- The presence of 2 SO-DIMM slots allows for a dual-channel memory configuration which doubles the theoretical bandwidth available to the processor compared to a single-module setup.
- Upgrading the ASUS TUF Gaming F15 TUF506HC-HN088 requires 260-pin modules to fit the physical interface of the motherboard.
- Installing a single 32 GB module prevents the system from reaching its maximum supported capacity due to the 2-slot architecture and total firmware limit.
- The hardware architecture lacks support for XMP profiles so any replacement memory must have a native JEDEC profile of 3200 MHz to operate at the rated speed without manual BIOS adjustments.
- Exceeding the 32 GB threshold may result in a failure to POST as the memory controller is hardware-limited to this specific density.
- Latency performance depends on matching the CAS latency of both modules because the system will default to the slowest timings present across both slots.
- Accessing the memory slots requires the removal of the bottom chassis panel which exposes internal components to potential electrostatic discharge risks during the installation process.
