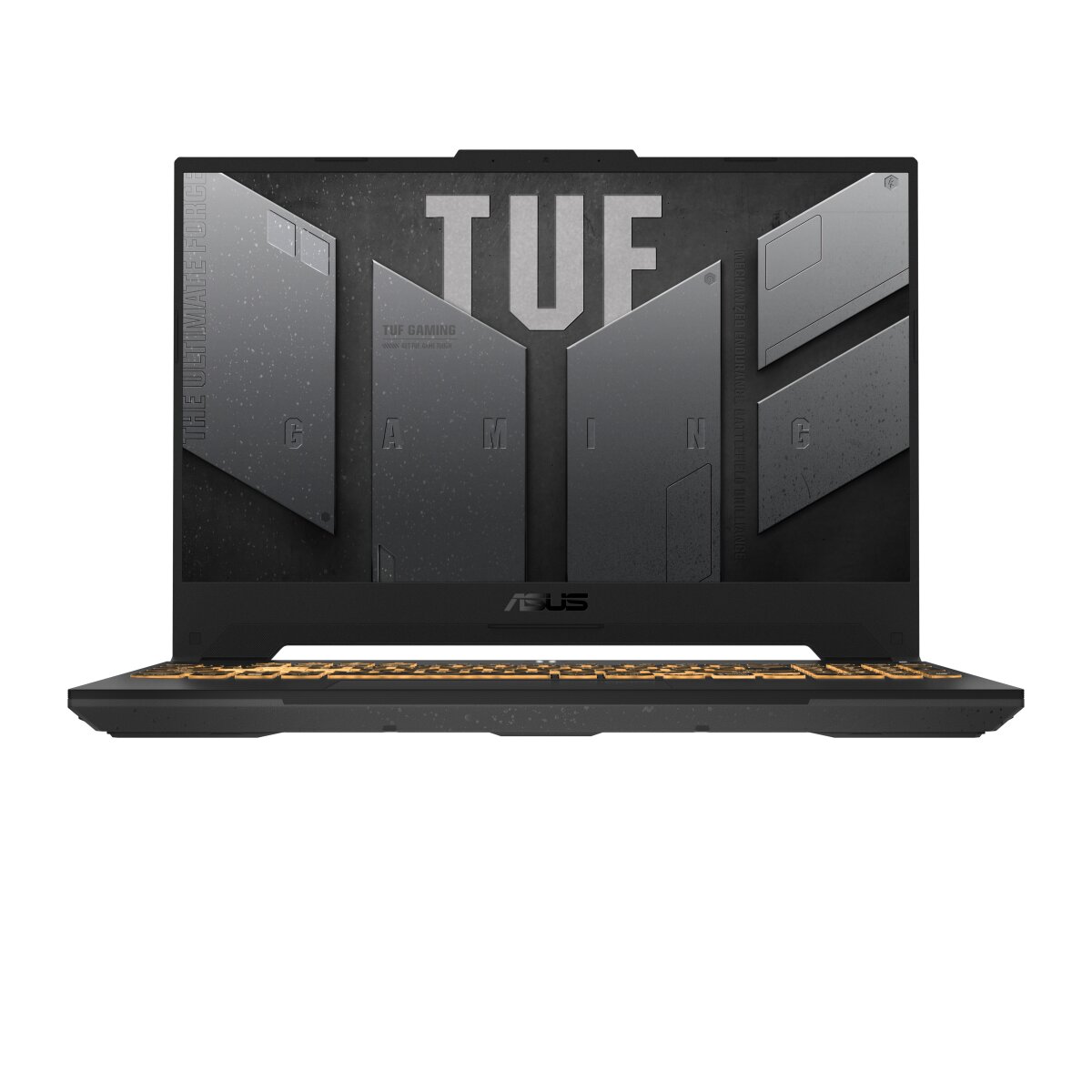

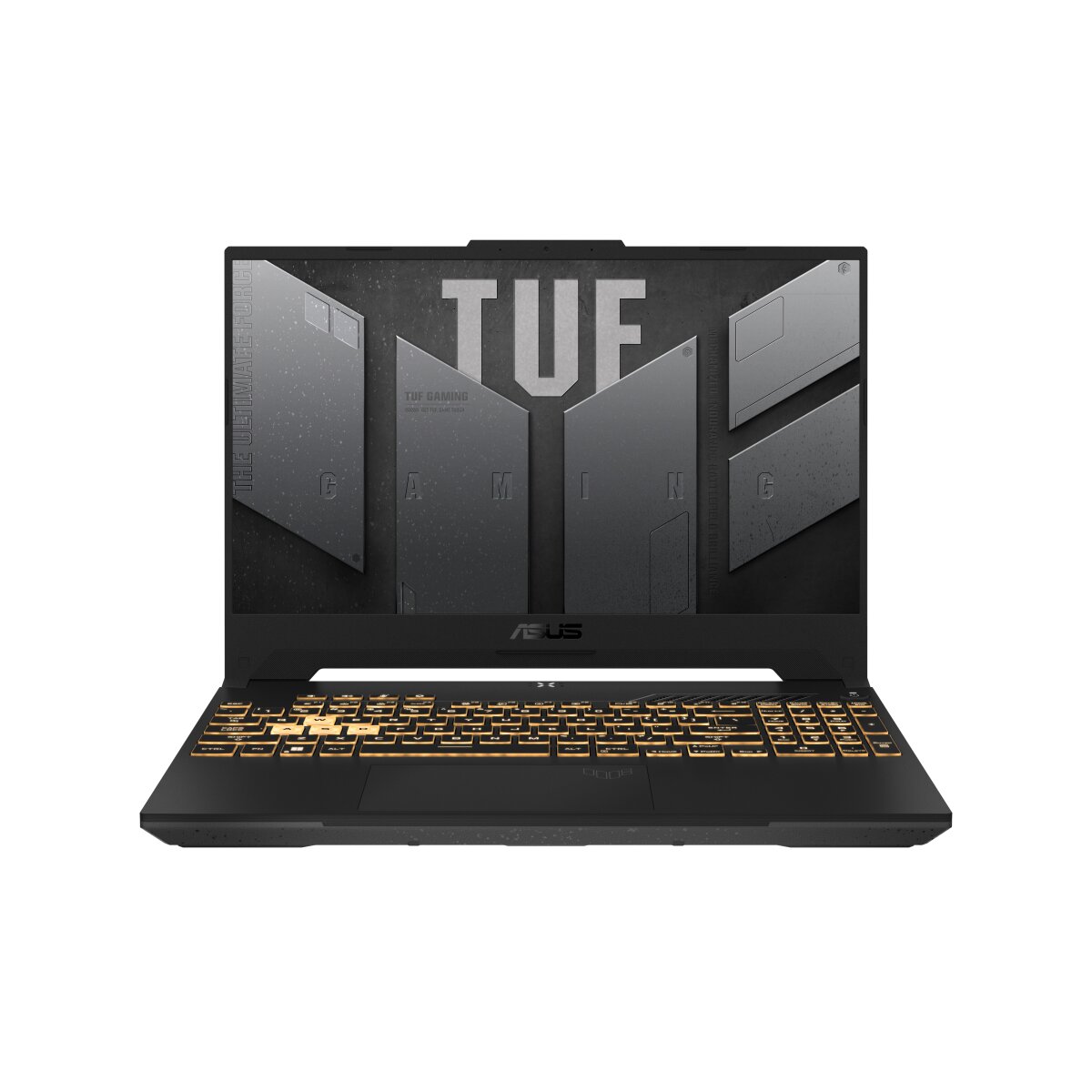

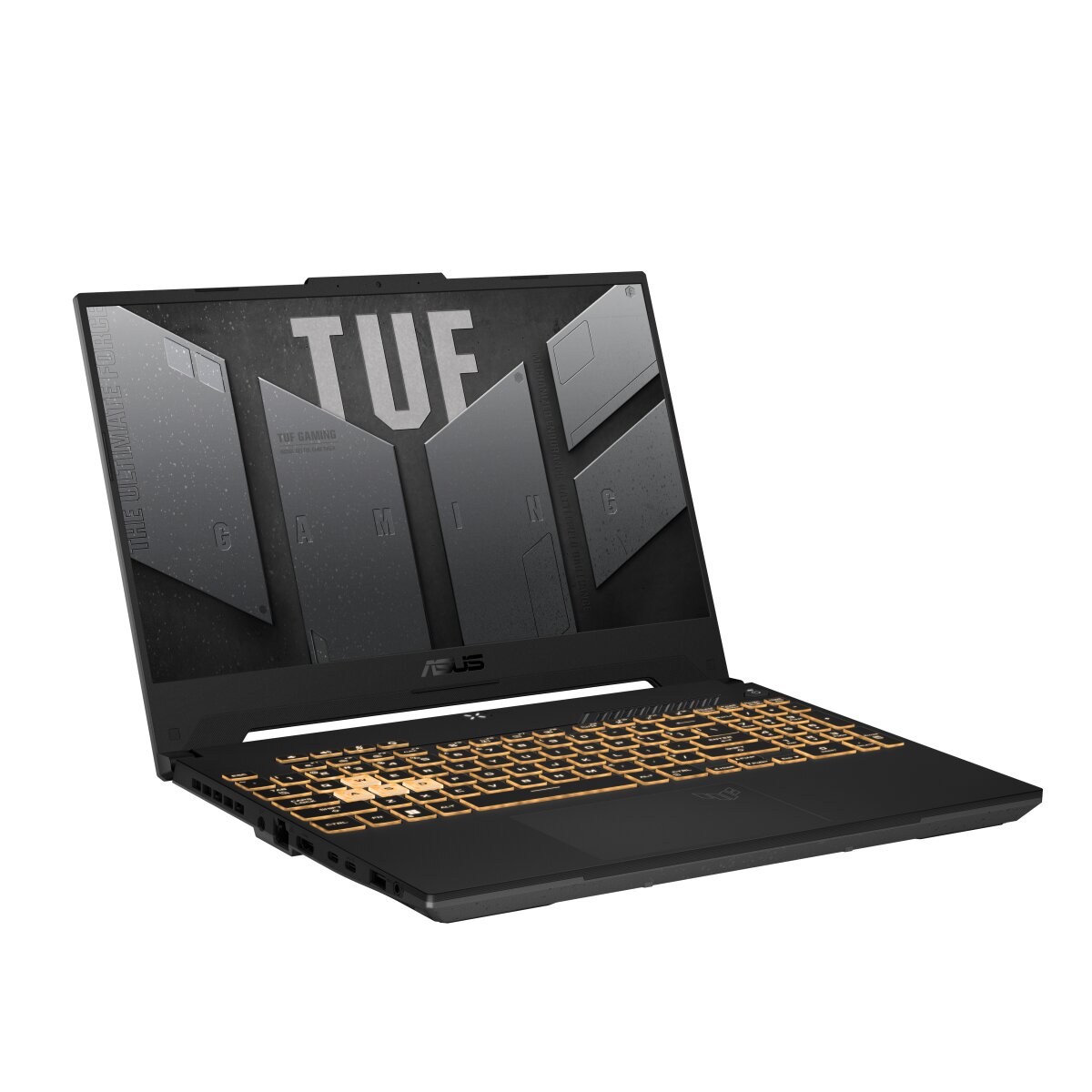

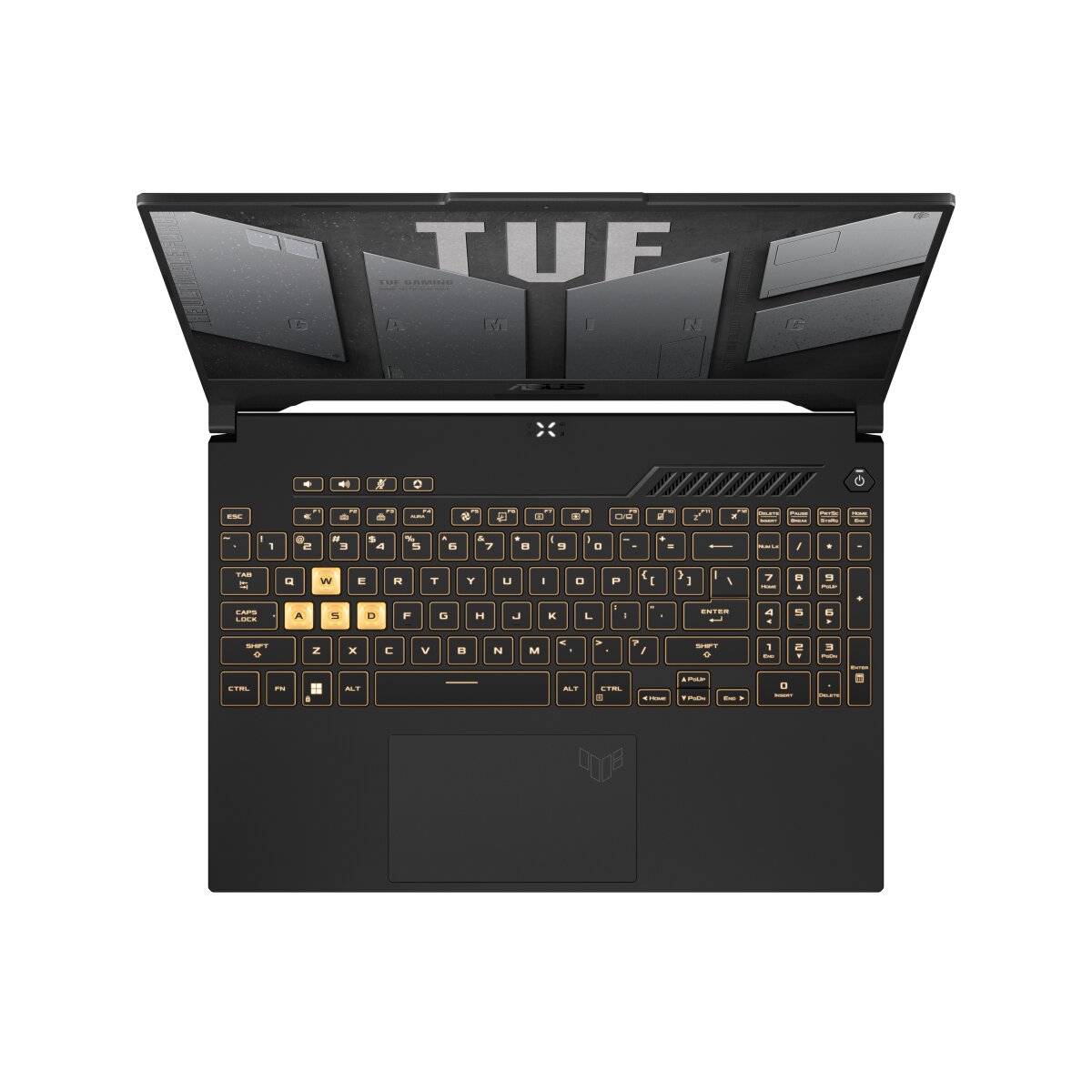

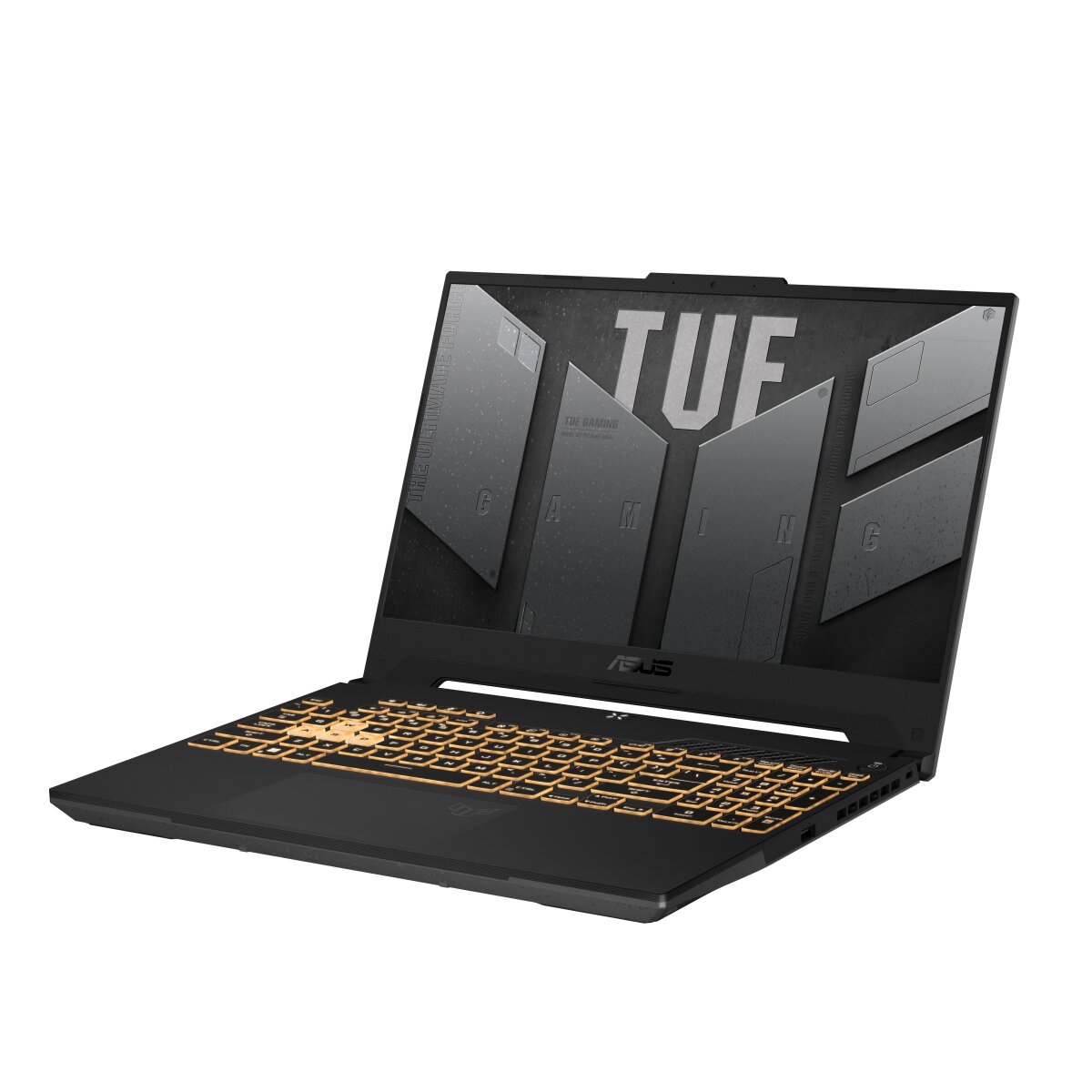

ASUS TUF Gaming TUF507ZM-HN131 RAM upgrade specifications
ASUS TUF Gaming F15 series model TUF507ZM-HN131 supports DDR5-SDRAM memory upgrades via 2x SO-DIMM slots. Maximum supported RAM capacity reaches 32 GB. Compatible memory operates at 4800 MHz frequency. Upgrade specifications indicate SO-DIMM form factor for RAM modules. Complete memory upgrade information and compatibility details for this ASUS TUF507ZM-HN131 laptop model are documented in technical specifications.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR5-SDRAM |
| Frequency | 4800 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.1V |
| Number of pins | 262-pin |
| Interface | PC5 |
| PC Speed Rating | PC5-4800 (PC5-38400) |
| Bandwidth | 38.4 GB/s |
| Laptop Release date | 01 February 2022 |
Additional Notes
- The presence of 2 SO-DIMM slots allows for a dual-channel memory configuration which doubles the available bandwidth for the CPU compared to a single-module setup.
- The 32 GB maximum threshold indicates a firmware or hardware limitation on the density of the memory modules the ASUS TUF Gaming TUF507ZM-HN131 can address per slot.
- Utilizing DDR5 at 4800 MHz necessitates matching the existing latency timings of the factory-installed module to prevent the system from down-clocking to a lower stable frequency.
- The 262-pin physical interface of the DDR5 SO-DIMM standard prevents the accidental installation of older DDR4 modules due to a different notch position.
- On-die Error Correction Code inherent to DDR5 architecture provides enhanced stability for high-performance tasks by managing bit flips internally within the RAM chips.
- Upgrading to the maximum supported capacity requires replacing both existing modules if the laptop was pre-configured with two lower-capacity sticks.
- Lower power consumption is achieved through the integrated power management integrated circuit located directly on the memory module rather than the motherboard.
