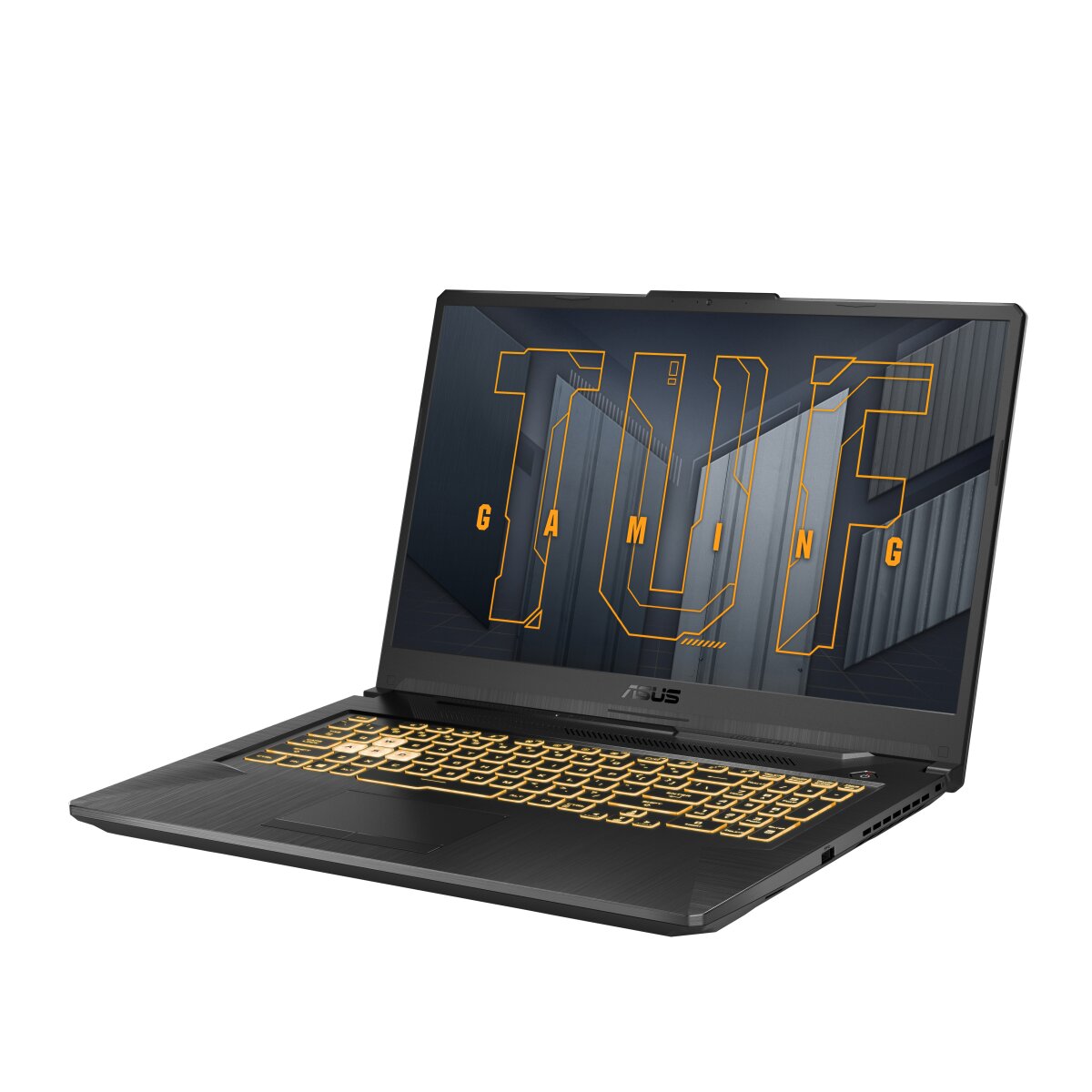

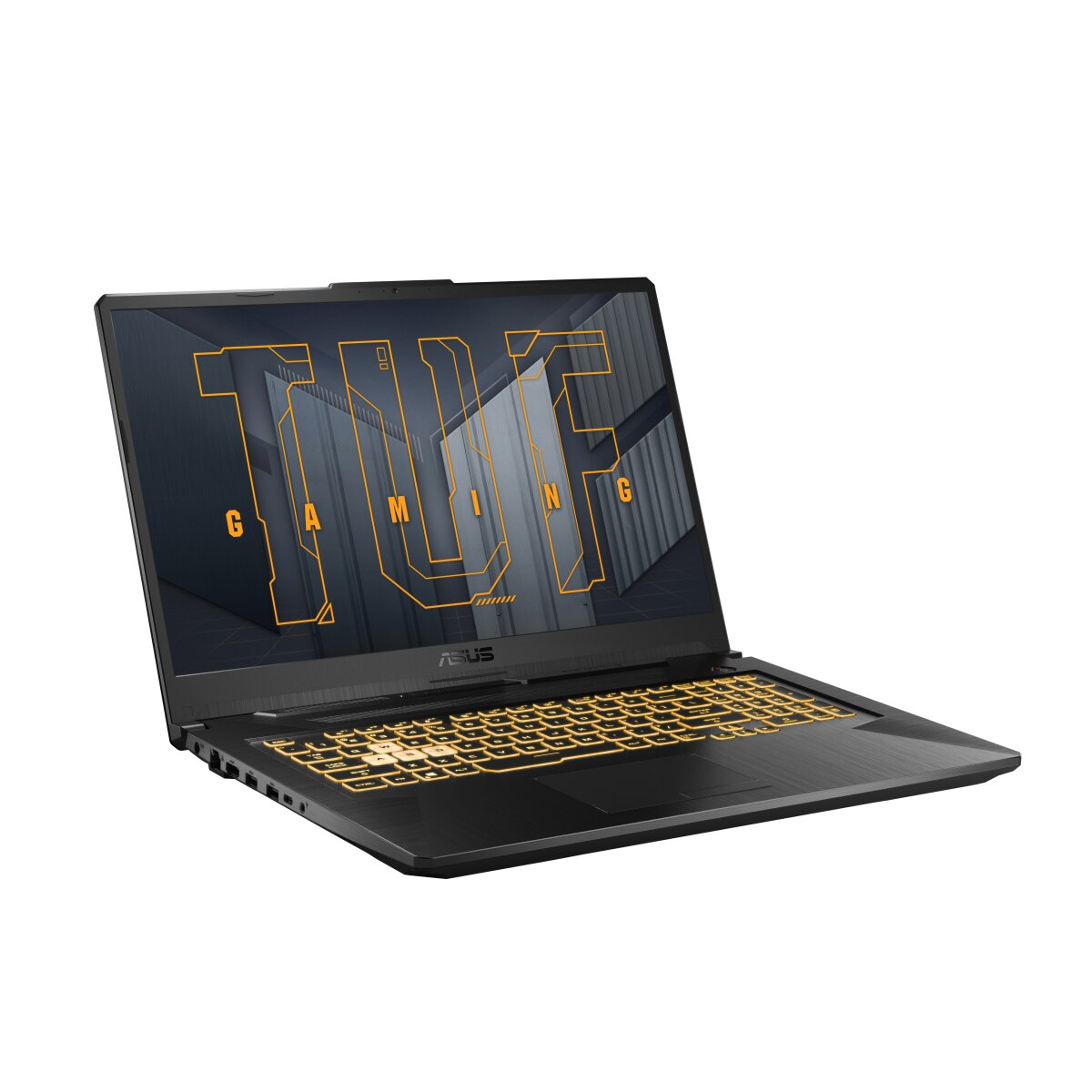

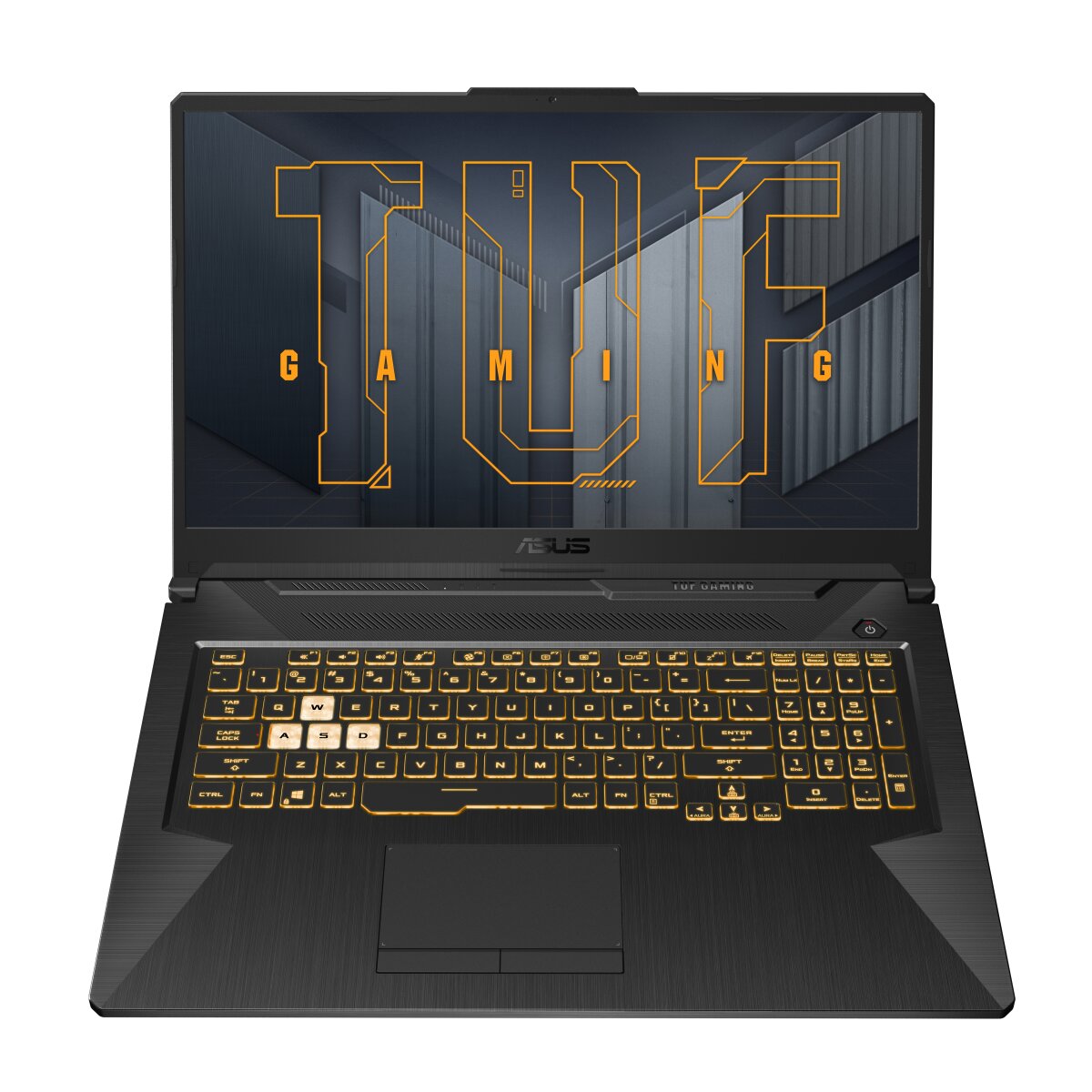

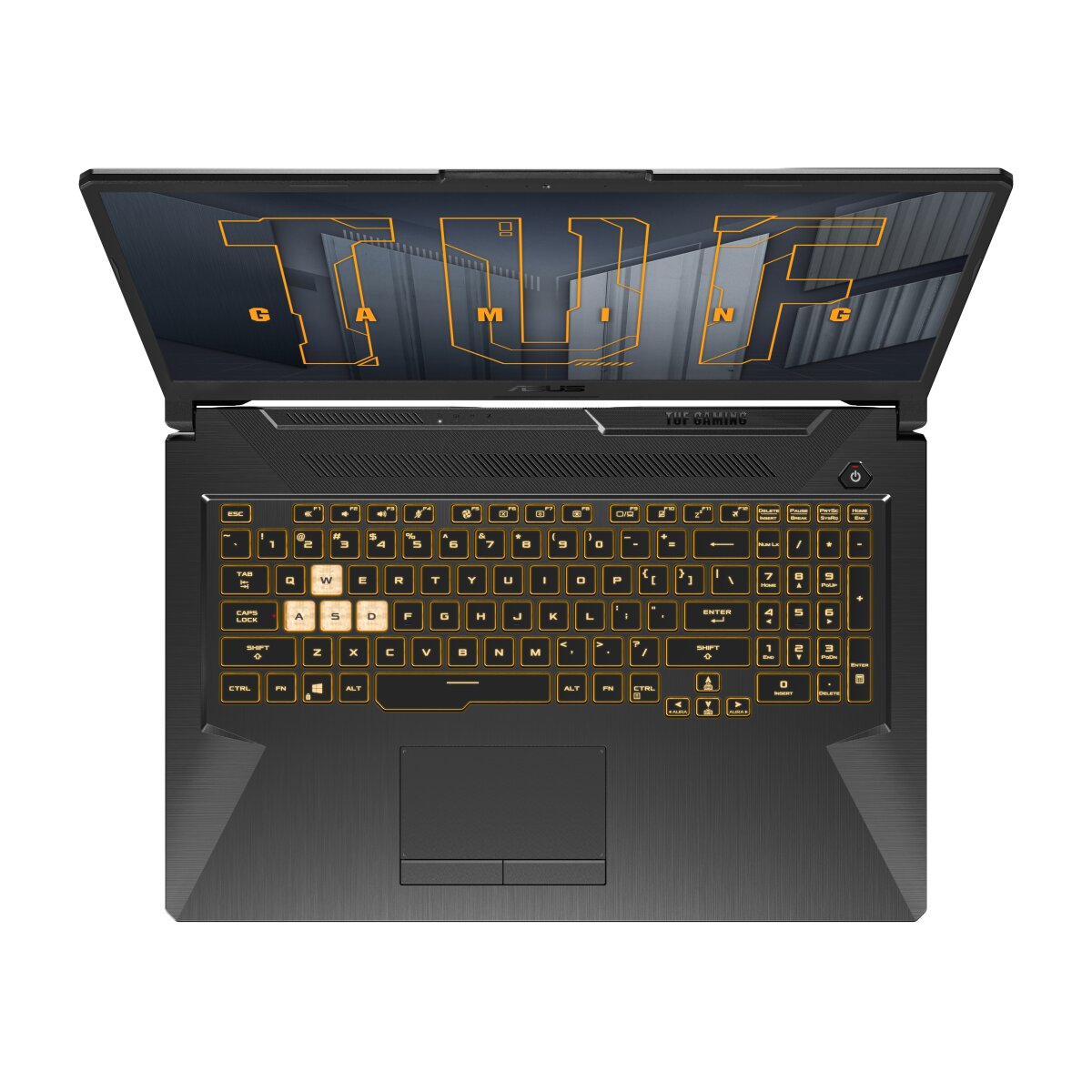

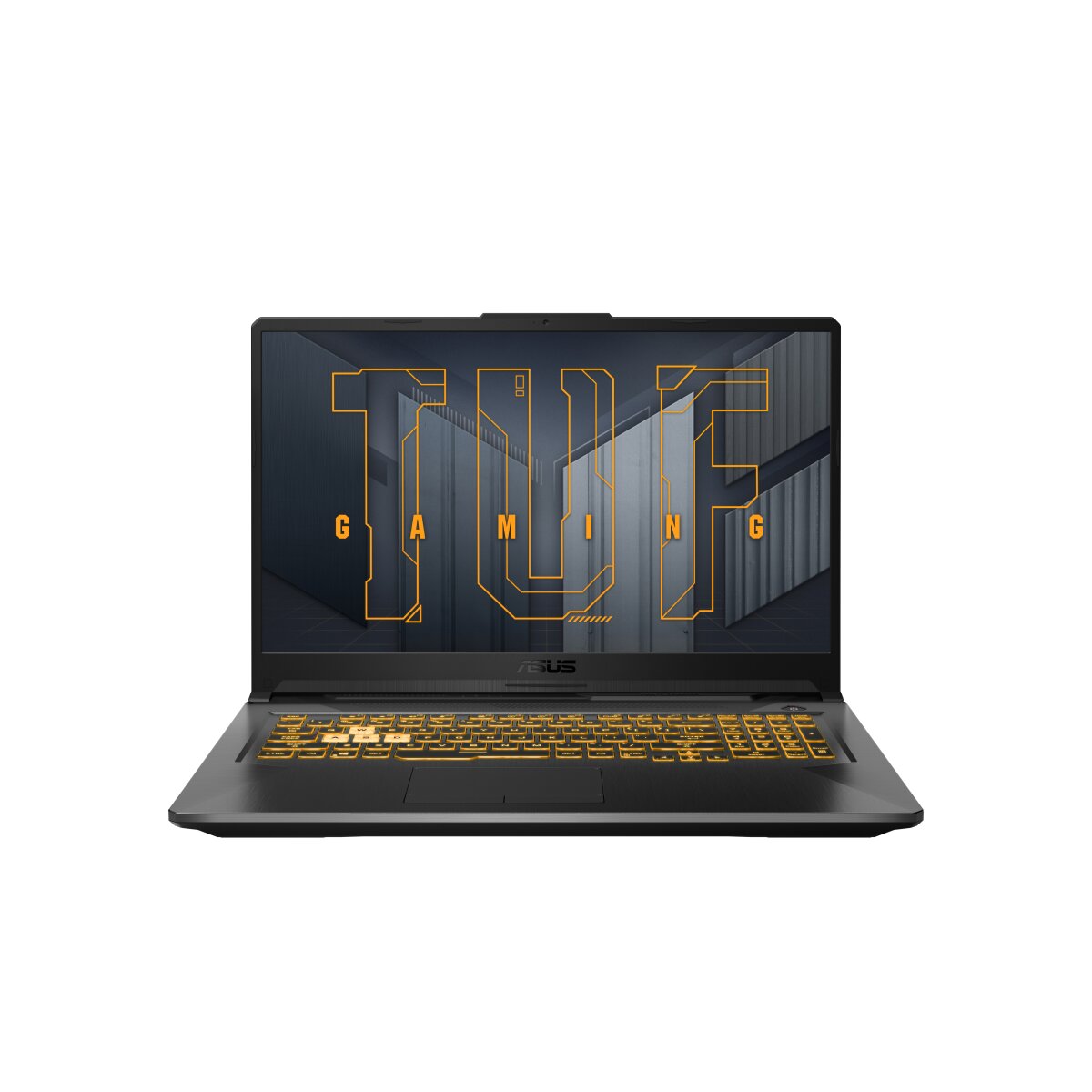

ASUS TUF Gaming FX706HEB-HX091T RAM upgrade specifications
The ASUS TUF Gaming F17 series FX706HEB-HX091T laptop features two SO-DIMM memory slots supporting DDR4-SDRAM modules. The system accommodates a maximum RAM capacity of 32 GB, with compatible memory operating at 3200 MHz frequency. Upgrade specifications indicate support for DDR4 SO-DIMM form factor modules. The laptop's memory configuration allows for expansion through compatible DDR4-SDRAM upgrades to reach maximum capacity specifications.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 13 July 2021 |
Additional Notes
- The dual-slot configuration indicates that achieving maximum capacity requires two 16 GB modules to enable dual-channel memory architecture for increased data throughput.
- Utilizing memory modules with speeds higher than 3200 MHz results in downclocking to match the hardware-coded frequency limit of the processor.
- The SO-DIMM form factor necessitates the use of 260-pin modules specifically designed for mobile platforms rather than desktop equivalents.
- Installing a single module creates a bandwidth bottleneck as the system operates in single-channel mode, reducing performance in memory-intensive gaming scenarios.
- Upgrading the **ASUS TUF Gaming FX706HEB-HX091T** requires matching the voltage of existing modules to prevent stability issues or system boot failures.
- Physical access to both slots involves removing the bottom chassis cover, which requires tools specifically for small electronics to avoid damaging integrated clips.
- The 32 GB ceiling restricts the use of high-density 32 GB single sticks, as the BIOS will not recognize total system memory beyond the defined hardware limit.
