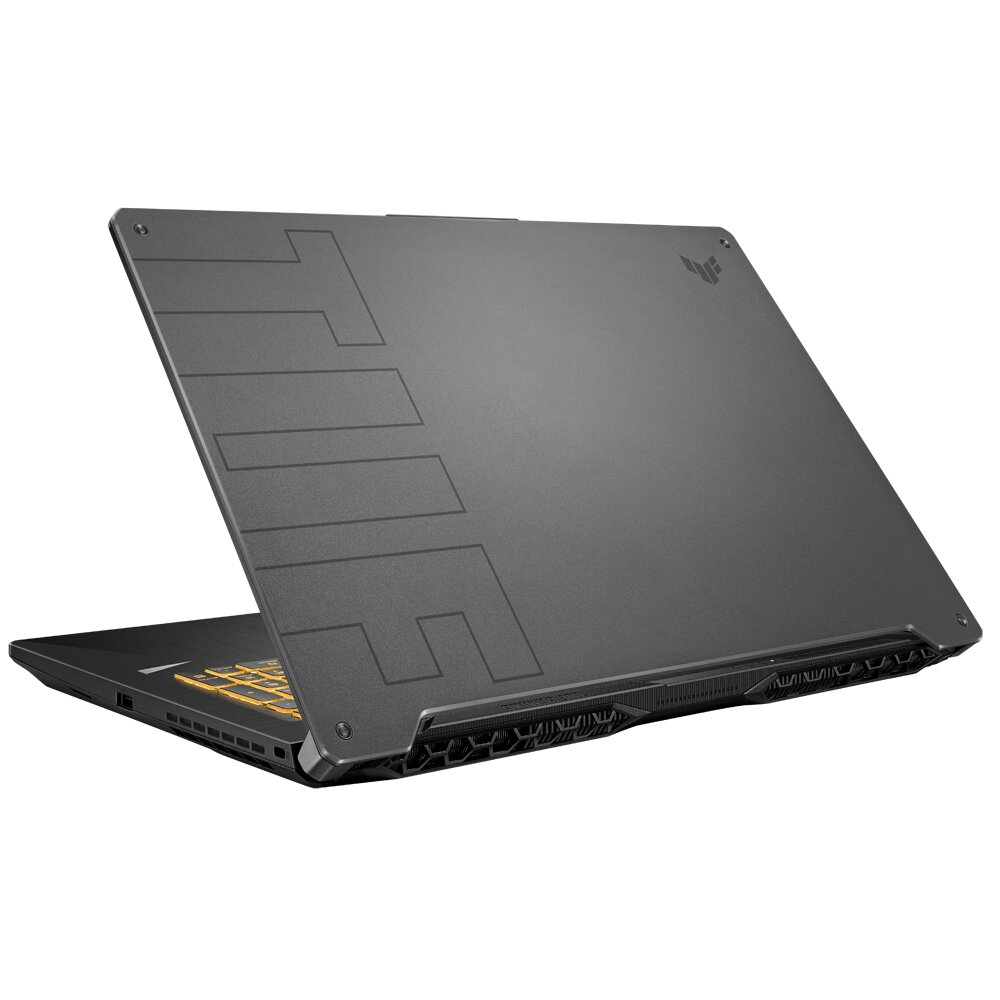

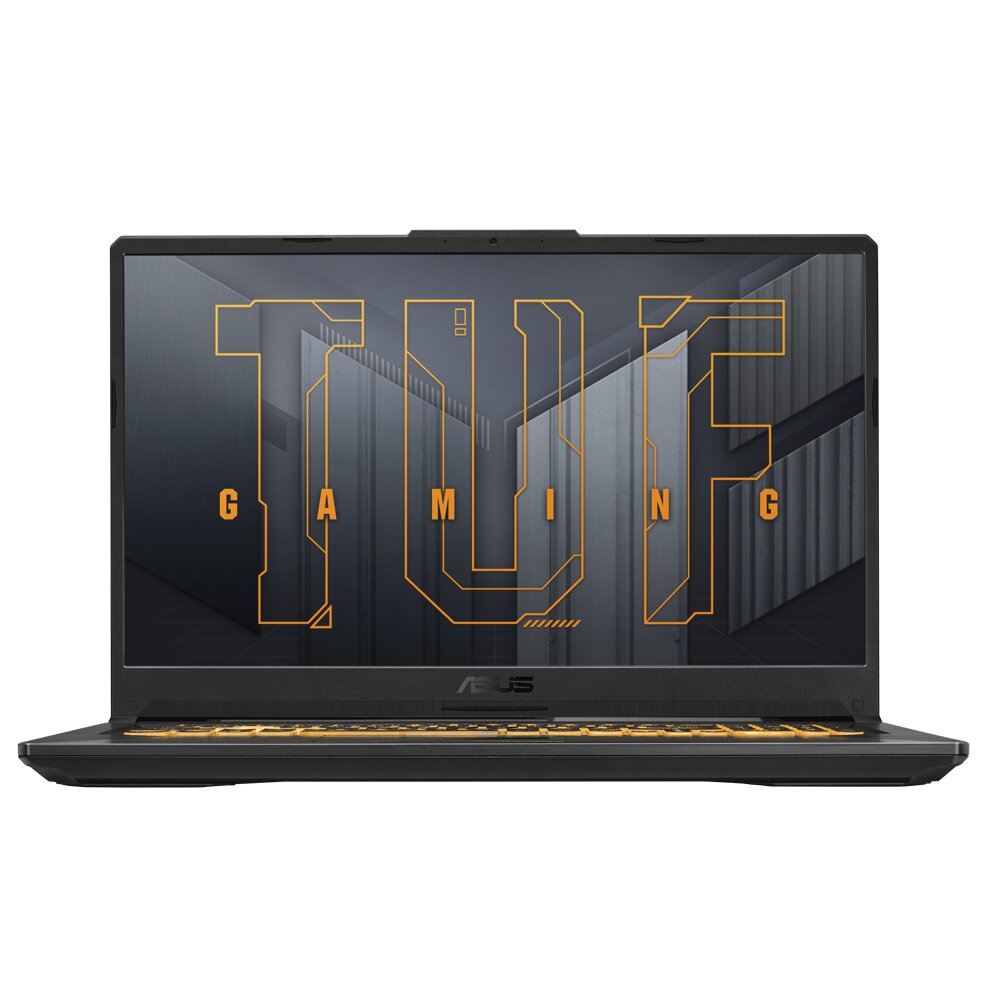

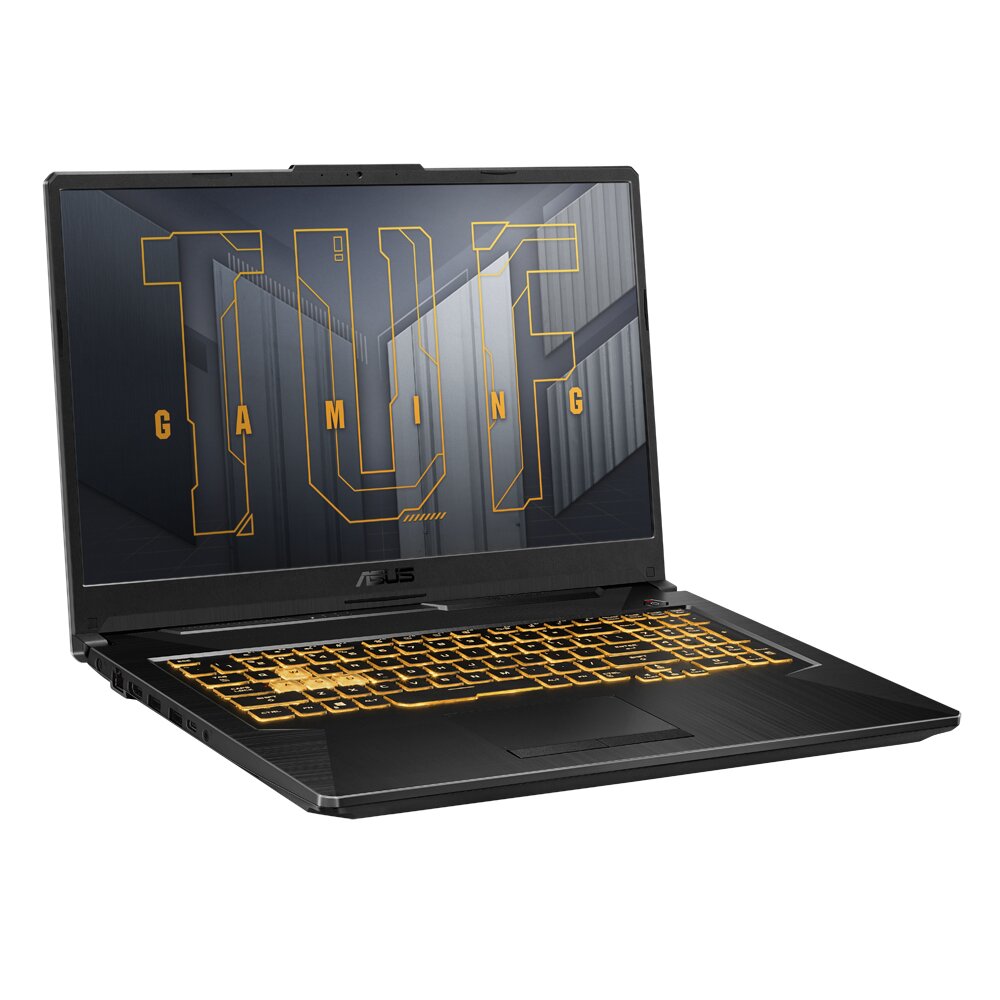

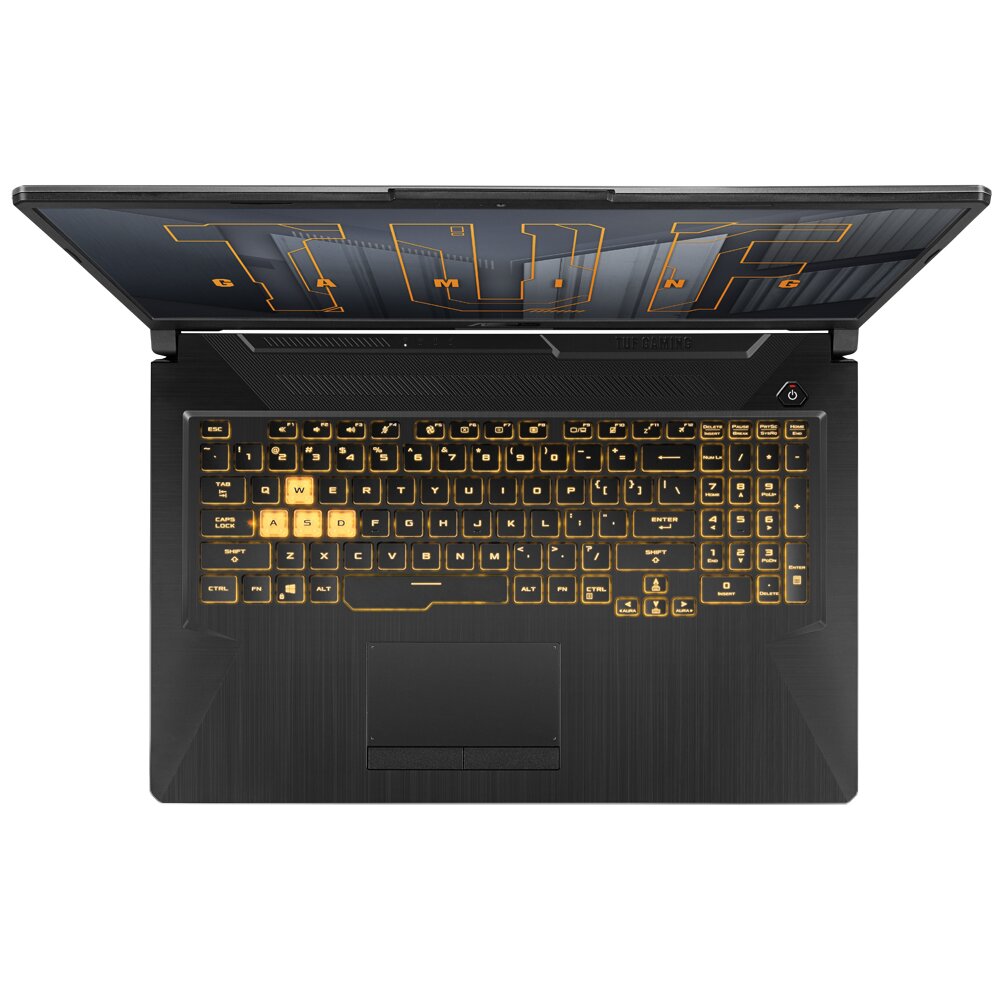

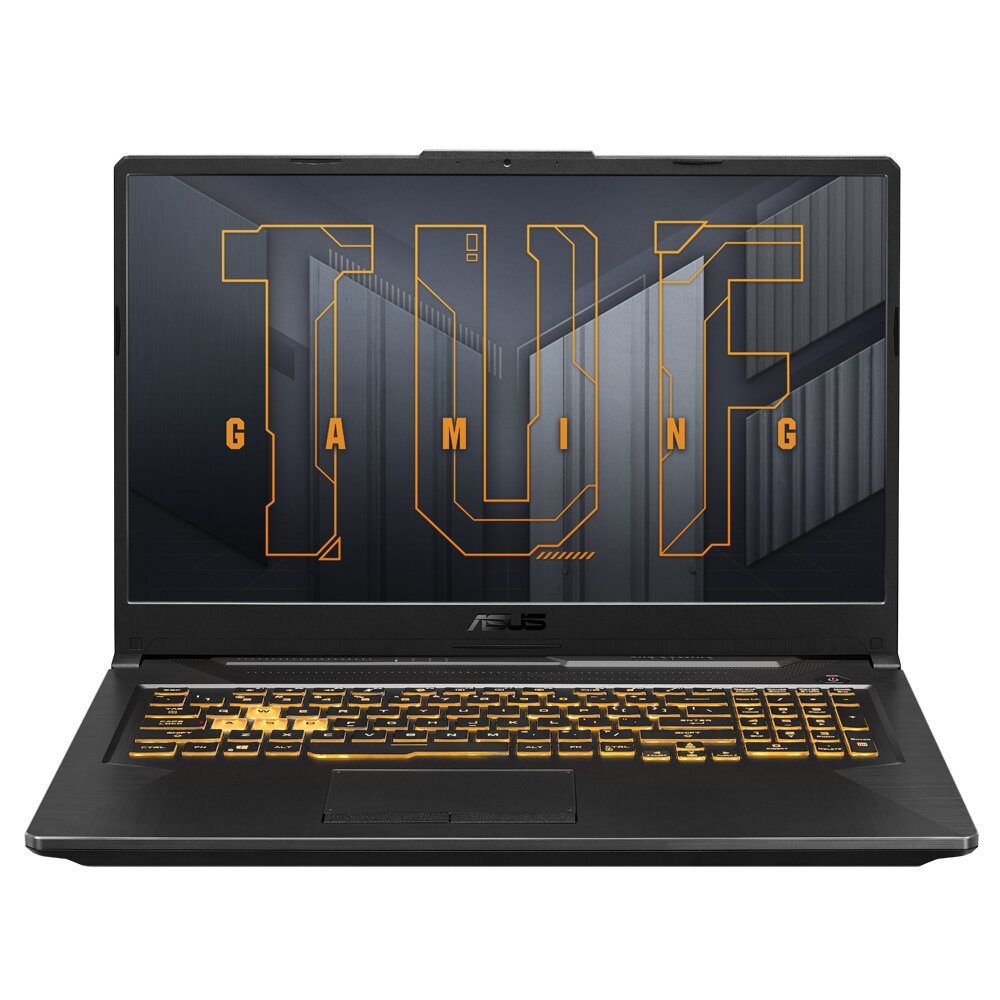

ASUS TUF Gaming FX706HEB-HX090T RAM upgrade specifications
ASUS TUF Gaming F17 FX706HEB-HX090T laptop features DDR4-SDRAM memory upgrade specifications. The system contains 2x SO-DIMM slots supporting a maximum RAM capacity of 32 GB. Compatible memory modules operate at 3200 MHz frequency. Specifications indicate SO-DIMM form factor for memory modules. Upgrade options allow expansion within the maximum capacity constraints of the FX706HEB-HX090T platform.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 17 September 2021 |
Additional Notes
- Dual channel architecture requires matching memory modules in both slots to maximize the available memory bandwidth for the processor.
- The absence of soldered memory on the ASUS TUF Gaming FX706HEB-HX090T motherboard allows for the replacement of both factory modules if total capacity needs to be increased.
- Installing modules with higher clock speeds results in automatic downclocking to the 3200 MHz system limit due to hardware controller restrictions.
- Upgrading to the maximum 32 GB capacity necessitates a pair of 16 GB modules because the firmware does not support 32 GB single stick configurations.
- High density 1Rx16 memory modules may cause minor latency increases compared to 1Rx8 or 2Rx8 alternatives during heavy gaming workloads.
- Accessing the SO-DIMM slots requires the removal of the entire bottom chassis panel which may involve various screw lengths and plastic clips.
- The memory controller stability depends on utilizing non ECC unbuffered modules to ensure compatibility with the mobile chipset.
