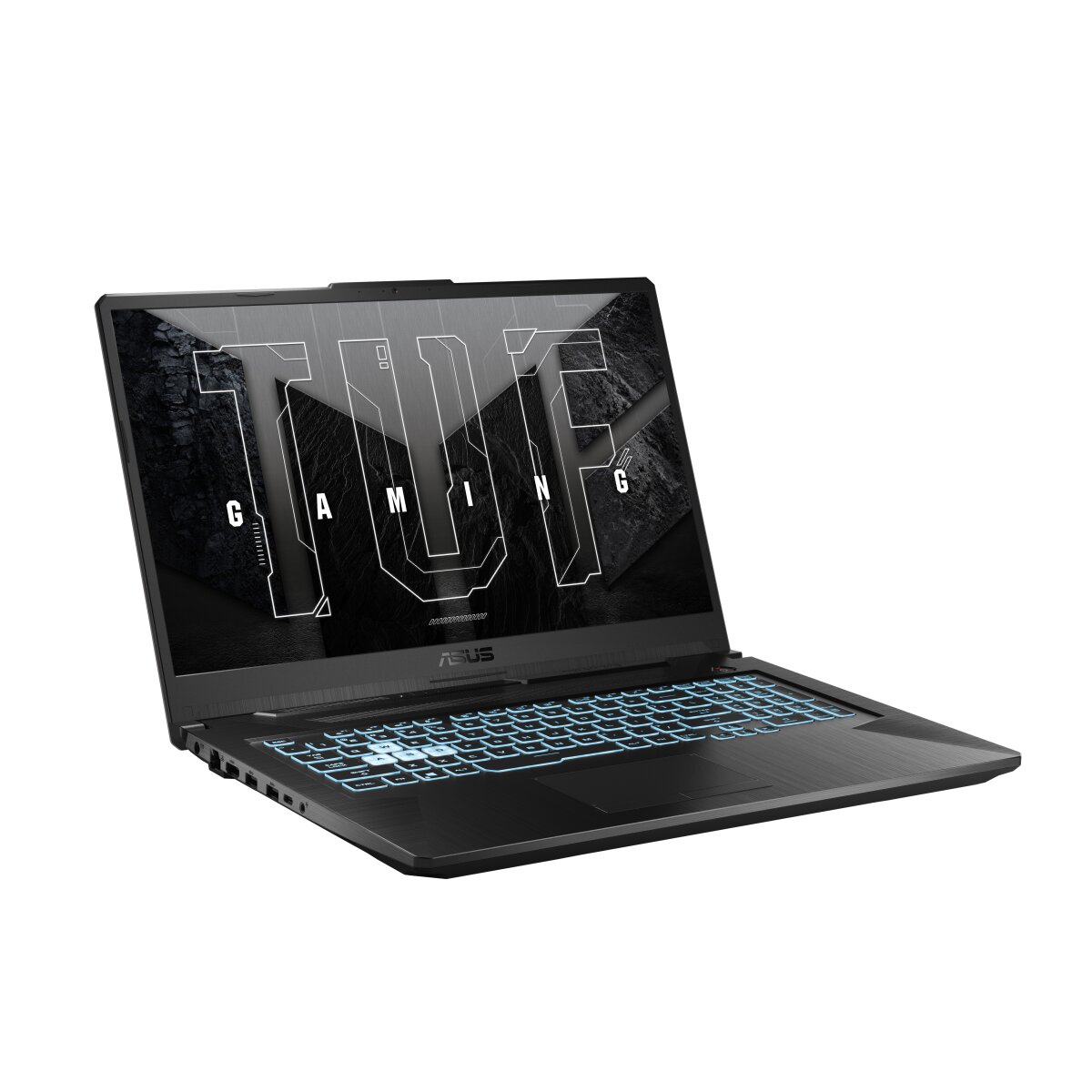

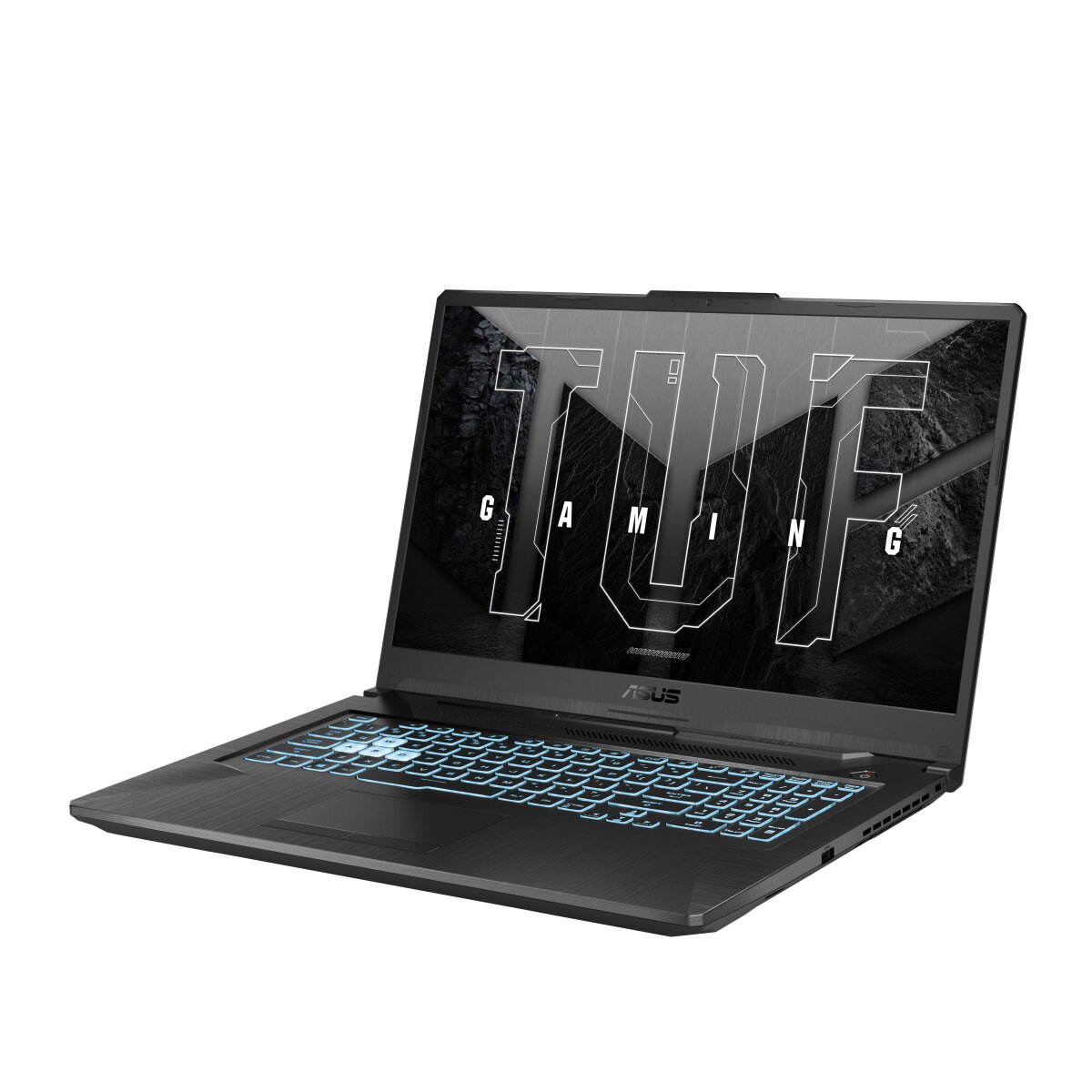

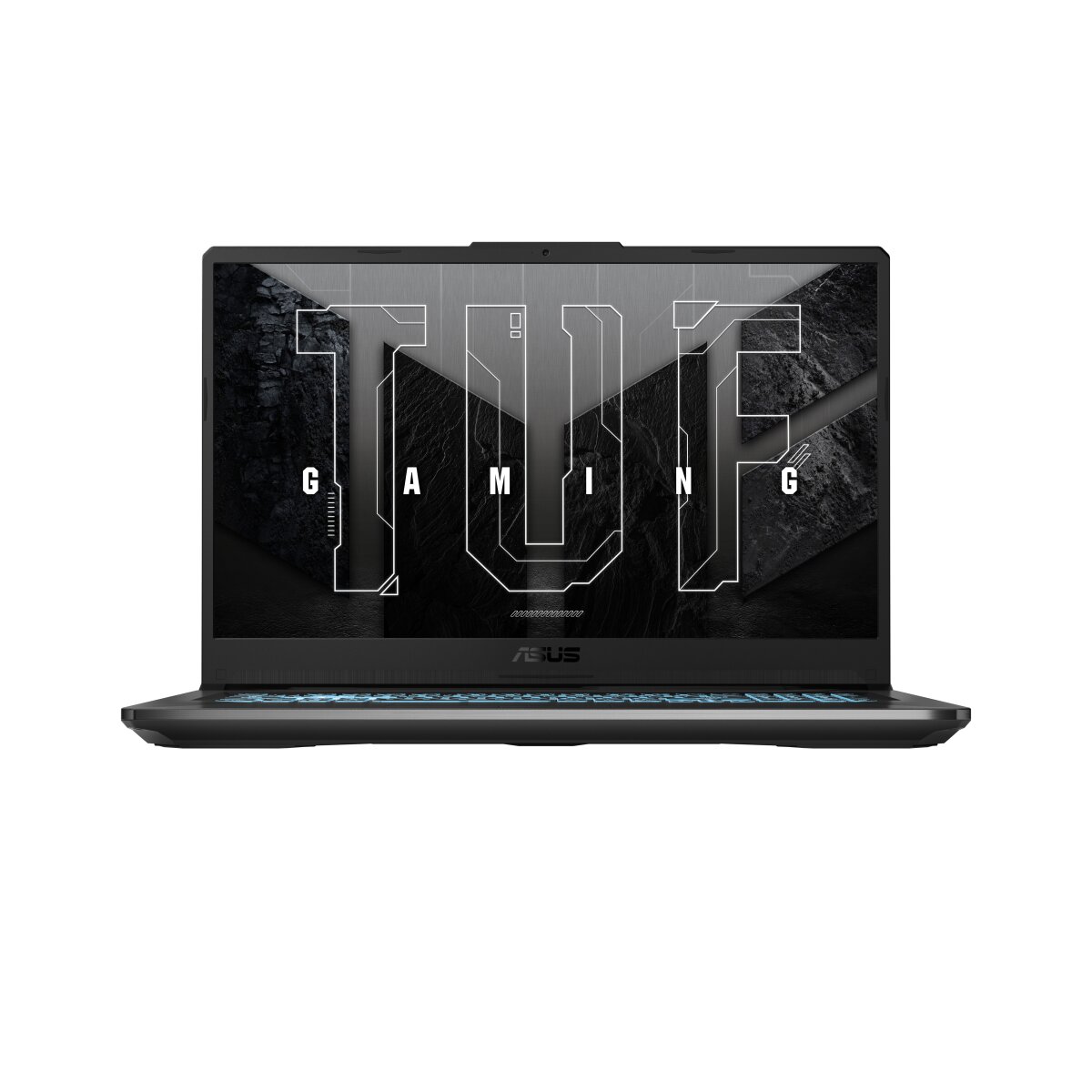

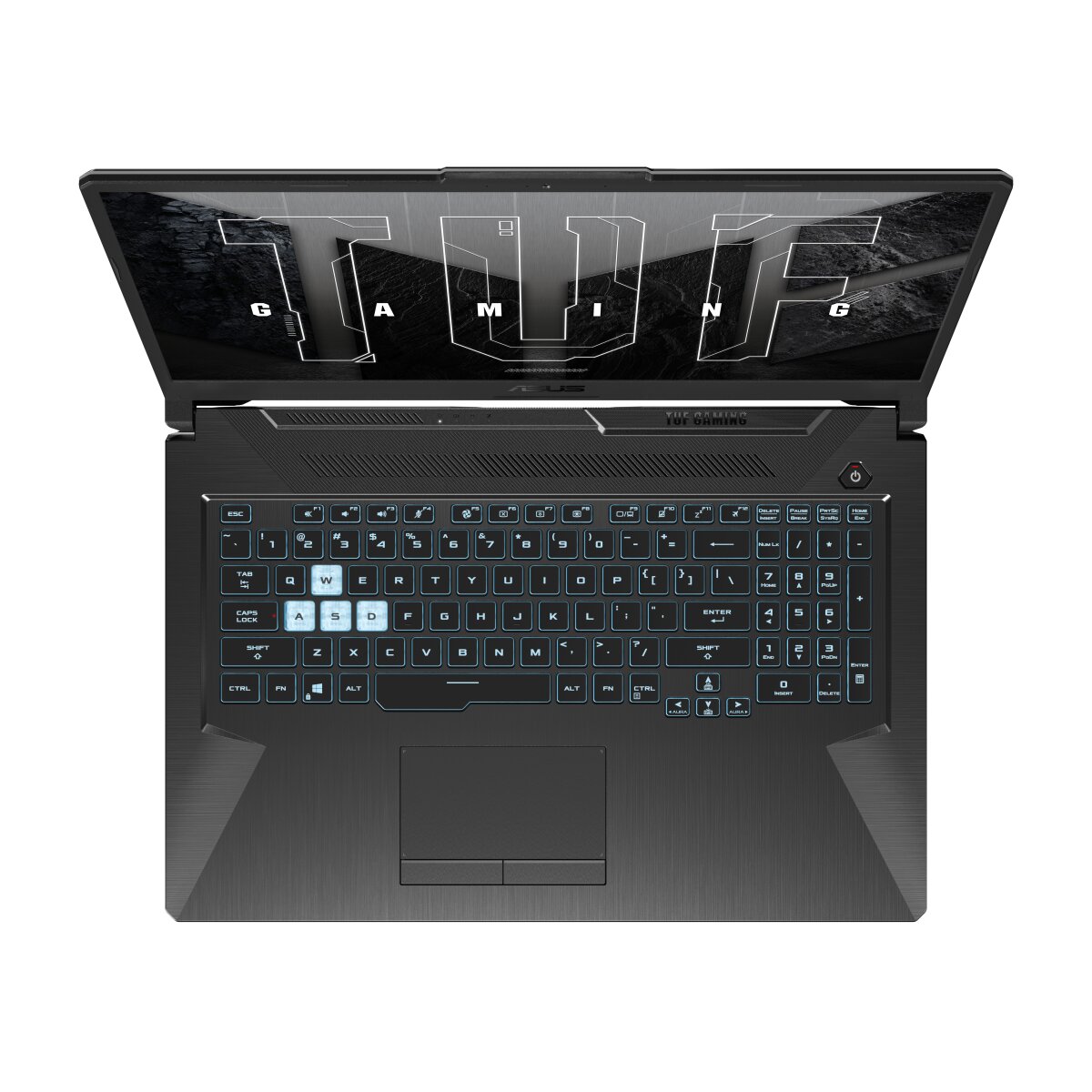

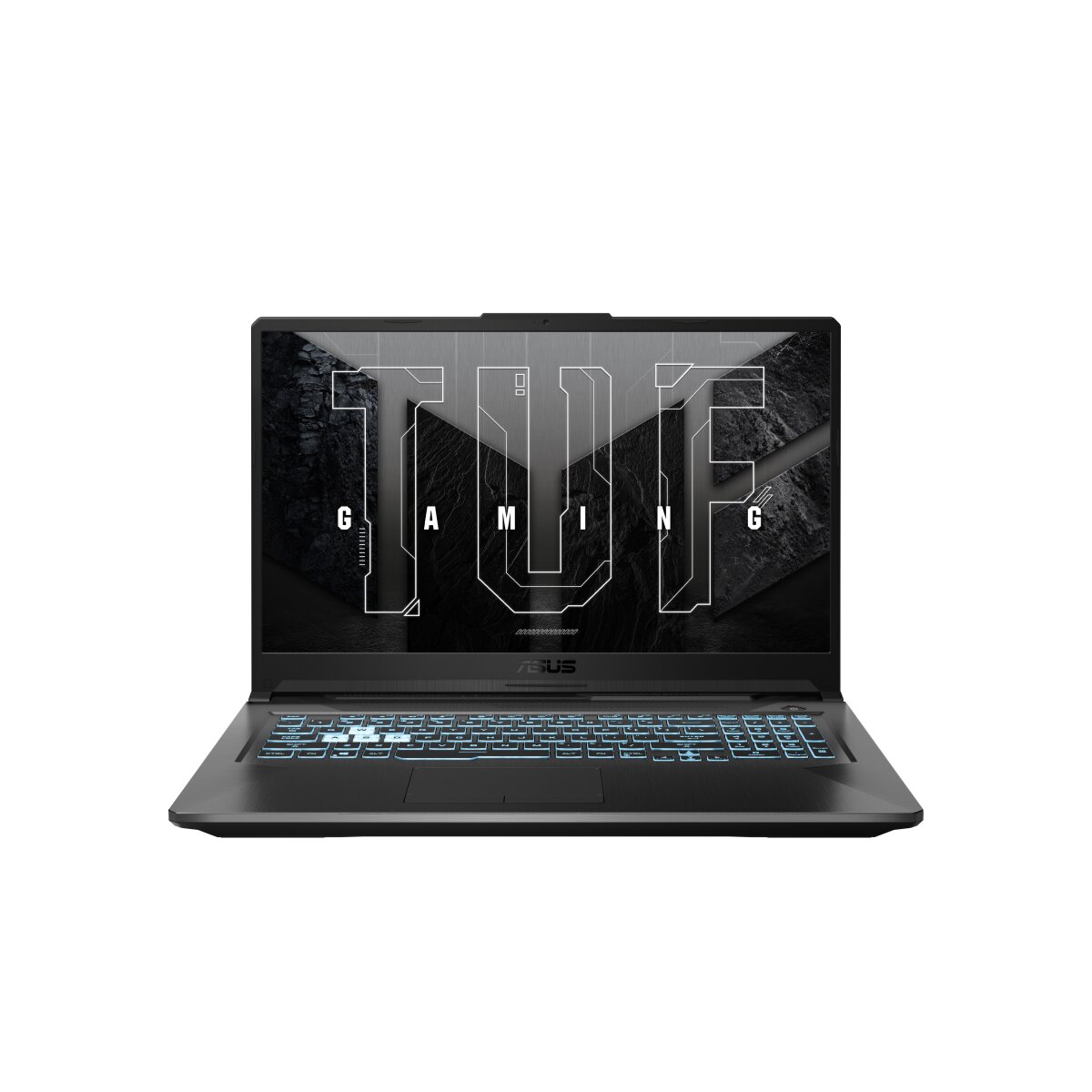

ASUS TUF Gaming FX706HEB-HX114T RAM upgrade specifications
ASUS TUF Gaming F17 series FX706HEB-HX114T laptop features DDR4-SDRAM memory upgrade specifications. The system contains 2x SO-DIMM memory slots supporting maximum capacity of 32 GB RAM. Compatible memory modules operate at 3200 MHz frequency with SO-DIMM form factor. Upgrade specifications enable users to expand system memory by installing additional DDR4 memory modules in available slots, subject to maximum capacity limitations.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 17 September 2021 |
Additional Notes
- The 3200 MHz frequency requires CPU and chipset support for full speed operation, otherwise modules may downclock to lower JEDEC standards like 2933 MHz or 2666 MHz depending on processor limitations.
- Both SO-DIMM slots must be occupied with matching capacity modules to enable dual-channel mode, which doubles memory bandwidth critical for gaming frame rates and integrated graphics performance.
- The 32 GB maximum capacity constraint on the ASUS TUF Gaming FX706HEB-HX114T indicates chipset or BIOS addressing limitations, making 2x16 GB the only configuration for maximum memory.
- Installing non-matching module speeds will force all memory to operate at the lowest common frequency, creating a performance bottleneck if mixing 3200 MHz with slower DDR4.
- DDR4 SO-DIMM physical keying differs from desktop DIMM modules, preventing installation of standard desktop memory despite identical electrical specifications.
- Aftermarket RAM installation typically preserves manufacturer warranty when performed without physical damage, though verification of regional warranty terms remains advisable before modification.
- Single-channel operation with one populated slot reduces memory bandwidth by approximately 50%, directly impacting minimum frame rates in memory-intensive gaming scenarios.
- Mixing different voltage specification modules, such as standard 1.2V DDR4 with low-voltage 1.35V variants, may cause POST failures or force operation at higher voltage settings.
- The SO-DIMM form factor's 260-pin configuration allows hot air circulation in gaming laptops compared to taller modules, though access may require bottom panel removal.
