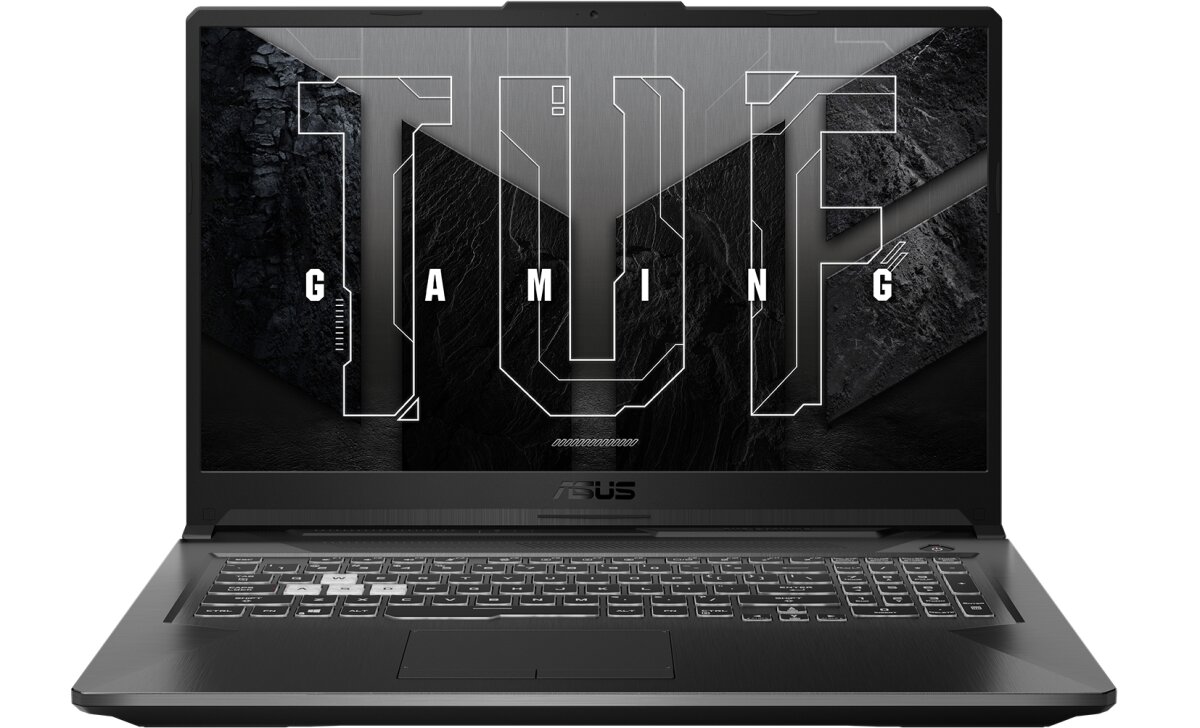

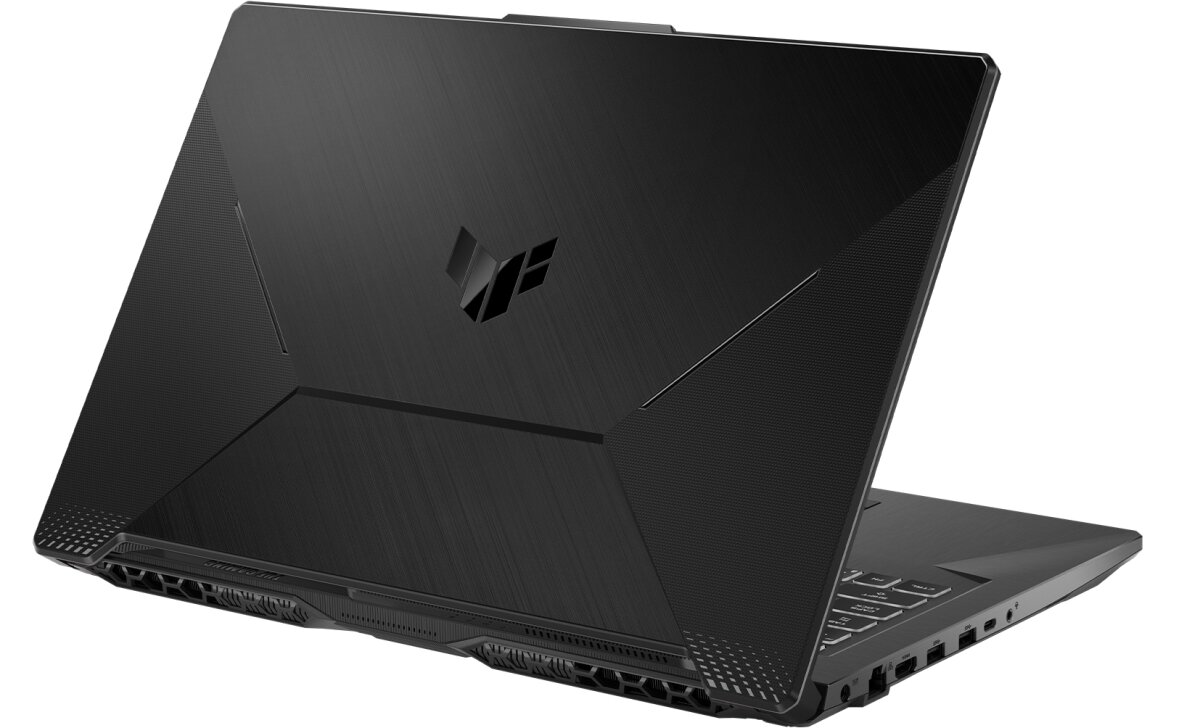

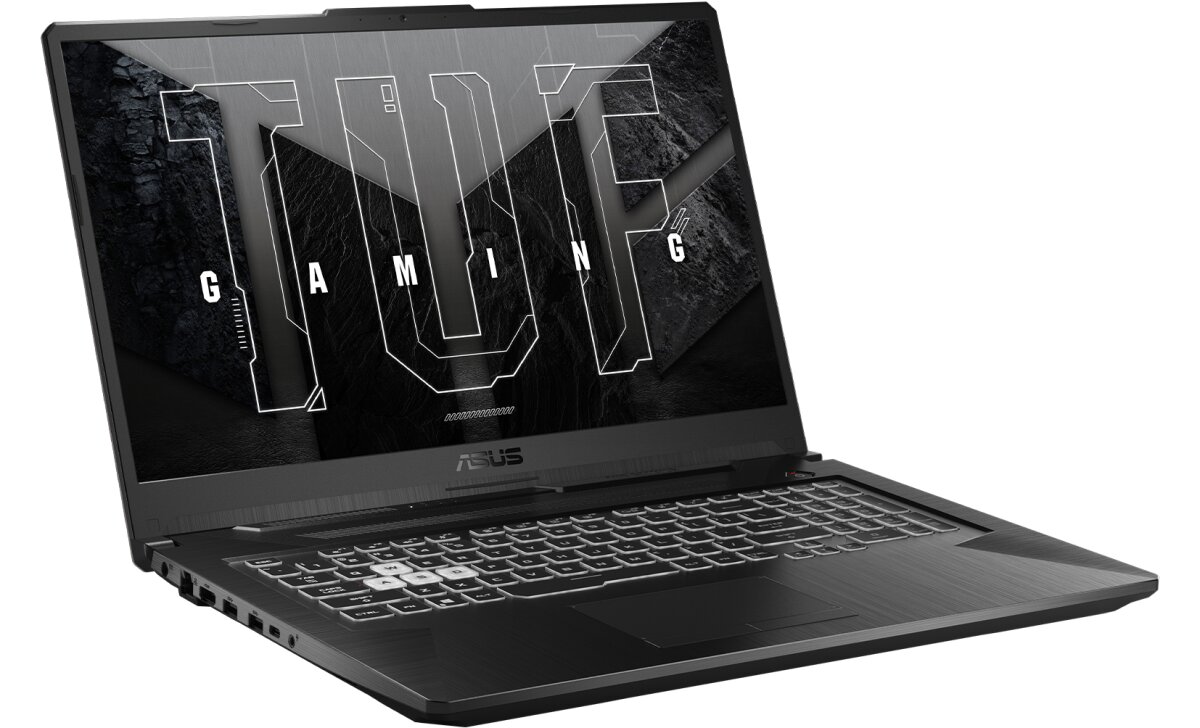

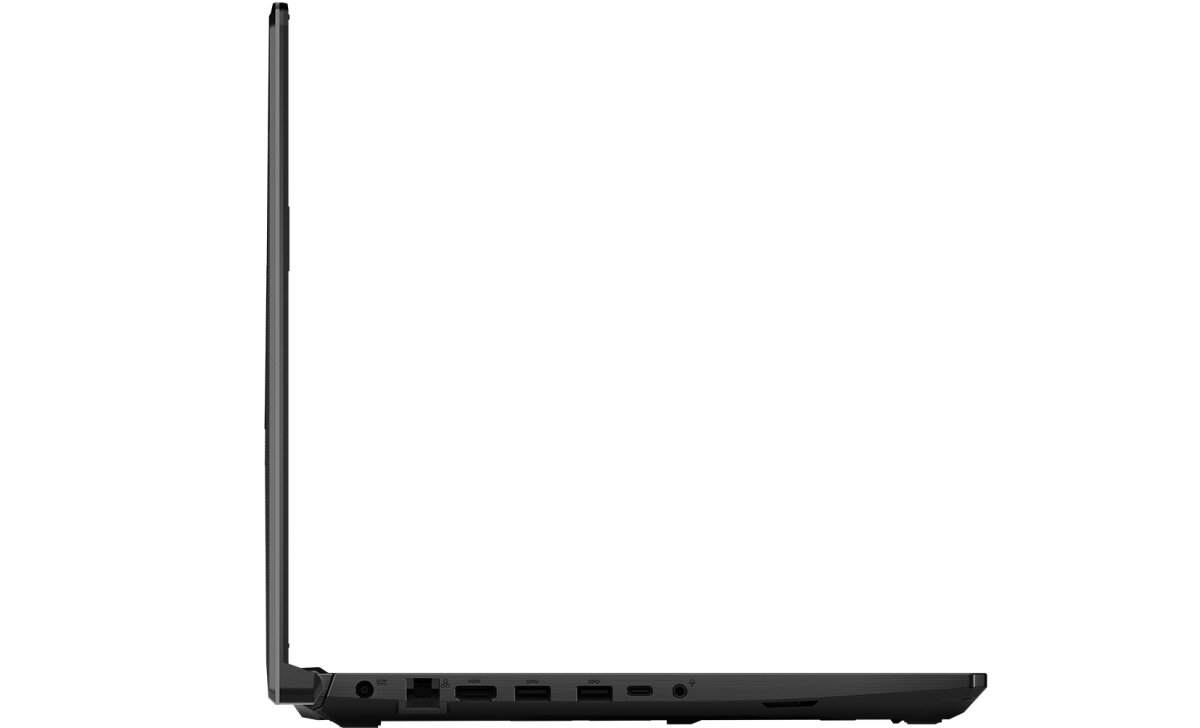

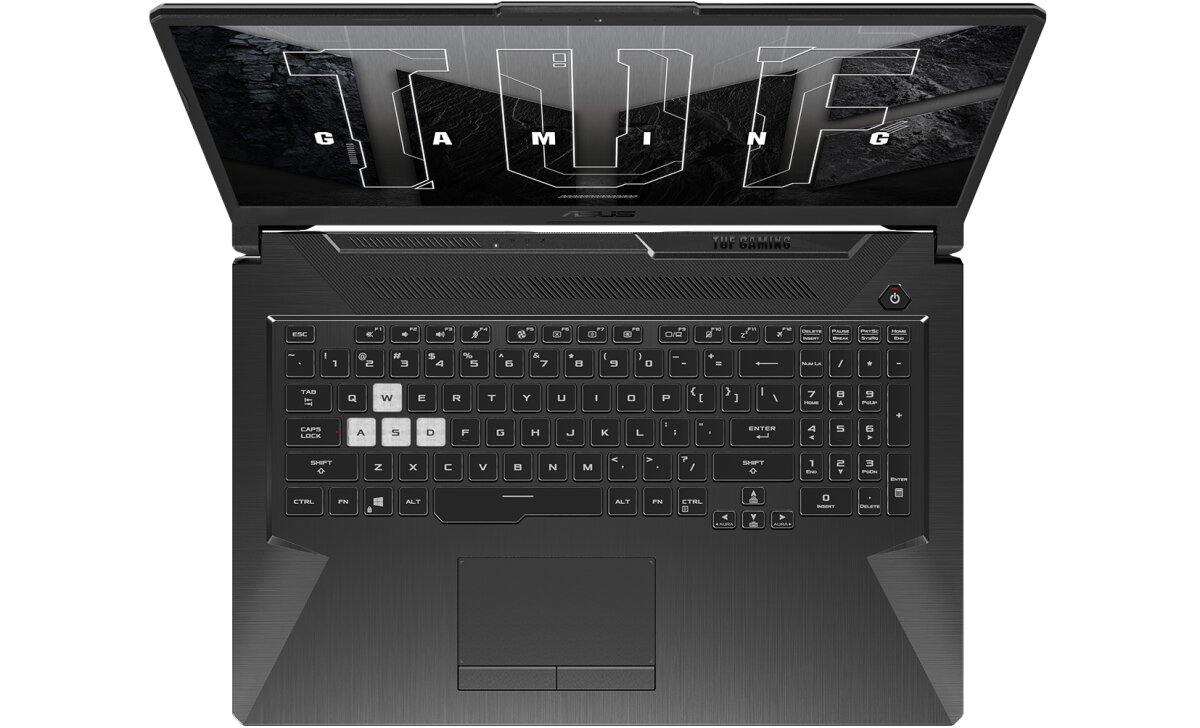

ASUS TUF Gaming FX706HF-HX029X RAM upgrade specifications
ASUS TUF Gaming F17 series FX706HF-HX029X laptop features DDR4-SDRAM memory upgrade capability with 2x SO-DIMM slots. Maximum supported RAM capacity reaches 32 GB total. Compatible memory modules operate at 3200 MHz frequency. Specifications indicate SO-DIMM form factor for memory modules. Upgrade slots allow expansion of installed memory on this gaming laptop model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 22 March 2023 |
Additional Notes
- The presence of 2 dedicated slots allows for dual-channel memory configurations which doubles the theoretical bandwidth compared to single-stick setups.
- Upgrading the ASUS TUF Gaming FX706HF-HX029X beyond 32 GB is likely restricted by the BIOS or motherboard firmware rather than the physical capabilities of the CPU architecture.
- The usage of SO-DIMM slots ensures that the internal memory is not soldered to the mainboard which facilitates complete module replacement in the event of hardware failure.
- Operating at 3200 MHz requires the installed modules to support specific JEDEC profiles to achieve maximum rated speeds without manual voltage adjustments.
- Existing factory memory must be entirely removed if both slots are needed to reach the maximum capacity limit.
- Latency performance depends on matching the CAS latency of both modules because the system will default to the timings of the slowest installed stick.
- Accessing the memory requires removal of the base plate which usually exposes other serviceable components like the storage drives and cooling fans.
