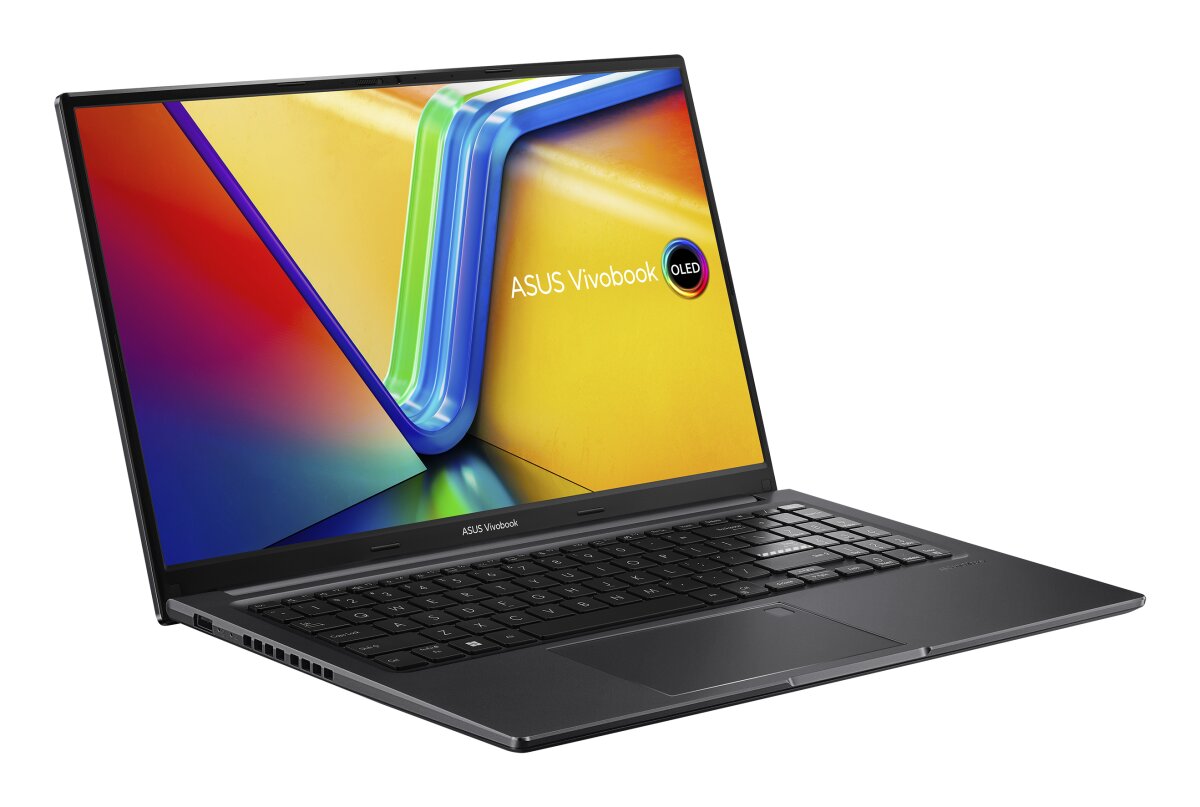

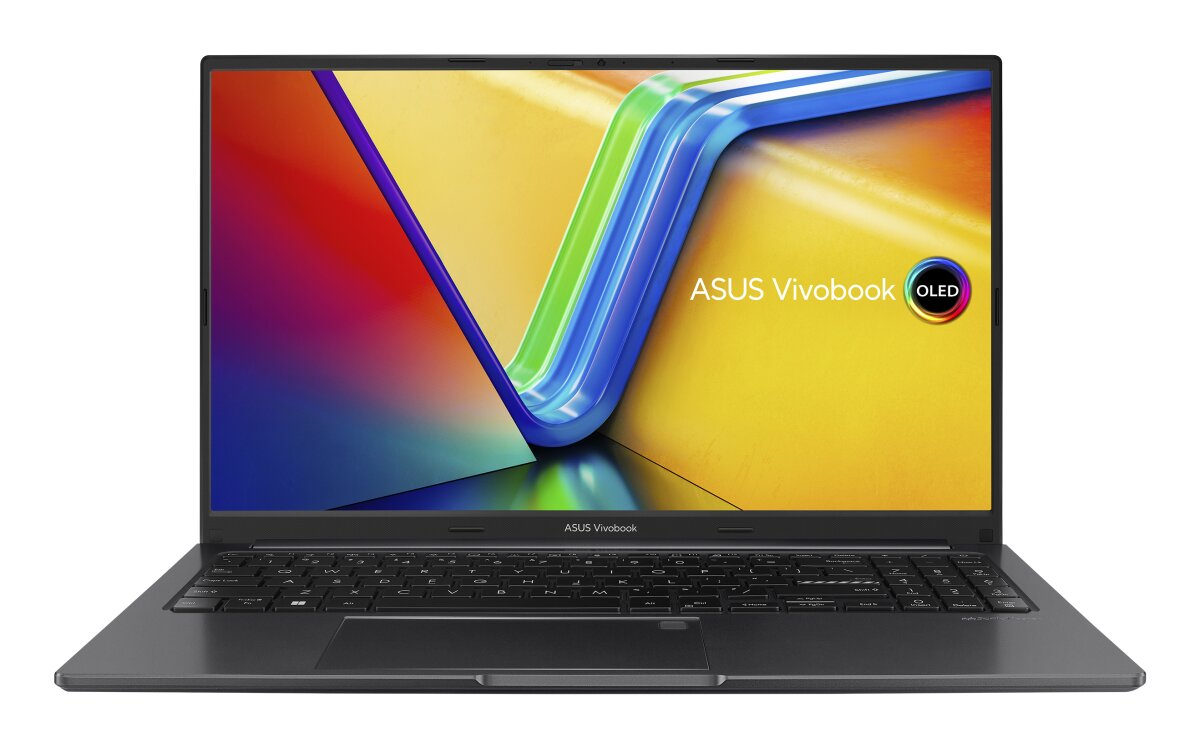

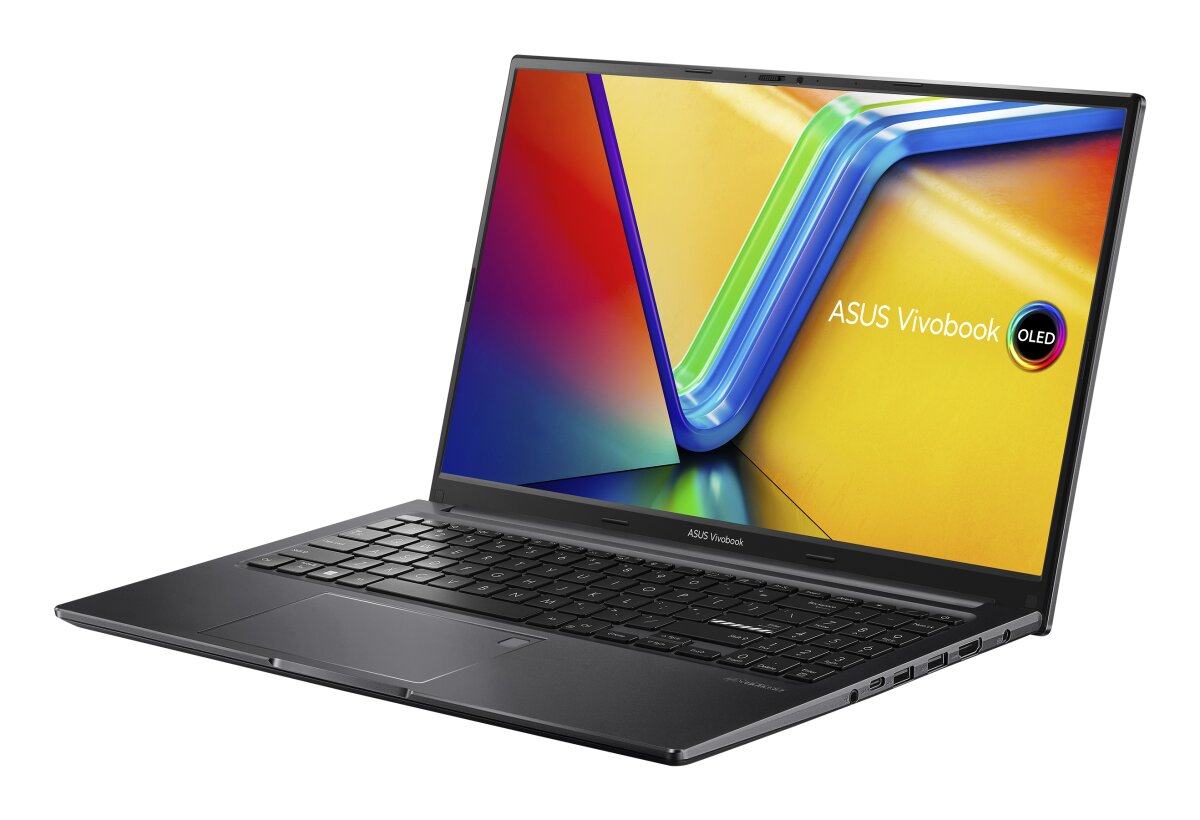

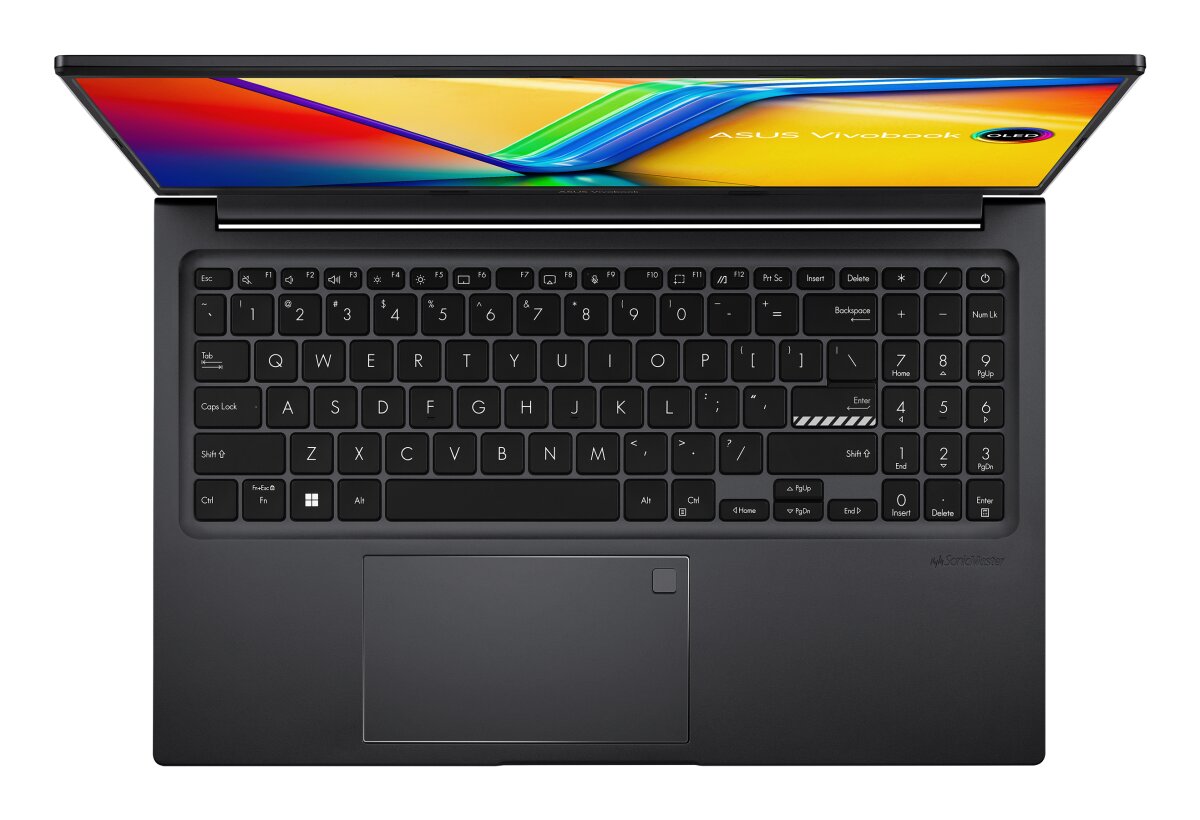

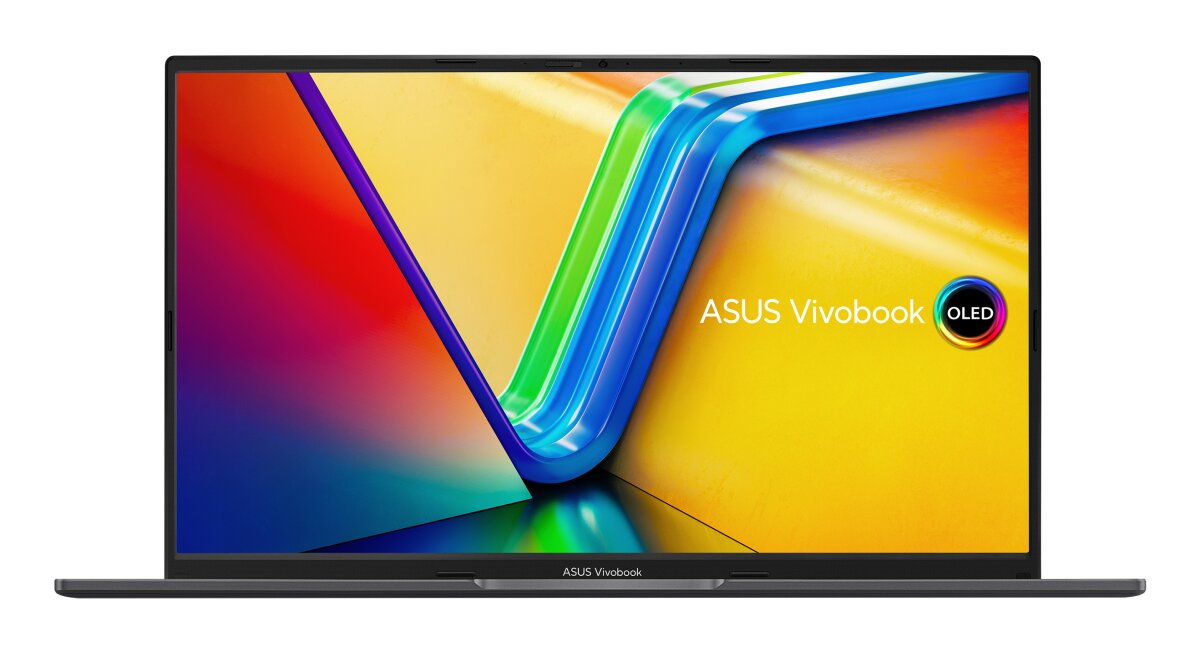

ASUS Vivobook 15 OLED series model D1505YA-L1080W supports DDR4-SDRAM memory upgrades. The laptop contains one SO-DIMM slot for RAM expansion, with maximum compatible capacity of 16 GB. Memory operates at 3200 MHz frequency. The upgrade configuration features on-board memory combined with a single SO-DIMM slot, allowing users to expand the system's total memory capacity through the available upgrade slot.

Memory Upgrade Specifications

SpecificationValue
Memory slots1x SO-DIMM
Form factorOn-board + SO-DIMM
Memory typeDDR4-SDRAM
Frequency3200 MHz
Maximum RAM16 GB
Voltage1.2V
Number of pins260-pin
InterfacePC4
PC Speed RatingPC4-3200 (PC4-25600)
Bandwidth25.6 GB/s

Additional Notes

  • The hybrid memory architecture of the ASUS Vivobook D1505YA-L1080W utilizes a combination of permanent soldered modules and a single expansion slot.
  • Upgrading the hardware requires matching the 3200 MHz frequency of the soldered chips to prevent the system from downclocking to a lower default speed.
  • The presence of only 1 SO-DIMM slot limits future memory expansion to a single module swap rather than adding a second identical stick.
  • Capacity increases must account for the fixed portion of integrated memory to ensure the total does not exceed the 16 GB motherboard address limit.
  • Asymmetrical memory configurations between the integrated chips and the removable module may cause the system to operate in flex mode instead of full dual-channel mode.
  • Internal component access for memory installation necessitates the removal of the entire chassis base plate which involves releasing plastic clips and several screws.
  • System thermal management and battery efficiency remain optimized when utilizing DDR4-SDRAM modules that specify 1.2V operation.
