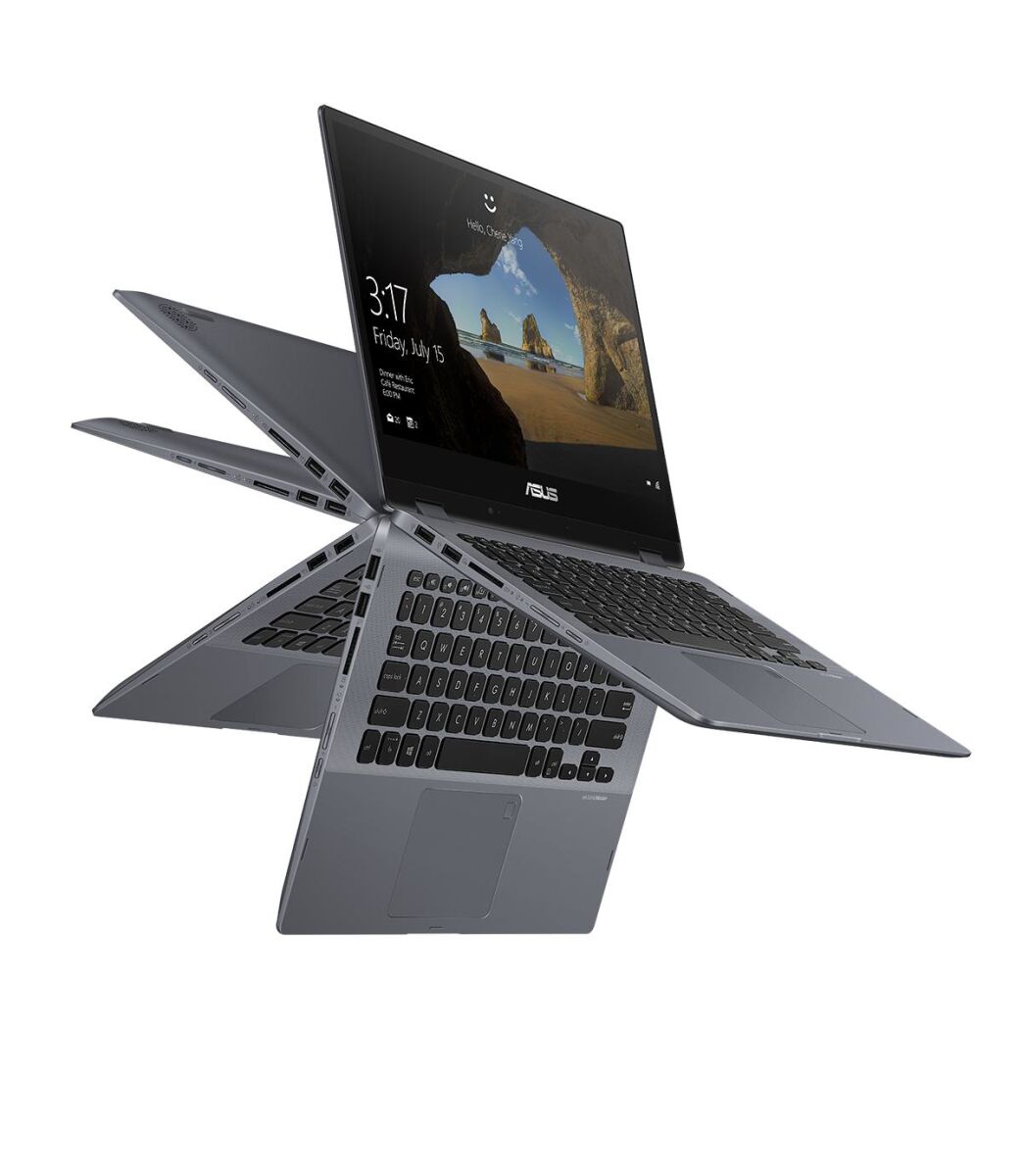

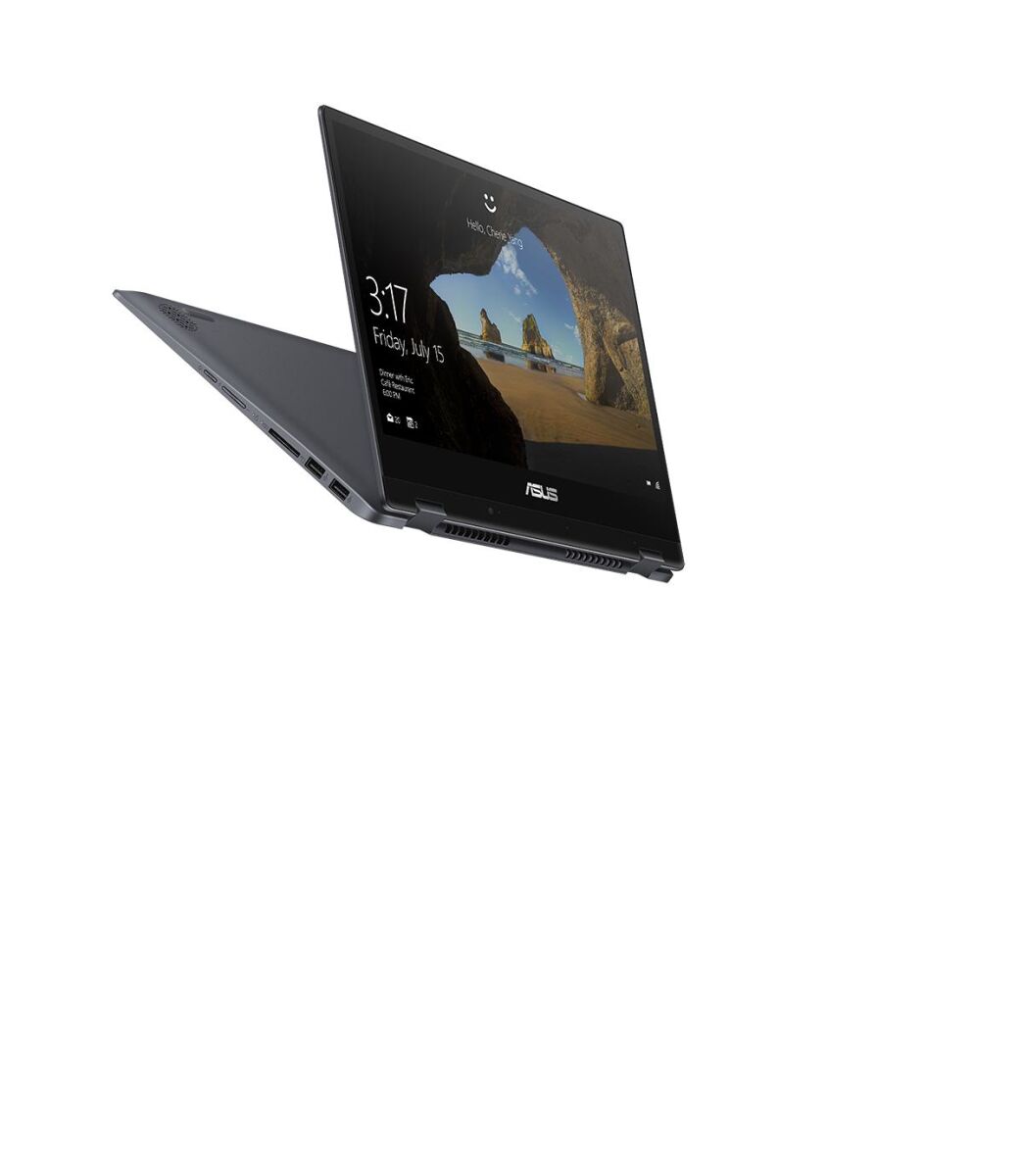

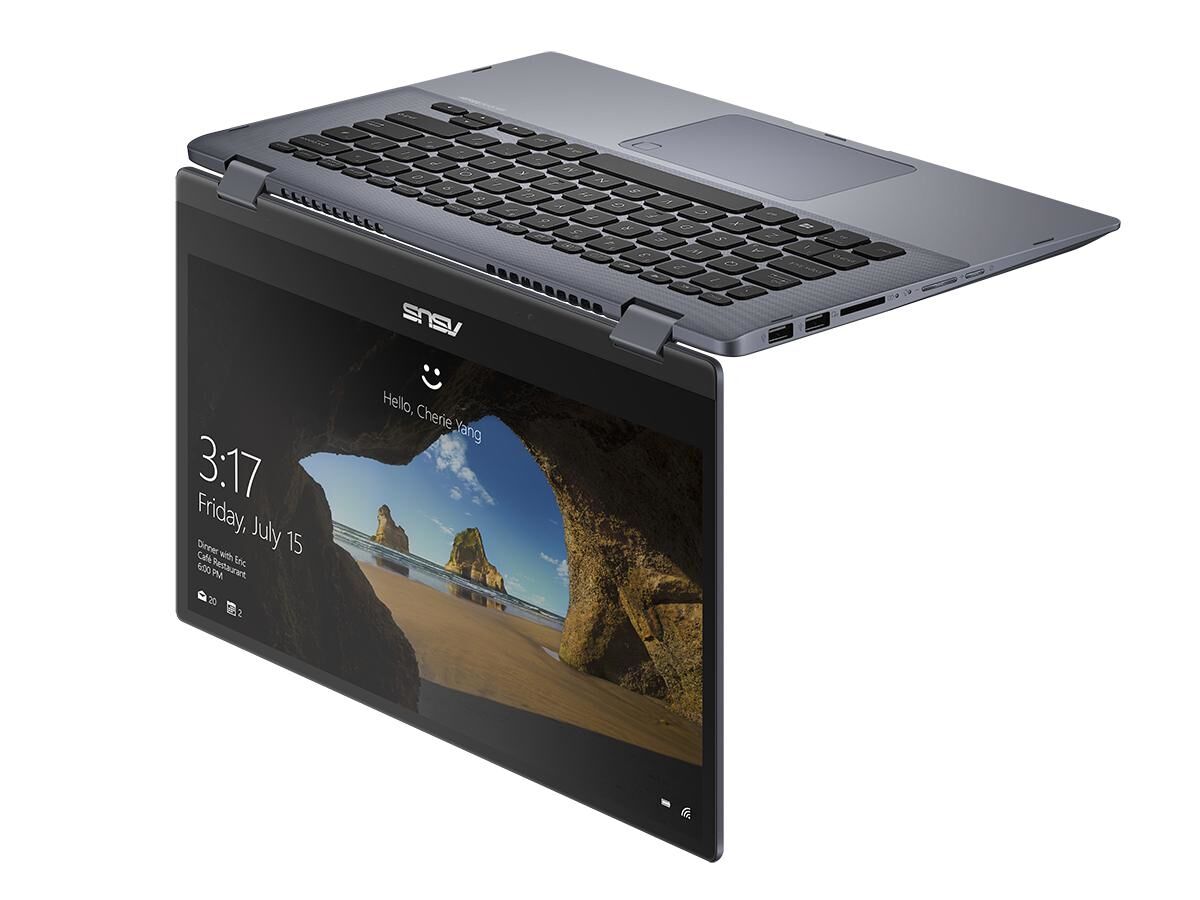

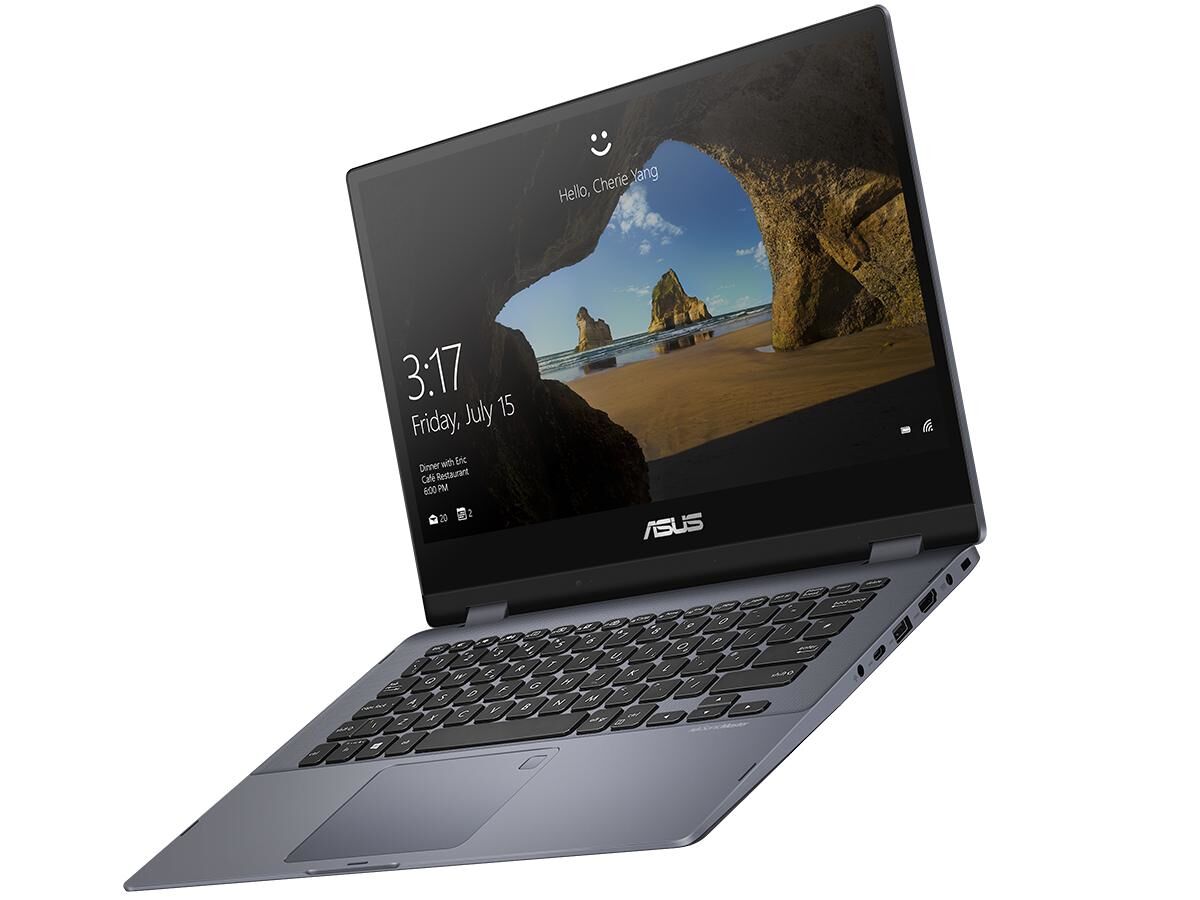

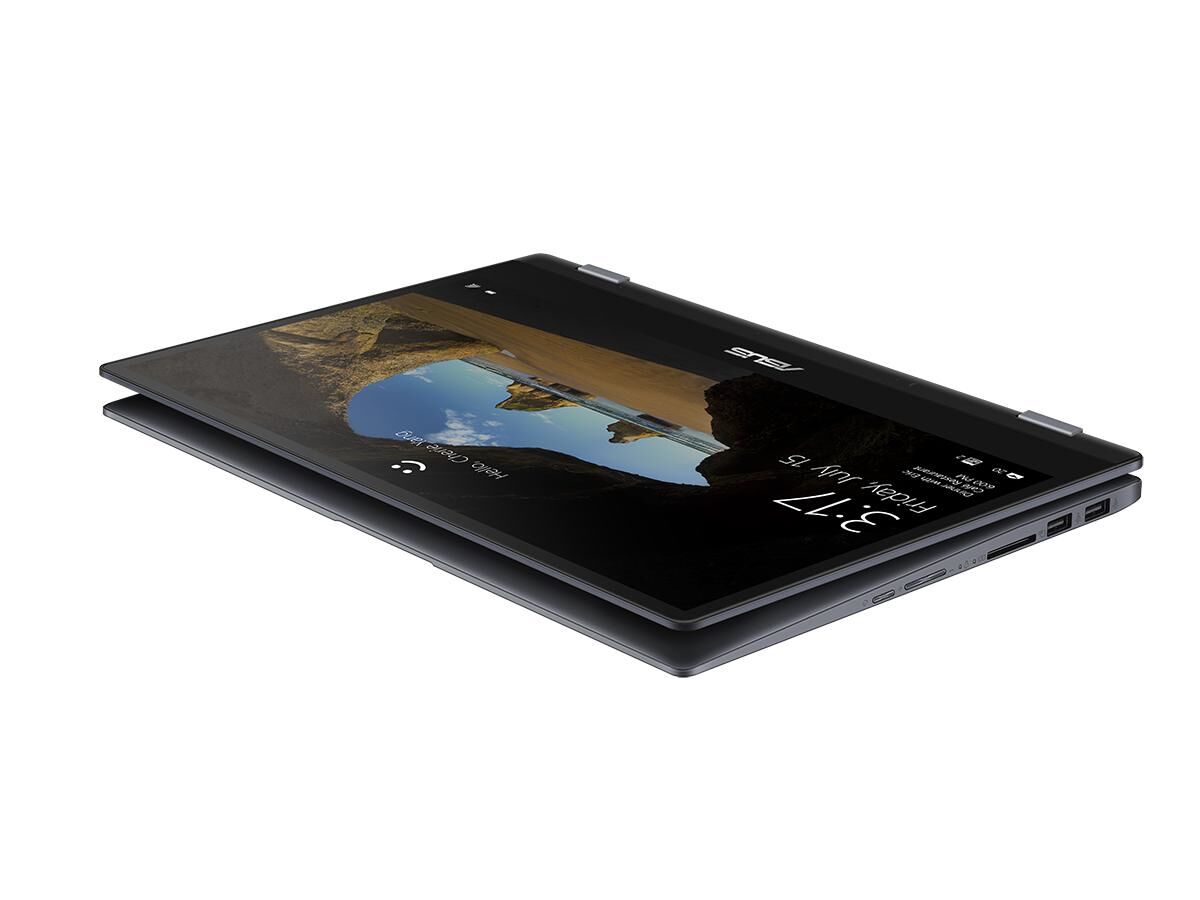

ASUS Vivobook TP412FA-EC148T-BE RAM upgrade specifications
The ASUS Vivobook 15 Series TP412FA-EC148T-BE laptop features DDR4-SDRAM memory specifications. The device contains one SO-DIMM slot for RAM upgrades, with a maximum memory capacity of 16 GB. The memory operates at 2400 MHz frequency. The upgrade configuration includes on-board memory combined with the SO-DIMM slot, providing flexibility for memory expansion. Compatible DDR4-SDRAM modules can be installed in the available slot to increase system RAM capacity up to the maximum supported specifications.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 1x SO-DIMM |
| Form factor | On-board + SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2400 MHz |
| Maximum RAM | 16 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2400 (PC4-19200) |
| Bandwidth | 19.2 GB/s |
| Laptop Release date | 25 April 2019 |
Additional Notes
- The presence of on board memory indicates that a portion of the system RAM is permanently soldered to the motherboard and cannot be replaced or upgraded.
- System memory operates in an asymmetrical dual channel configuration when the capacity of the added module differs from the soldered capacity.
- Memory bandwidth is limited to the lower frequency of either the soldered chips or the installed module if a higher speed component is inserted.
- The single available expansion slot in the ASUS Vivobook TP412FA-EC148T-BE necessitates the removal of any existing module to reach the maximum supported capacity.
- Installation of a module exceeding 16 GB total system capacity risks boot failure or unstable system behavior due to chipset addressing limitations.
- Thermal constraints of the thin chassis design suggest that high voltage memory modules may lead to increased heat accumulation during heavy workloads.
- Hardware access requires the removal of the entire base panel which may involve hidden screws beneath rubber feet.
