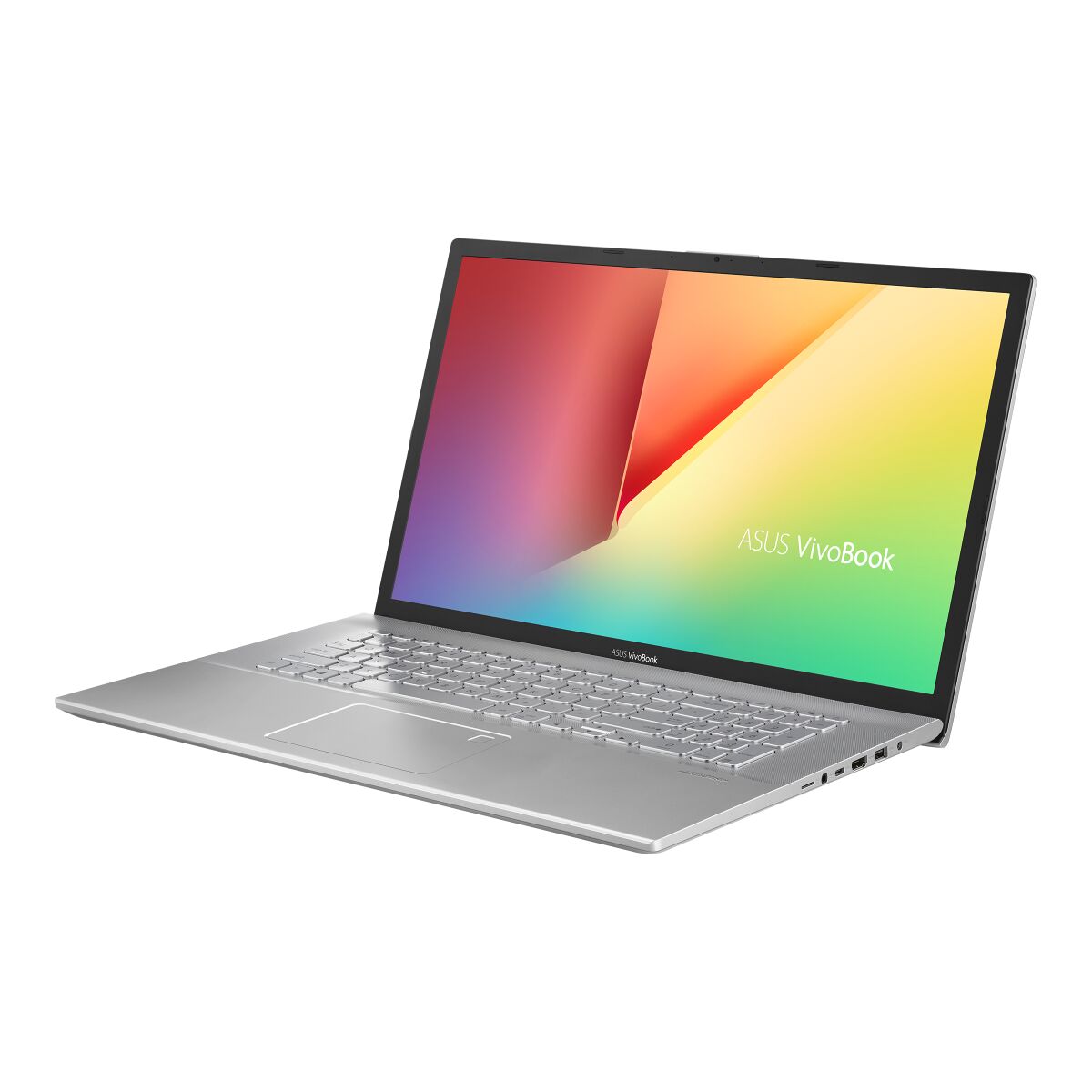

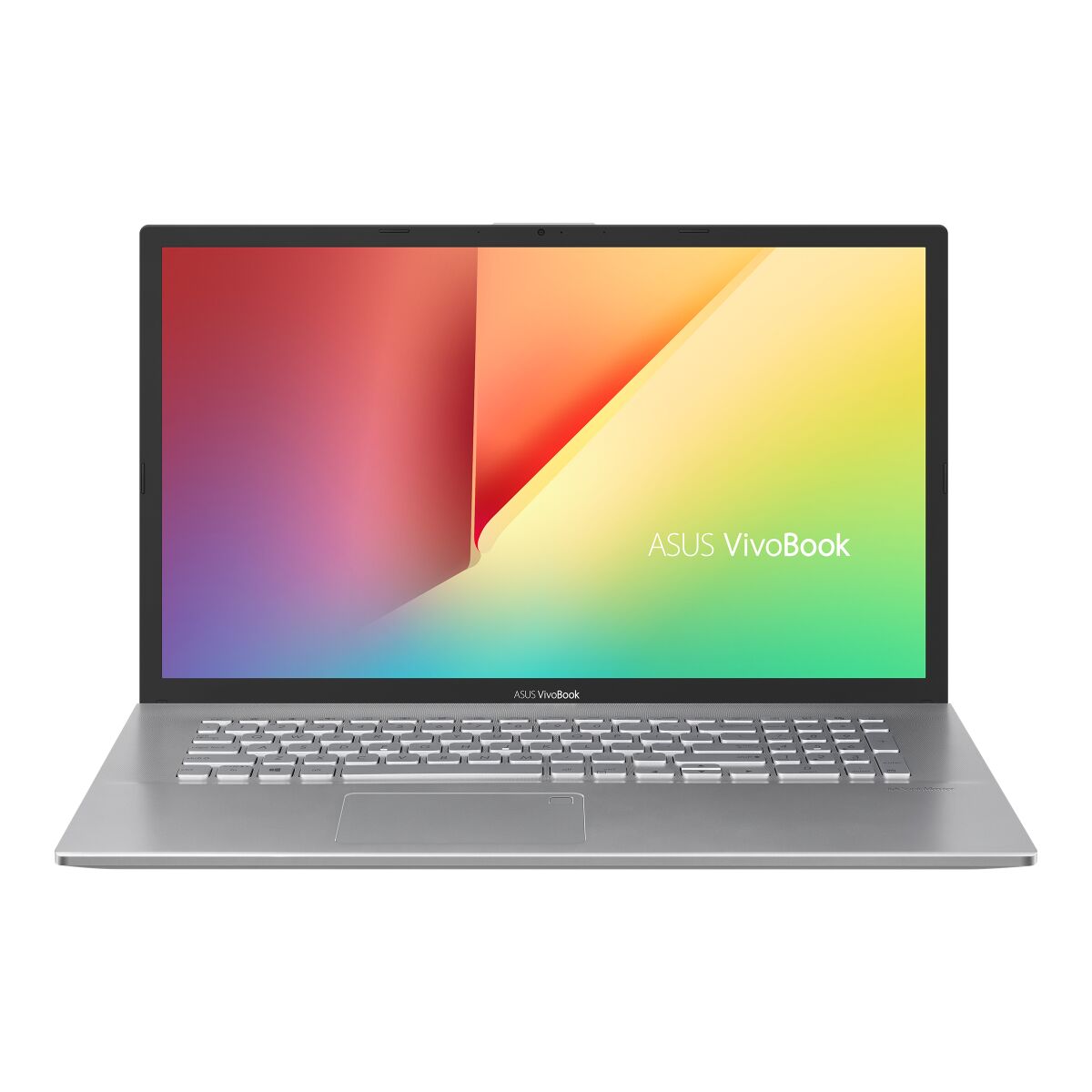

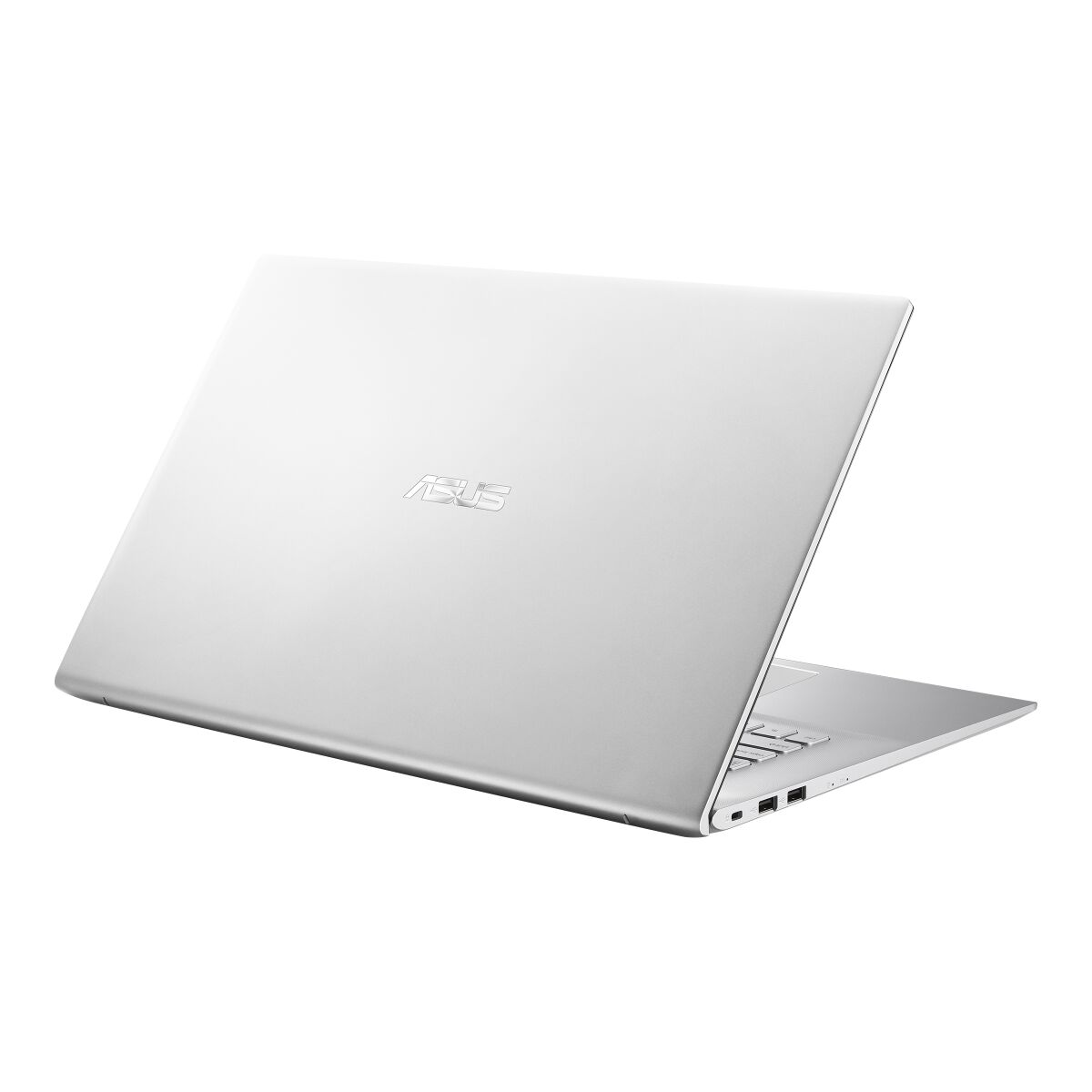

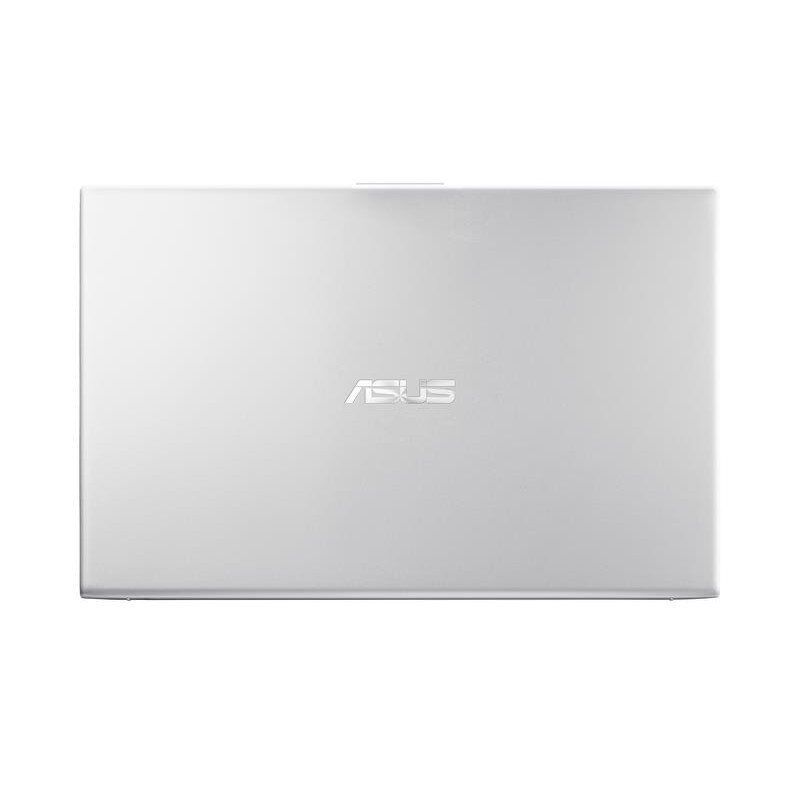

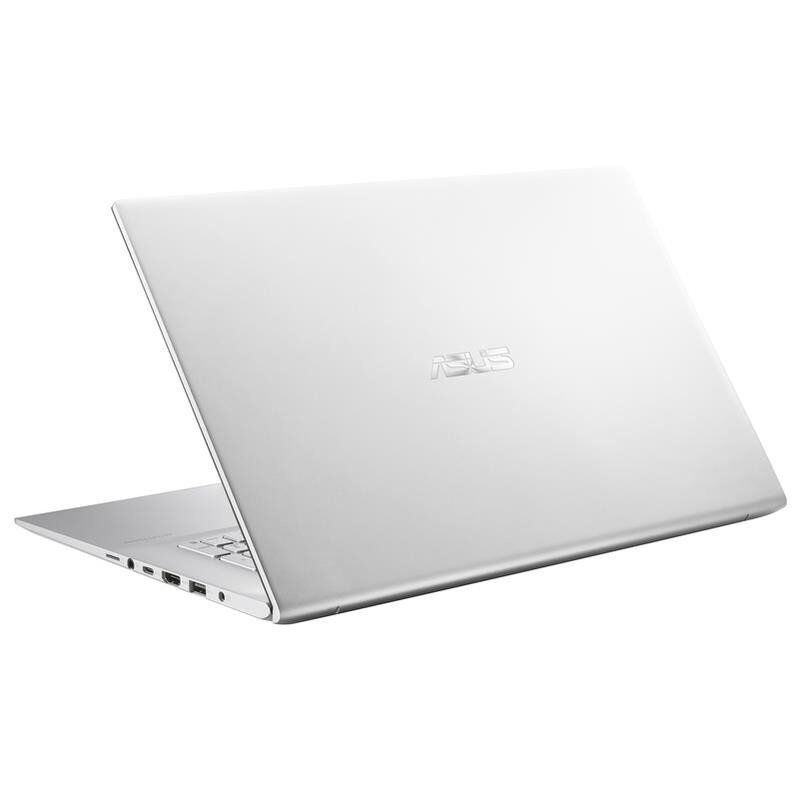

ASUS Vivobook X712FB-BX456T RAM upgrade specifications

ASUS Vivobook Series 17 model X712FB-BX456T contains one SO-DIMM memory slot for RAM upgrade capabilities. The laptop features DDR4-SDRAM memory operating at 2400 MHz frequency. Maximum RAM capacity reaches 16 GB through upgrade configuration. Memory specifications include on-board DDR4 combined with one replaceable SO-DIMM slot. Compatible memory modules must meet DDR4-SDRAM standards at specified frequency for proper operation. Upgrade slots accommodate standard laptop memory formats. The specifications detail maximum supported memory capacity and compatible memory type for the X712FB-BX456T model.

Additional Notes

• The presence of a single SO-DIMM slot alongside permanent on-board memory creates an asymmetrical dual-channel configuration if the module capacity differs from the soldered amount.
• Total memory expansion is strictly limited by the hard-coded BIOS threshold and the fixed capacity of the non-replaceable factory chips.
• Internal bandwidth relies on the lowest common frequency between the soldered module and the expansion card which restricts high-speed performance to the base clock of 2400 MHz.
• Upgrading the ASUS Vivobook X712FB-BX456T requires manual removal of the chassis base panel which exposes internal components directly to electrostatic discharge risks during the installation process.
• Latency timings will synchronize to the slowest installed memory bank to maintain system stability across the mixed hardware environment.
• The hardware architecture prevents a full memory replacement which means that any failure in the on-board memory chips necessitates a complete motherboard replacement rather than a modular swap.
• Physical installation of a new module must conform to the 260-pin SO-DIMM standard to ensure correct electrical contact and mechanical fit within the lateral retention clips.
